Toyota HILUX 挡风玻璃清洗器 — Figure 8503

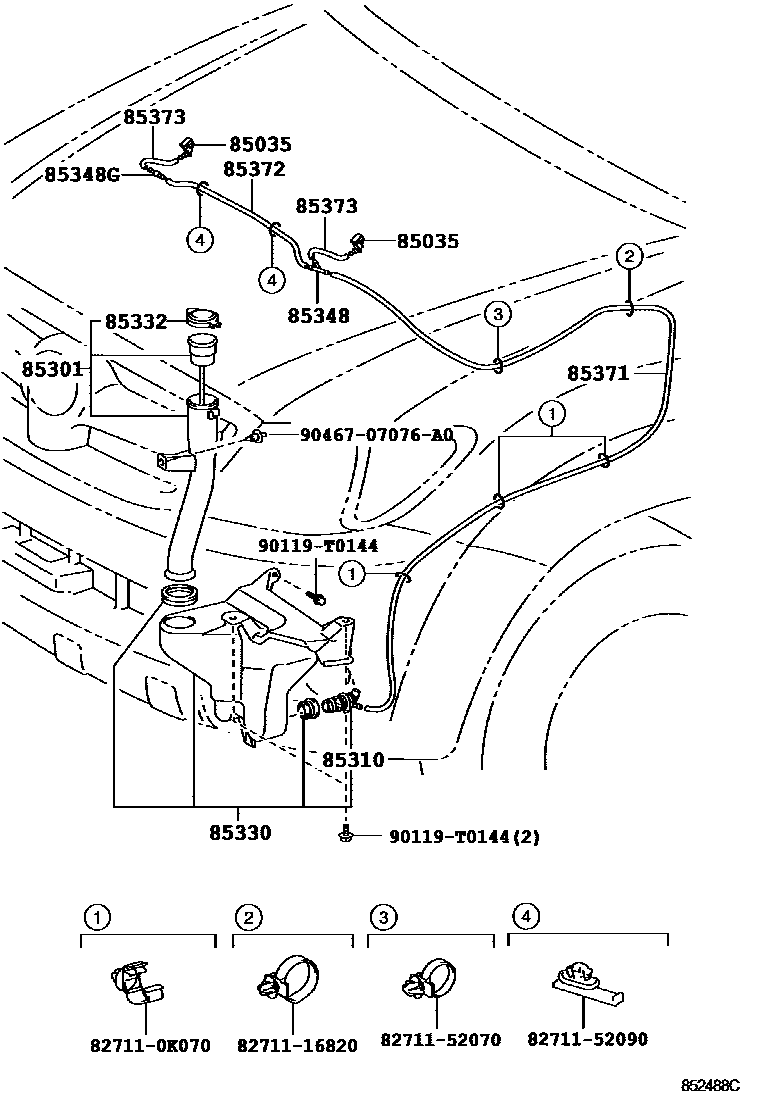

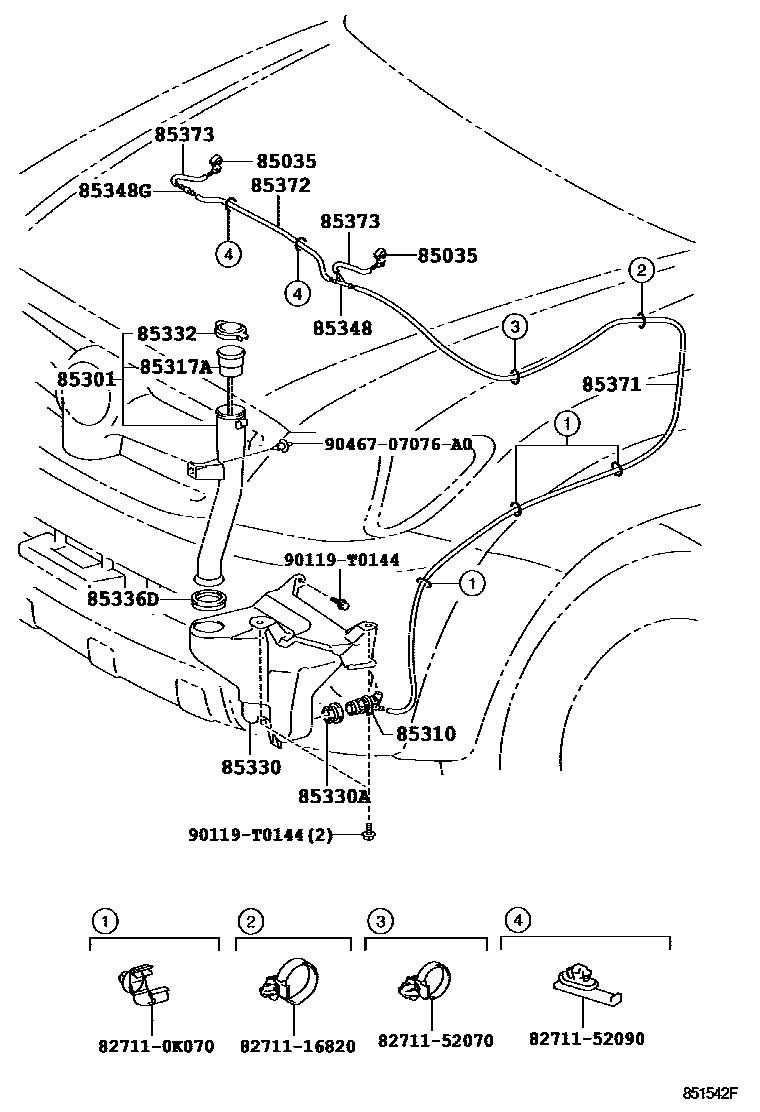

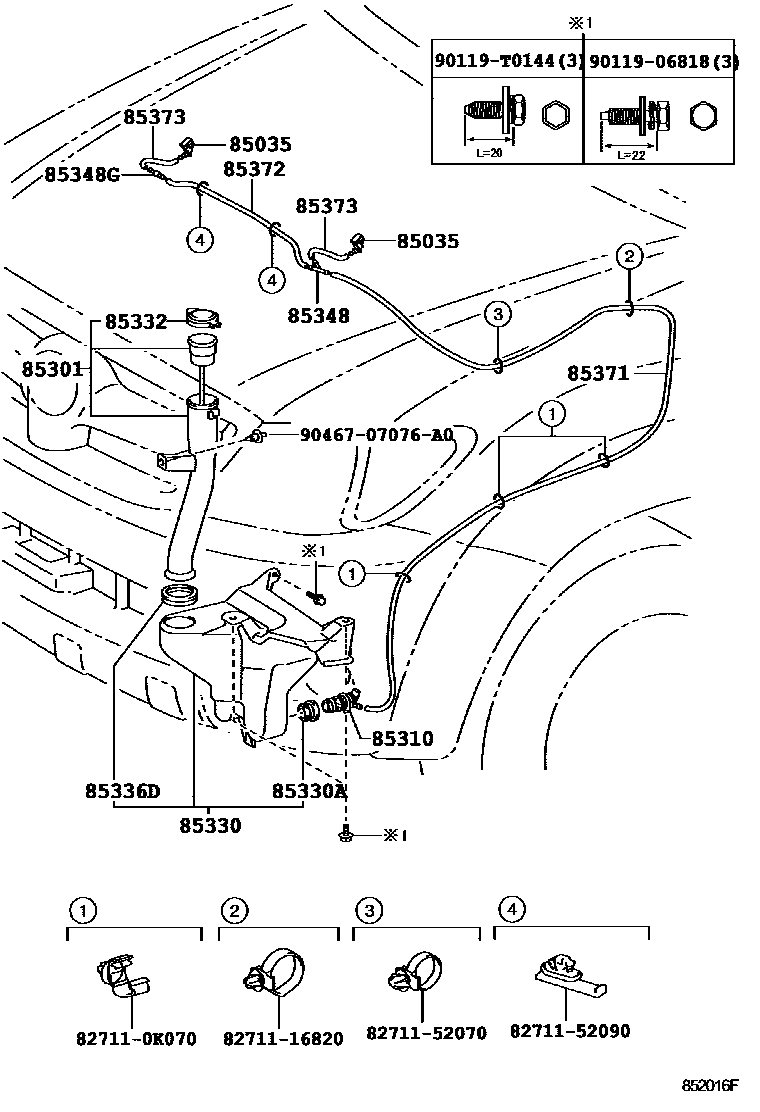

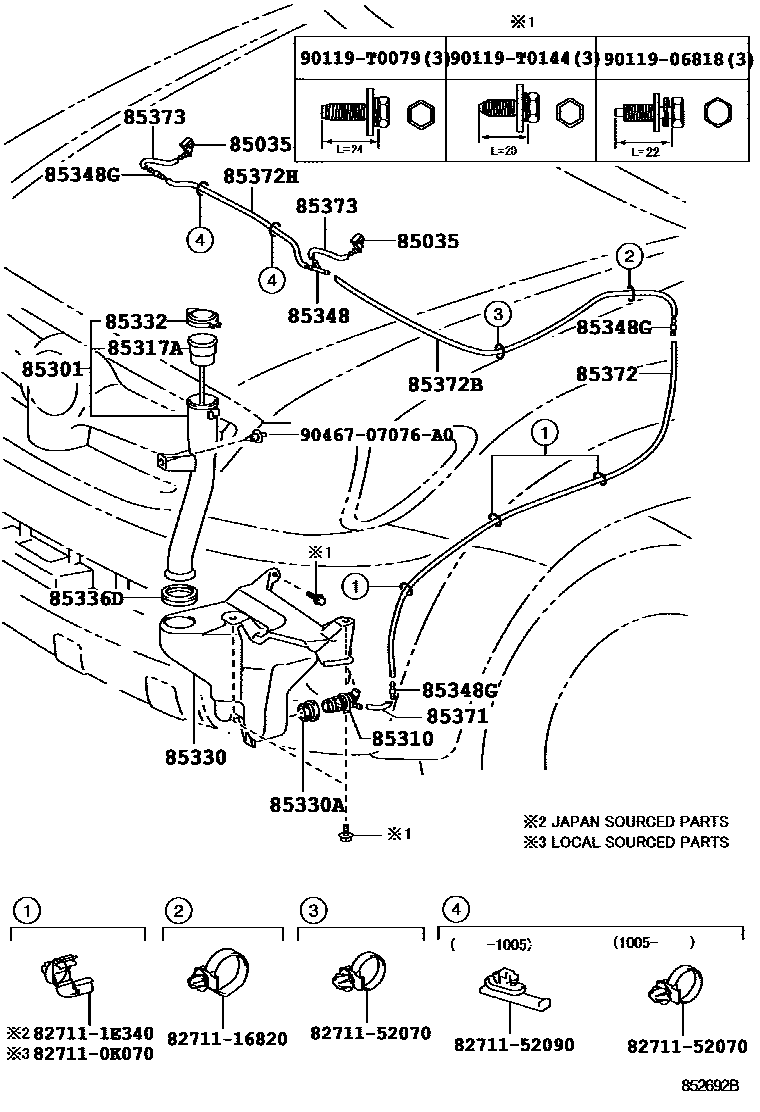

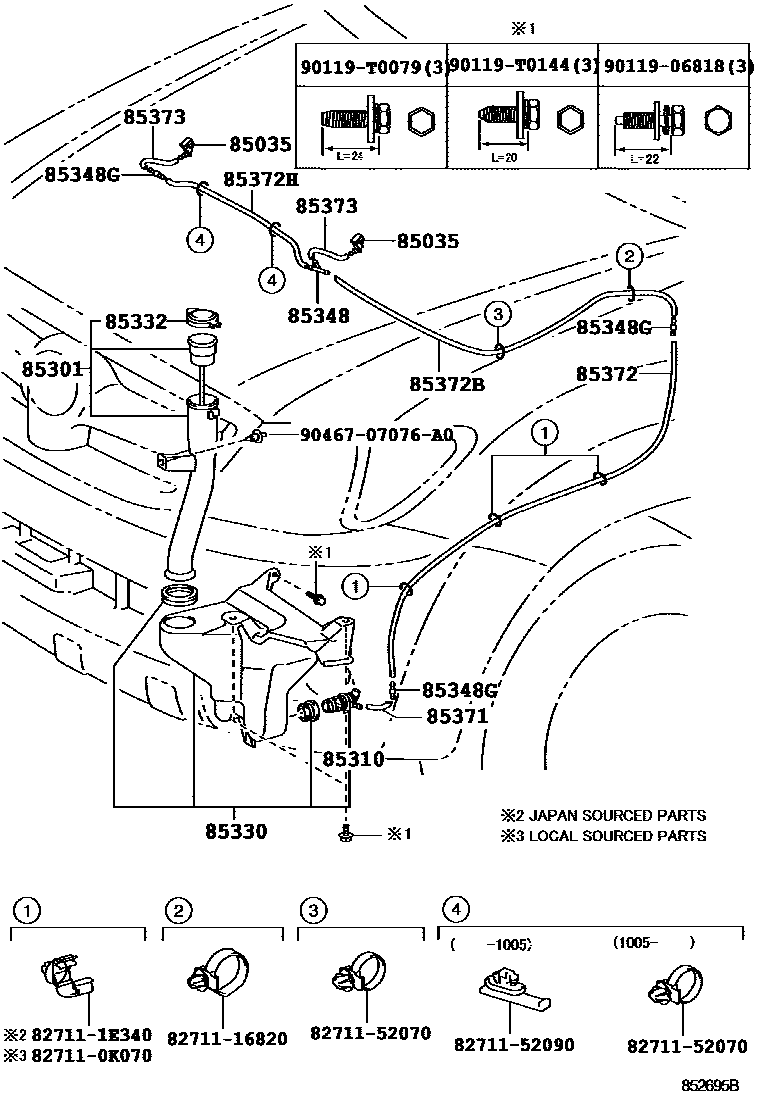

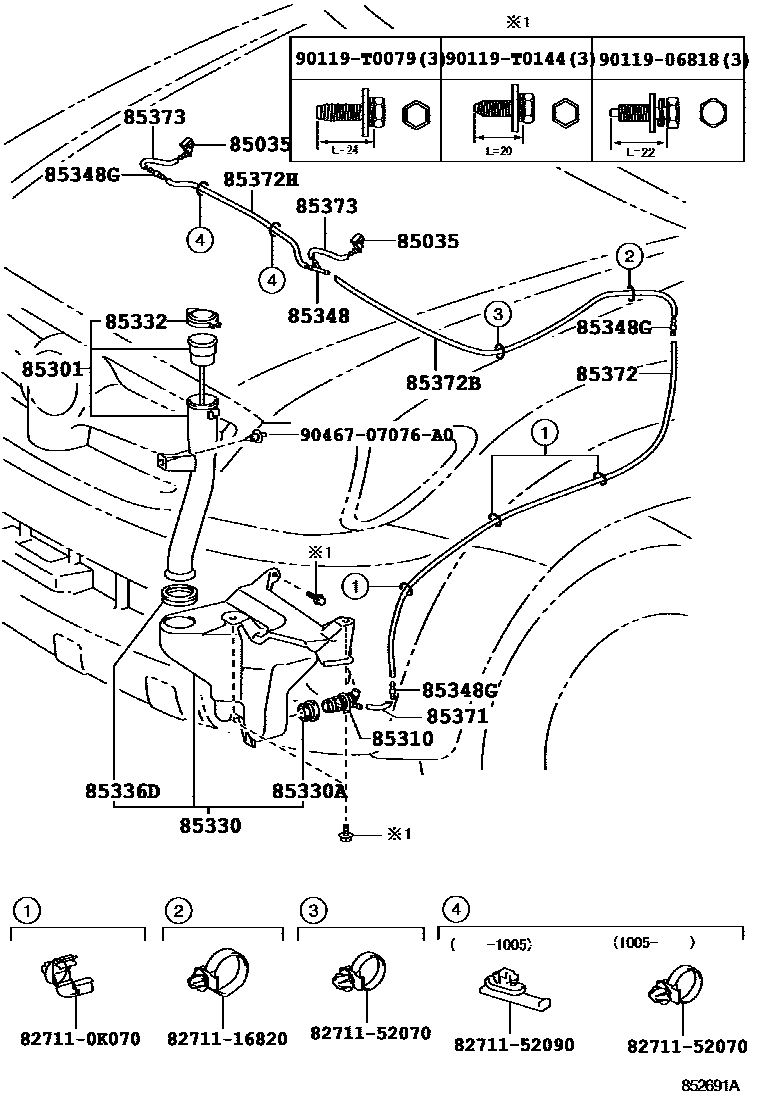

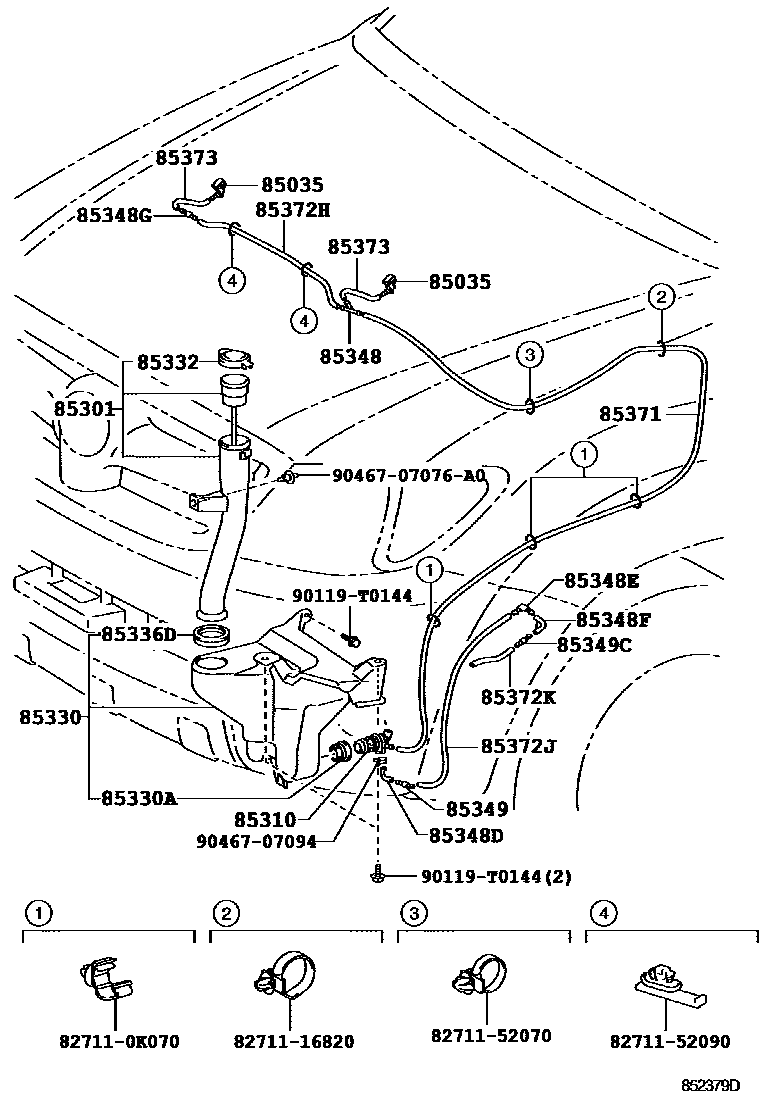

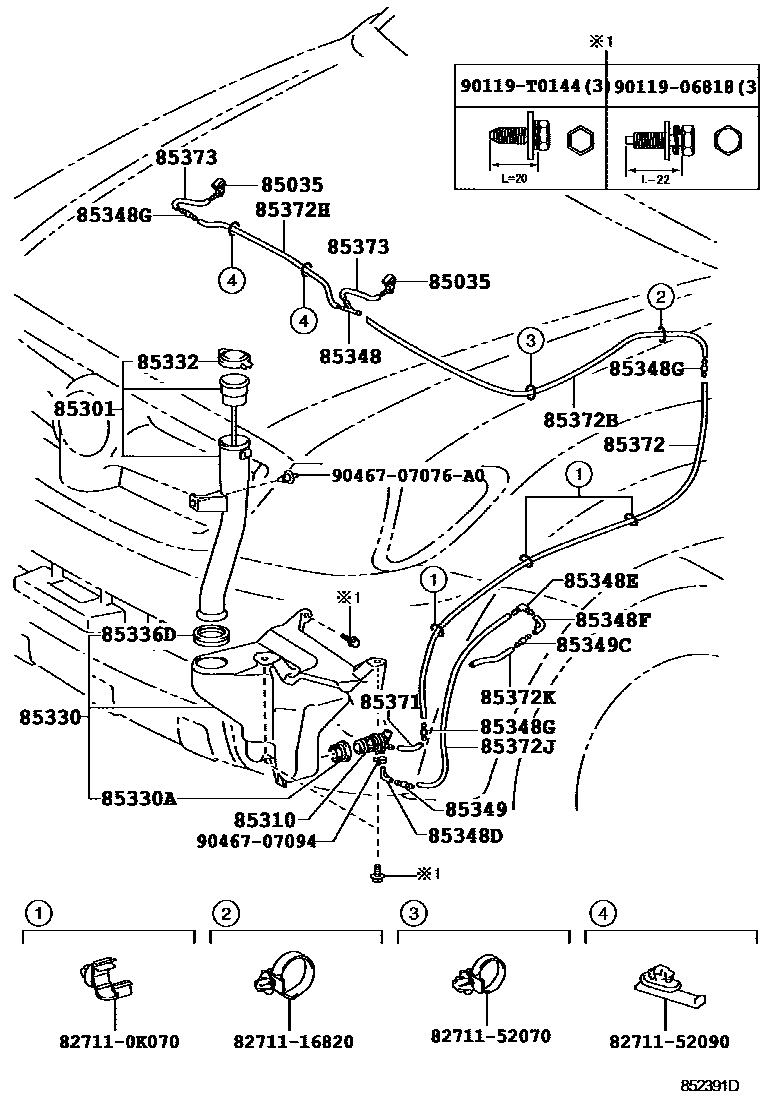

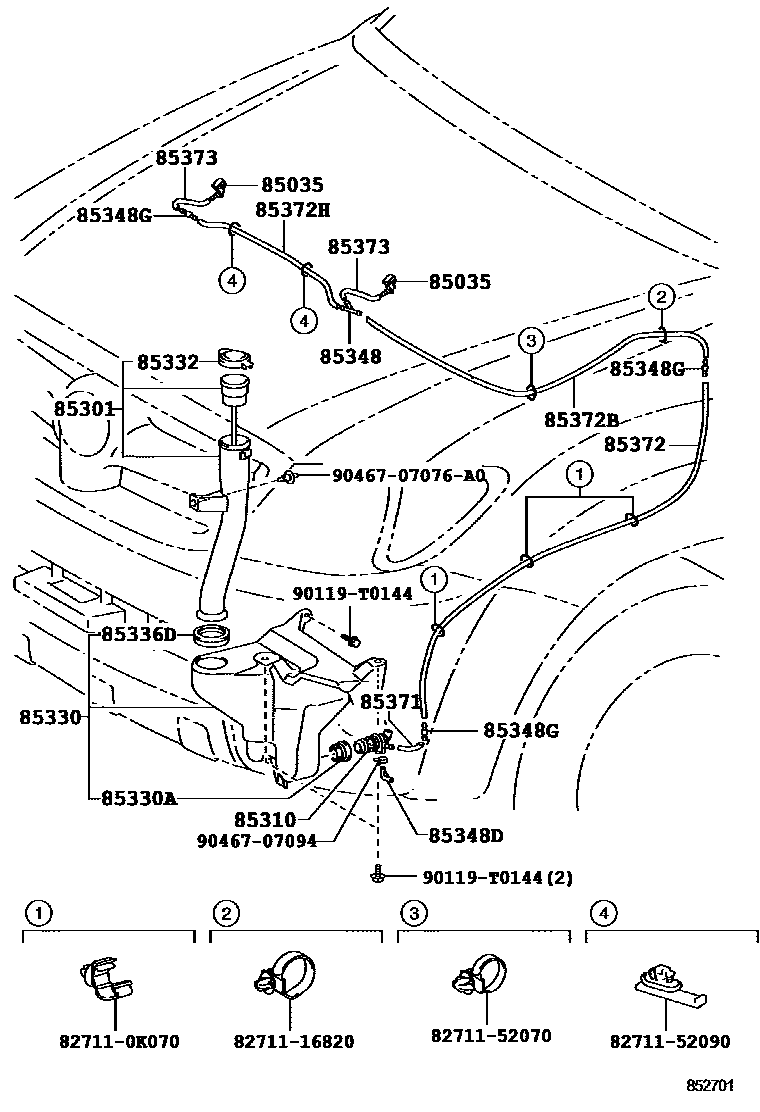

Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 9 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-0K010 |
| 85301 | Cleaner water inlet sub-assembly | 85301-0K010 · 85301-0K060 · 85301-0K061 · 85301-0K070 · 85301-0K071 · 85301-0K150 |
| 85310 | Windshield washer motor and pump assembly | 85330-0D100 · 85330-21010 · 85330-71020 |
| 85317A | Cleaner water tank connector | 85318-0K060 |
| 85330 | Windshield washer fluid tank assembly | 85310-0K170 · 85310-0K200 · 85315-0K010 · 85315-0K030 · 85315-0K140 |
| 85330A | Windshield washer fluid tank bushing | 85336-0K020 · 85336-0K140 · 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85316-0K010 · 85386-0K060 · 85386-0K070 |
| 85336D | Windshield washer fluid tank seal | 85336-0K010 · 85336-0K030 · 85336-42190 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85378-0K051 |
| 85348D | No. 1 windshield washer elbow joint | 85317-0K190 |
| 85348E | No. 2 windshield washer elbow joint | 85377-0D040 |
| 85348F | No. 3 windshield washer elbow joint | 85377-0D081 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 · 85375-02330 |
| 85349 | Windshield washer hose connector No. 1 | 85375-02330 |
| 85349C | No. 4 windshield washer elbow joint | 85375-02330 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33019 · 90068-33108 · 90068-33158 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-59091 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33134 · 90068-33159 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-33106 · 90068-33157 |
| 85372J | No. 4 windshield washer hose (from connector to connector) | 90068-59090 |
| 85372K | No. 5 windshield washer hose (from connector to connector) | 90068-33126 |
