Toyota HILUX 超速档和电子控制变速器 — Figure 8410

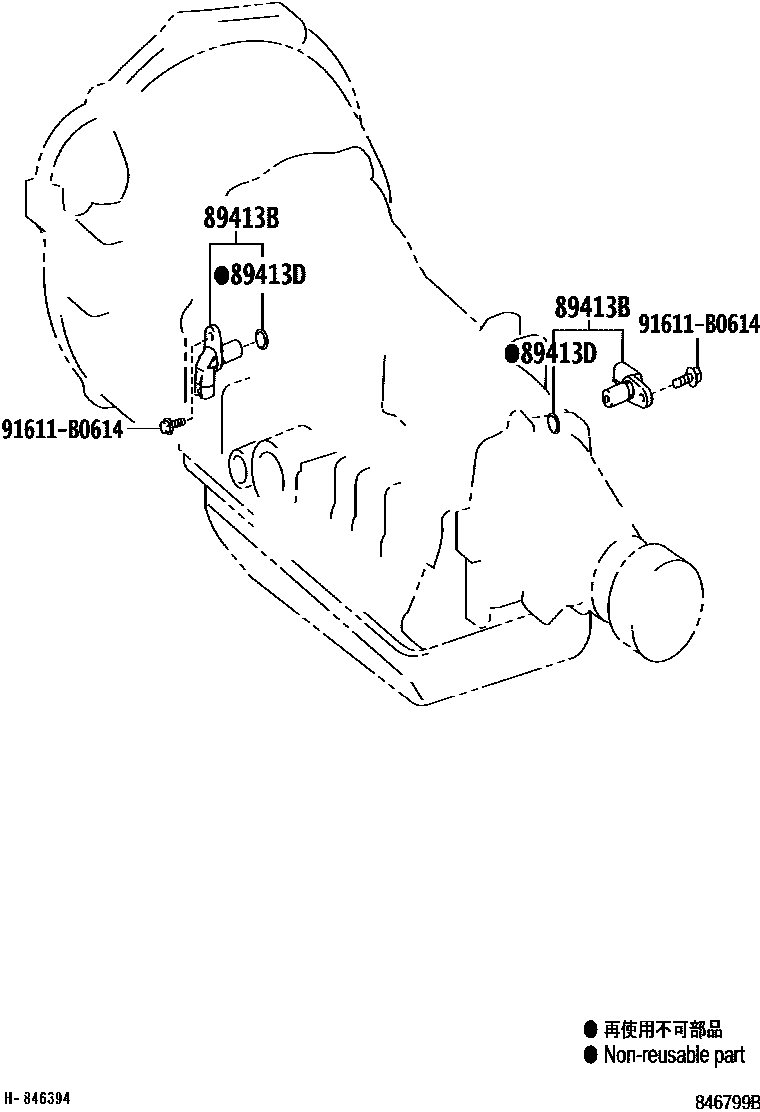

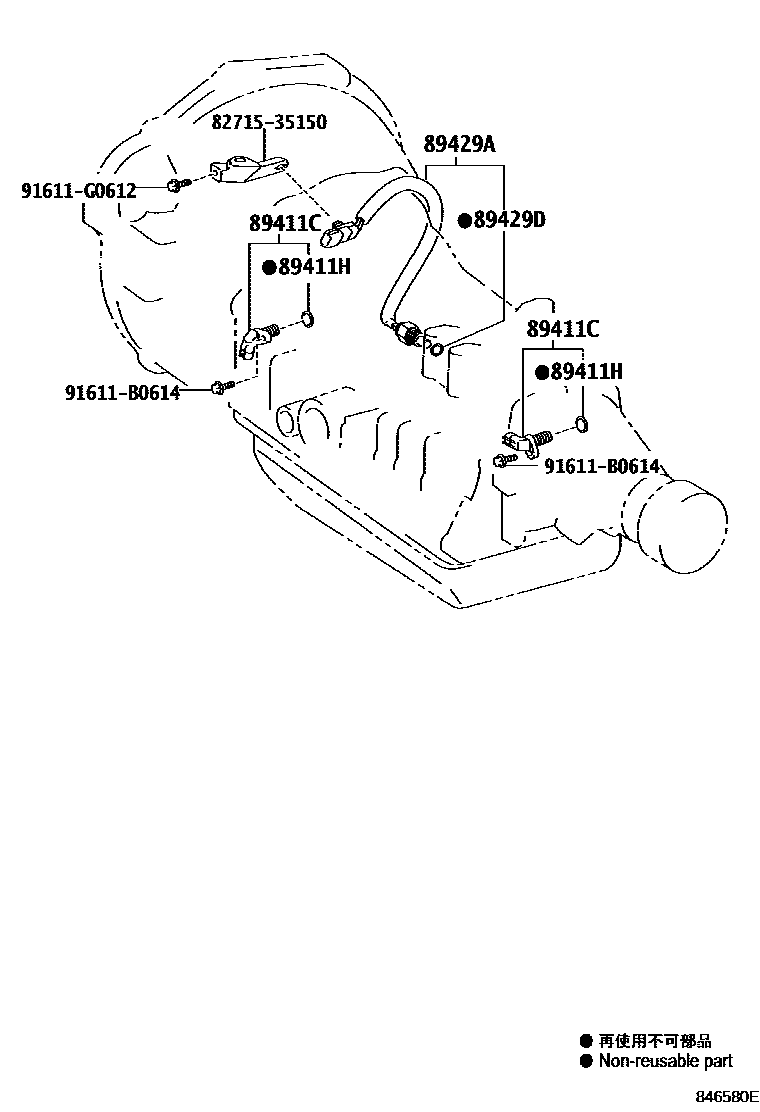

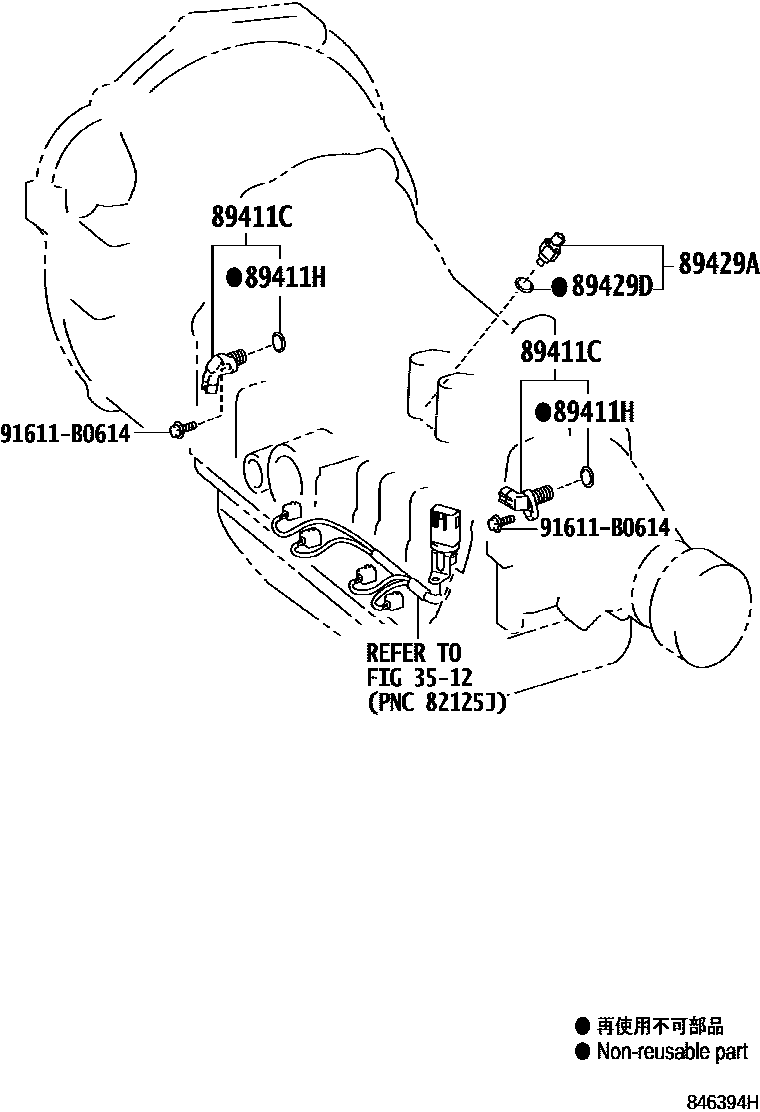

Toyota HILUX EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89411C | Speed sensor | 89411-50010 |
| 89411H | O-ring | 90301-11008 |
| 89413B | Transmission speed sensor | 89413-32010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
| 89429A | temperature sensor | 89429-34010 · 89429-35090 |
| 89429D | O-ring (for temperature sensor) | 90301-11006 |
