Toyota HILUX 燃油箱和燃油管 — Figure 7751

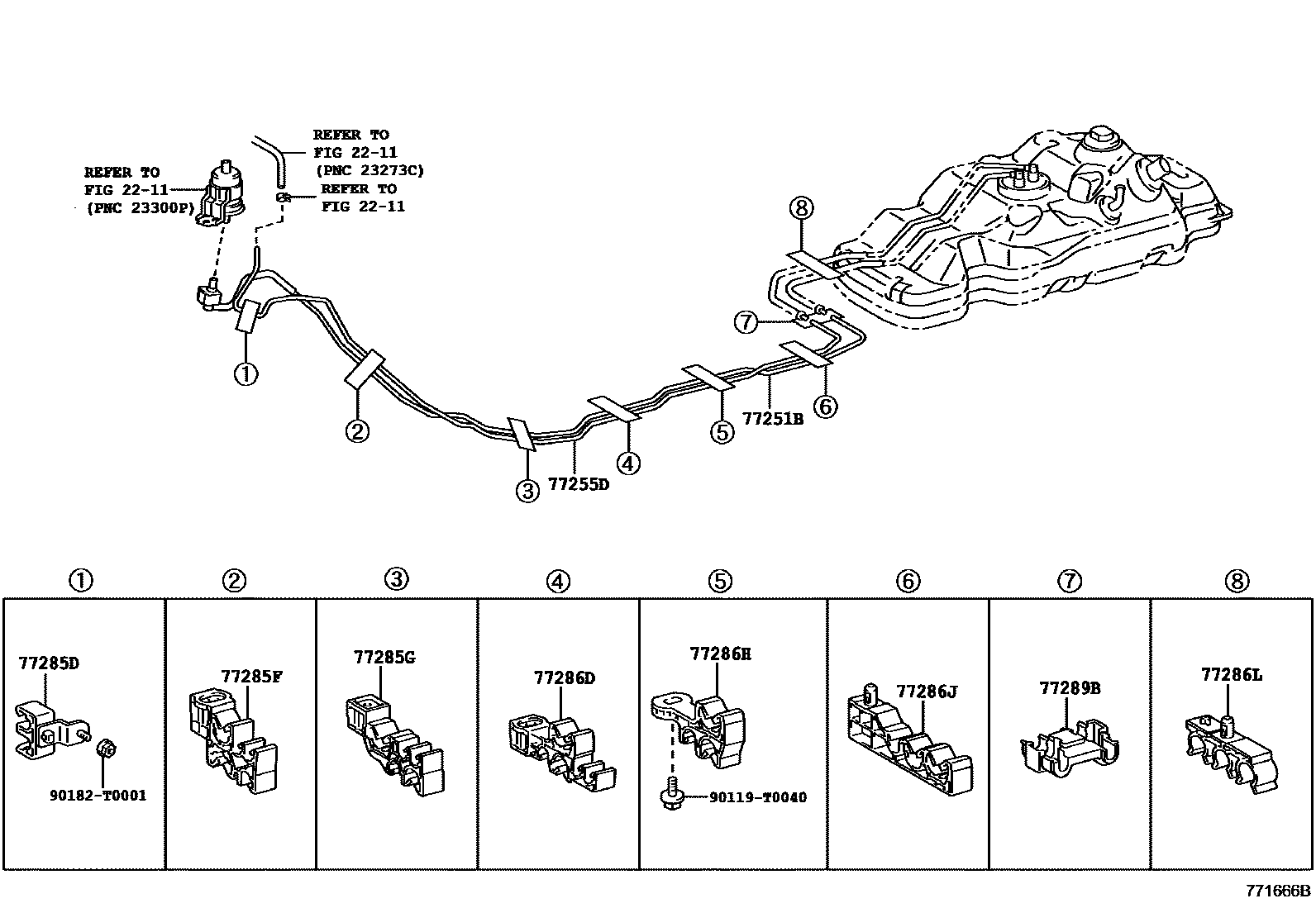

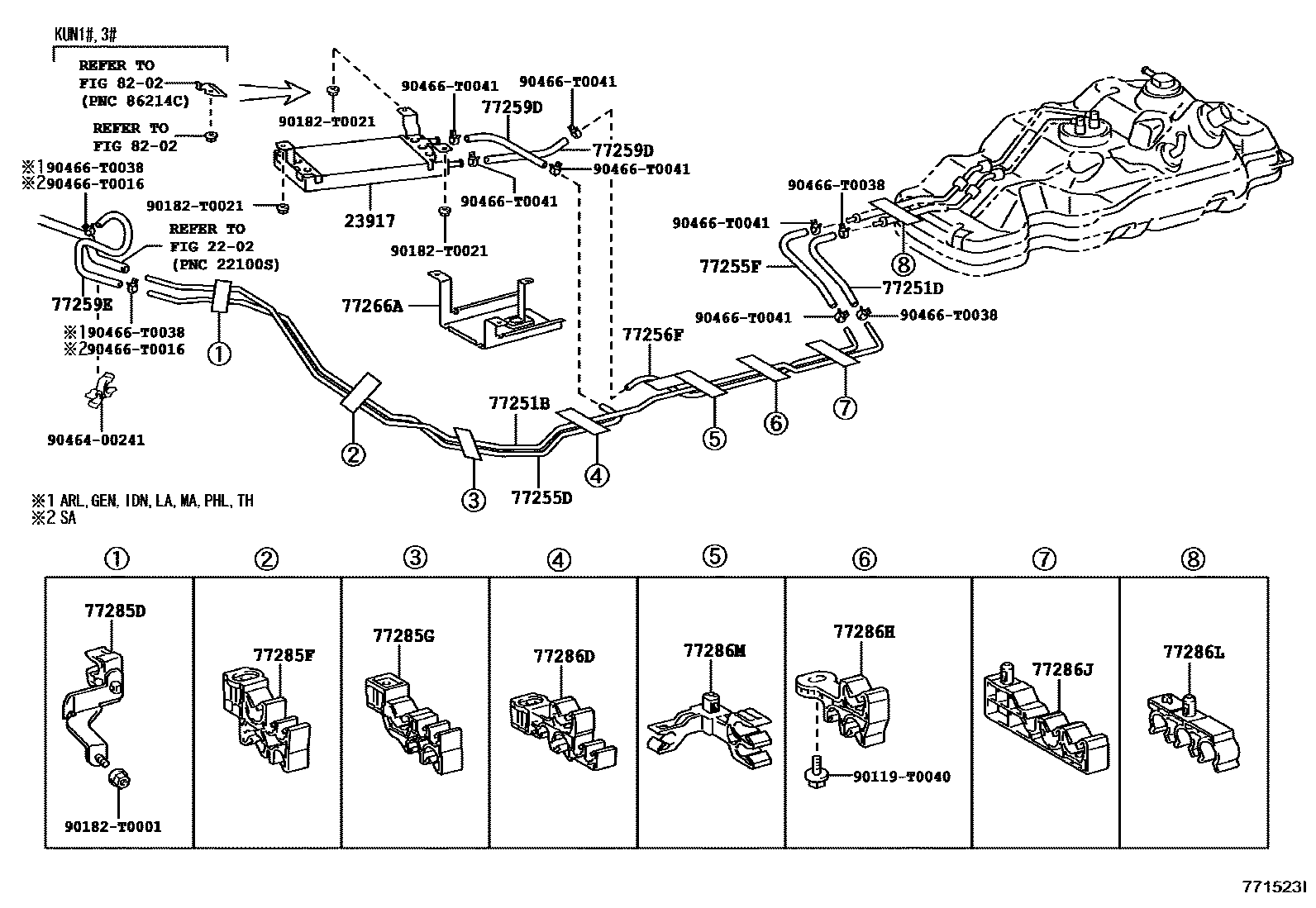

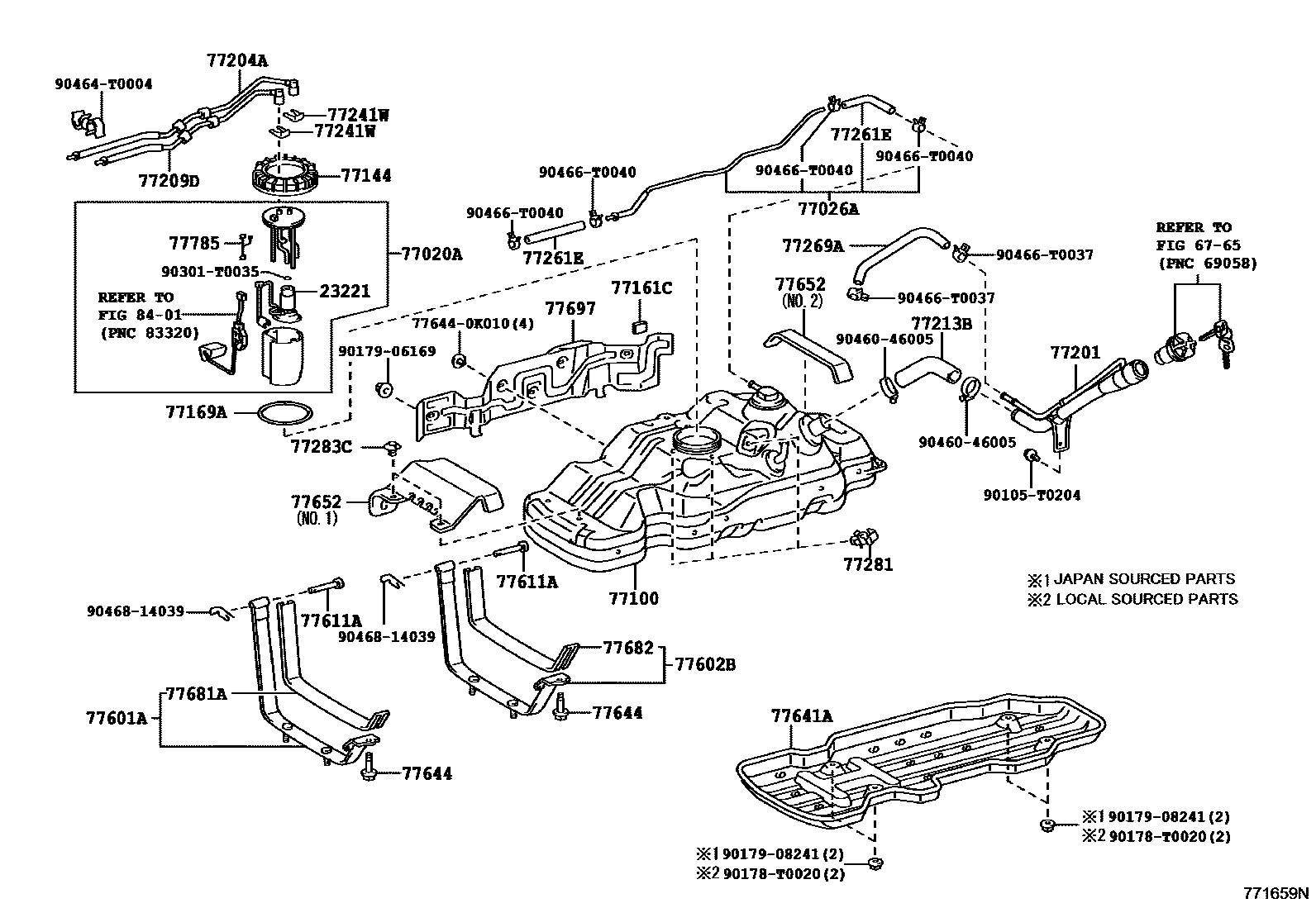

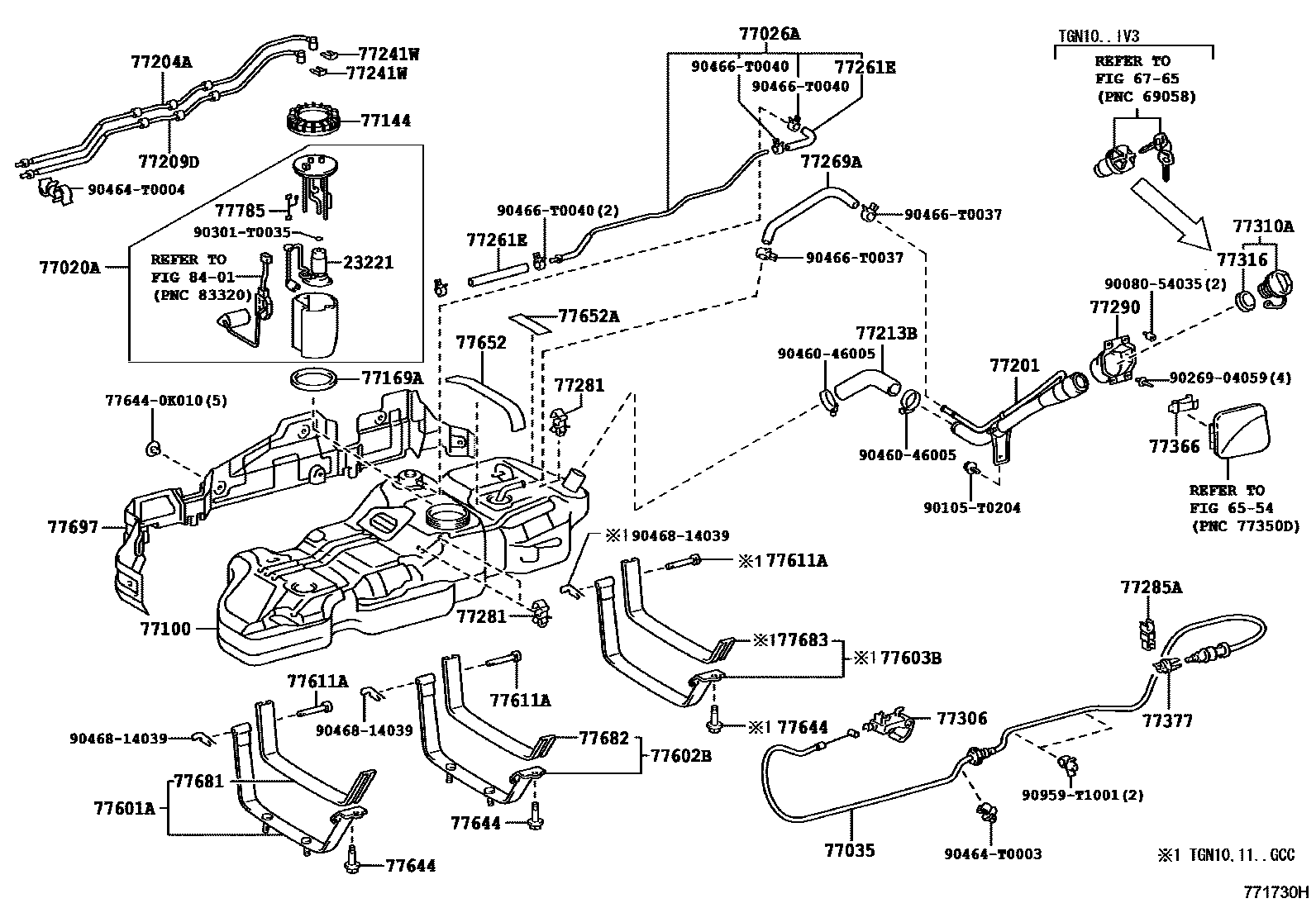

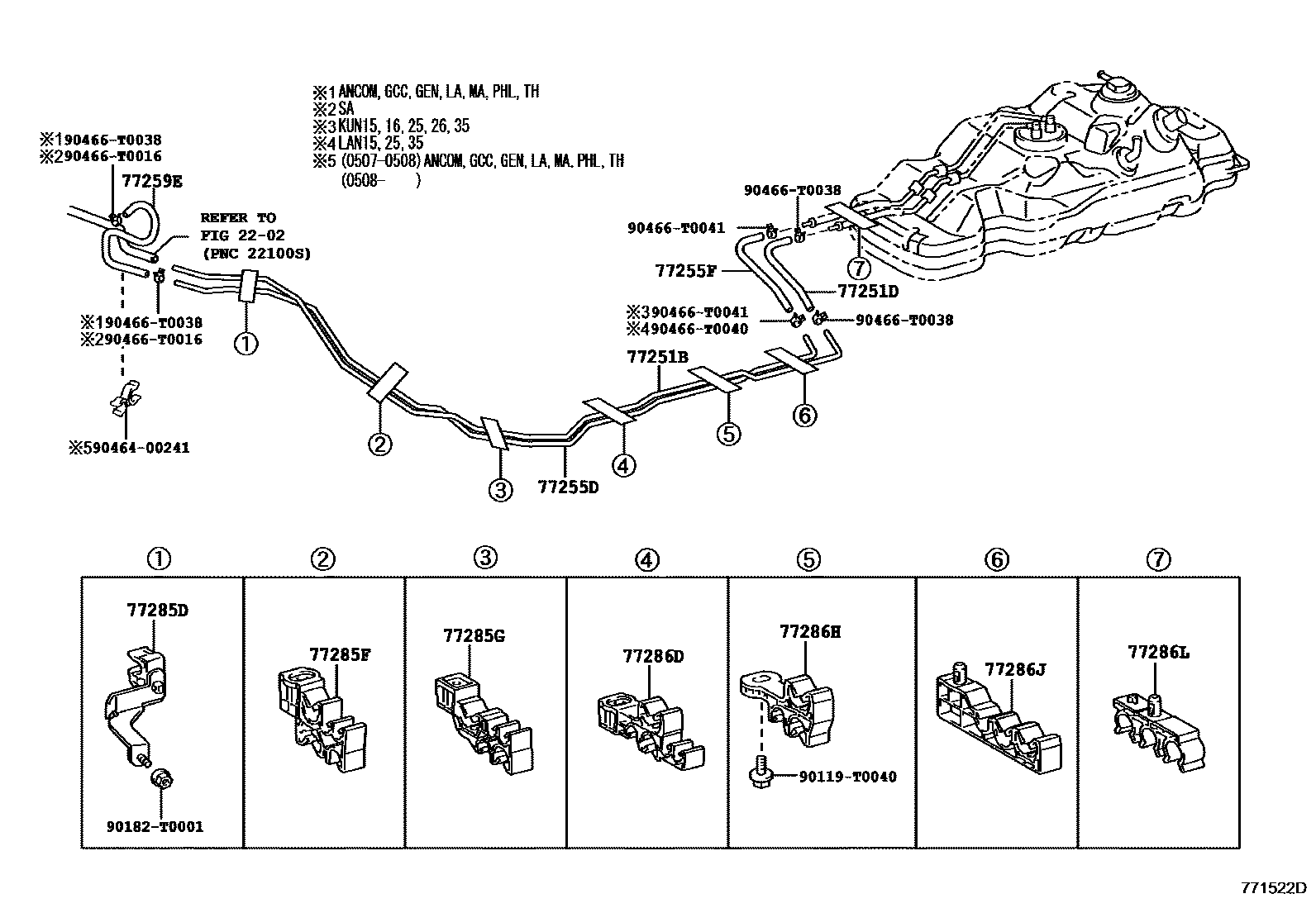

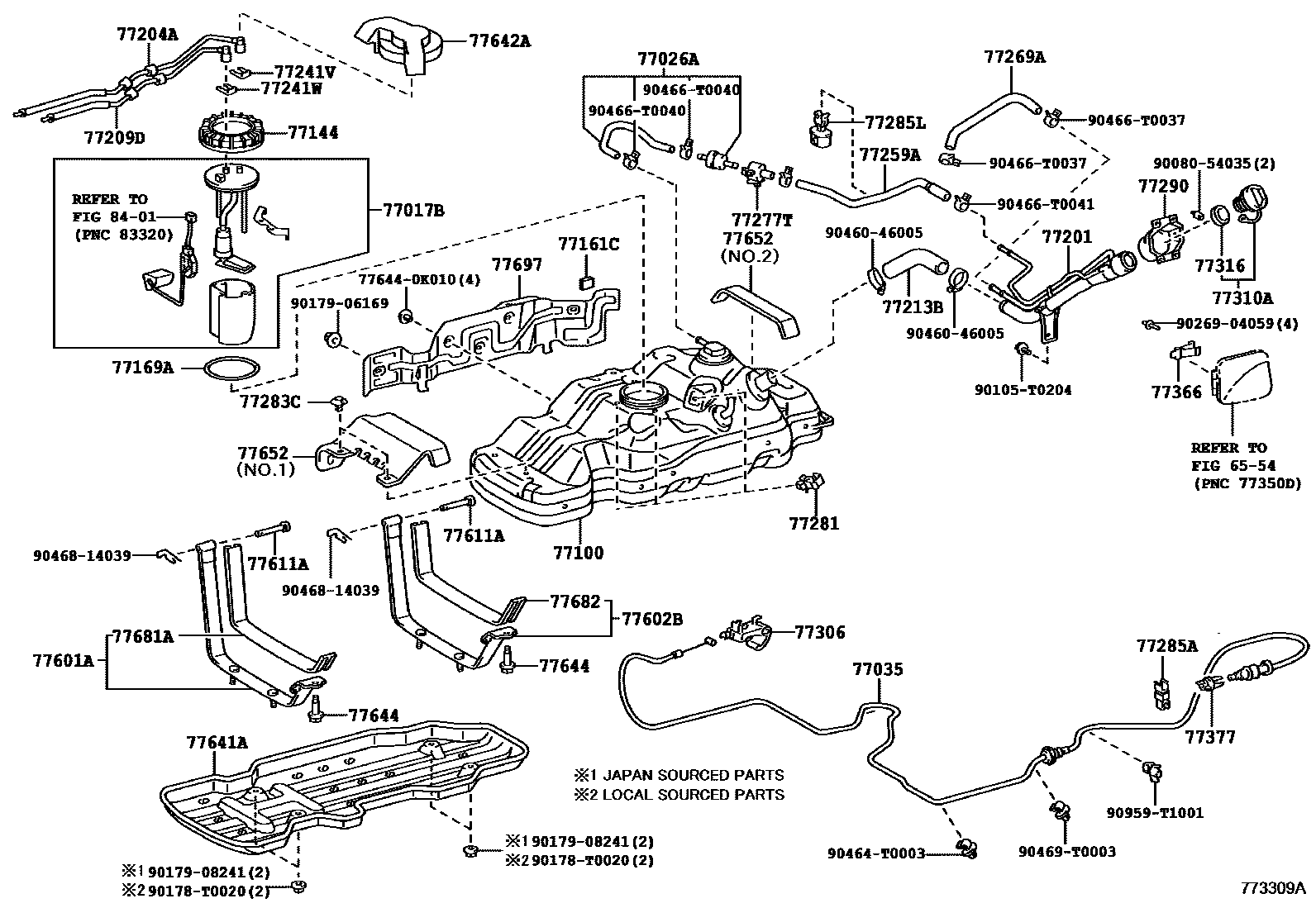

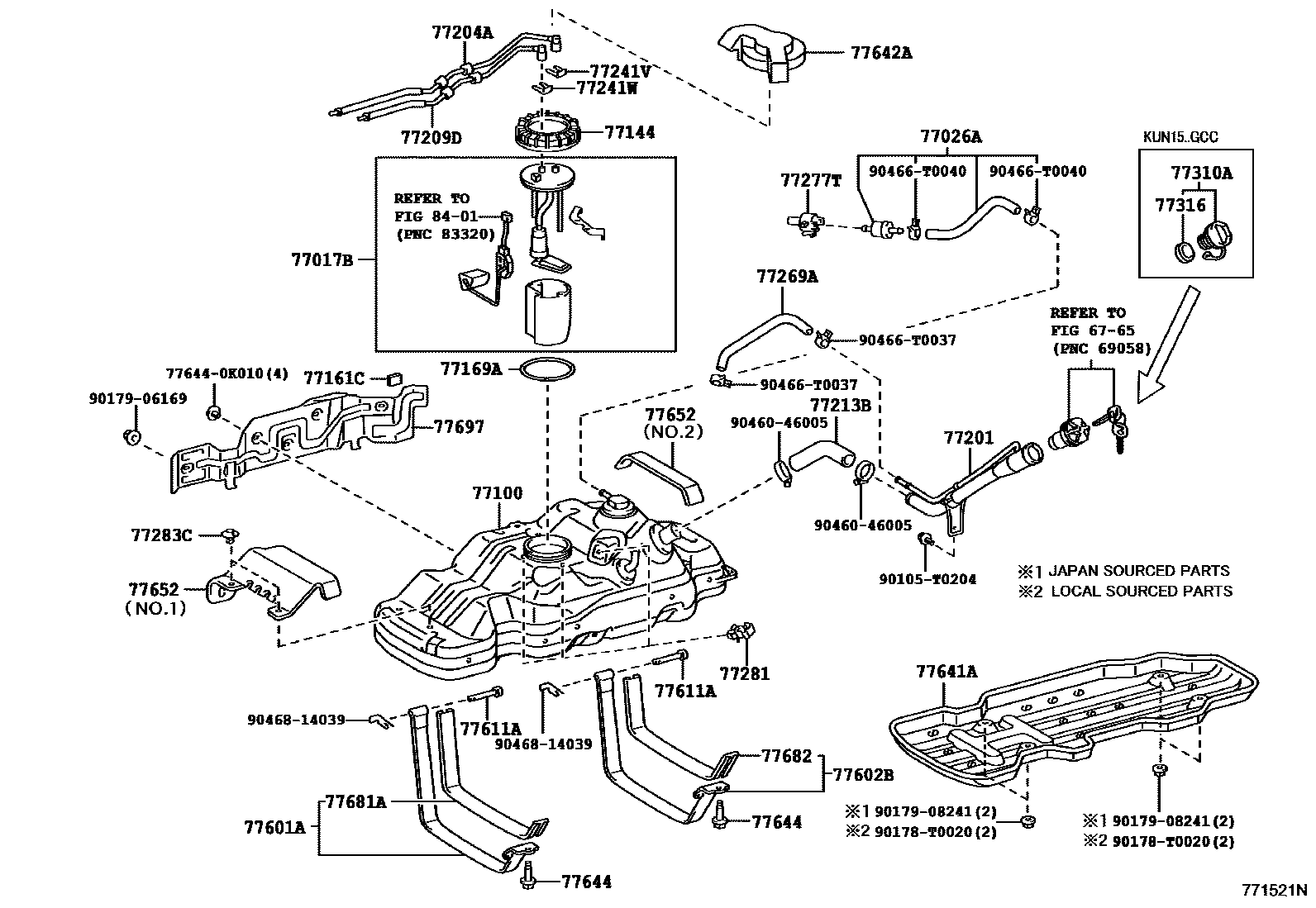

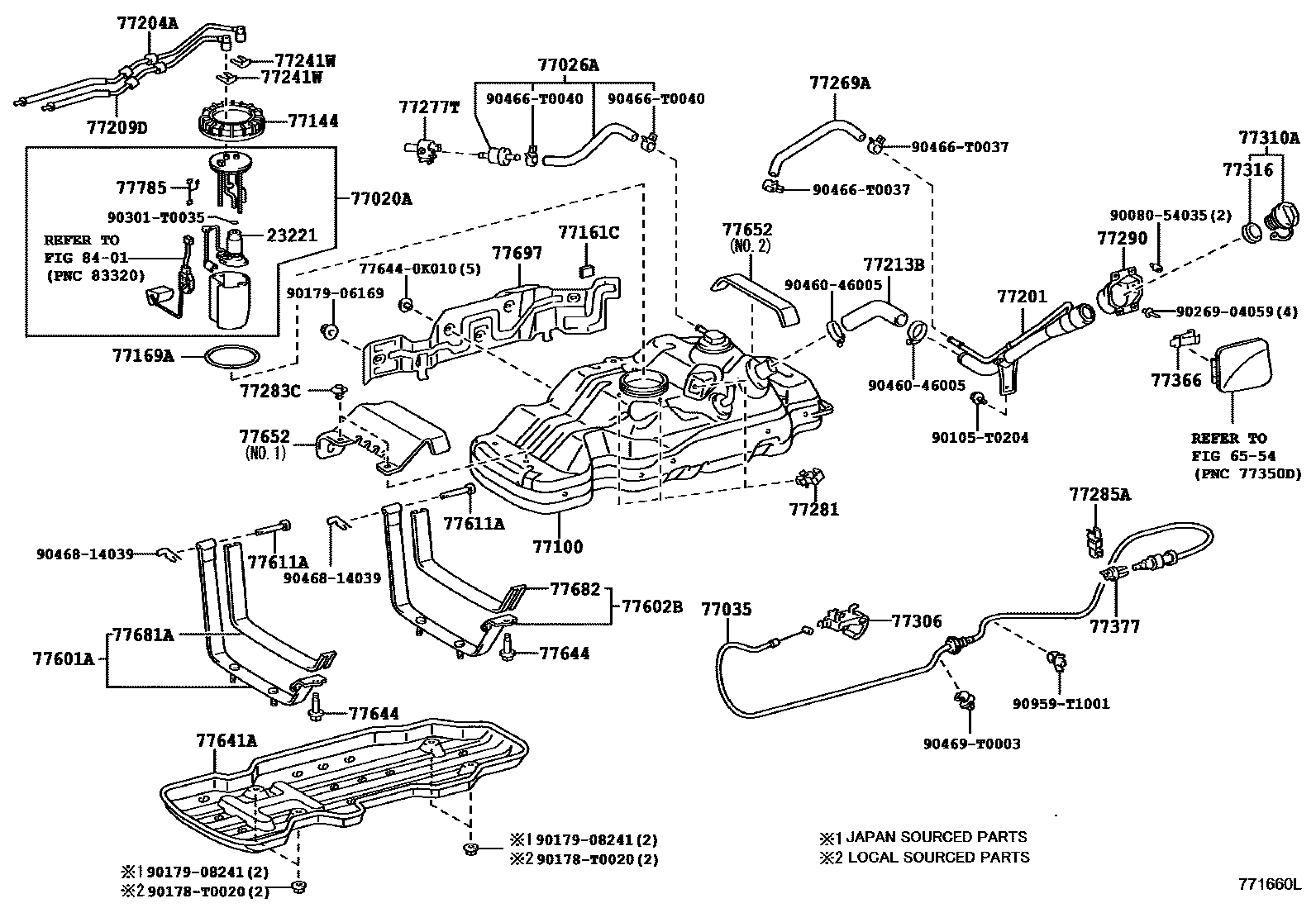

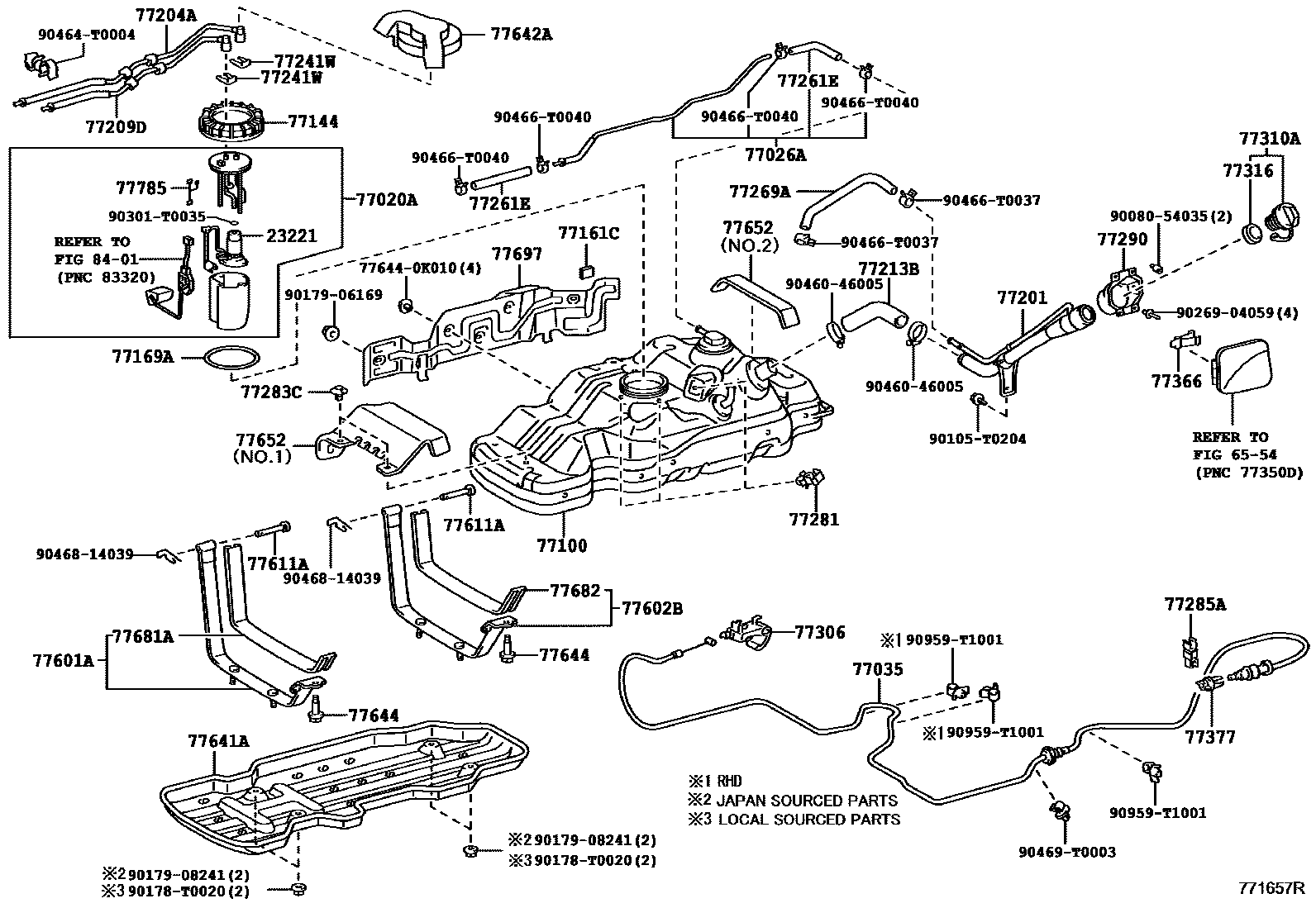

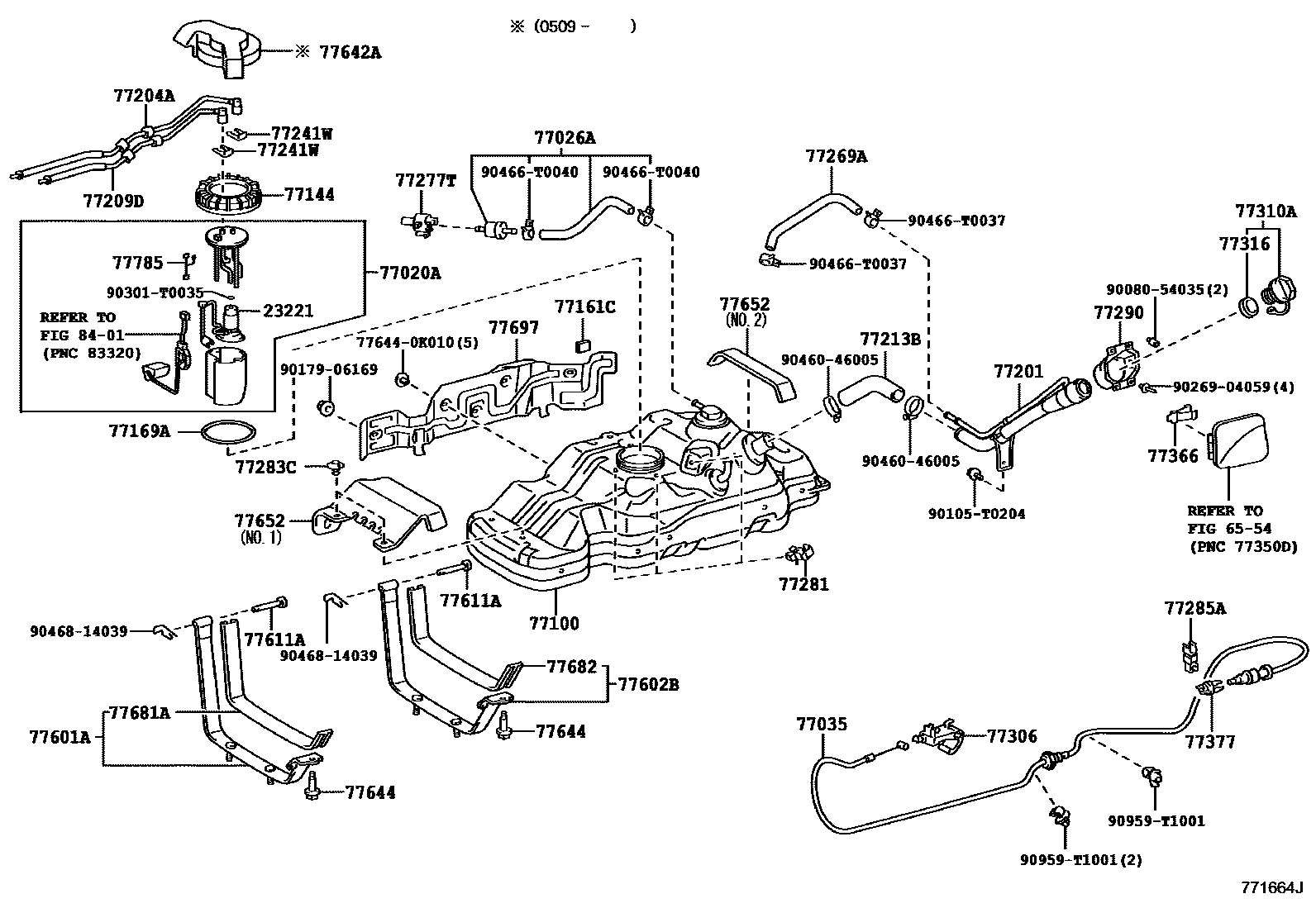

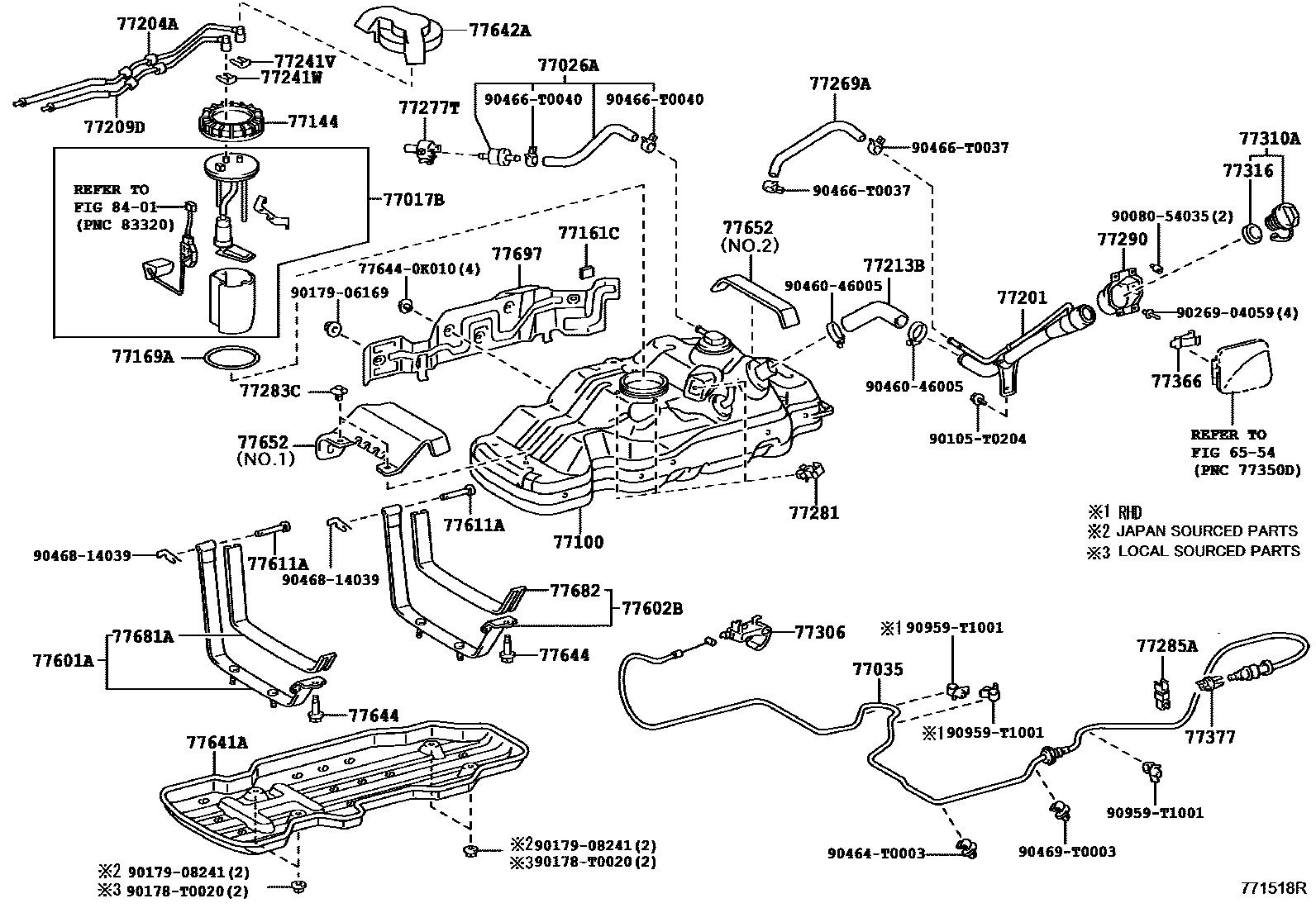

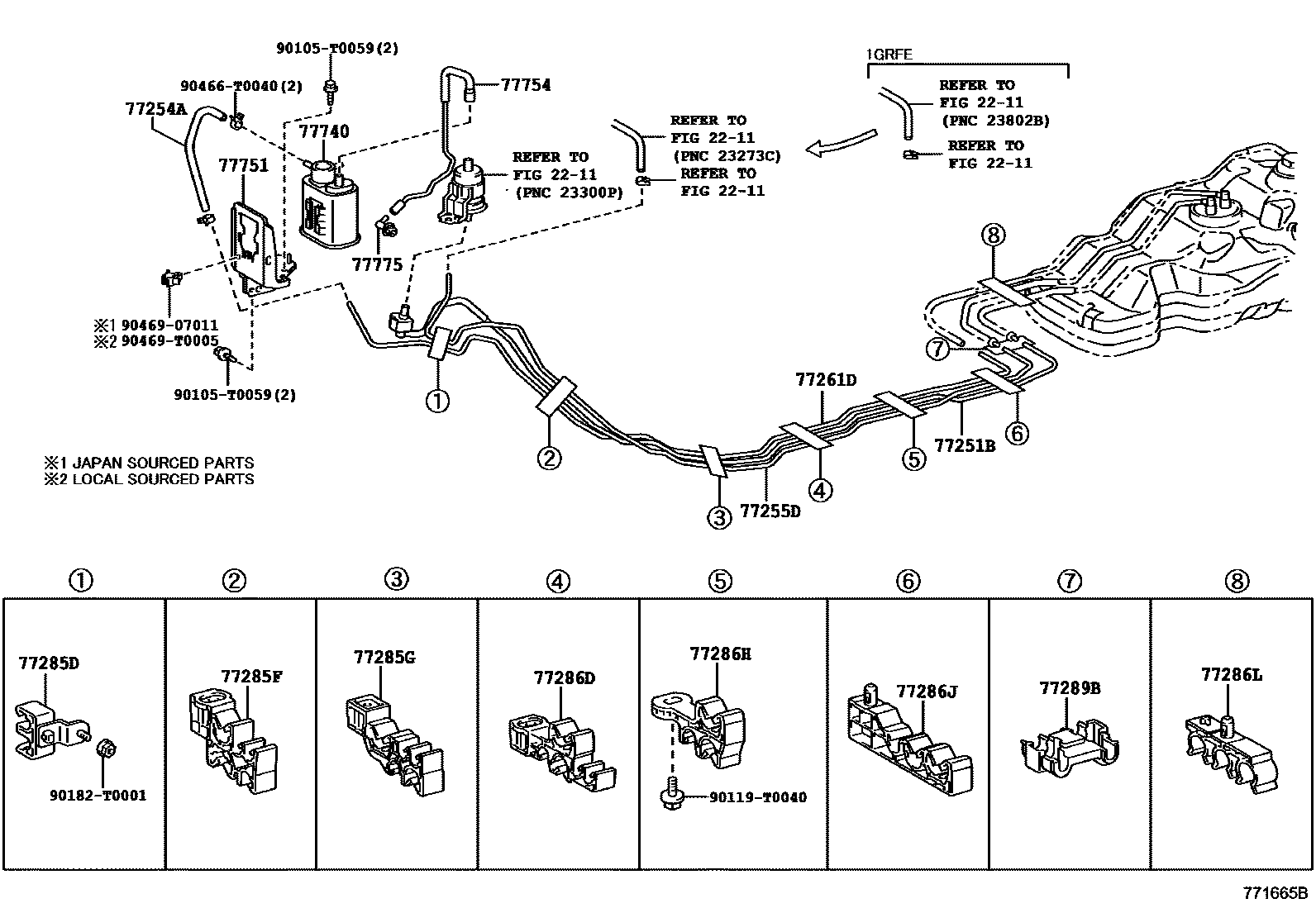

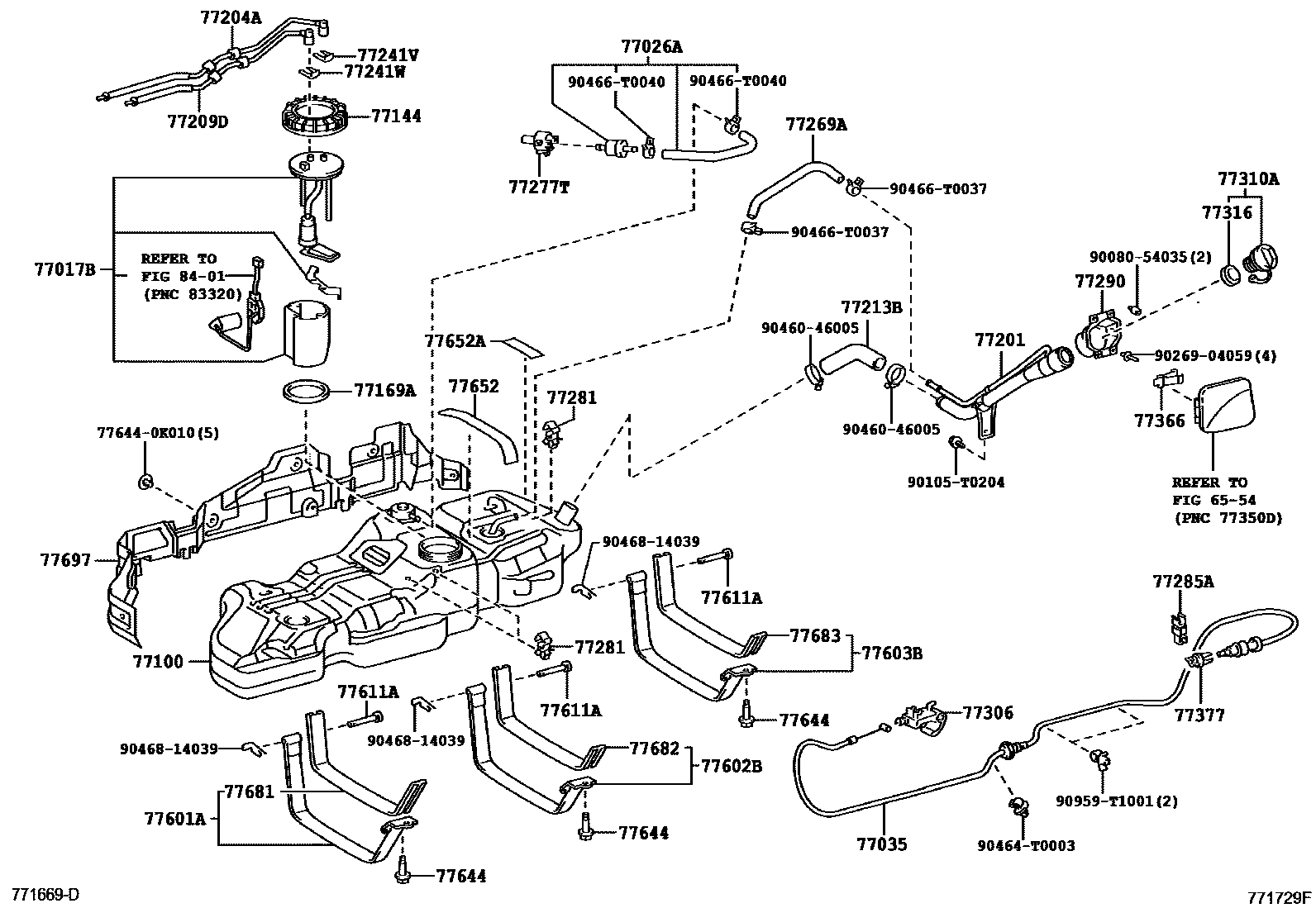

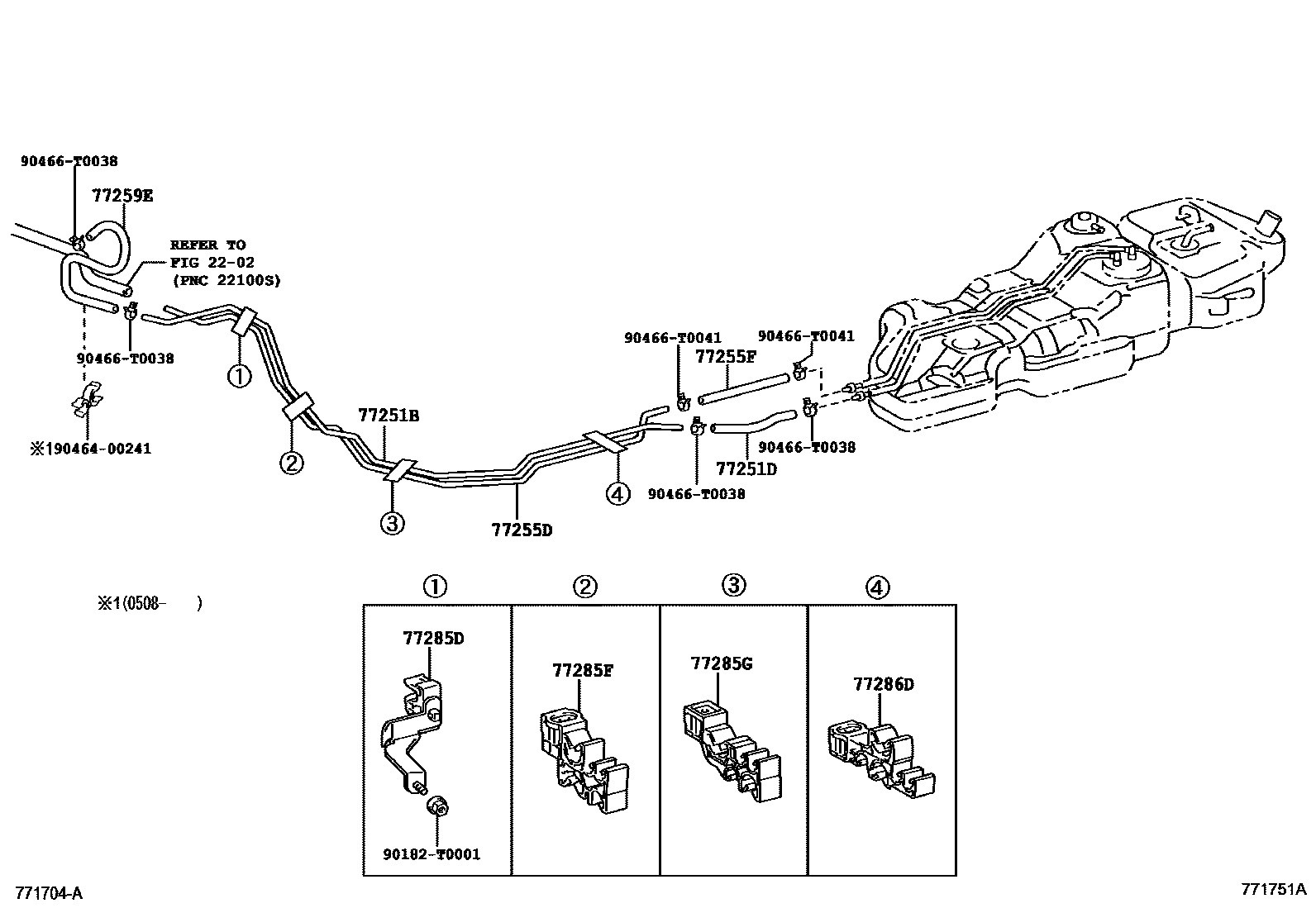

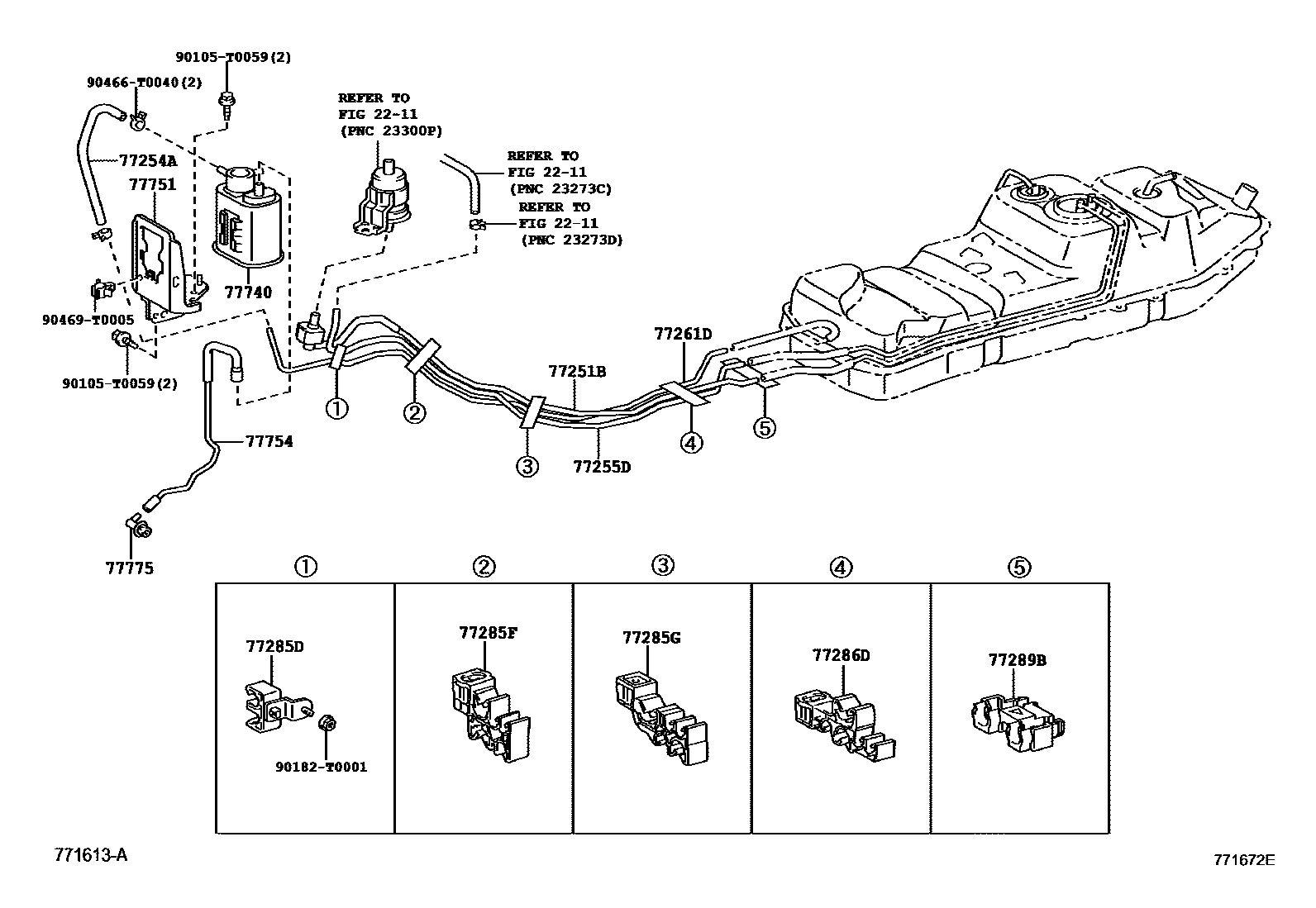

Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 15 images and 66 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-0C050 · 23220-0C130 · 23220-0C140 · 23220-0P010 · 23220-0P160 |
| 23917 | fuel cooler | 23917-30010 · 23917-30011 |
| 77017B | Fuel tank vent pipe sub-assembly | 77010-0K010 · 77010-0K011 · 77010-0K020 · 77010-0K021 · 77010-0K040 · 77010-0K041 · 77010-0K080 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-0K010 · 77020-0K020 · 77020-0K060 · 77020-0K080 · 77020-0K090 · 77020-0K160 · 77020-0K180 · 77020-0K190 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-0K010 · 77026-0K020 · 77027-0K010 · 77027-0K020 · 77027-71010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0K010 · 77035-0K030 · 77035-0K040 · 77035-0K050 · 77035-0K110 · 77035-0K120 · 77035-0K130 · 77035-0K140 · 77035-0K170 · 77035-0K210 · 77035-0K220 · 77035-0K240 · 77035-0K290 · 77035-0K300 · 77035-0K310 · 77035-0K320 |
| 77100 | fuel tank assembly | 77001-0K011 · 77001-0K020 · 77001-0K021 · 77001-0K030 · 77001-0K040 · 77001-0K071 · 77001-0K081 · 77001-0K091 · 77001-0K101 · 77001-0K220 · 77001-0K240 |
| 77144 | Fuel pump instrument fixture | 77144-0K010 |
| 77161C | Fuel tank lower protective shell | 77671-0K010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-0K010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-0K010 · 77201-0K020 · 77201-0K070 · 77201-0K080 · 77201-0K090 · 77201-0K110 · 77201-0K210 · 77201-0K220 |
| 77204A | fuel tank return pipe | 77204-0K010 · 77204-0K020 · 77204-0K030 · 77204-0K040 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-0K010 · 77209-0K020 · 77209-0K030 · 77209-0K040 |
| 77213B | Fuel tank to filler pipe hose | 77213-0K010 · 77213-0K020 · 77213-0K050 · 77213-0K060 |
| 77241V | Pipe joint clip | 77241-35450 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77251B | main fuel pipe | 77251-0K010 · 77251-0K030 · 77251-0K040 · 77251-0K060 |
| 77251D | No. 2 fuel hose (for main fuel line) | 95332-10018 · 95332-10020 · 95338-10018 · 95338-10020 |
| 77255D | fuel return pipe | 77255-0K010 · 77255-0K020 · 77255-0K030 · 77255-0K040 · 77255-0K050 · 77255-0K090 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 77259-0K030 · 95338-08018 · 95338-08022 |
| 77256F | No. 2 fuel return pipe | 77256-0K010 |
| 77259A | Fuel hose (for breather pipe) | 77259-71080 |
| 77259D | No. 1 fuel hose | 77259-71010 · 77259-71060 |
| 77259E | fuel hose | 77259-0K050 · 77259-0K051 · 77259-0K060 · 77259-71070 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0K010 · 77261-0K020 |
| 77266A | No. 1 fuel line protection device | 77266-0K020 · 77266-0K021 |
| 77269A | fuel tank breather hose | 77269-0K010 · 77269-0K020 |
| 77277T | One-way valve bracket | 77277-0K010 |
| 77281 | No. 1 main fuel pipe bracket | 77281-0K040 · 77281-0K070 |
| 77283C | Fuel tank protective shell bracket | 77283-0K010 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-0K190 |
| 77285D | No. 1 fuel pipe clamp | 77285-0K020 · 77285-0K030 |
| 77285F | No. 1 fuel pipe clamp | 77285-0K040 |
| 77285G | No. 1 fuel pipe clamp | 77285-0K050 |
| 77285L | No. 1 fuel pipe clamp | 77285-71010 |
| 77286D | No. 2 fuel pipe clamp | 77286-0K090 |
| 77286H | No. 3 fuel pipe clamp | 77286-0K100 |
| 77286J | No. 4 fuel pipe clamp | 77286-0K130 |
| 77286L | No. 5 fuel pipe clamp | 77286-0K060 |
| 77286M | No. 6 fuel pipe clamp | 77286-0K080 |
| 77289B | No. 3 fuel pipe clamp | 77289-0K010 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-0K010 · 77290-0K020 · 77290-0K030 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0K010 · 77306-0K030 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77300-52030 · 77300-60010 |
| 77316 | fuel tank cap gasket | 77316-16010 · 77316-52040 |
| 77366 | Fuel filler cap hinge spring | 77360-0K030 |
| 77377 | Fuel filler cap lock retainer | 77377-0K010 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-0K010 · 77601-0K020 · 77601-0K040 · 77601-0K080 · 77601-0K090 · 77601-0K100 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-0K010 · 77602-0K020 · 77602-0K040 · 77602-0K070 · 77602-0K080 · 77602-0K090 |
| 77603B | No. 2 fuel tank right side band sub-assembly | 77603-0K030 |
| 77611A | Pin (for fuel tank strap) | 77653-0K040 · 77653-0K041 |
| 77641A | No. 1 fuel tank protective shell | 77641-0K030 · 77641-0K050 · 77641-0K060 · 77641-0K070 · 77641-0K120 |
| 77642A | No. 2 fuel tank protective shell | 77641-0K100 |
| 77644 | fuel tank bolt | 77644-35030 |
| 77652 | No. 1 fuel tank liner | 77652-0K010 · 77652-0K020 · 77652-0K030 |
| 77652A | No. 2 fuel tank liner | 77652-0K040 |
| 77681 | Fuel tank right side strap seat | 77681-0K050 |
| 77681A | Fuel tank strap seat | 77681-0K040 · 77681-0K070 |
| 77682 | Fuel tank left side strap seat | 77682-0K010 · 77682-0K020 · 77682-0K040 |
| 77683 | No. 3 fuel tank strap seat | 77683-0K010 |
| 77697 | No. 1 fuel tank insulation pad | 77697-0K010 · 77697-0K020 |
| 77740 | Carbon canister assembly | 77704-0K010 |
| 77751 | Carbon canister base bracket | 77751-0K010 · 77751-0K040 |
| 77754 | No. 1 carbon canister outlet hose | 77754-0K010 |
| 77775 | Carbon canister outlet duct | 77775-0K010 |
| 77785 | fuel pump wiring harness | 77785-0K010 |
