Toyota HILUX 徽标和铭牌 — Figure 7551

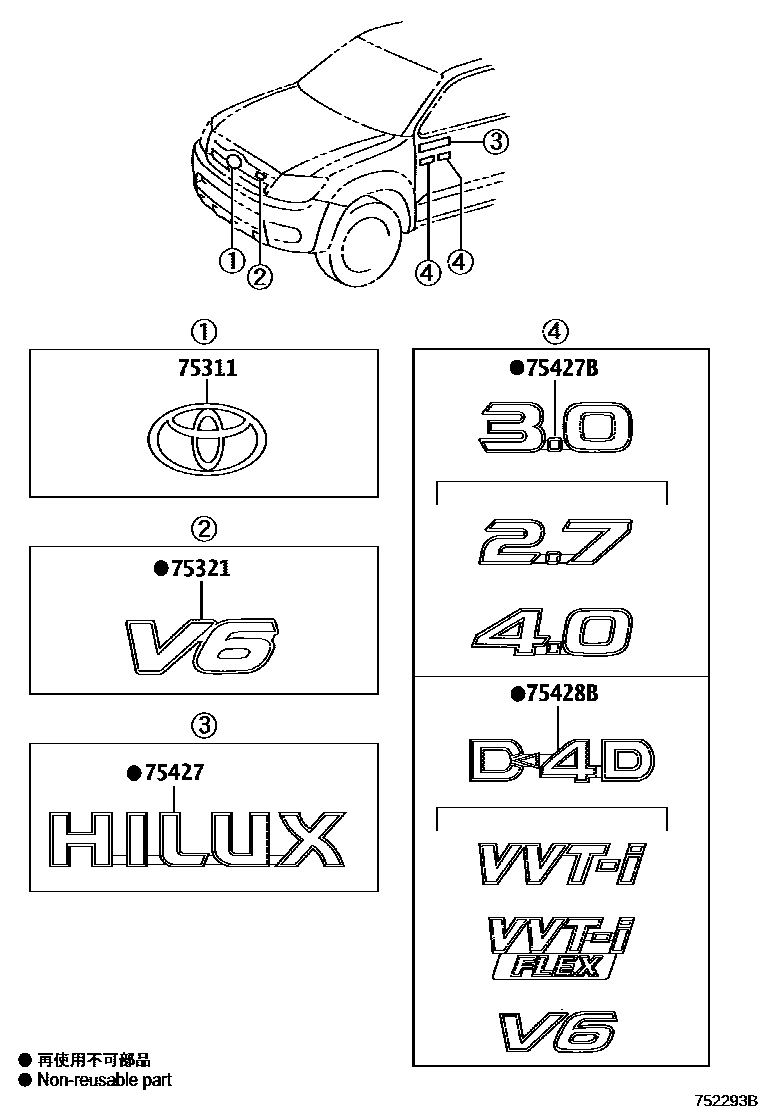

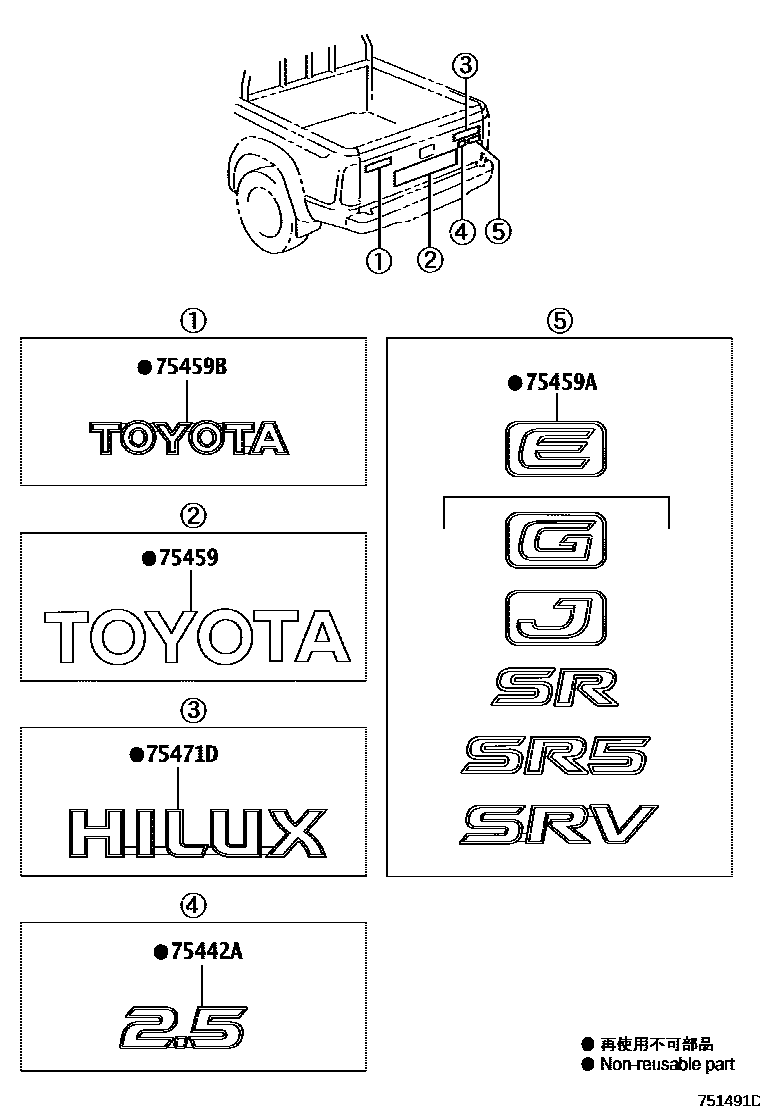

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-0K010 · 75311-0K050 |
| 75321 | Radiator grille or front plate | 75321-0K010 · 75321-0K030 |
| 75427 | front door nameplate | 75427-0K010 · 75427-0K011 · 75427-0K020 |
| 75427B | Front door number plate No. 1 | 75473-0K010 · 75473-0K011 · 75473-0K020 · 75473-0K021 · 75473-0K030 · 75473-0K031 |
| 75428B | Front door number plate No. 2 | 75428-0K010 · 75428-0K011 · 75428-0K020 · 75428-0K021 · 75428-0K030 · 75428-0K031 |
| 75442A | No. 2 nameplate on back door | 75442-0K020 · 75442-0K021 |
| 75459 | Back door mark | 75479-0K010 · 75479-0K020 |
| 75459A | Back door mark | 75459-0K010 · 75459-0K011 · 75459-0K020 · 75459-0K021 · 75459-0K030 · 75459-0K031 · 75459-0K050 · 75459-0K051 · 75479-0K030 · 75479-0K040 |
| 75459B | No. 2 back door mark | 75469-0K010 · 75469-0K011 |
| 75471D | rear nameplate | 75427-0K010 · 75427-0K011 |
