Toyota HILUX seat belt — Figure 7152

Toyota HILUX EPC diagram 7152, seat belt, with 8 images and 1 PNC and OE references.

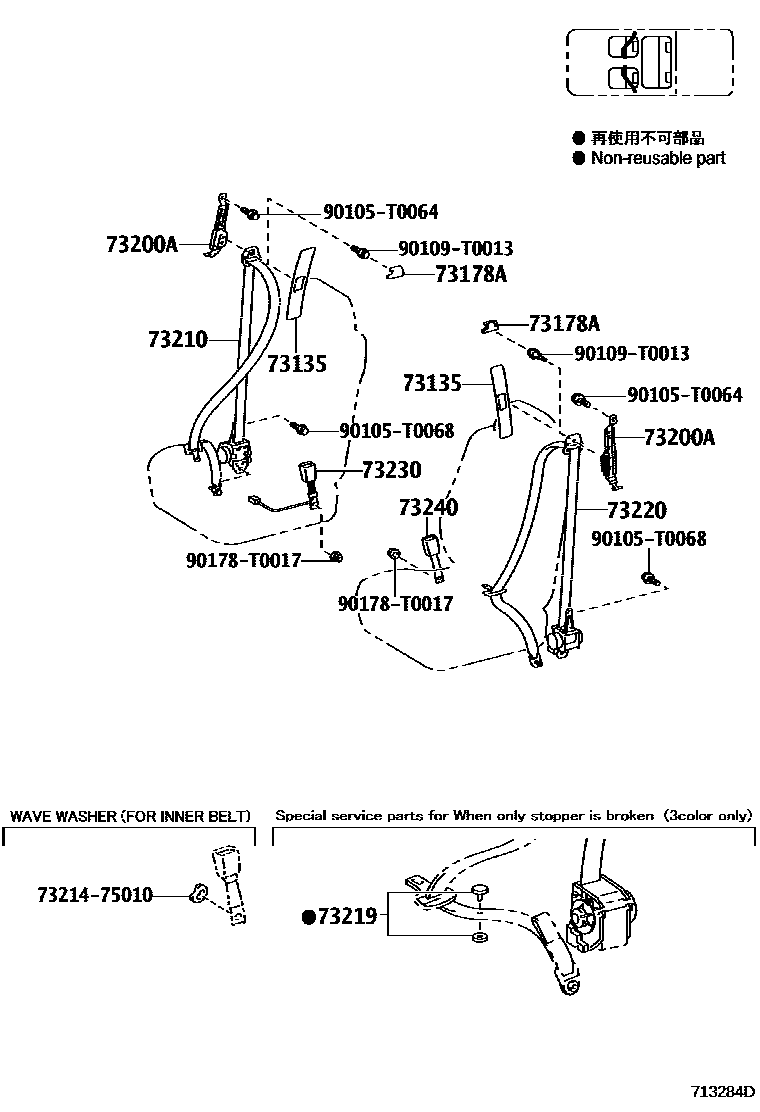

Toyota HILUX seat belt EPC diagram — 713284D — seat belt — 713284D (200408 – 999999)

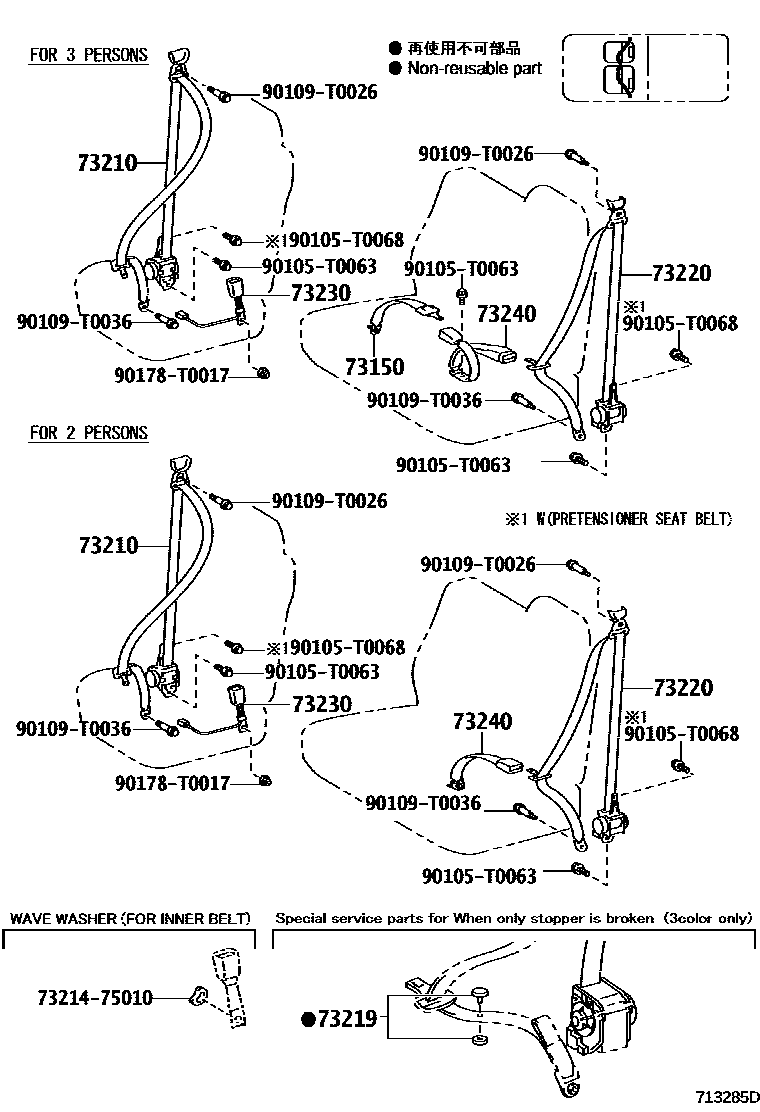

Toyota HILUX seat belt EPC diagram — 713285D — seat belt — 713285D (200408 – 999999)

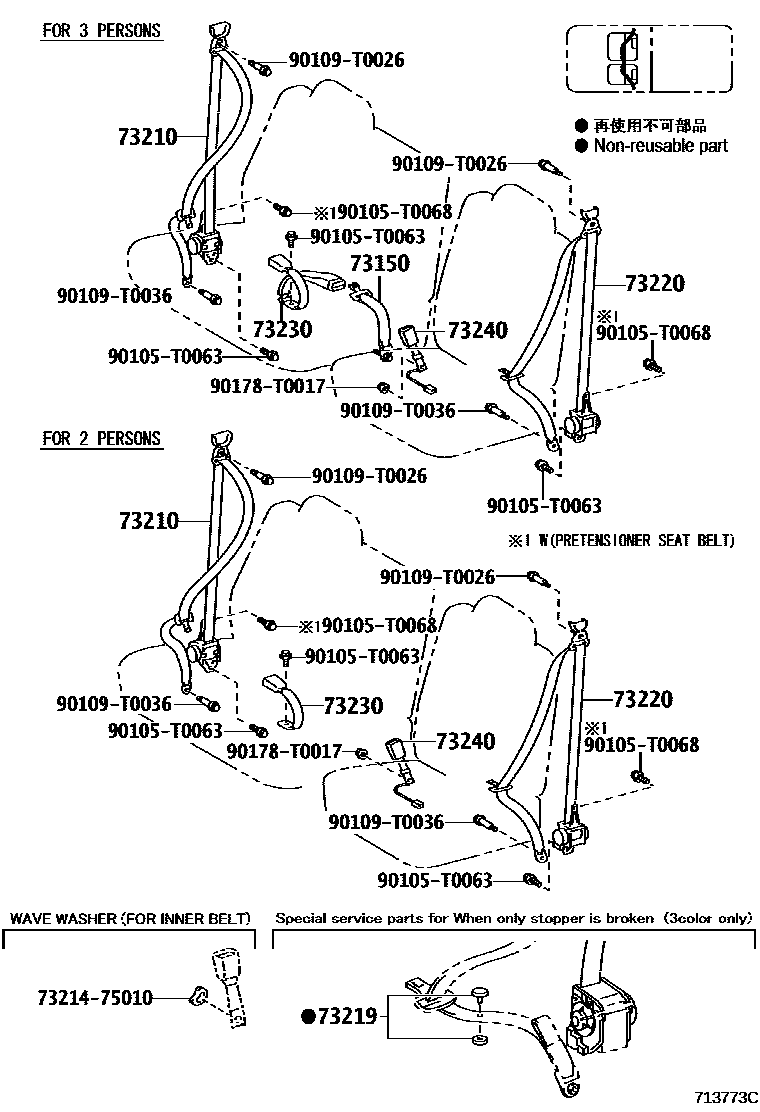

Toyota HILUX seat belt EPC diagram — 713773C — seat belt — 713773C (200502 – 999999)

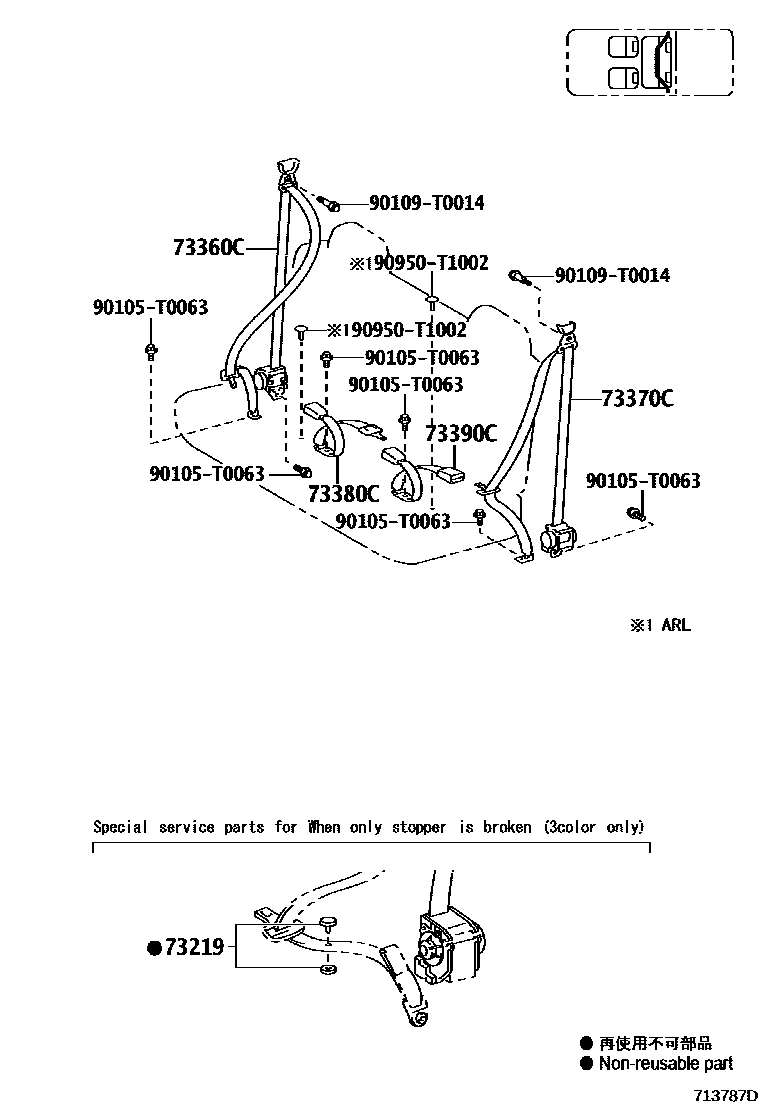

Toyota HILUX seat belt EPC diagram — 713787D — seat belt — 713787D (200408 – 999999)

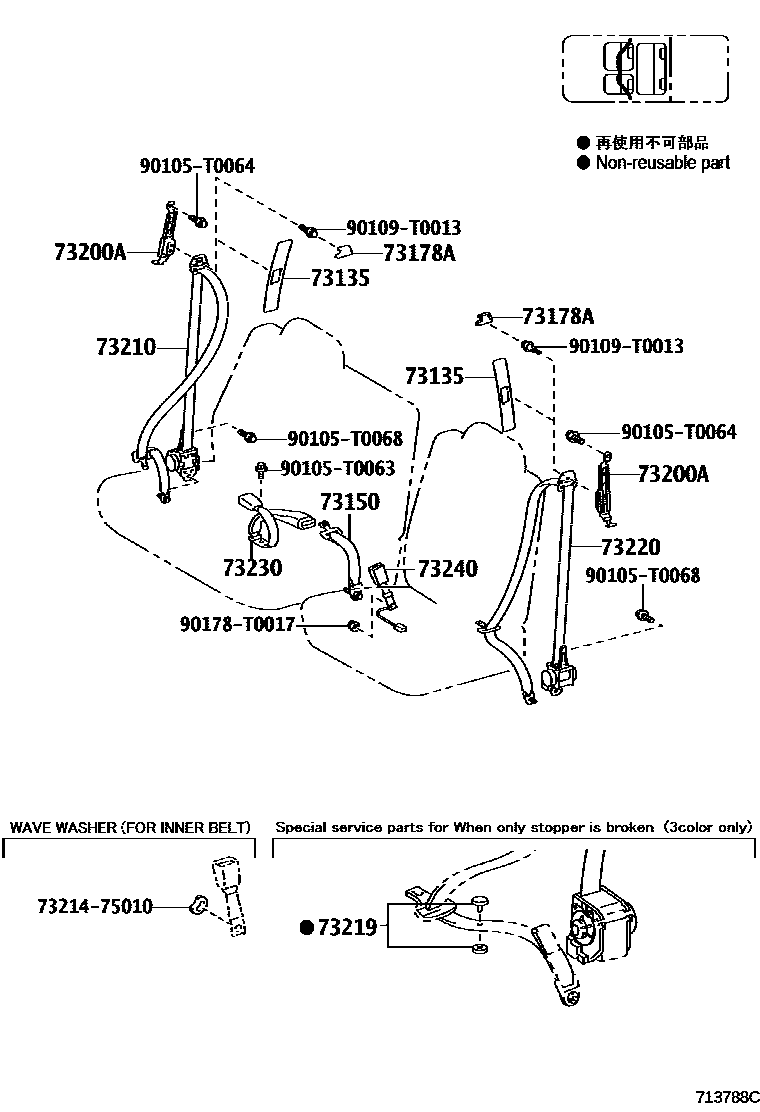

Toyota HILUX seat belt EPC diagram — 713788C — seat belt — 713788C (200411 – 999999)

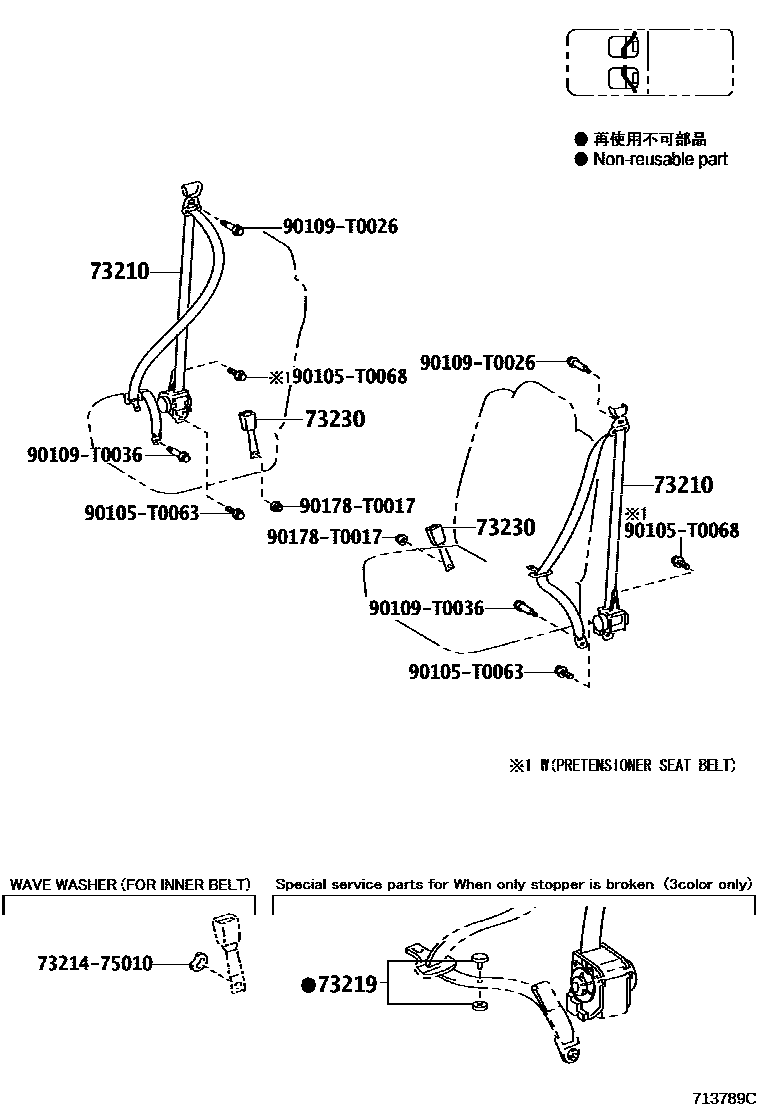

Toyota HILUX seat belt EPC diagram — 713789C — seat belt — 713789C (200502 – 999999)

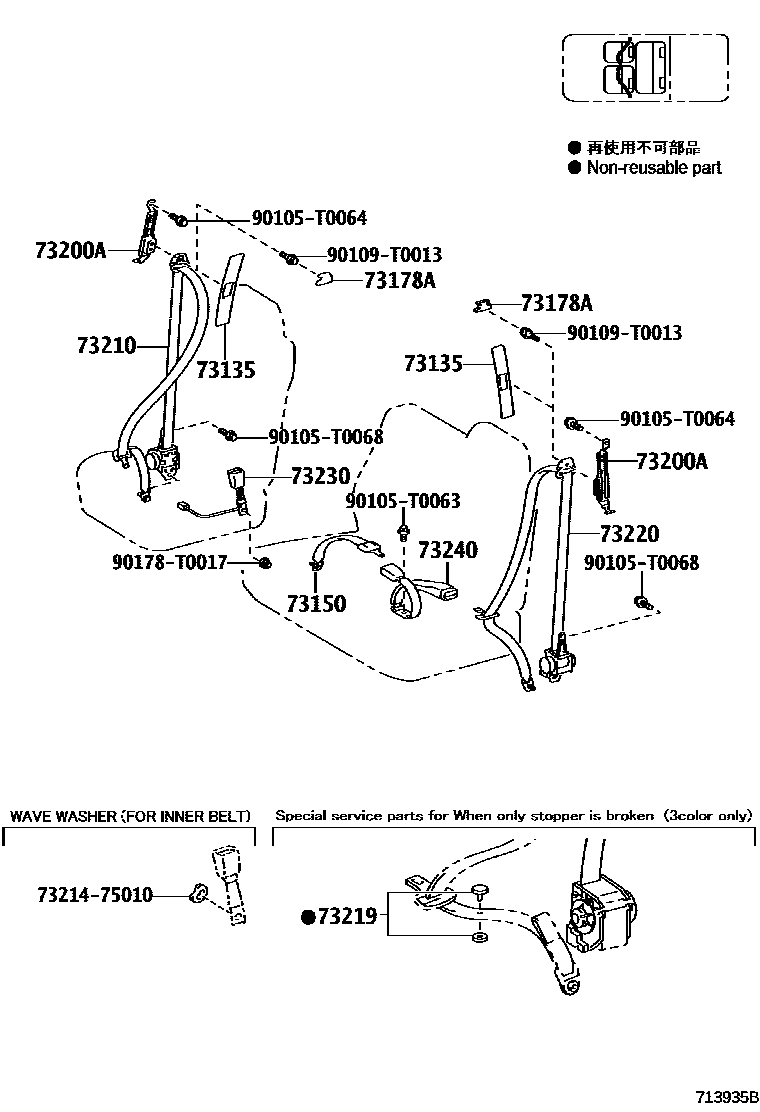

Toyota HILUX seat belt EPC diagram — 713935B — seat belt — 713935B (200408 – 999999)

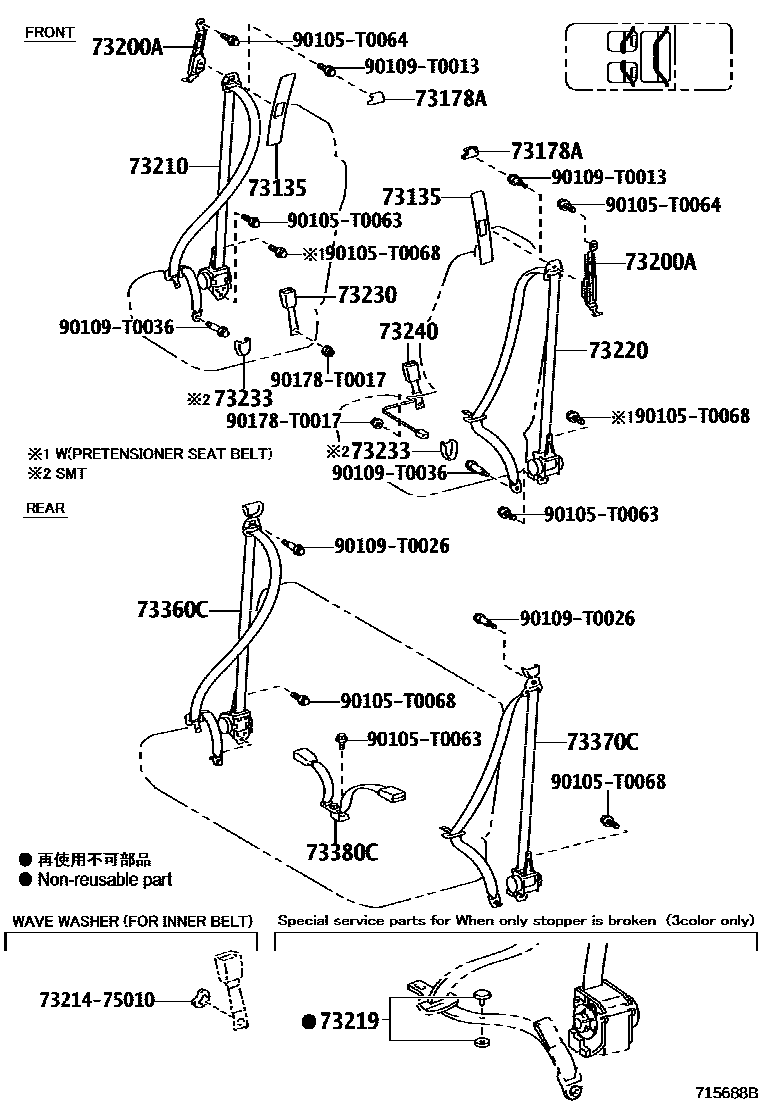

Toyota HILUX seat belt EPC diagram — 715688B — seat belt — 715688B (200408 – 999999)

PNC and OE references

PNC	Part name	OE numbers
73219	Tongue plate stop	73219-33010 · 73219-33020 · 73219-33030
