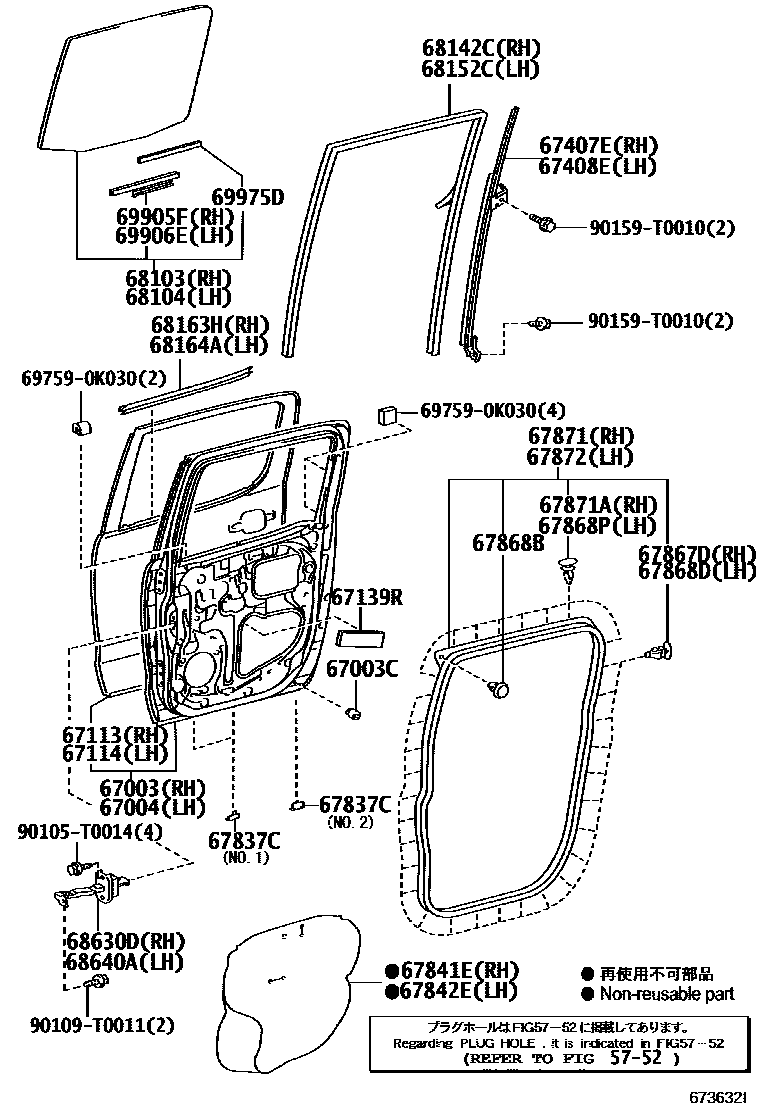

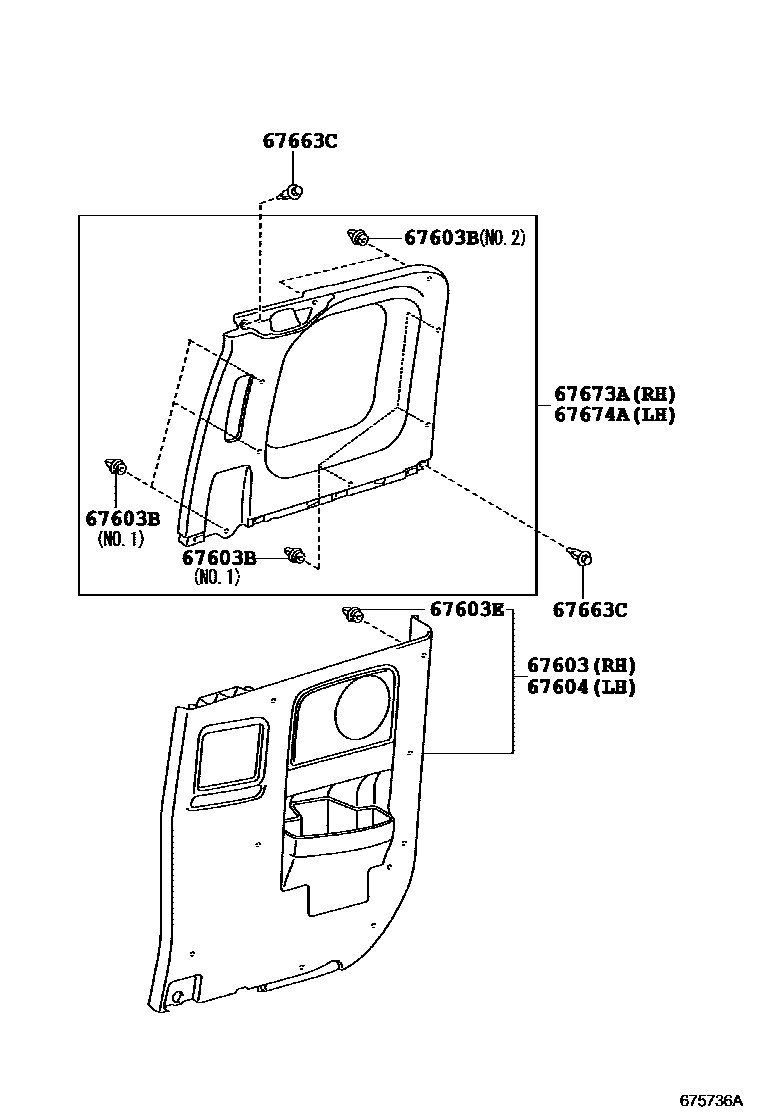

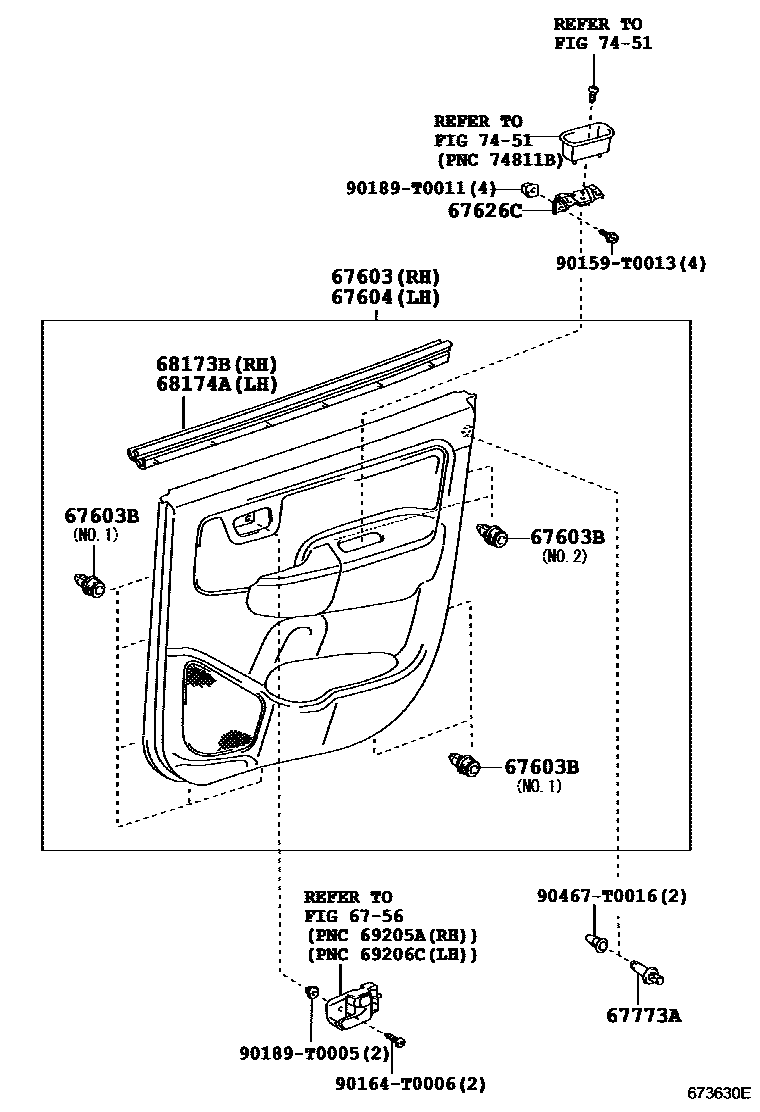

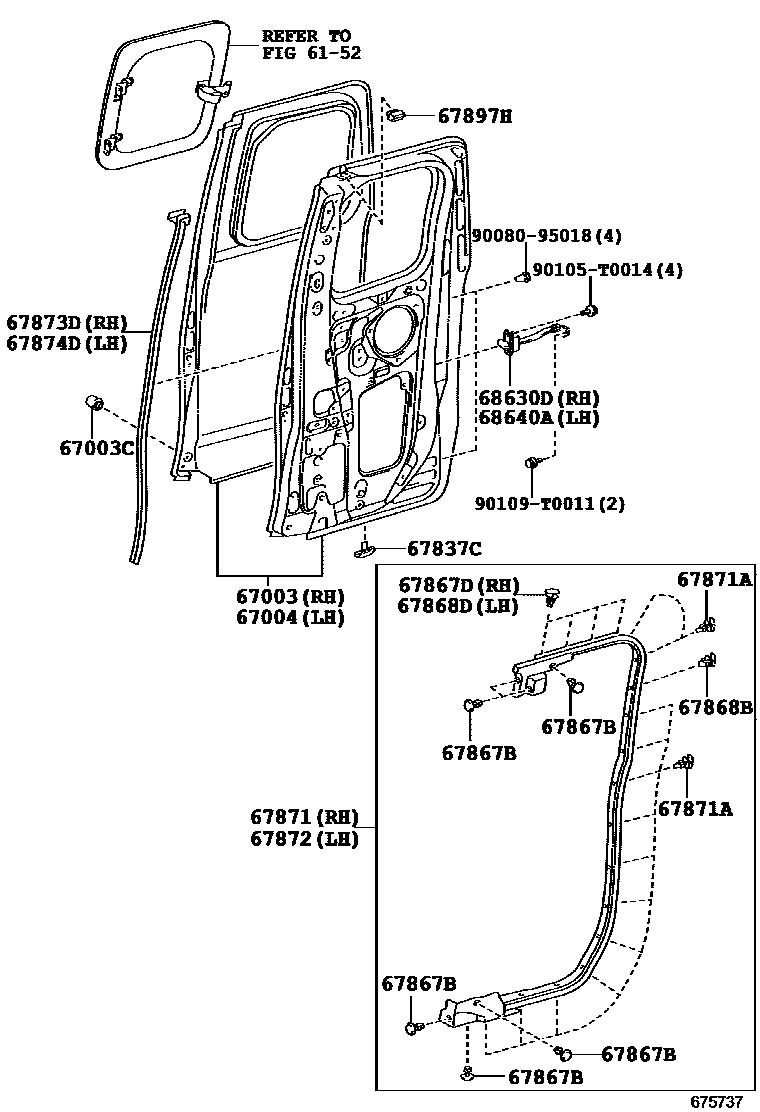

Toyota HILUX 后门板和后门玻璃 — Figure 6755
Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 4 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0K010 · 67003-0K060 · 67003-0K070 · 67003-0K110 |
| 67003C | Rear door panel cushion | 90541-09069 |
| 67004 | Left rear door panel sub-assembly | 67004-0K010 · 67004-0K060 · 67004-0K070 · 67004-0K110 |
| 67113 | Right rear door outer panel | 67113-0K010 |
| 67114 | Left rear door outer panel | 67114-0K010 |
| 67139R | Door outer panel reinforcement lining | 67139-0K010 |
| 67407E | Right rear door window divider sub-assembly | 67407-0K010 |
| 67408E | Left rear door window divider sub-assembly | 67408-0K010 |
| 67603B | Catch (for rear door trim panel) | 67771-32120 · 90467-09203 · 90467-T0019 |
| 67603E | Catch (for rear door trim panel) | 90467-T0019 |
| 67626C | Rear door decorative panel bracket No. 2 | 67626-0K010 · 67626-0K020 |
| 67673A | Right rear door frame decorative strip | 67655-0K010 |
| 67674A | Left rear door frame decorative strip | 67656-0K010 |
| 67837C | Rear door dust seal retainer | 67837-0K030 · 67837-71010 · 67837-71020 |
| 67841E | Right rear door access hole cover | 67841-0K010 · 67841-0K020 · 67841-0K030 · 67841-0K040 · 67841-0K050 |
| 67842E | Left rear door access hole cover | 67841-0K010 · 67841-0K020 · 67841-0K030 · 67841-0K040 · 67841-0K050 |
| 67867B | Door seal strip clip (for rear door) | 90467-06084 |
| 67867D | Right rear door seal strip fixing | 67867-12150 · 67867-52030 |
| 67868B | Door glass seal strip clip (for rear door) | 90467-04034 · 90467-06084 |
| 67868D | Left rear door seal strip fixing | 67867-12150 · 67867-52010 |
| 67868P | Left door No. 1 sealing strip fixing | 67867-52030 |
| 67871 | Right rear door sealing strip | 67871-0K010 · 67871-0K011 · 67871-0K012 · 67871-0K050 |
| 67871A | Fixings (for rear door sealing strip) | 67867-12150 · 67867-52010 |
| 67872 | Left rear door sealing strip | 67872-0K010 · 67872-0K011 · 67872-0K012 · 67872-0K050 |
| 67873D | Entry door panel right rear sealing strip | 67873-0K010 |
| 67874D | Entry door panel left rear seal | 67874-0K010 |
| 67897H | rear door cushion | 67897-0K010 |
| 68103 | Right rear door glass sub-assembly | 68103-0K010 · 68103-0K020 · 68103-0K030 · 68103-0K140 · 68103-0K180 |
| 68104 | Left rear door glass sub-assembly | 68104-0K010 · 68104-0K020 · 68104-0K030 · 68104-0K140 · 68104-0K180 |
| 68142C | Right rear door glass lift slot | 68142-0K010 |
| 68152C | Left rear door glass lift slot | 68152-0K010 |
| 68163H | Right rear door glass outer sealing strip | 68163-0K010 |
| 68164A | Left rear door glass outer sealing strip | 68164-0K010 |
| 68173B | Right rear door glass inner sealing strip | 68173-0K010 |
| 68174A | Left rear door glass inner sealing strip | 68174-0K010 |
| 68630D | Right rear door opening limiter assembly | 68630-0K010 · 68630-0K020 · 68630-0K030 · 68640-0K070 |
| 68640A | Left rear door opening limiter assembly | 68640-0K010 · 68640-0K020 · 68640-0K030 · 68640-0K070 |
| 69905F | Right rear door glass groove sub-assembly | 69905-0K040 |
| 69906E | Left rear door glass groove sub-assembly | 69906-0K040 |
| 69975D | Rear door glass channel filler | 69975-0K010 |
