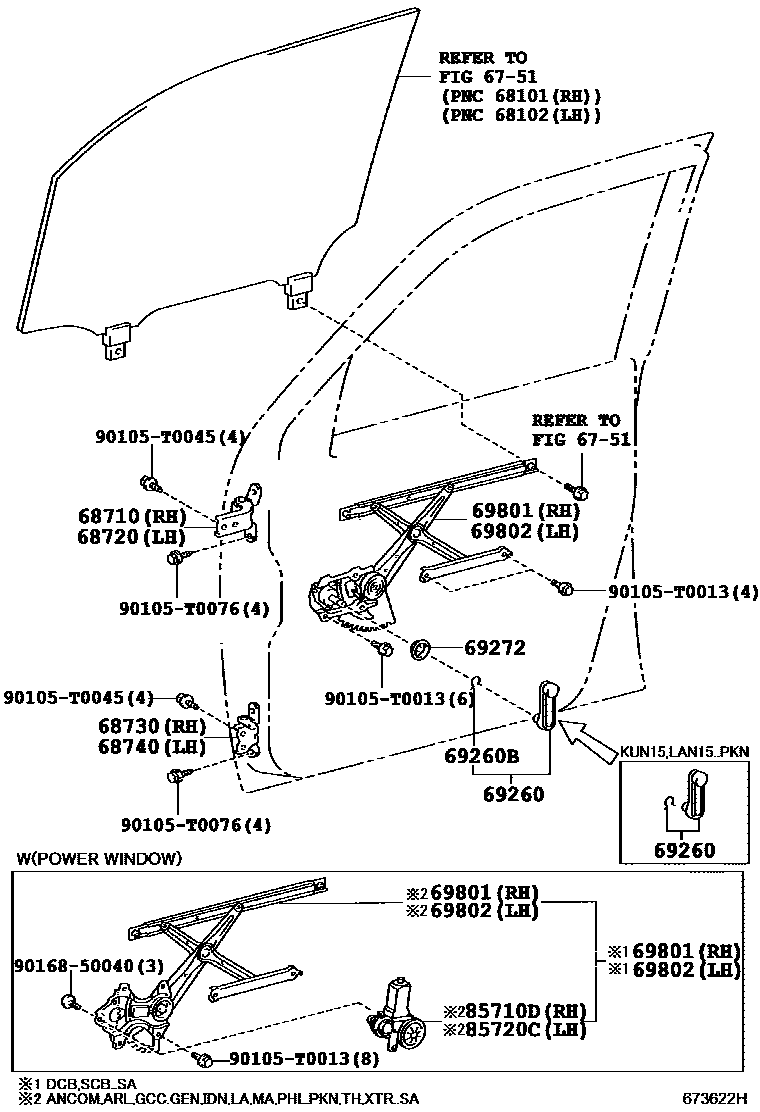

Toyota HILUX 前门车窗升降器和合页 — Figure 6754
Toyota HILUX EPC diagram 6754, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-02070 · 68710-0D030 · 68710-12150 · 68710-12151 |
| 68720 | Left front door upper hinge assembly | 68720-02070 · 68720-0D030 · 68720-12150 · 68720-12151 |
| 68730 | Right front door lower hinge assembly | 68730-02020 · 68730-52010 |
| 68740 | Left front door lower hinge assembly | 68740-02020 · 68740-52010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01274 |
| 69272 | Front door window lift inner handle plate | 69268-04020 · 69268-0K010 |
| 69801 | Right front door window lifter sub-assembly | 69801-0K010 · 69801-0K011 · 69801-0K050 · 69801-0K051 · 69801-0K052 · 69810-0K010 · 69810-0K011 · 69810-0K030 · 69810-0K031 · 69810-0K040 · 69810-0K041 · 69810-0K110 · 69810-0K111 · 69810-0K112 · 69810-0K140 · 69810-0K141 |
| 69802 | Left front door window lifter sub-assembly | 69802-0K010 · 69802-0K011 · 69802-0K050 · 69802-0K051 · 69802-0K052 · 69820-0K010 · 69820-0K011 · 69820-0K030 · 69820-0K031 · 69820-0K040 · 69820-0K041 · 69820-0K090 · 69820-0K091 · 69820-0K092 |
| 85710D | Right power window lift motor assembly | 85710-0K010 · 85710-0K030 |
| 85720C | Left electric window lift motor assembly | 85720-0K010 · 85720-0K050 |
