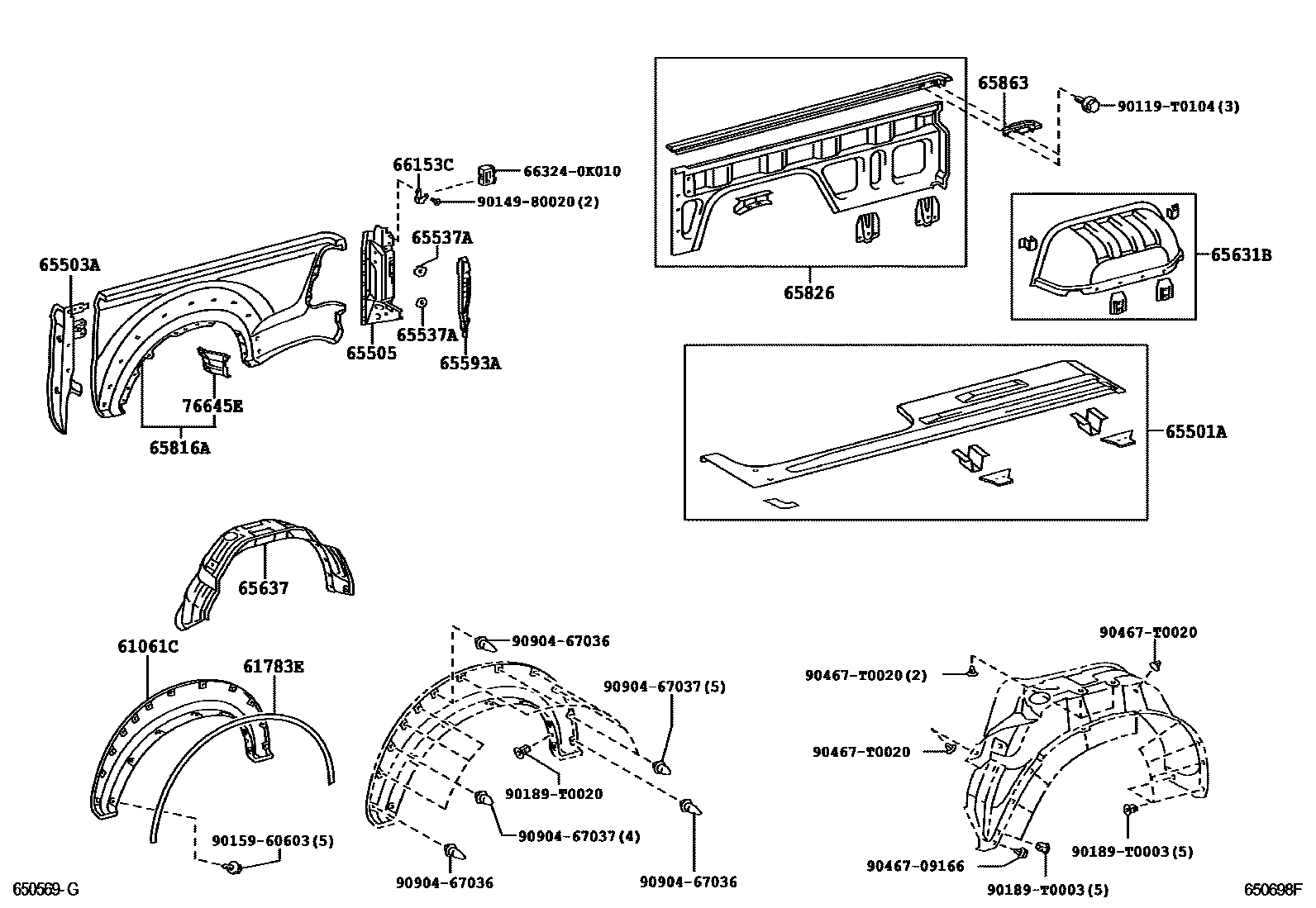

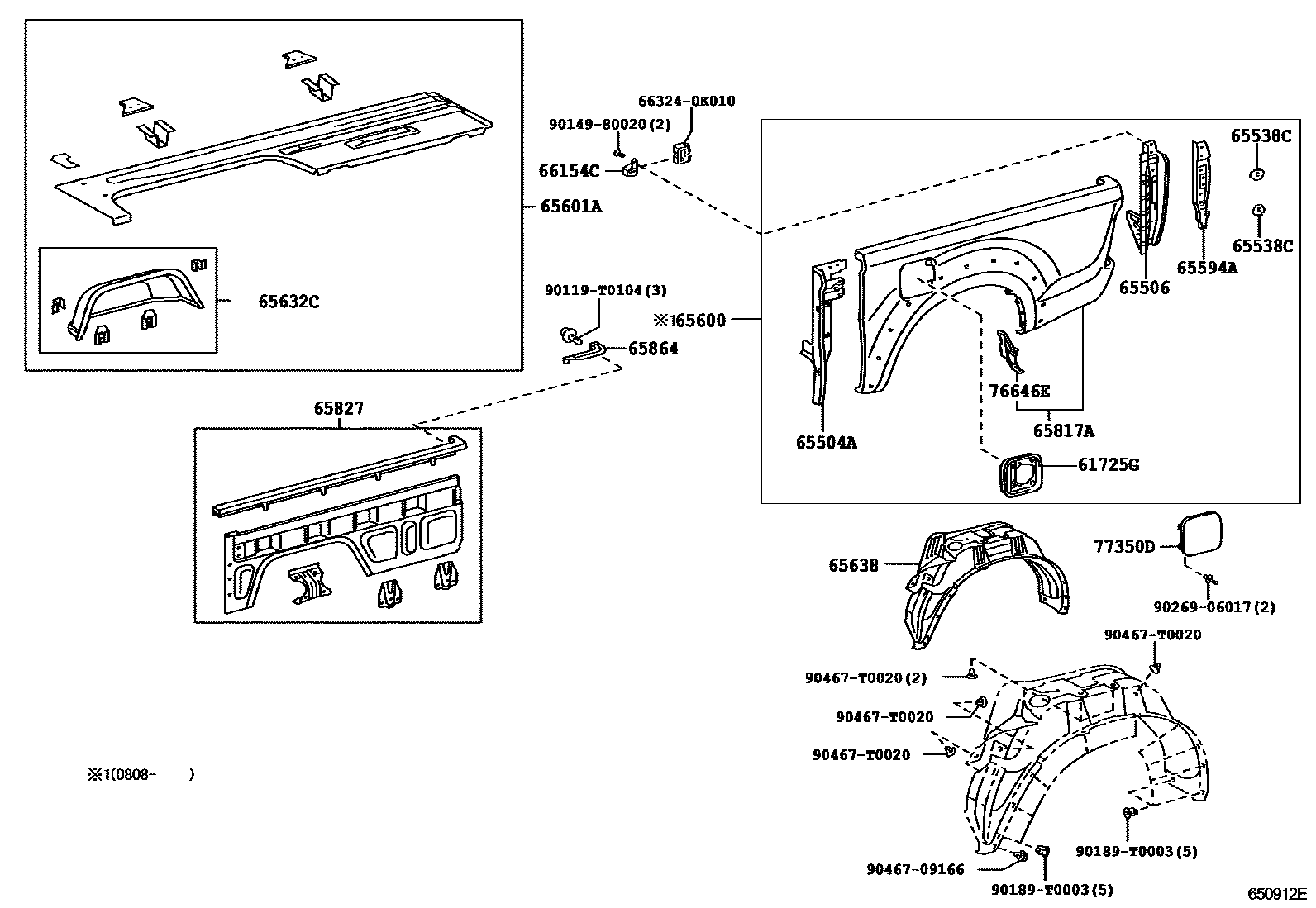

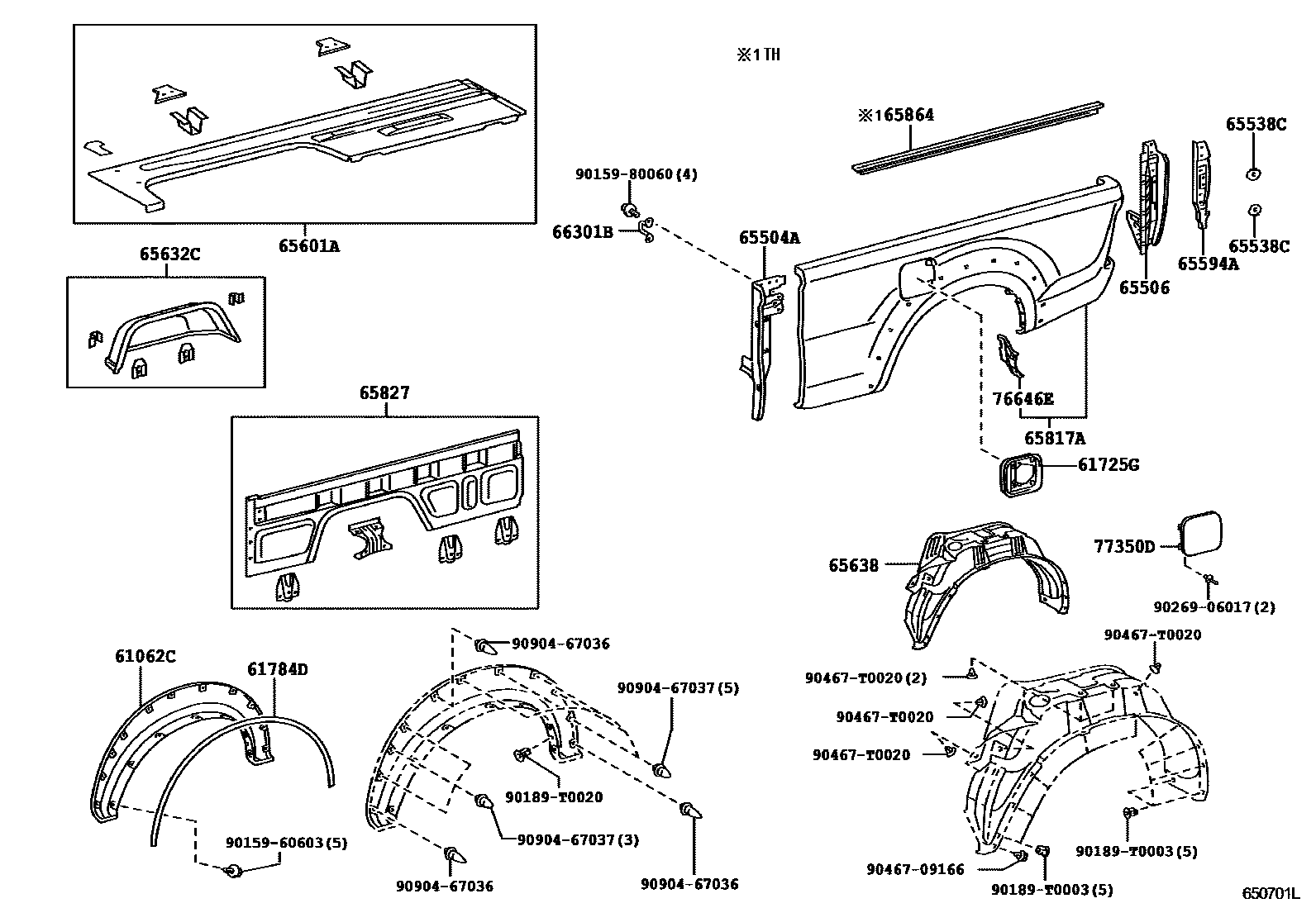

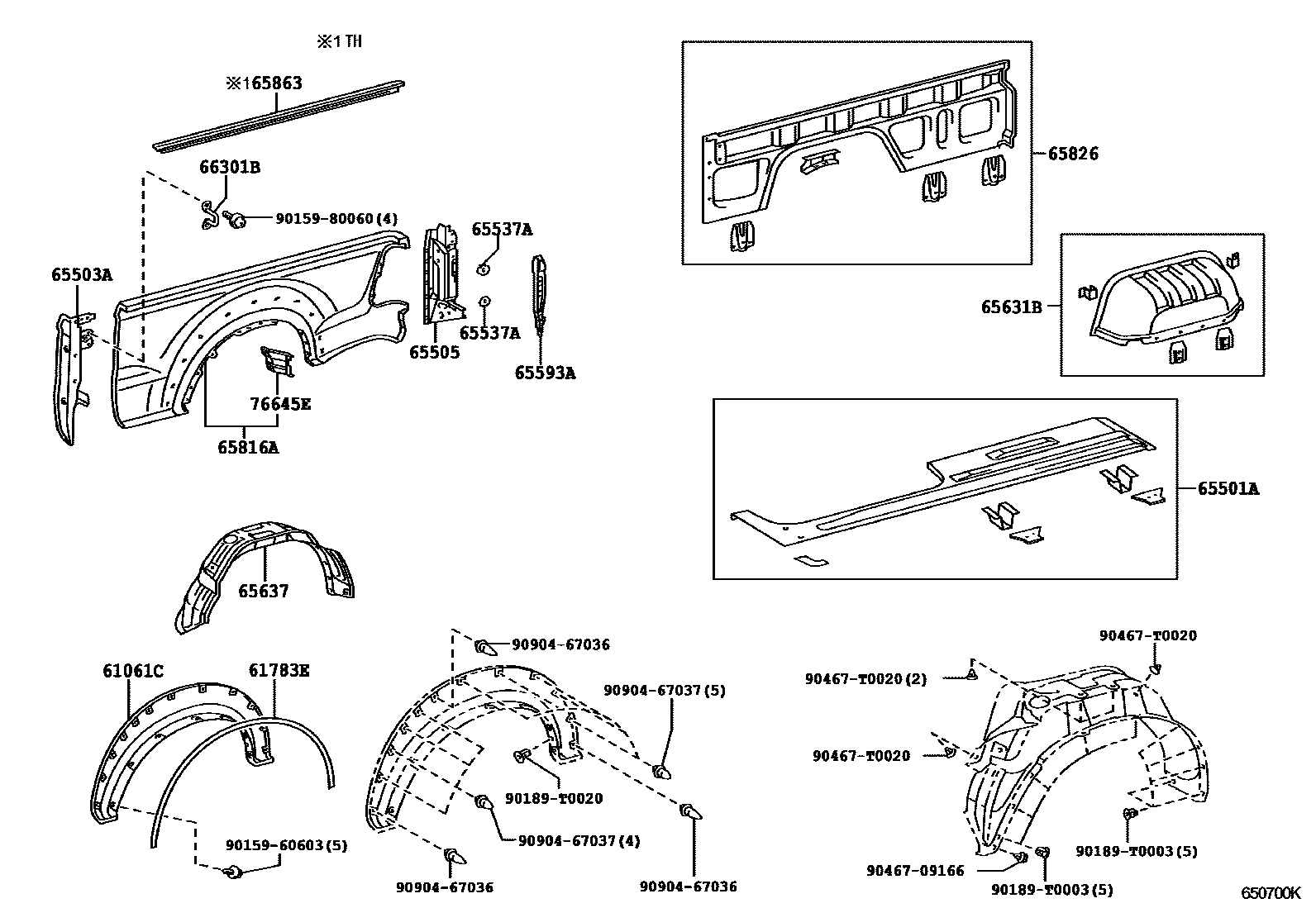

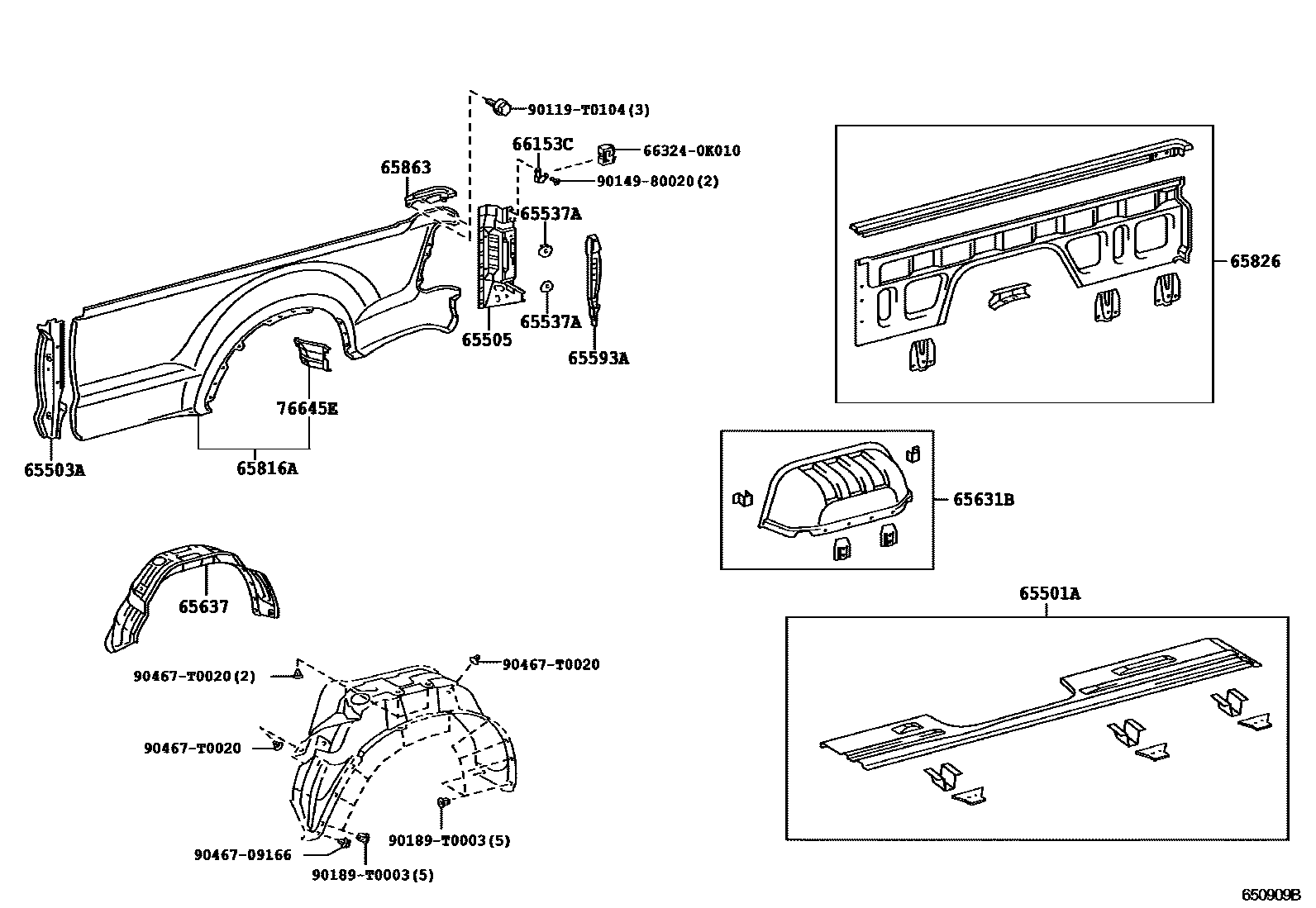

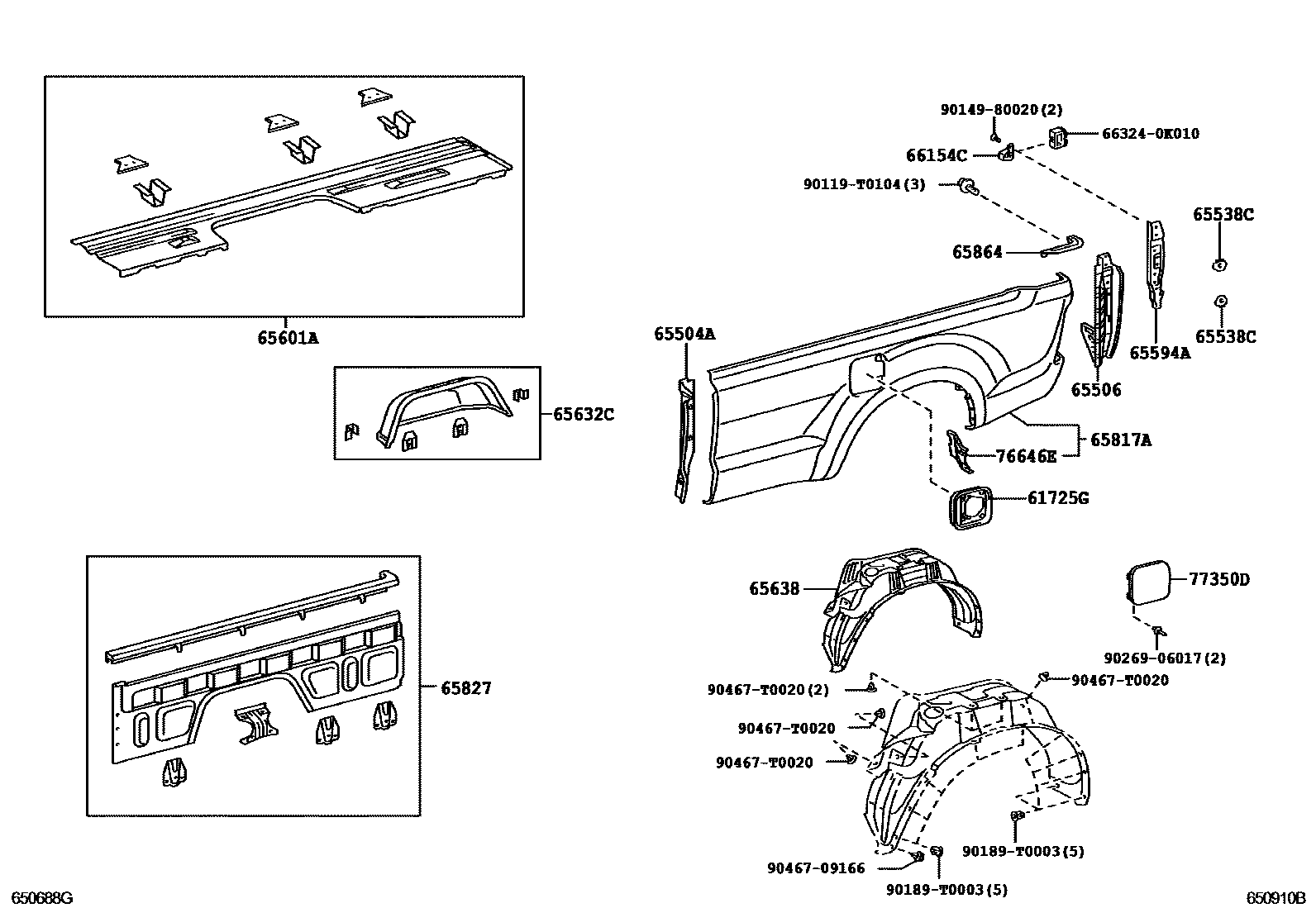

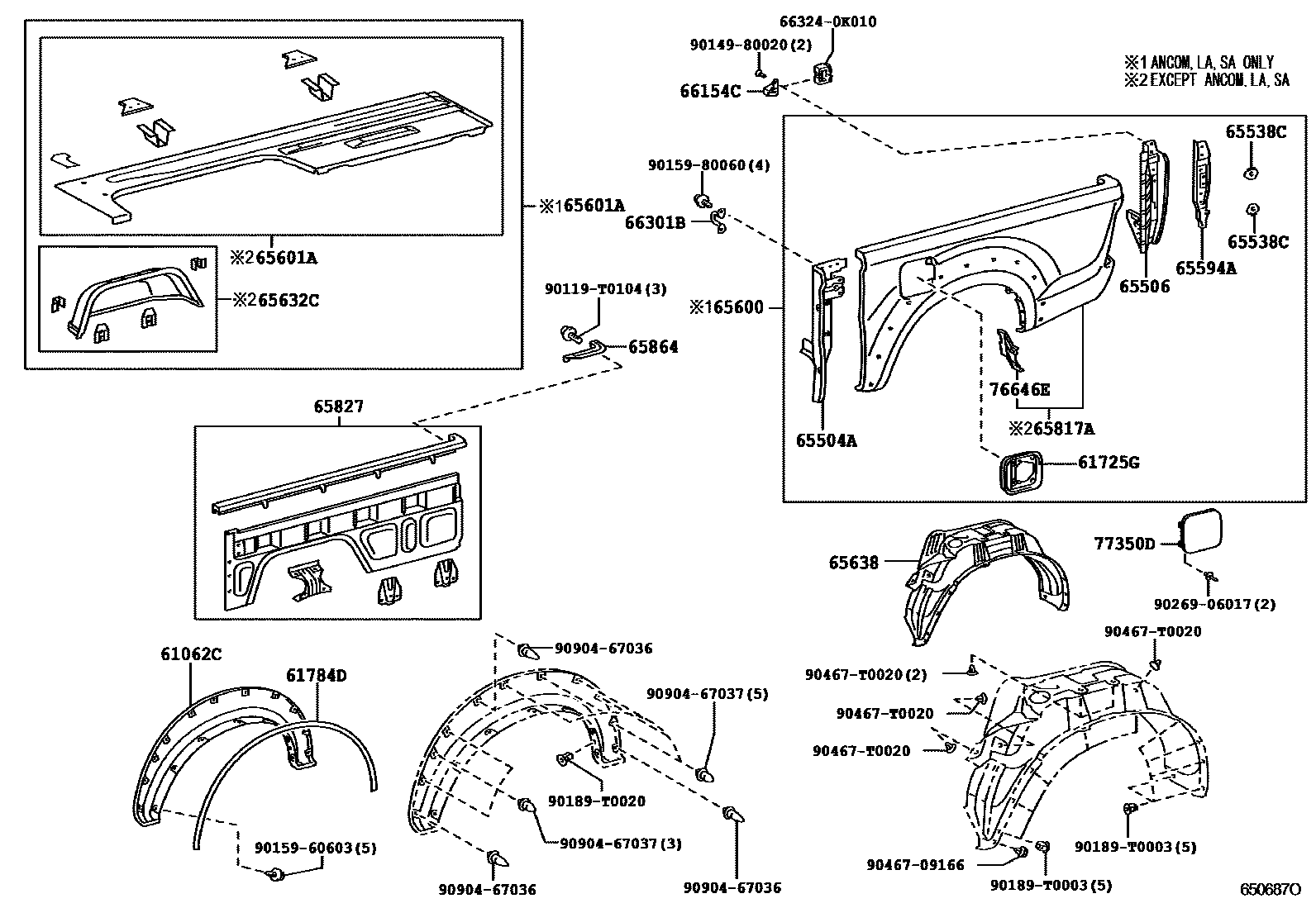

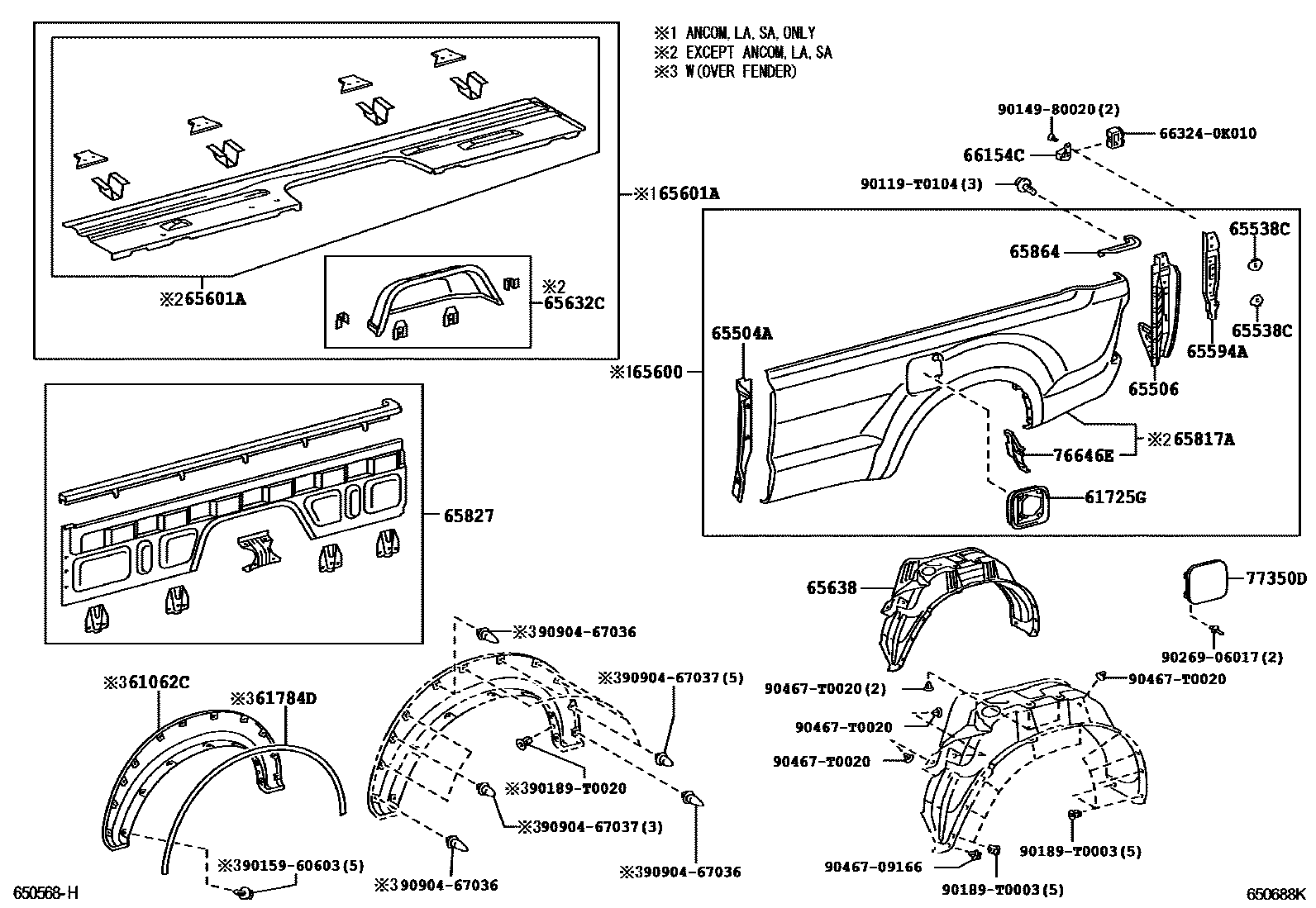

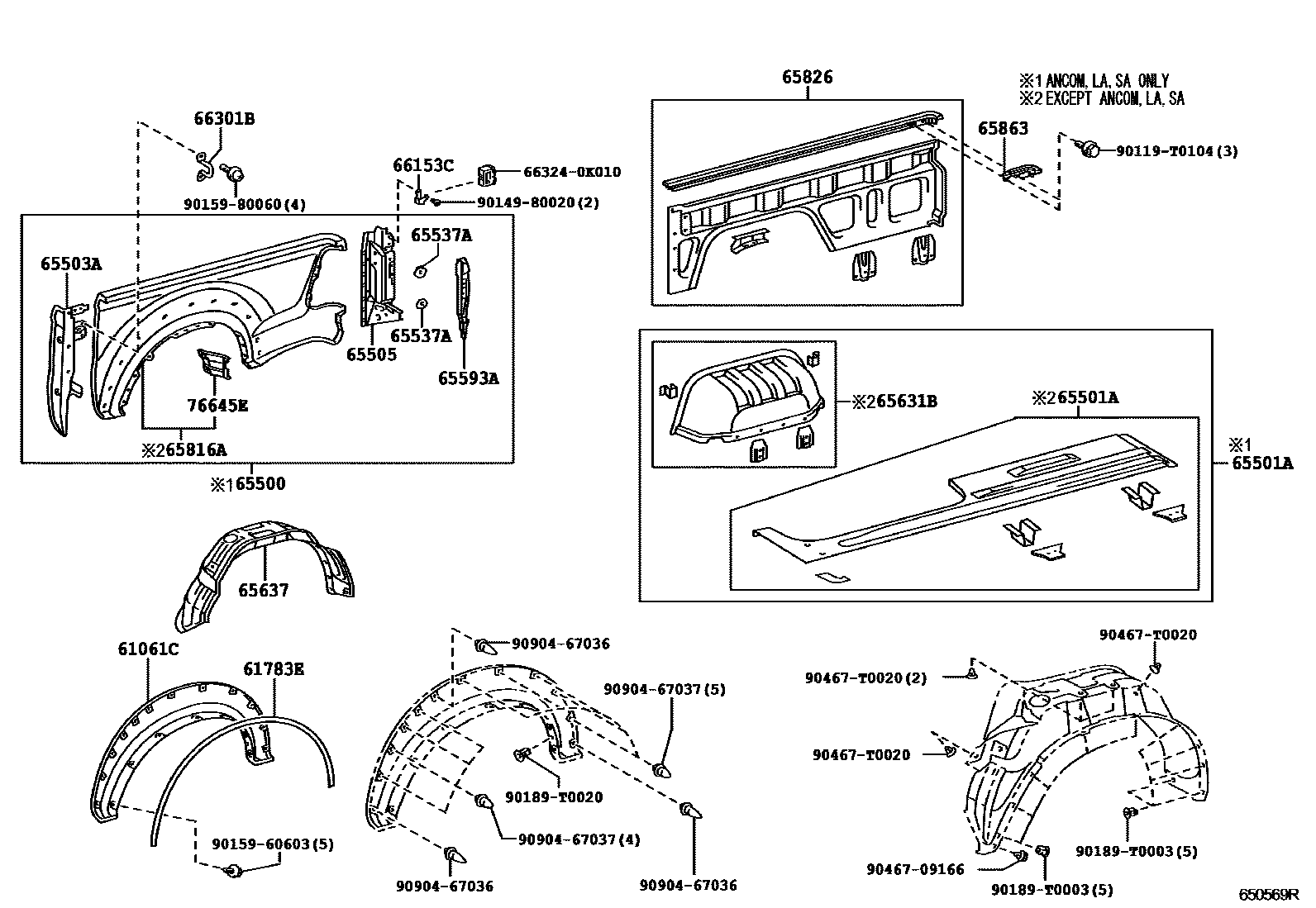

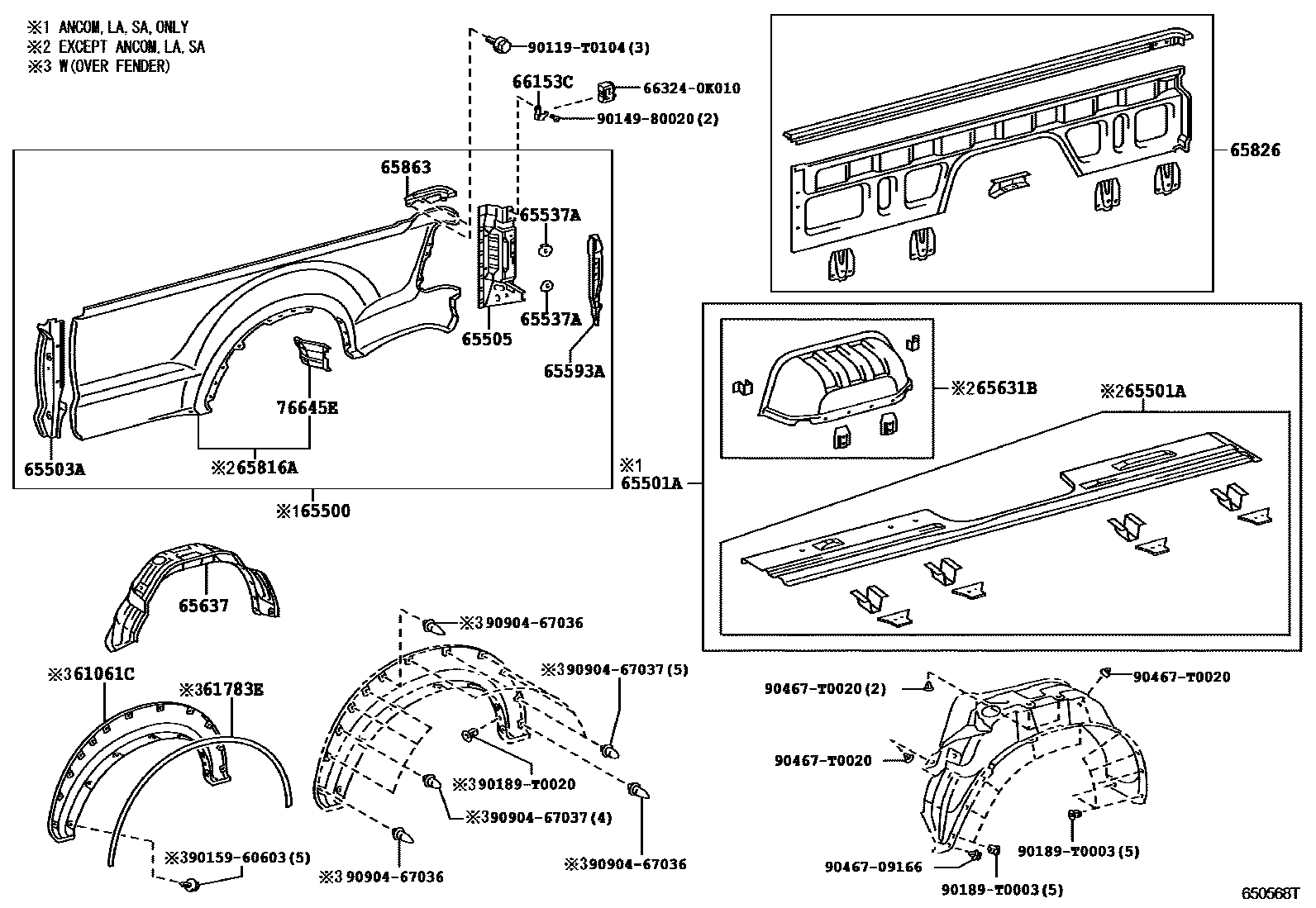

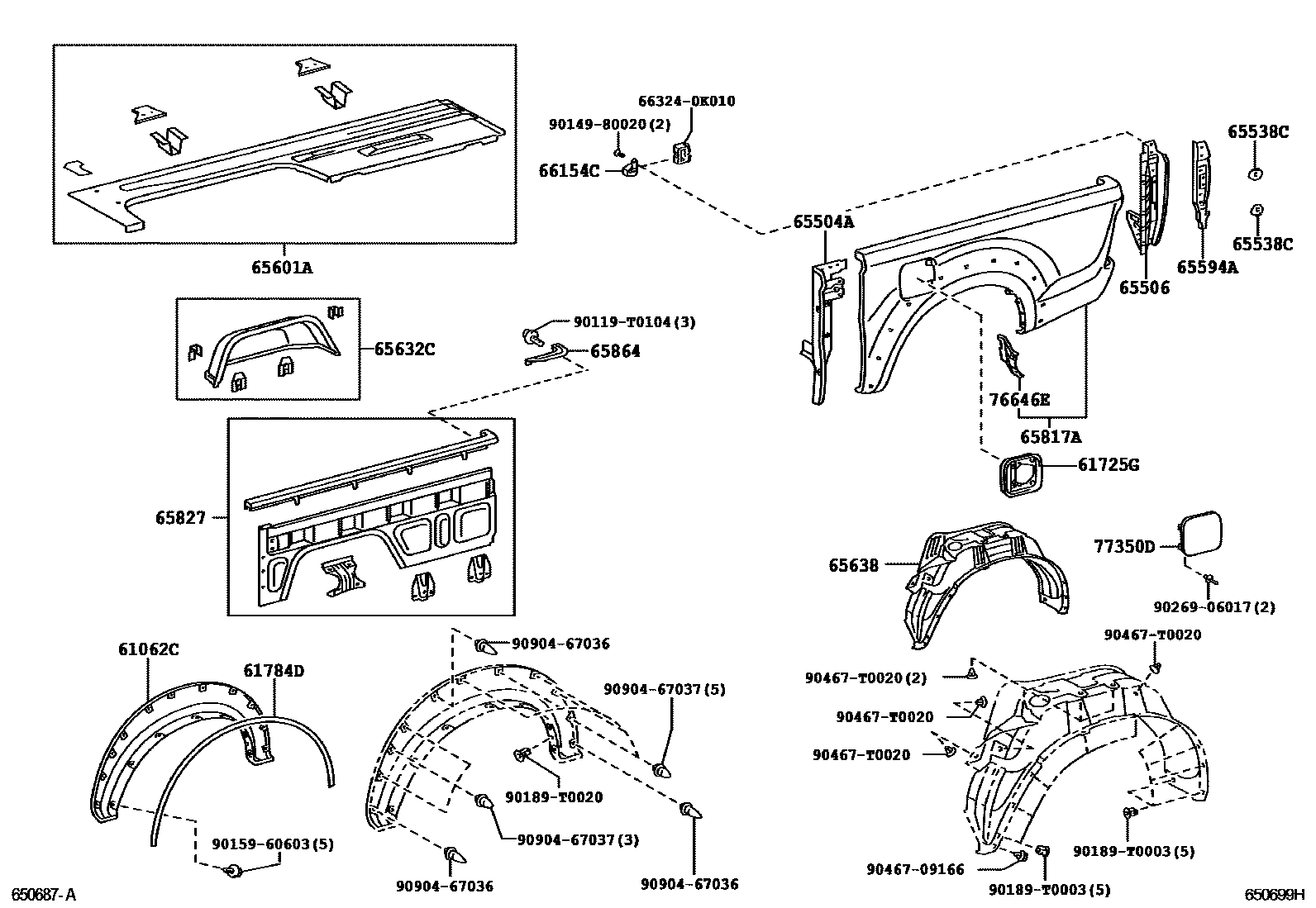

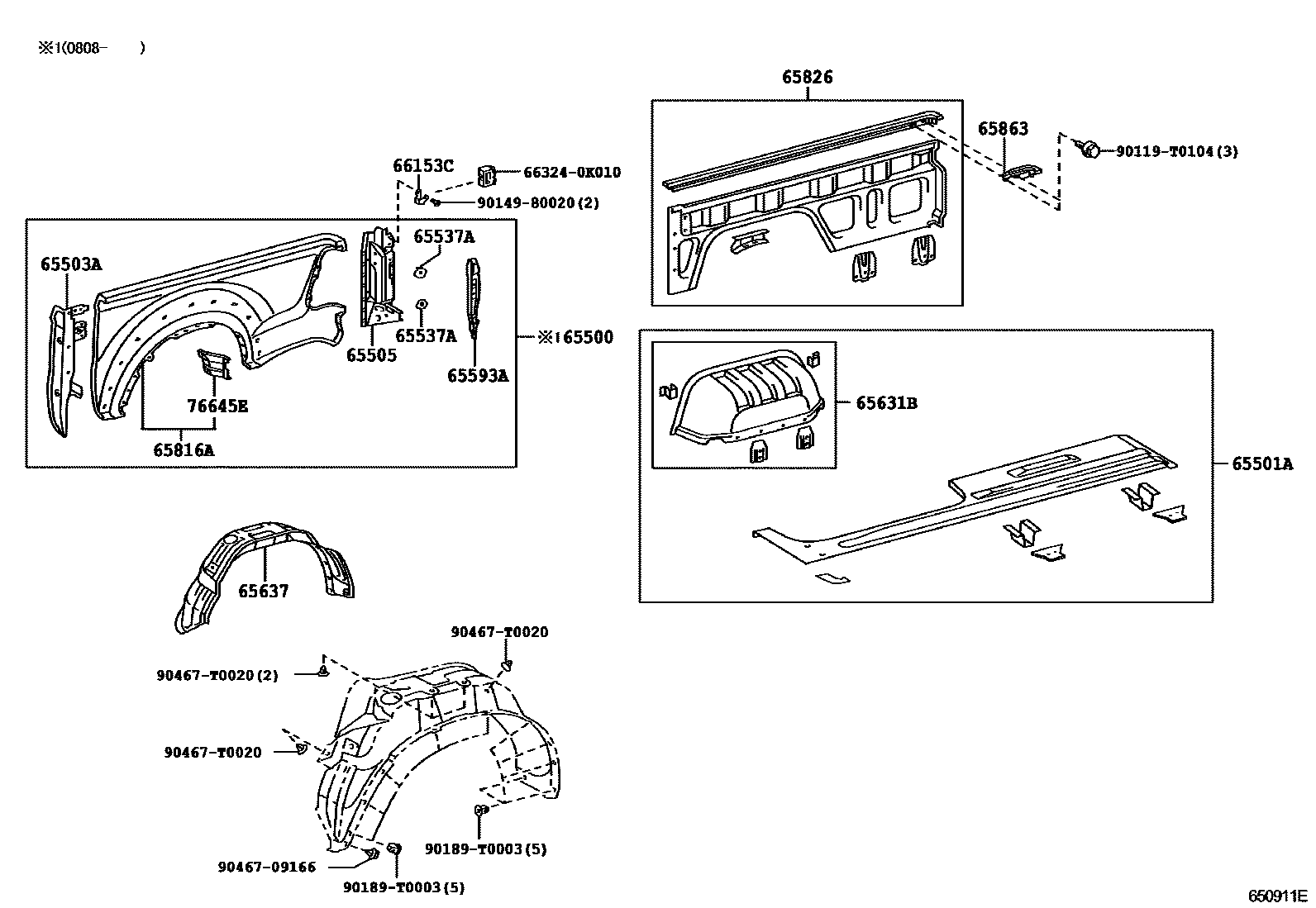

Toyota HILUX 后车身侧面板 — Figure 6554
Toyota HILUX EPC diagram 6554, 后车身侧面板, with 12 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61061C | Right rear No. 1 fender external panel sub-assembly | 61681-0K904 · 61681-0K905 · 61681-0K908 · 61681-0K909 · 61681-0K916 |
| 61062C | Left rear No. 1 fender external panel sub-assembly | 61682-0K903 · 61682-0K904 · 61682-0K908 · 61682-0K909 · 61682-0K916 |
| 61725G | No. 1 fuel inlet | 61725-0K010 · 61725-0K020 |
| 61783E | No. 1 rear fender outer panel pad | 61783-0K041 |
| 61784D | No. 2 rear fender outer panel pad | 61784-0K041 |
| 65500 | Right rear body side panel assembly | 65500-0K901 · 65500-0K902 · 65500-0K903 · 65500-0K904 · 65500-0K906 |
| 65501A | Right rear body side panel sub-assembly | 65317-0K905 · 65317-0K906 · 65317-0K914 · 65317-0K915 · 65501-0K901 · 65501-0K902 · 65501-0K905 |
| 65503A | Right side panel front end column sub-assembly | 65503-0K030 · 65503-0K060 · 65503-0K070 · 65551-0K010 · 65551-0K040 |
| 65504A | Left side panel front end column sub-assembly | 65504-0K030 · 65504-0K060 · 65504-0K070 · 65552-0K010 · 65552-0K040 |
| 65505 | Right side panel rear end column sub-assembly | 65505-0K010 · 65505-0K030 · 65505-0K040 |
| 65506 | Left side panel rear end column sub-assembly | 65506-0K010 · 65506-0K030 · 65506-0K040 |
| 65537A | Right side panel reinforcement lining | 65537-0K010 |
| 65538C | Left side panel reinforcement lining | 65537-0K010 |
| 65593A | Right side panel rear end column inner panel | 65593-0K010 · 65593-0K020 |
| 65594A | Left side panel rear end column inner panel | 65594-0K010 · 65594-0K020 |
| 65600 | Left rear body side panel assembly | 65600-0K901 · 65600-0K902 · 65600-0K903 · 65600-0K904 · 65600-0K906 |
| 65601A | Left rear body side panel sub-assembly | 65318-0K905 · 65318-0K909 · 65318-0K913 · 65318-0K914 · 65601-0K901 · 65601-0K902 · 65601-0K903 |
| 65631B | Right wheel housing panel | 65631-0K903 · 65631-0K906 |
| 65632C | Left wheel housing panel | 65632-0K901 · 65632-0K905 |
| 65637 | Right rear wheel house lining | 65637-0K010 · 65637-0K060 |
| 65638 | Left rear wheel house lining | 65638-0K010 · 65638-0K060 |
| 65816A | Right rear body side panel | 65816-0K901 · 65816-0K902 · 65816-0K903 · 65816-0K904 · 65816-0K905 · 65816-0K906 · 65816-0K907 · 65816-0K908 · 65816-0K909 |
| 65817A | Left rear body side panel | 65817-0K901 · 65817-0K902 · 65817-0K903 · 65817-0K904 · 65817-0K905 · 65817-0K906 · 65817-0K907 · 65817-0K908 · 65817-0K909 |
| 65826 | Right rear body inner panel | 65826-0K901 · 65826-0K903 · 65826-0K904 · 65826-0K906 · 65826-0K907 · 65826-0K909 · 65826-0K912 |
| 65827 | Left rear body inner panel | 65827-0K901 · 65827-0K903 · 65827-0K904 · 65827-0K905 · 65827-0K906 · 65827-0K907 · 65827-0K911 |
| 65863 | Right rear body upper side panel | 65863-0K010 · 65863-0K020 |
| 65864 | Left rear body upper side panel | 65863-0K020 · 65864-0K010 |
| 66153C | Rear door latch No. 1 right hook | 66153-0K020 · 66153-71010 |
| 66154C | Rear door latch No. 1 left hook | 66154-0K020 · 66154-71010 |
| 66301B | Rope hook sub-assembly | 66312-0K010 · 66312-0K020 |
| 76645E | Right rear body fender bracket | 76645-0K010 |
| 76646E | Left rear body fender bracket | 76646-0K010 |
| 77350D | Fuel filler cap assembly | 77350-0K040 · 77350-0K050 |
