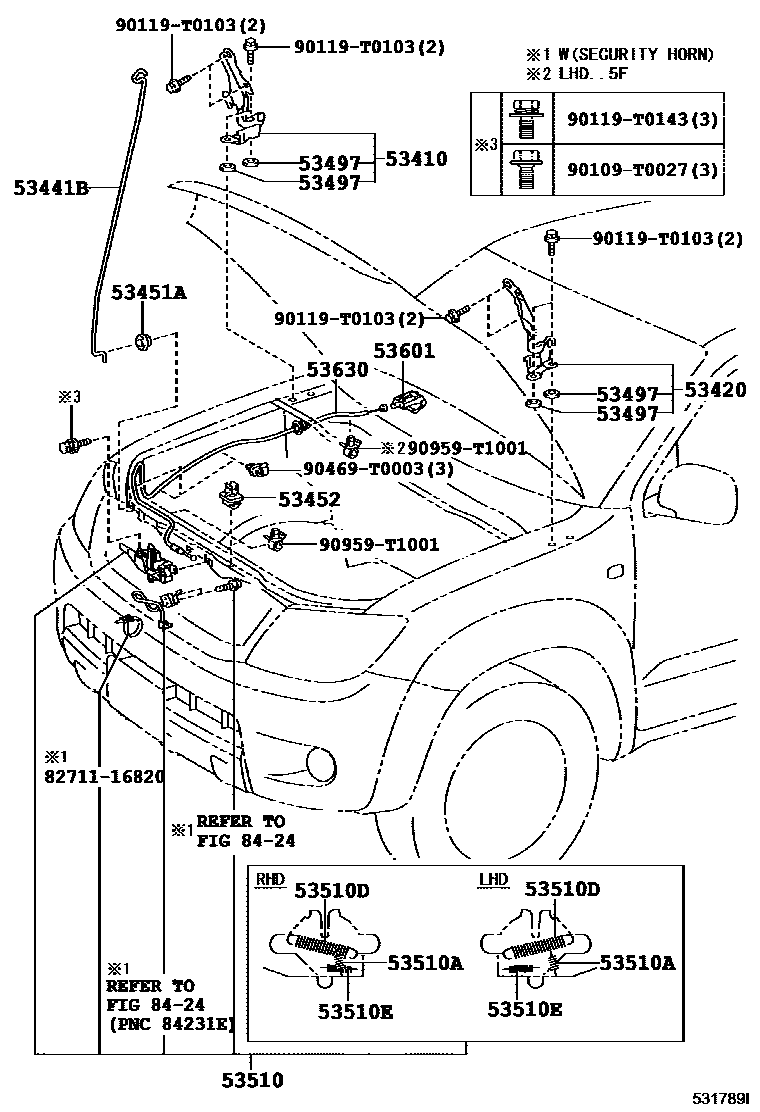

Toyota HILUX 发动机盖锁和铰链 — Figure 5354
Toyota HILUX EPC diagram 5354, 发动机盖锁和铰链, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0K020 · 53410-0K100 · 53410-0K120 |
| 53420 | Engine cover left hinge assembly | 53420-0K020 · 53420-0K100 · 53420-0K120 |
| 53441B | Engine cover support rod | 53441-0K010 · 53441-0K020 |
| 53451A | Gasket (for engine cover support rod) | 90480-T0006 |
| 53452 | Engine cover stay rod fixing | 53452-0K010 |
| 53497 | No. 1 engine cover hinge gasket | 53497-0K020 · 53497-0K070 · 53497-0K100 · 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-0K010 · 53510-0K020 · 53510-0K030 · 53510-0K040 · 53510-0K050 · 53510-0K090 · 53510-0K091 · 53510-0K100 · 53510-0K101 · 53510-0K110 · 53510-0K130 · 53510-0K131 · 53510-0K132 · 53510-0K160 |
| 53510A | Tension spring (for hood lock) | 90080-50414 · 90506-12063 · 90506-T0004 · 90506-T0009 |
| 53510D | Tension spring (for hood lock) | 90080-50413 · 90506-T0003 · 90506-T0008 |
| 53510E | Tension spring (for hood lock) | 90080-50412 · 90080-50416 · 90506-T0005 · 90506-T0010 |
| 53630 | Engine hood lock control cable assembly | 53630-0K010 · 53630-0K050 · 53630-0K080 · 53630-0K110 |
