Toyota HILUX 动力转向配管 — Figure 4503

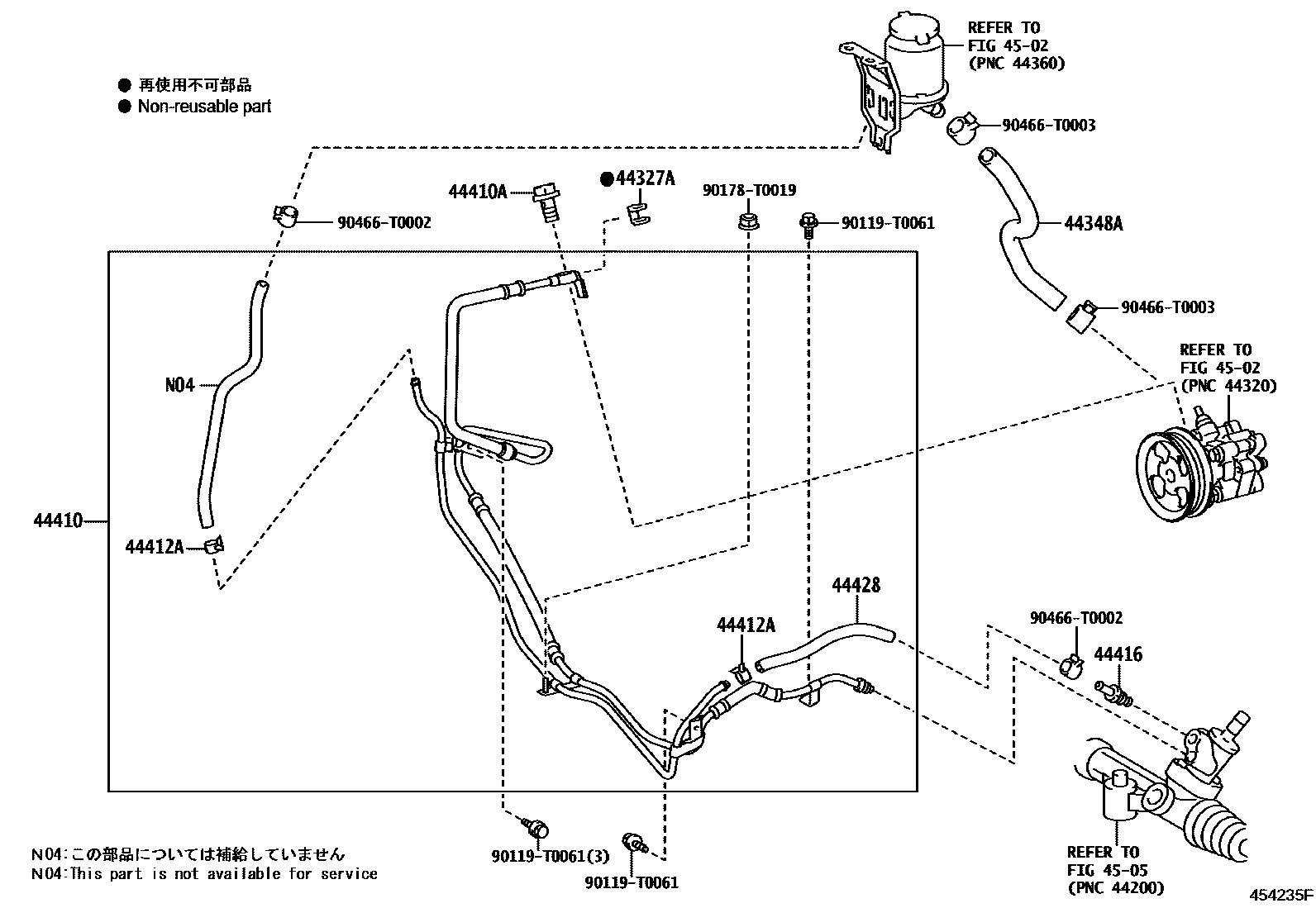

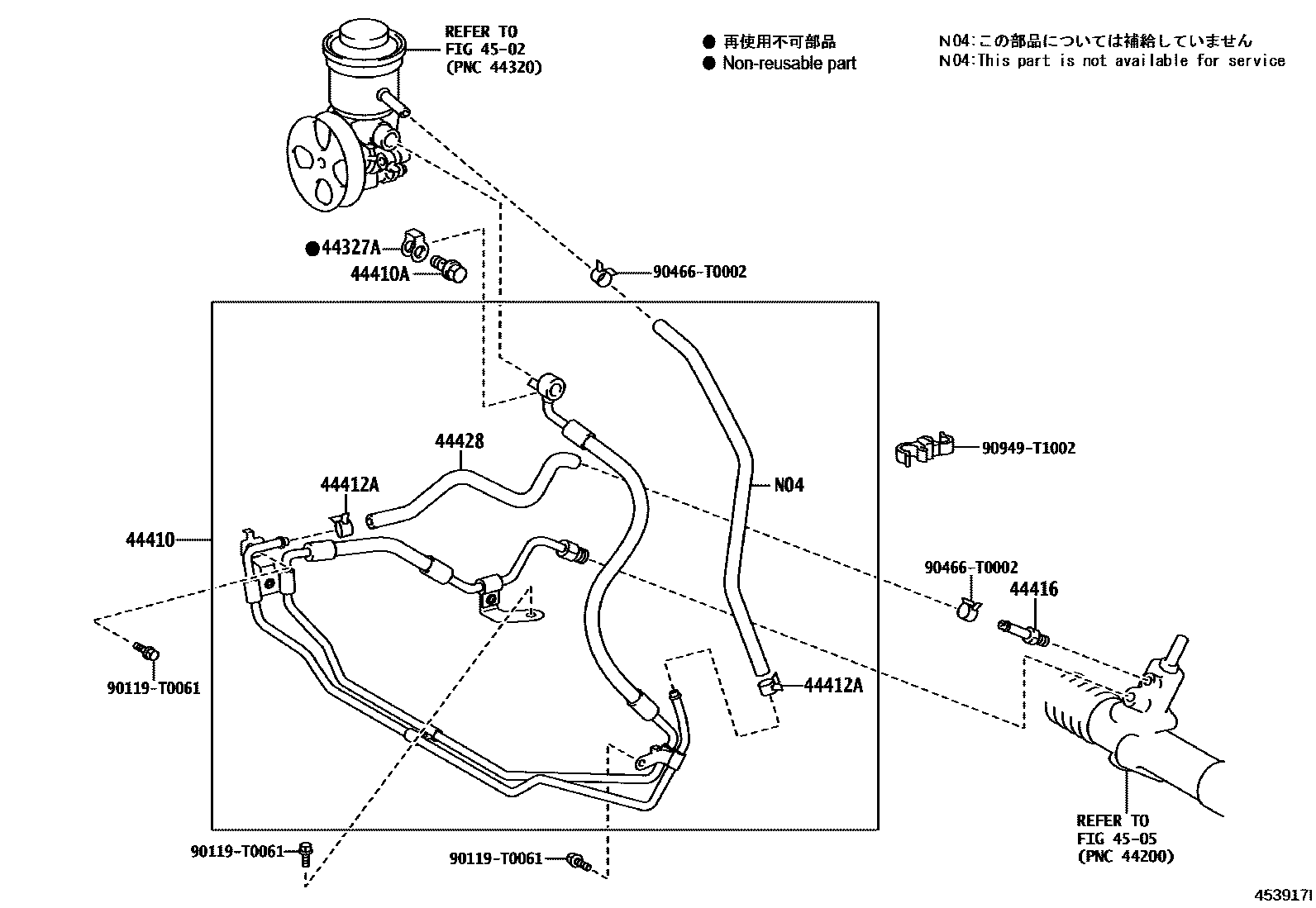

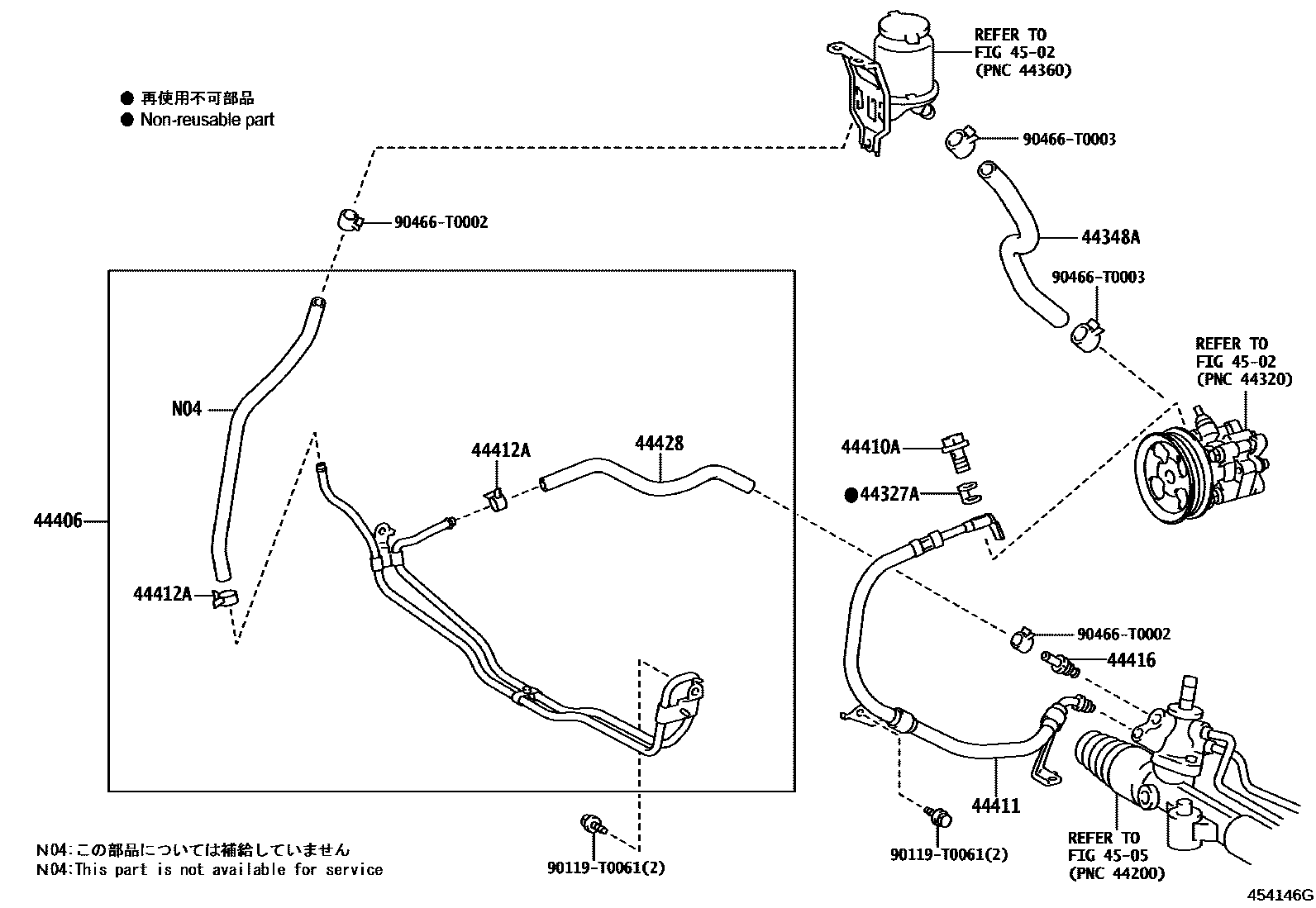

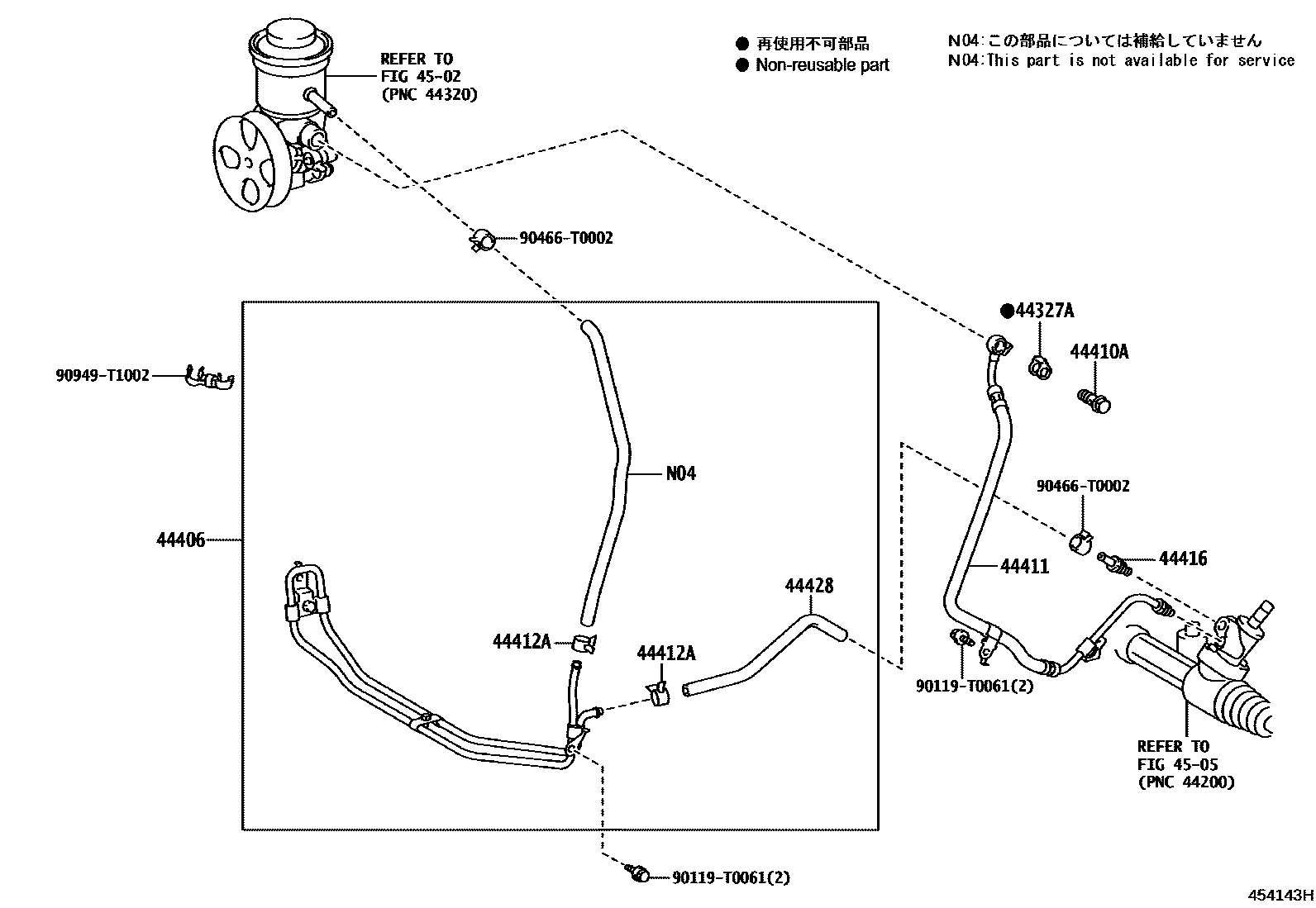

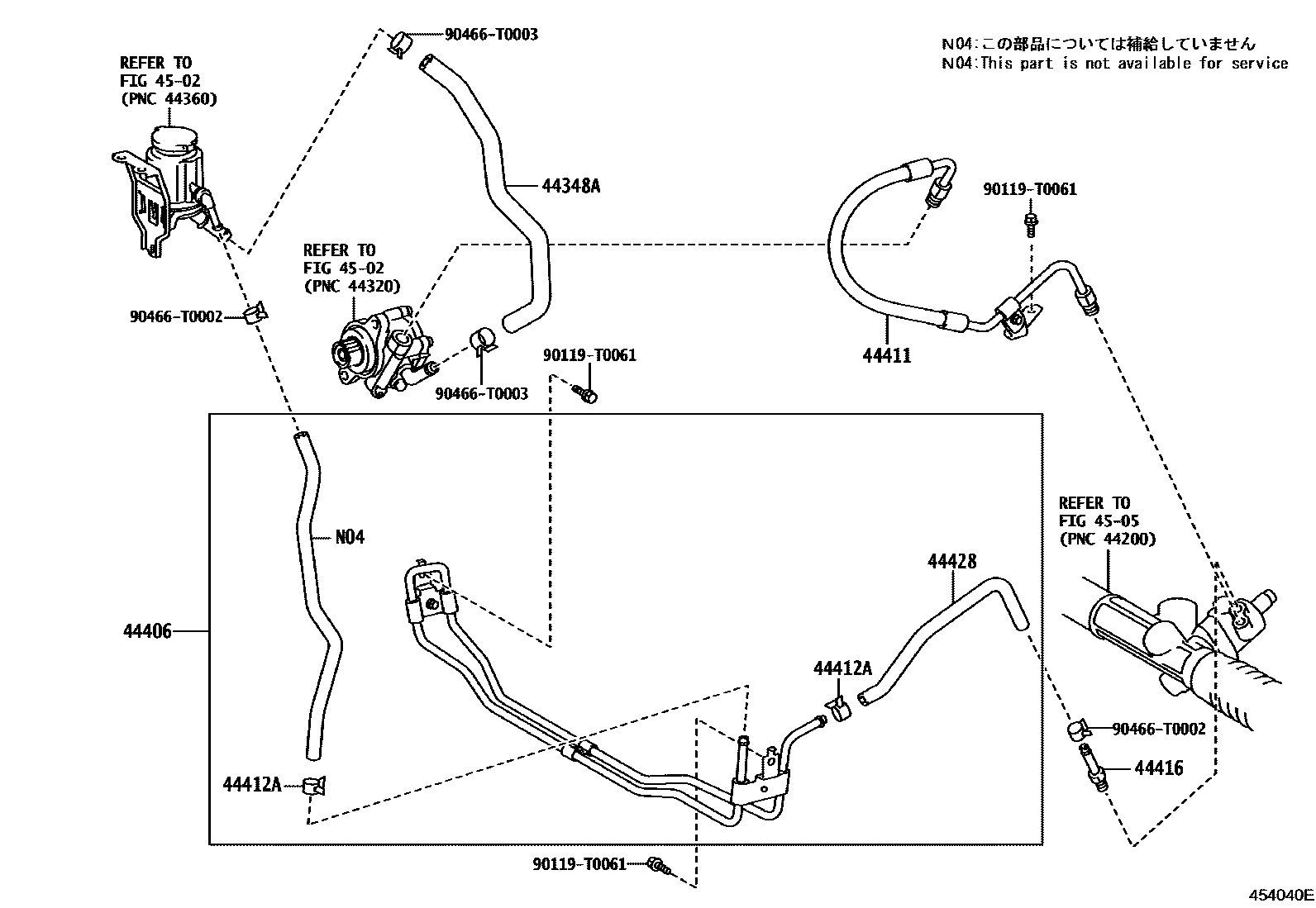

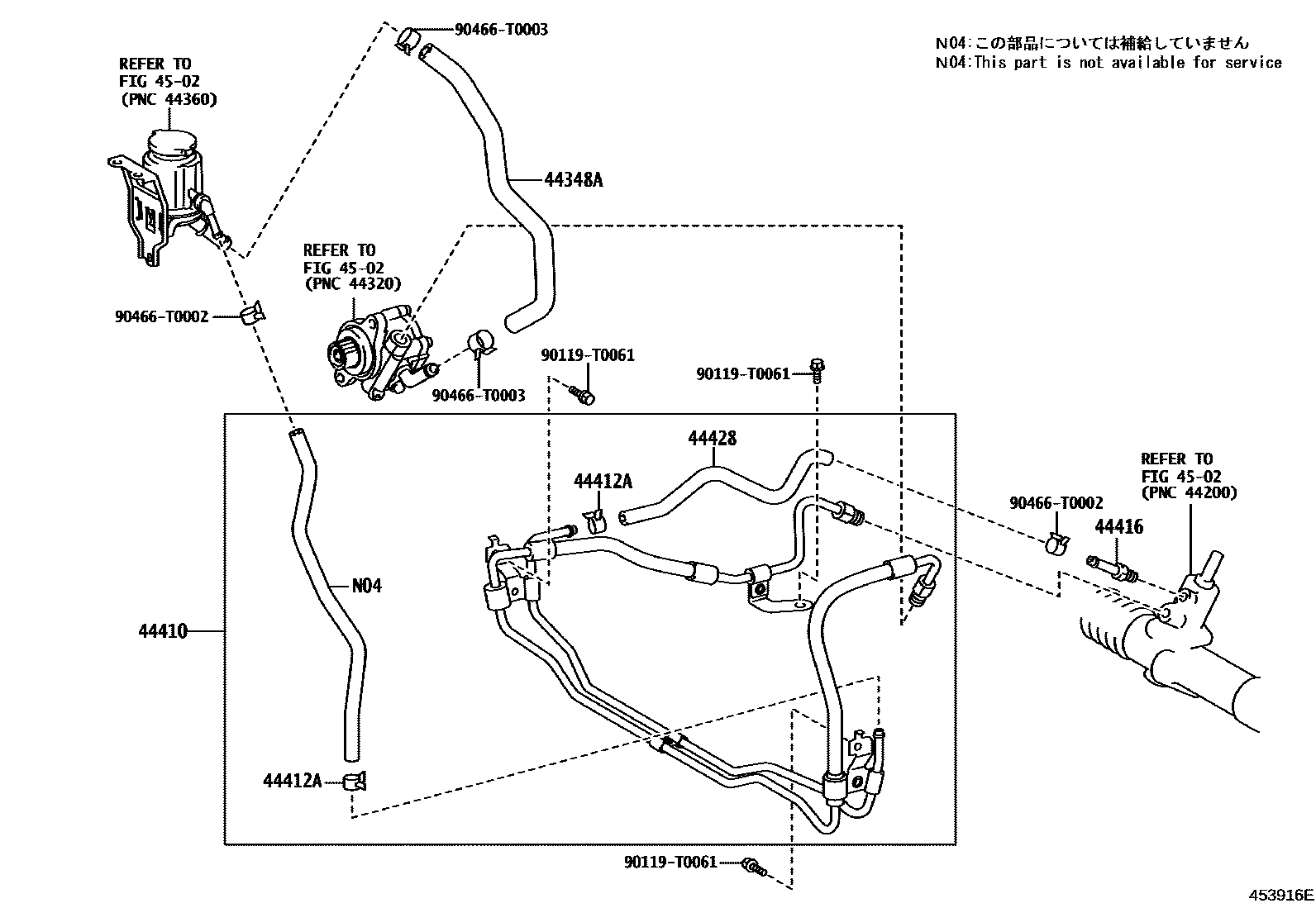

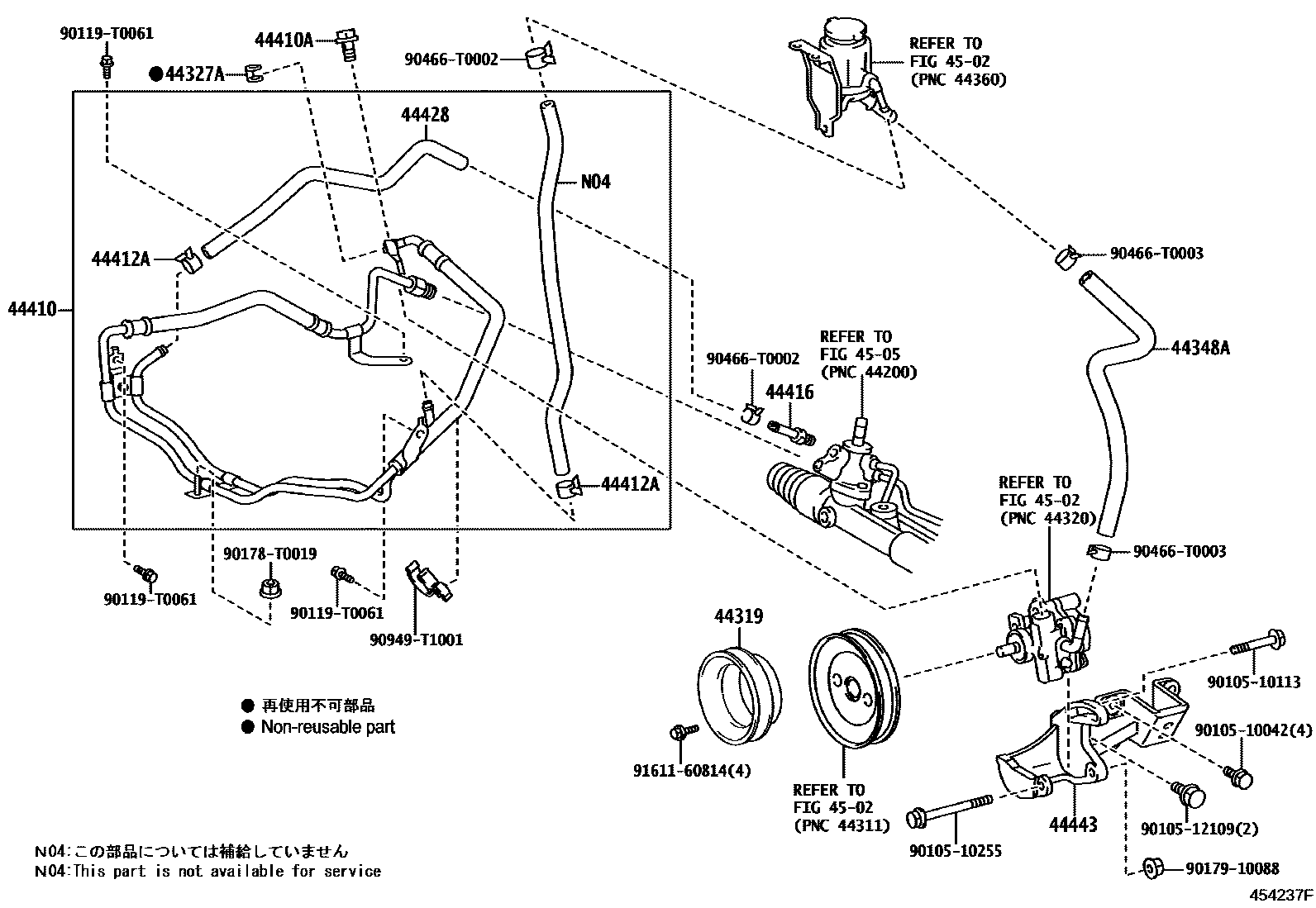

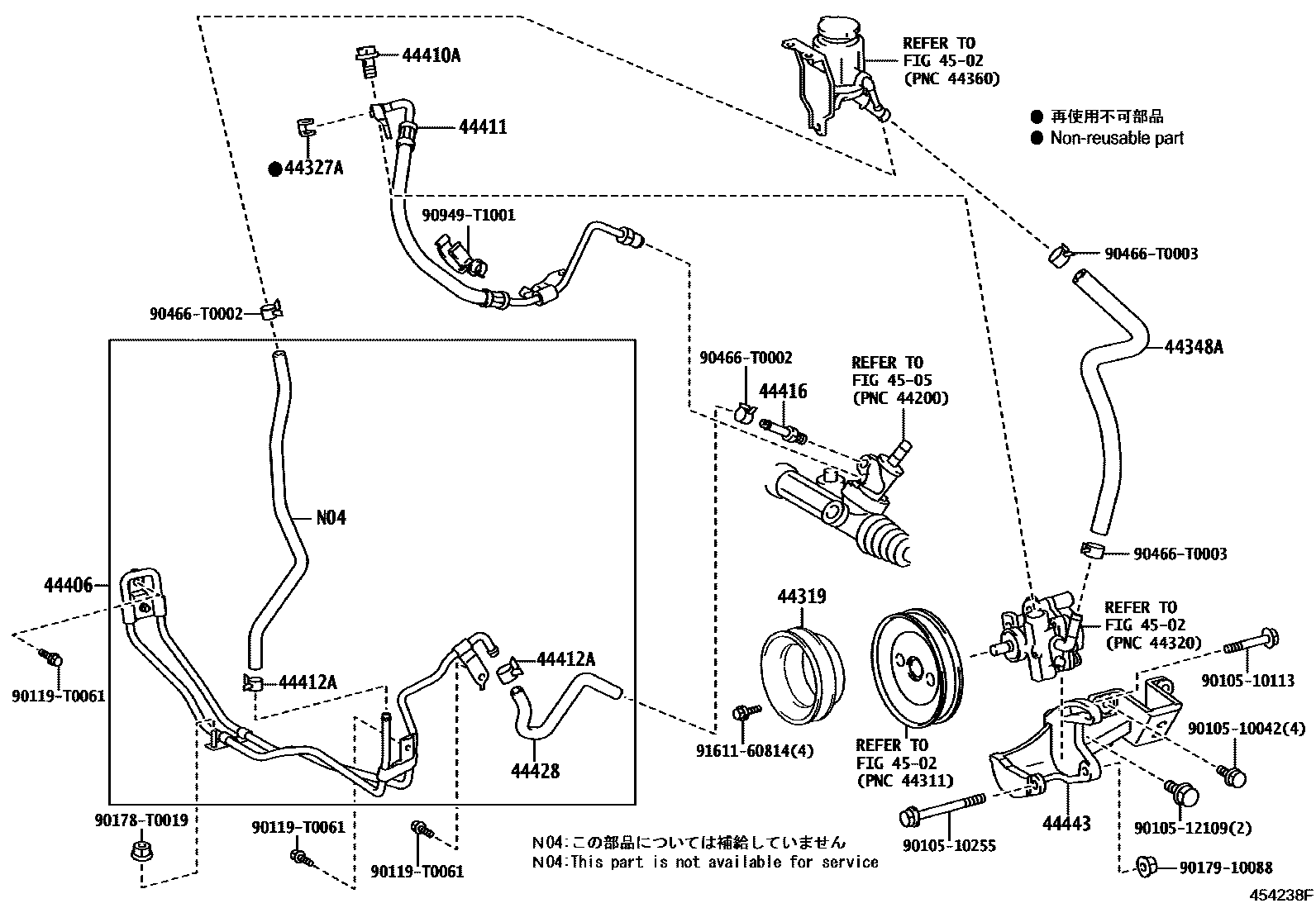

Toyota HILUX EPC diagram 4503, 动力转向配管, with 8 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44319 | Vane pump drive pulley | 44319-22010 |
| 44327A | No. 1 pressure hole gasket | 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-0K010 · 44348-0K030 · 44348-0K040 |
| 44406 | Oil return pipe sub-assembly | 44406-0K010 · 44406-0K020 · 44406-0K030 · 44406-0K040 · 44406-0K050 · 44406-0K060 · 44406-0K070 · 44406-0K080 · 44406-0K090 · 44406-0K100 · 44406-0K110 · 44406-0K120 |
| 44410 | Pressure supply pipe assembly | 44410-0K010 · 44410-0K050 · 44410-0K080 · 44410-0K090 · 44410-0K120 · 44410-0K140 · 44410-0K150 · 44410-0K160 |
| 44410A | Connector bolt (for pressure supply pipe) | 96341-41603 |
| 44411 | pressure supply hose | 44411-0K010 · 44411-0K020 · 44411-0K030 · 44411-0K040 · 44411-0K050 · 44411-0K060 · 44411-0K070 · 44411-0K090 |
| 44412A | Full rubber hose clamp (for oil return hose) | 90466-T0002 · 90466-T0006 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-0K010 |
| 44428 | No. 2 oil return hose | 44428-0K010 · 44428-0K020 · 44428-0K030 · 44428-0K040 · 44428-0K050 · 44428-0K060 · 44428-0K070 · 44428-0K080 · 44428-0K090 · 44428-0K100 · 44428-0K110 · 44428-0K120 · 44428-0K130 |
| 44443 | pump bracket | 44443-26091 |
