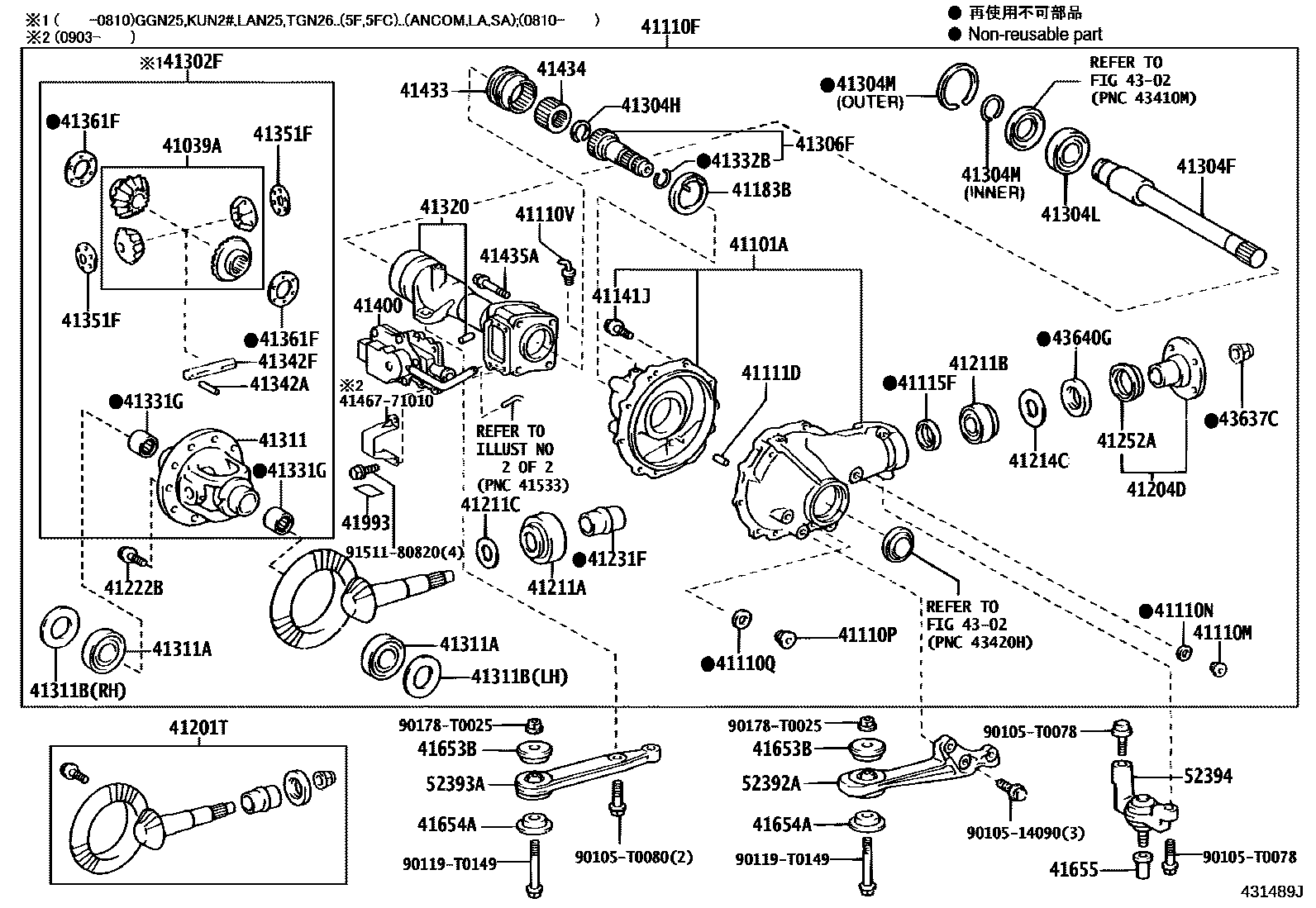

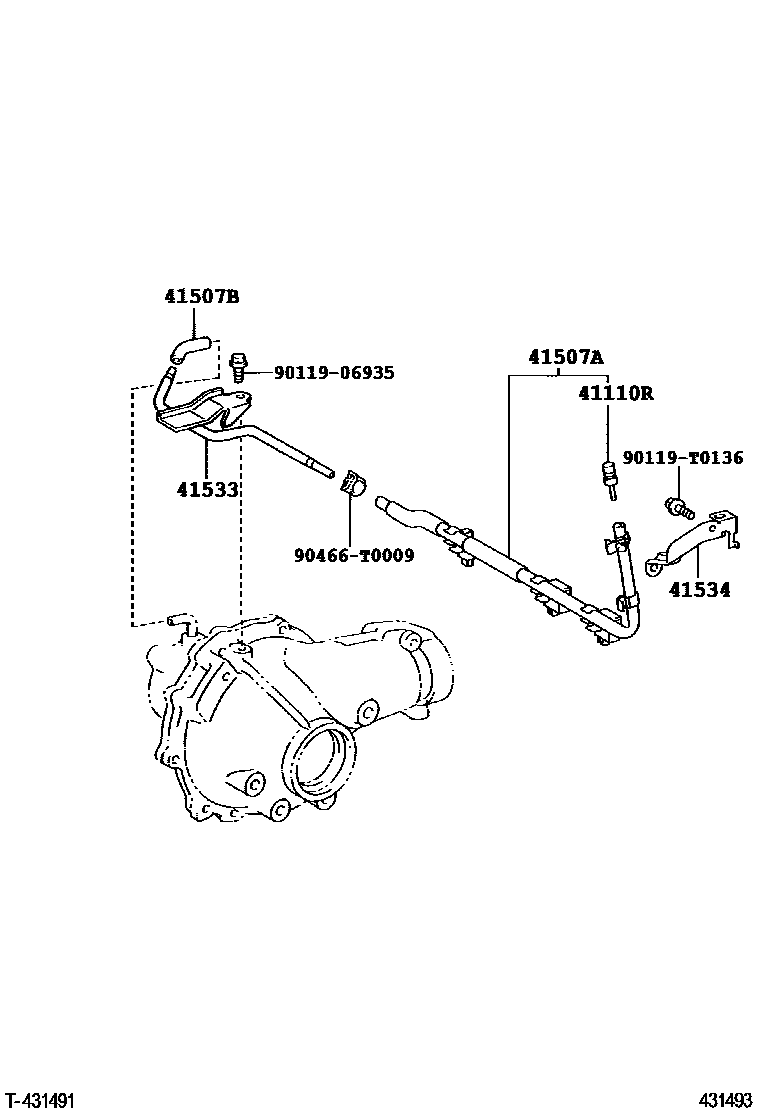

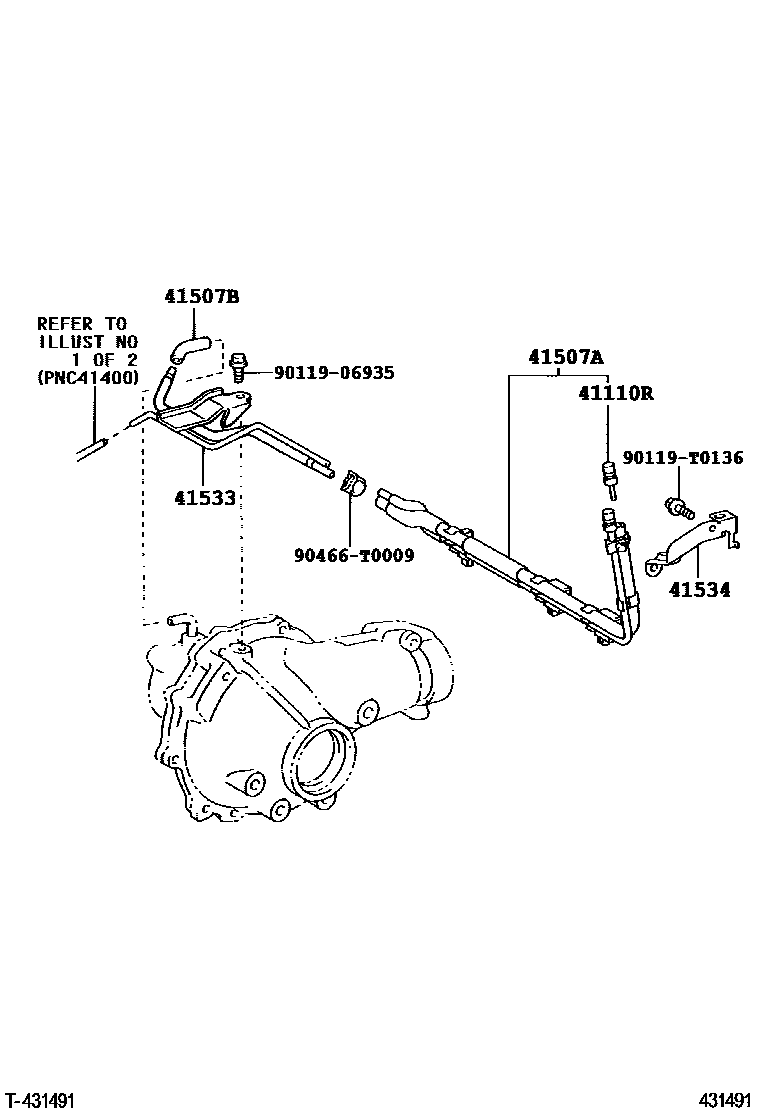

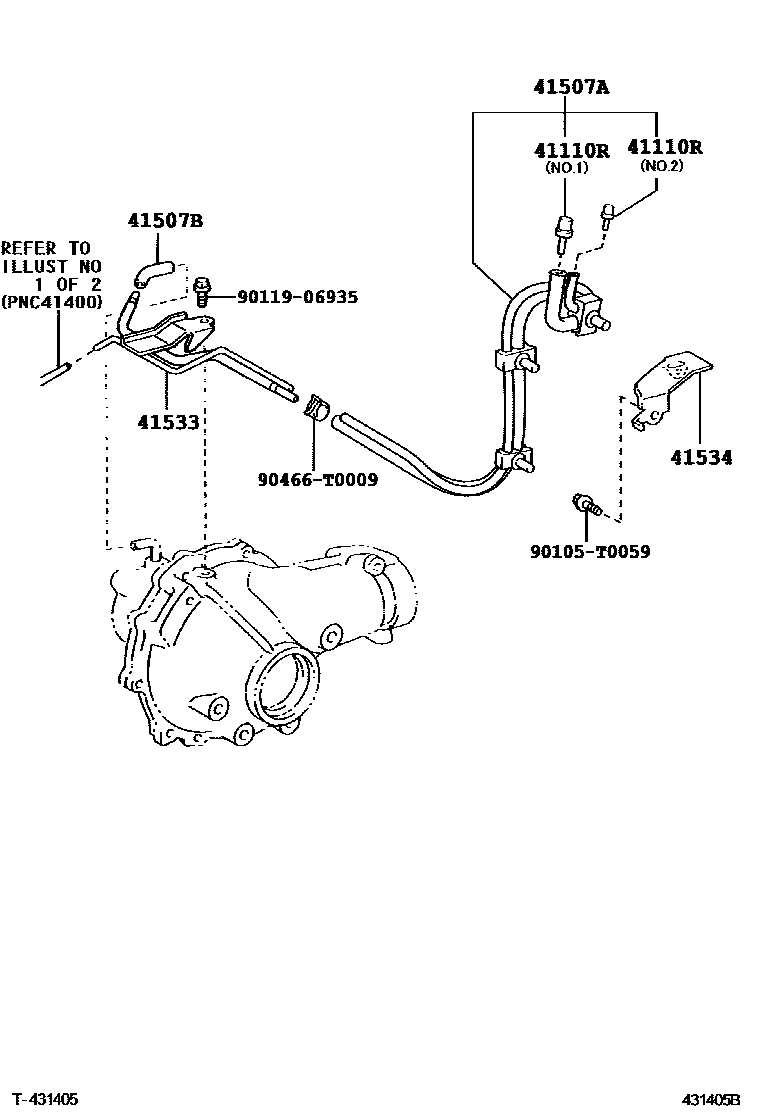

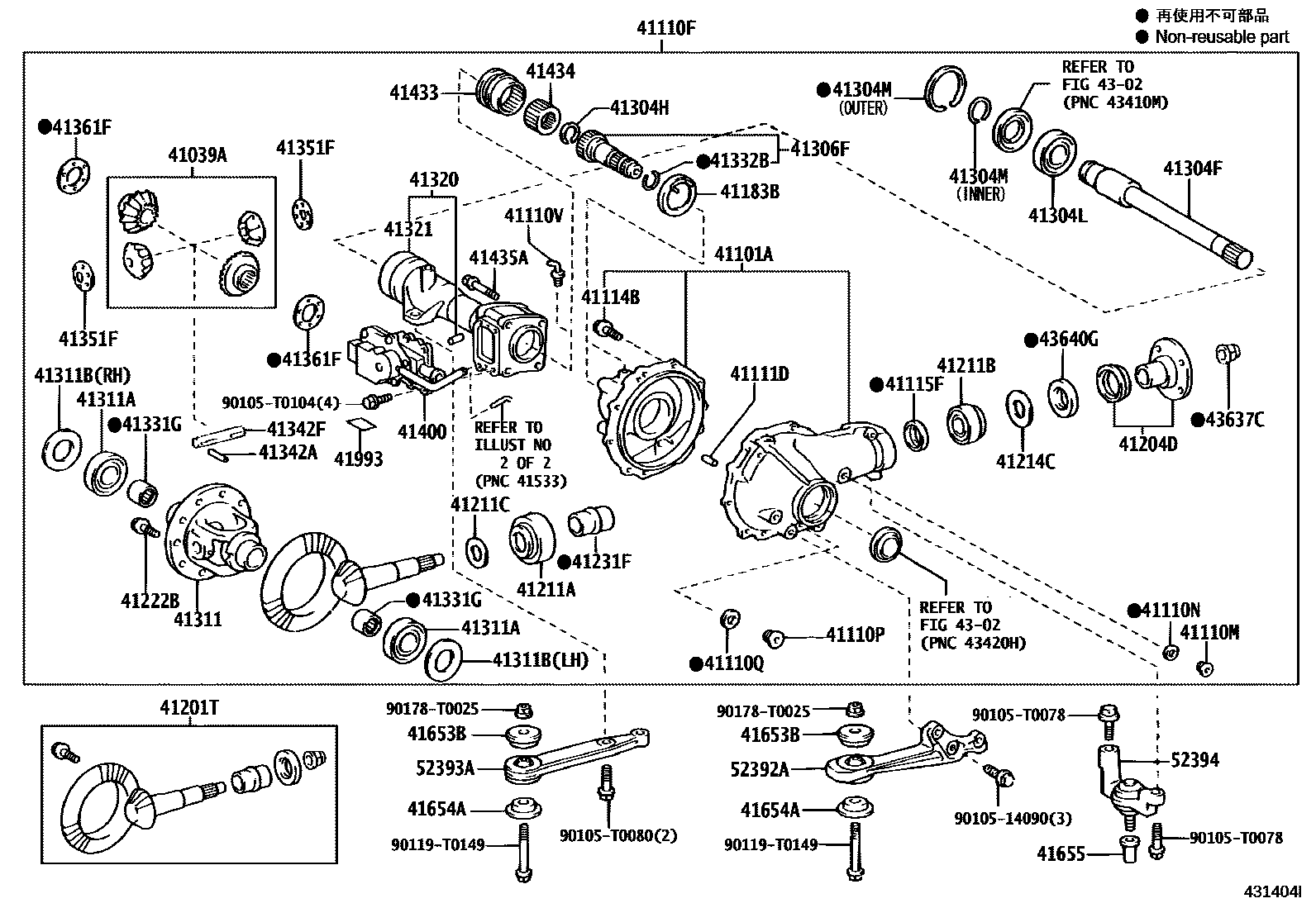

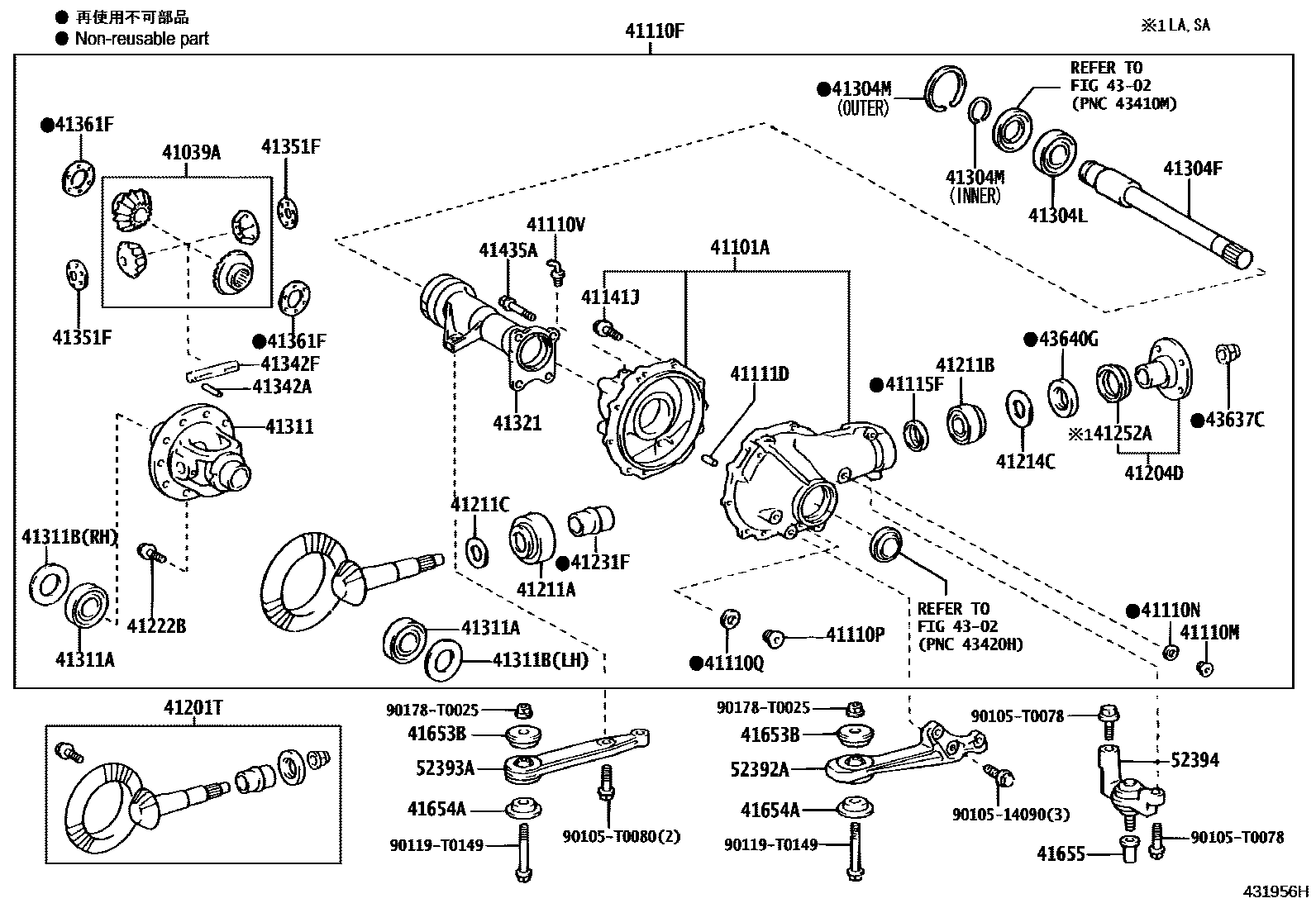

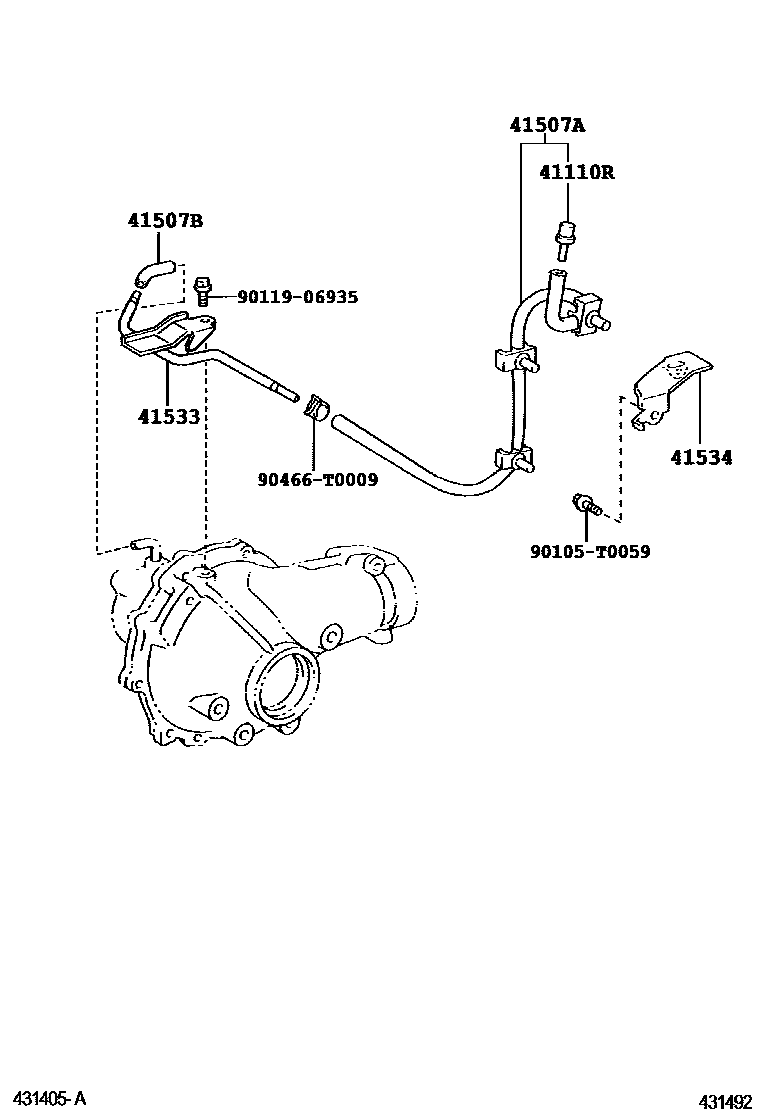

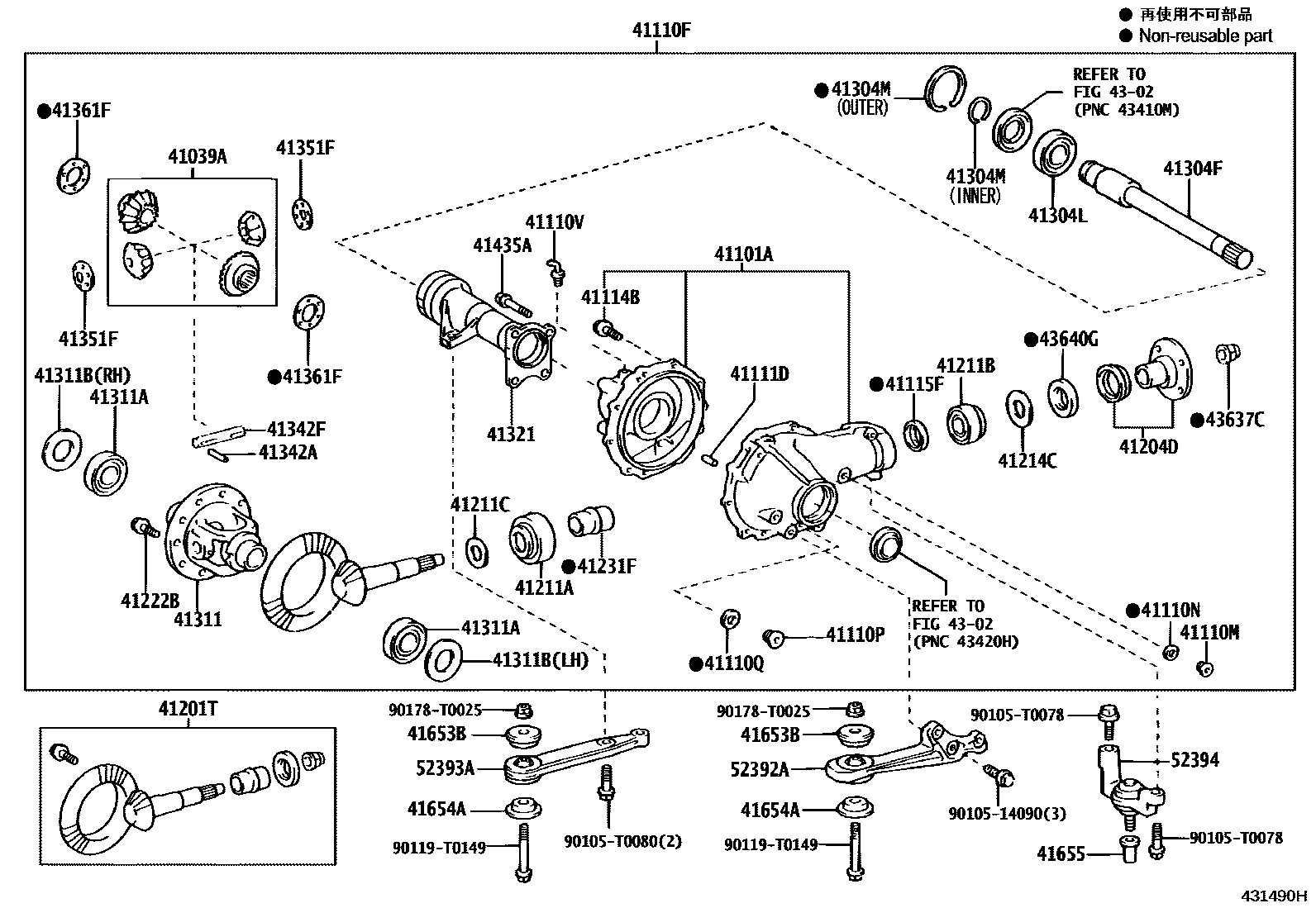

Toyota HILUX 前桥壳和差速器 — Figure 4301
Toyota HILUX EPC diagram 4301, 前桥壳和差速器, with 8 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41039A | Differential gear assembly | 41039-35010 · 41039-71020 |
| 41101A | Front differential housing sub-assembly | 41101-0K030 · 41101-71010 |
| 41110F | Front differential case assembly | 41110-0K240 · 41110-0K241 · 41110-0K250 · 41110-0K251 · 41110-0K270 · 41110-0K271 · 41110-0K280 · 41110-0K281 · 41110-0K290 · 41110-0K291 · 41110-0K310 · 41110-0K311 · 41110-0K350 · 41110-0K351 · 41110-0K360 · 41110-0K361 · 41110-35A10 · 41110-71090 · 41110-71110 · 41110-71120 · 41110-71130 · 41110-71150 · 41110-71160 · 41110-71180 · 41110-71190 · 41110-71210 · 41110-71220 · 41110-71230 · 41110-71240 |
| 41110M | Front differential oil filling plug | 90341-18032 · 90341-18066 · 90341-T0002 |
| 41110N | Front differential oil plug gasket | 12157-10010 |
| 41110P | Front differential drain plug | 90341-24014 · 90341-T0003 |
| 41110Q | Front differential drain plug gasket | 90430-24003 |
| 41110R | Breather plug (for front differential) | 90930-03136 · 90930-03159 |
| 41110V | Connector (for front differential) | 90404-08004 |
| 41111D | Direct sales (for front differential case) | 90250-10017 · 90250-T0004 |
| 41114B | Front differential bearing cap bolts | 90105-T0101 |
| 41115F | Front differential oil reservoir ring | 41115-0K010 · 41115-35010 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-10391 · 90105-T0101 |
| 41183B | Front differential side bearing retainer oil baffle | 41183-0K010 · 41183-35040 |
| 41201T | Front differential final drive gear assembly | 41201-79095 · 41201-79135 · 41201-79165 · 41201-80327 |
| 41204D | Front driving pinion front coupling flange sub-assembly | 41204-0K030 · 41204-35110 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-35087 · 90366-T0016 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-30067 · 90366-T0013 |
| 41211C | differential ring gear | 90564-35109 · 90564-35110 · 90564-35111 · 90564-35112 · 90564-35113 · 90564-35114 · 90564-35115 · 90564-35116 · 90564-35117 · 90564-35118 · 90564-35119 · 90564-35120 · 90564-35121 · 90564-35123 · 90564-35124 · 90564-35125 · 90564-35126 · 90564-35127 · 90564-35128 · 90564-35129 · 90564-35130 · 90564-35131 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-26011 |
| 41222B | Bolt (for front differential ring gear assembly) | 90901-05002 |
| 41231F | Front differential drive pinion bearing spacer | 41231-35040 |
| 41252A | Dust cover (for front differential) | 41252-35050 |
| 41302F | Front differential housing sub-assembly | 41301-71010 · 41301-71040 |
| 41304F | Right differential side gear shaft sub-assembly | 41337-35050 · 41337-35060 |
| 41304H | Hole snap ring (for differential side gear shaft) | 90520-31011 · 90520-T0028 |
| 41304L | Bearing (for right front differential side gear shaft) | 90363-T0014 |
| 41304M | Right shaft snap ring (for differential side gear shaft) | 90520-41014 · 90520-75002 · 90520-T0027 · 90521-T0002 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-0K020 · 41306-35050 |
| 41311 | front differential case | 41311-0K040 · 41311-0K050 · 41311-0K060 · 41311-0K070 · 41311-71010 · 41311-71020 · 41311-71030 · 41311-71040 |
| 41311A | Bearings (for front differential housing) | 90366-53004 · 90366-T0031 |
| 41311B | Flat washer (for front differential case) | 90564-50124 · 90564-50126 · 90564-50128 · 90564-50130 · 90564-50132 · 90564-50134 · 90564-50136 · 90564-50138 · 90564-50140 · 90564-50142 · 90564-50154 · 90564-50156 · 90564-50158 · 90564-50160 · 90564-50162 · 90564-50164 · 90564-50166 · 90564-50168 · 90564-50170 · 90564-50172 · 90564-50184 · 90564-50185 · 90564-50186 · 90564-50187 · 90564-50188 · 90564-50189 · 90564-50190 · 90564-50191 · 90564-50192 · 90564-50193 · 90564-50194 · 90564-50195 · 90564-50196 · 90564-50197 · 90564-50198 · 90564-50199 · 90564-50200 · 90564-50201 · 90564-50202 · 90564-50203 · 90564-50204 · 90564-50205 · 90564-50206 · 90564-50207 · 90564-50208 · 90564-50209 · 90564-50210 · 90564-50211 · 90564-50212 · 90564-50213 · 90564-50214 · 90564-50215 · 90564-50216 · 90564-50217 · 90564-50218 · 90564-50219 · 90564-50220 · 90564-50221 · 90564-50222 · 90564-50223 · 90564-50224 · 90564-50225 · 90564-50226 · 90564-50227 · 90564-50228 · 90564-50229 · 90564-50230 · 90564-50231 · 90564-50232 · 90564-50233 · 90564-50234 · 90564-50235 · 90564-50236 · 90564-50237 |
| 41320 | Front differential tube assembly | 41320-0K010 · 41320-35050 |
| 41321 | Differential extended flange tube | 41321-0K010 · 41321-0K020 · 41321-35050 |
| 41331G | Needle roller bearings (for front differential side gears) | 90364-35010 · 90364-T0009 |
| 41332B | Hole snap ring (for differential side gear countershaft) | 90521-34003 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 · 90250-T0006 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-0K010 · 41342-35020 |
| 41351F | Front differential planetary gear thrust washer | 41351-0K010 · 41351-35030 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-0K020 · 41361-0K030 · 41361-0K040 · 41361-0K050 · 41361-0K060 · 41361-0K070 · 41361-0K080 · 41361-0K090 · 41361-34010 · 41361-34020 · 41361-34030 · 41361-34040 · 41361-34050 · 41361-34060 · 41361-34070 · 41361-34080 · 41361-34090 |
| 41400 | Differential vacuum actuator assembly | 41400-35031 · 41400-35032 |
| 41433 | Differential clutch sleeve | 41433-35010 |
| 41434 | Differential clutch hub | 41434-35030 |
| 41435A | Bolt (for securing differential clutch housing) | 90107-12002 · 90107-12003 · 90107-T0001 · 90107-T0002 |
| 41507A | No. 2 front differential lock actuator breather pipe | 41507-0K030 · 41507-0K031 · 41507-0K040 · 41507-0K041 · 41507-0K051 · 41507-0K052 · 41507-0K061 · 41507-0K062 · 41507-0K070 · 41507-0K080 |
| 41507B | Front differential lock actuator breather pipe | 90445-T0014 |
| 41533 | front differential breather pipe | 41533-0K010 · 41533-0K020 · 41533-0K030 · 41533-0K031 · 41533-0K040 |
| 41534 | Front differential breather bracket | 41534-0K010 · 41534-71020 |
| 41653B | Differential fixed part upper stop | 41653-60030 |
| 41654A | Differential fixed part lower block | 41654-60010 |
| 41655 | No. 1 front differential retainer nut | 41655-0K011 |
| 41993 | Differential oil information label | 41993-0K010 · 41993-35010 |
| 43637C | Castle nut (for front axle drive pinion) | 90177-22003 |
| 43640G | T-type oil seal (for front axle differential housing) | 90311-41009 · 90311-T0013 |
| 52392A | Front differential No. 1 bracket | 52380-71010 |
| 52393A | Front differential No. 2 bracket | 52380-71020 |
| 52394 | Front differential No. 3 bracket | 52380-71030 |
