Toyota HILUX 制动带和多片式离合器(ATM) — Figure 3507

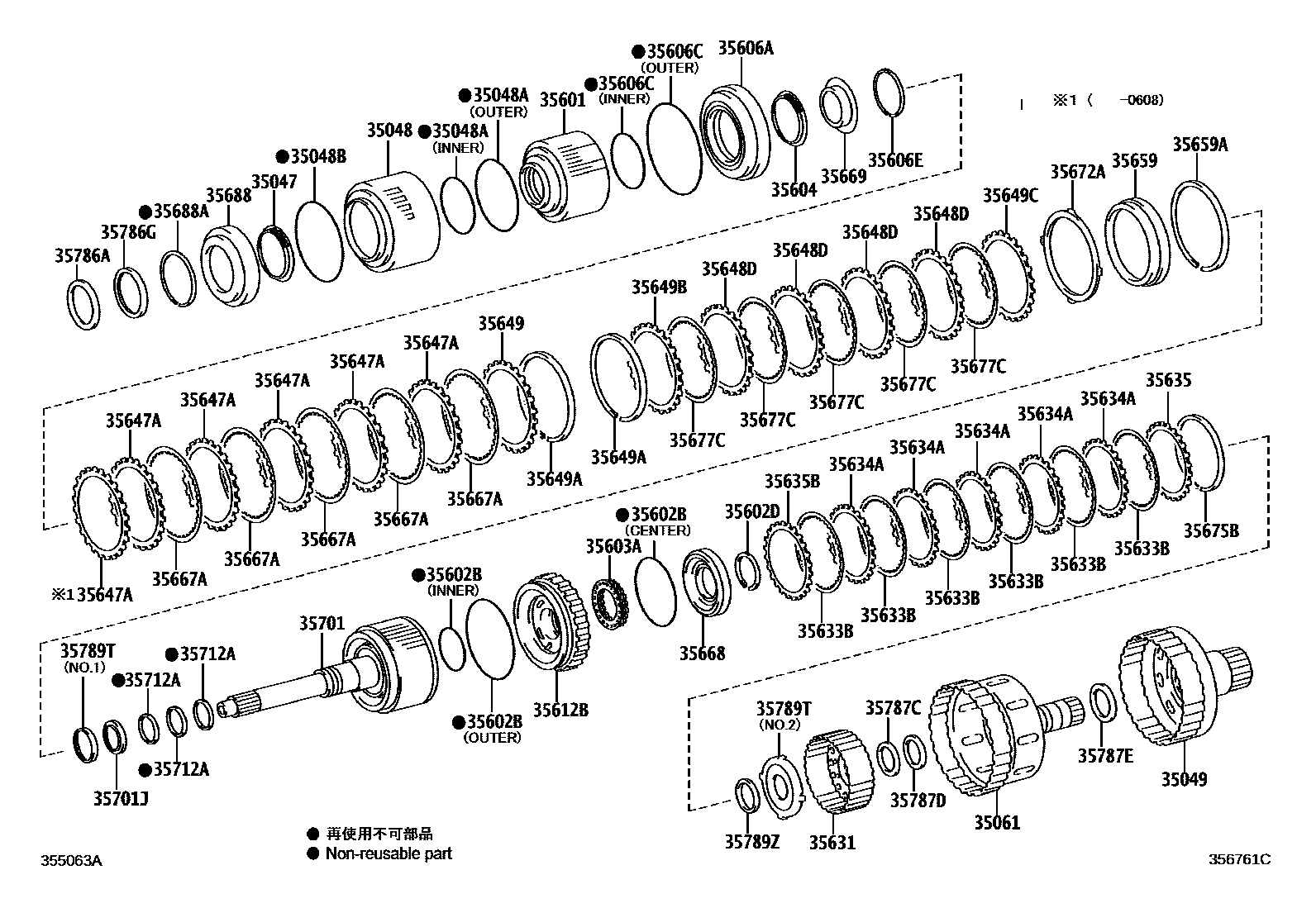

Toyota HILUX EPC diagram 3507, 制动带和多片式离合器(ATM), with 2 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35047 | Reverse clutch return spring sub-assembly | 35047-60010 |
| 35048 | Reverse clutch piston sub-assembly | 35048-60010 |
| 35048A | O-ring (for reverse clutch piston) | 90301-99141 · 90301-99147 |
| 35048B | O-ring (for reverse clutch piston) | 90301-99140 |
| 35049 | Reverse clutch hub sub-assembly | 35049-60010 |
| 35061 | Forward gear clutch hub sub-assembly | 35061-50010 |
| 35601 | Clutch drum sub-assembly | 35601-50030 |
| 35602 | Front clutch piston sub-assembly | 35602-14012 · 35602-30062 |
| 35602B | O-ring (for forward clutch piston) | 90301-39005 · 90301-39012 · 90301-72003 · 90301-99058 · 90301-99096 · 90301-99145 |
| 35602D | Shaft snap ring (for forward clutch piston return spring) | 90520-35001 · 90520-35003 |
| 35603A | Forward gear clutch return spring sub-assembly | 35603-30011 · 35603-60020 |
| 35604 | Direct clutch return spring sub-assembly | 35604-35010 · 35604-60020 |
| 35605A | Direct gear clutch drum sub-assembly | 35605-22040 · 35605-30060 |
| 35606A | Direct clutch piston sub-assembly | 35606-35010 · 35652-60020 · 35652-60021 |
| 35606C | O-ring (for direct clutch piston) | 90301-65006 · 90301-74002 · 90301-99058 · 90301-99149 |
| 35606E | Shaft snap ring (for direct clutch piston return spring) | 90520-58001 · 90520-64003 |
| 35612B | forward clutch piston | 35612-60010 |
| 35616C | Clutch drum thrust washer (for direct gear clutch drum) | 35616-30050 |
| 35631 | Clutch hub (for multi-plate clutches) | 35631-60040 |
| 35633B | Clutch disc (for forward multi-plate clutch) | 35633-60070 · 35677-26010 · 35677-30170 |
| 35633C | Clutch disc (for direct gear multi-plate clutch) | 35667-40020 |
| 35634A | Clutch plate (for forward multi-plate clutch) | 35634-30110 · 35634-32010 · 35634-60020 |
| 35634B | Clutch plate (for direct gear multi-plate clutch) | 35647-22030 |
| 35635 | forward clutch flange | 35635-30040 · 35635-30050 · 35635-30060 · 35635-30070 · 35635-30080 · 35635-30090 · 35635-30100 · 35635-30110 · 35635-60010 · 35635-60020 · 35635-60030 · 35635-60040 · 35635-60050 · 35635-60060 · 35635-60070 · 35635-60080 · 35635-60090 · 35635-60100 · 35635-60110 |
| 35635B | forward clutch flange | 35635-60010 |
| 35647A | Clutch plate (for direct gear multi-plate clutch) | 35647-60010 |
| 35648D | Clutch plate No. 3 | 35648-60010 |
| 35649 | Reverse clutch flange | 35649-60030 · 35649-60040 · 35649-60050 · 35649-60060 · 35649-60070 · 35649-60080 · 35649-60090 · 35649-60100 · 35649-60110 |
| 35649A | Hole snap ring (for reverse clutch flange) | 90520-99074 |
| 35649B | Reverse clutch flange | 35649-60030 |
| 35649C | Reverse clutch flange | 35649-60010 · 35649-60020 · 35649-60030 · 35649-60040 · 35649-60050 · 35649-60060 · 35649-60070 · 35649-60080 · 35649-60090 · 35649-60100 · 35649-60110 |
| 35659 | Reverse clutch reaction sleeve | 35659-60020 |
| 35659A | Snap ring (for reverse clutch reaction sleeve) | 90520-99083 |
| 35667A | Direct clutch disc | 35667-60020 |
| 35668 | No. 1 clutch balancer | 35668-60010 |
| 35669 | No. 2 clutch balancer | 35669-60010 |
| 35672 | clutch cushion | 35672-30010 |
| 35672A | Clutch cushion (for direct gear multi-plate clutch) | 35672-60020 |
| 35675B | Hole snap ring (for forward clutch flange) | 90520-99082 · 90521-99001 |
| 35675C | Direct clutch flange | 35675-30210 · 35675-30220 · 35675-30230 · 35675-30240 · 35675-30250 · 35675-30260 · 35675-30270 · 35675-30280 |
| 35675D | Hole snap ring (for direct clutch flange) | 90520-99018 |
| 35677C | rear clutch disc | 35677-60030 |
| 35686 | Clutch drum thrust washer (for input shaft) | 35686-30010 |
| 35688 | No. 3 clutch balancer | 35688-50010 |
| 35688A | Snap ring (for reverse clutch return spring) | 90520-79001 |
| 35701 | Input shaft sub-assembly | 35701-22050 · 35701-60030 · 35701-60080 |
| 35701B | Rear thrust needle roller bearing (for input shaft) | 90374-25005 |
| 35701C | Rear thrust bearing race (for input shaft) | 35789-30110 |
| 35701J | Front thrust needle roller bearing (for input shaft) | 90374-33001 · 90374-34011 |
| 35712A | Input shaft oil ring | 35712-30020 · 35712-60010 |
| 35786A | No. 1 thrust bearing race | 35786-60010 |
| 35786G | Thrust needle roller bearing | 90374-71001 |
| 35787C | No. 2 thrust bearing race | 35787-60010 |
| 35787D | Thrust needle roller bearing | 90374-38005 |
| 35787E | Thrust needle roller bearing | 90374-42008 |
| 35789T | Rear thrust bearing race (input shaft) | 35789-50060 · 35789-60040 |
| 35789Z | Thrust needle roller bearing | 90374-21004 |
| 35810B | Second gear coasting brake band assembly | 35810-50020 |
| 35810C | Pin (for second gear coast brake band) | 90249-07011 |
| 35810D | E-ring (for second gear coasting brake belt pin) | 96160-00500 |
| 35815 | Second gear coast brake cover | 35815-22010 |
| 35815A | O-ring (for second gear coast brake cover) | 90301-48001 |
| 35815B | Hole snap ring (for second gear coast brake cover) | 90521-60003 |
| 35821A | Second gear coast brake piston | 35821-22020 |
| 35821B | Flat washer (for second gear coast brake piston) | 90201-06557 |
| 35821G | Compression spring (for second gear coast brake piston) | 90501-26024 · 90501-32037 |
| 35821H | E-ring (for second gear coast brake piston) | 96160-00500 |
| 35822A | Second gear coast brake piston rod | 35822-22010 · 35822-22020 |
| 35865A | Second gear coasting brake piston oil protection ring | 35865-30010 |
