Toyota HILUX 喷油嘴 — Figure 2201

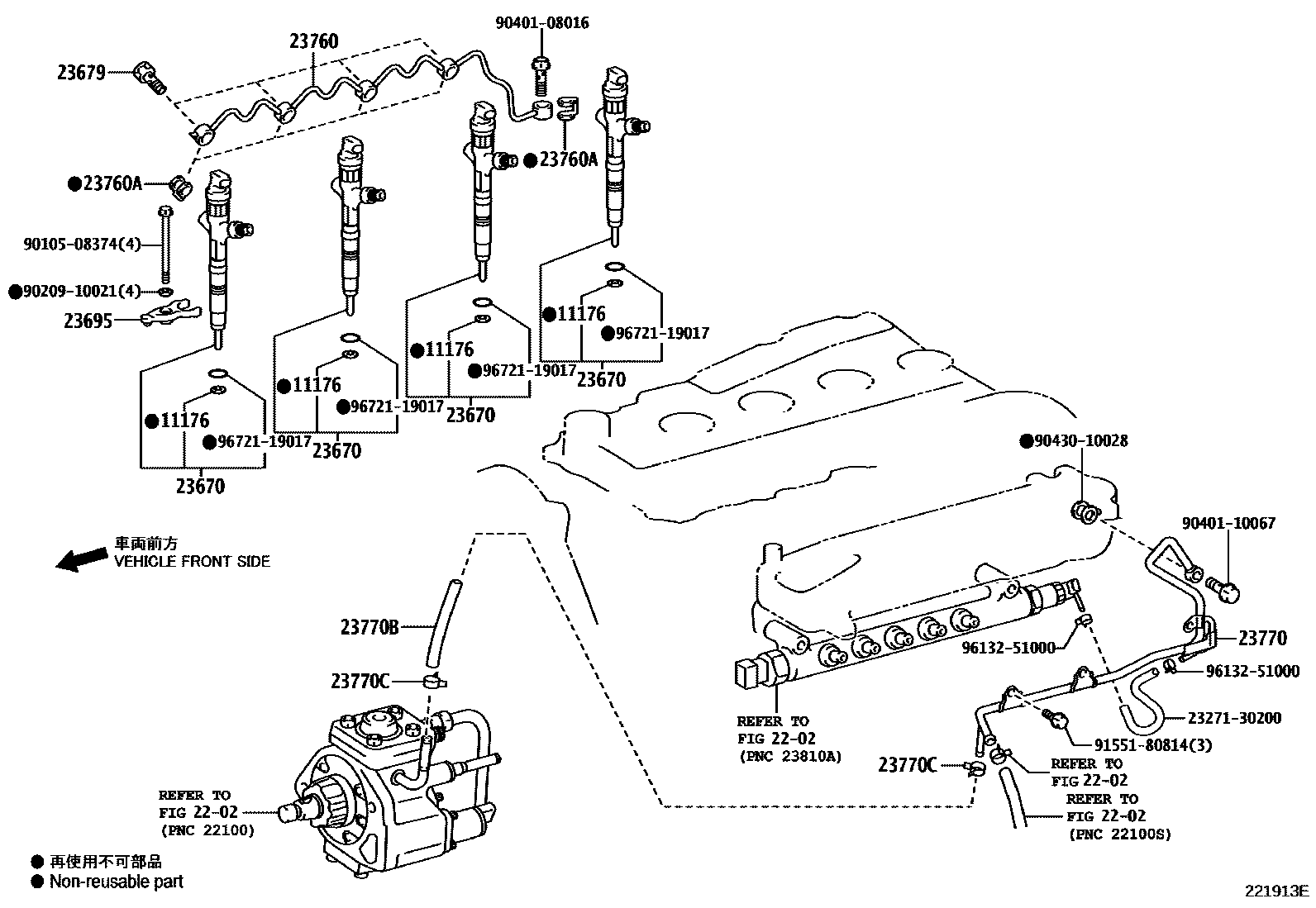

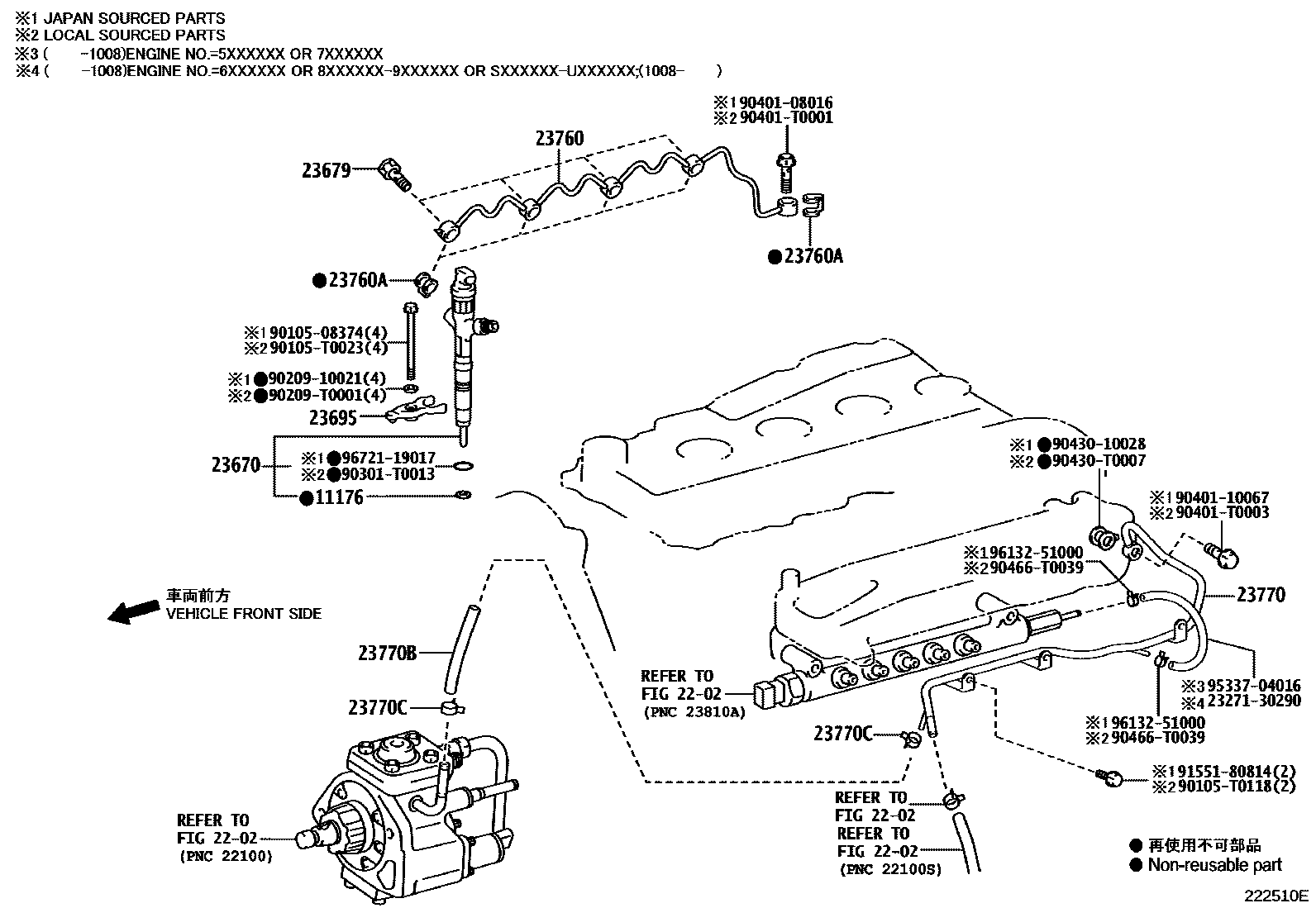

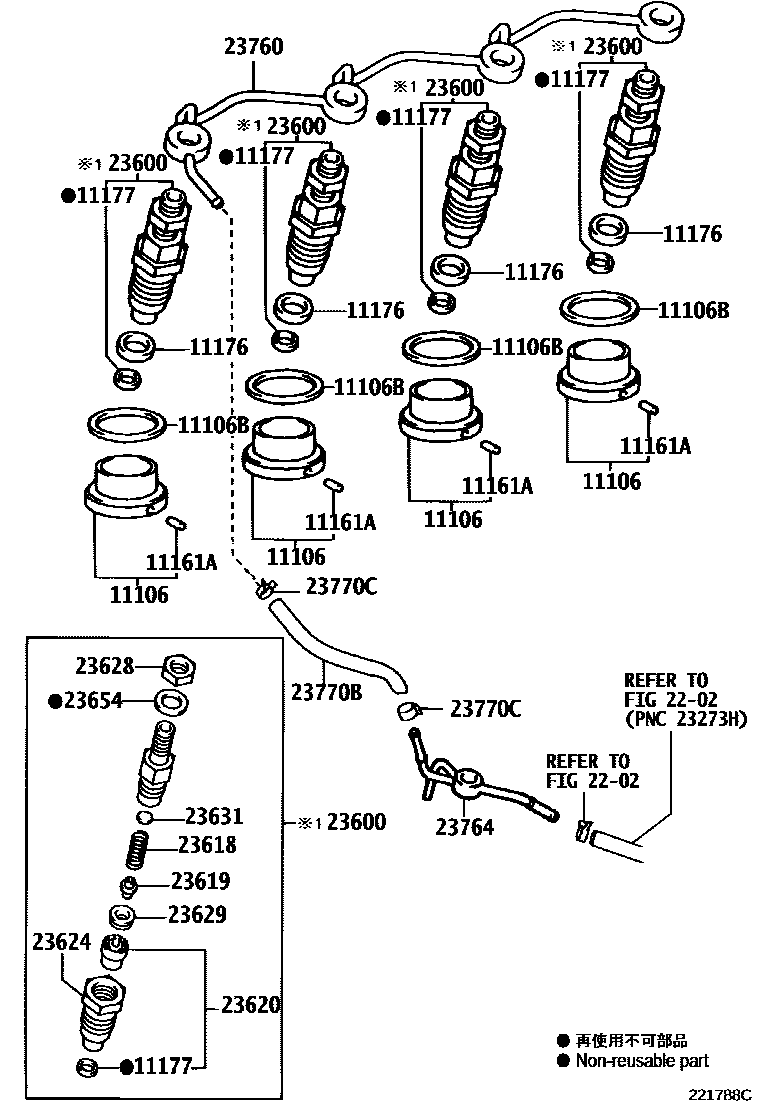

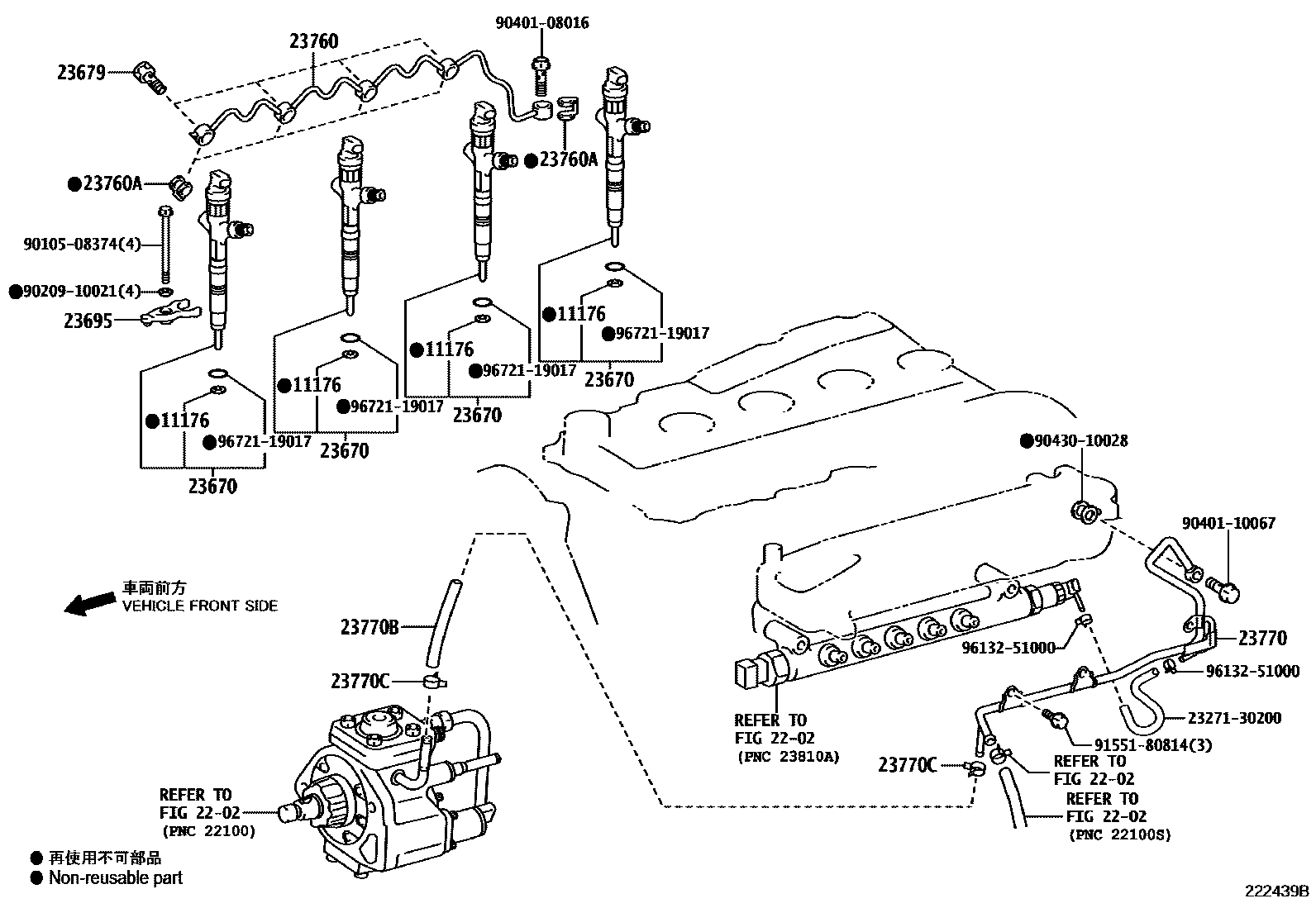

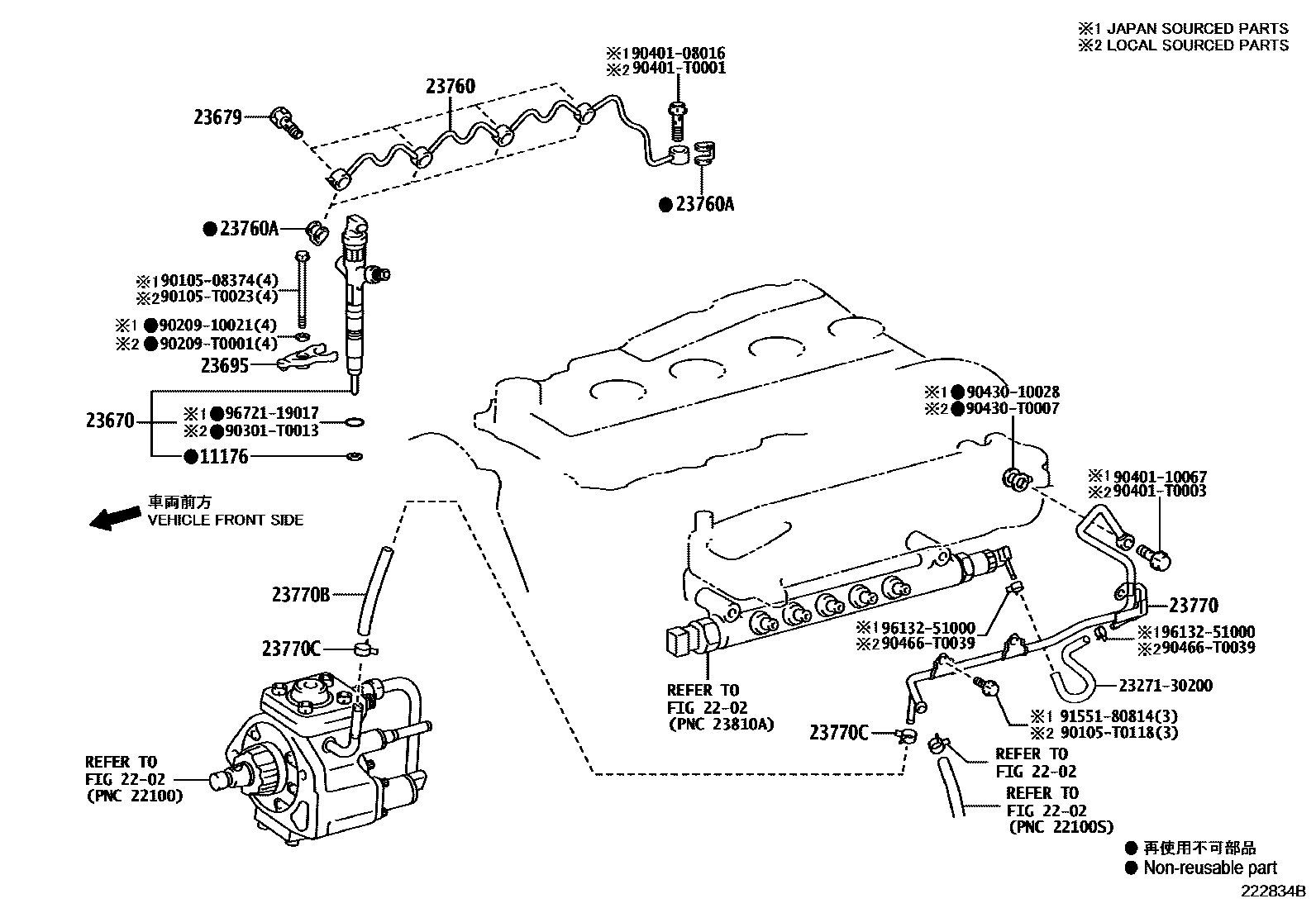

Toyota HILUX EPC diagram 2201, 喷油嘴, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11106 | Combustion chamber sub-assembly | 11106-54170 · 11106-54171 |
| 11106B | Gasket (for combustion chamber) | 11165-54030 |
| 11161A | Direct sales (for combustion chamber) | 90250-02046 |
| 11176 | Injector seat | 11176-05010 · 11176-0L010 · 11176-0L011 · 11176-30010 · 11176-30011 · 11176-64010 |
| 11177 | Injector seat gasket | 11177-54020 |
| 23600 | Injector body and injector assembly | 23600-59325 |
| 23618 | Injector body pressure adjustment spring | 23618-64080 |
| 23619 | Injector body compression pin | 23619-64010 |
| 23620 | Fuel injector assembly | 23620-69115 |
| 23624 | Fuel injector fixing nut | 23624-64041 |
| 23628 | Nut (for fixing the sealing ring) | 23628-64010 |
| 23629 | Spacer (for fuel injector) | 23629-54080 |
| 23631 | Washer (for injector body pressure adjustment spring) | 23631-64010 · 23631-64012 · 23631-64014 · 23631-64016 · 23631-64018 · 23632-64010 · 23632-64012 · 23632-64014 · 23632-64016 · 23632-64018 · 23633-64010 · 23633-64012 · 23633-64014 · 23633-64016 · 23633-64018 · 23634-64010 · 23634-64012 · 23634-64014 · 23634-64016 · 23634-64018 · 23635-64010 · 23635-64012 |
| 23654 | Gasket (for sealing ring) | 23654-64010 |
| 23670 | Fuel injector assembly | 23670-09060 · 23670-09061 · 23670-09070 · 23670-09071 · 23670-09330 · 23670-09350 · 23670-09360 · 23670-09380 · 23670-39185 · 23670-39186 · 23670-39236 · 23670-39276 · 23670-39316 · 23670-39355 · 23670-39365 · 23670-39375 |
| 23679 | Fuel injector hollow screw | 23679-0L010 · 23679-30020 · 23679-30021 |
| 23695 | No. 1 injector body clamp | 23695-0L010 · 23695-30010 · 23695-30011 |
| 23760 | Fuel injector overflow pipe assembly | 23760-05010 · 23760-0L010 · 23760-30020 · 23760-54030 |
| 23760A | padding | 90430-T0008 · 90904-30013 |
| 23764 | No. 4 fuel injector overflow pipe | 23764-54130 |
| 23770 | No. 2 injector oil spill pipe assembly | 23770-0L020 · 23770-0L030 · 23770-0L040 · 23770-30060 · 23770-30070 · 23770-30120 |
| 23770B | fuel hose | 23273-30180 · 95333-06020 · 95337-06020 |
| 23770C | Clip or clip (for fuel hose assembly) | 90466-T0043 · 96132-51000 · 96135-51100 |
