Toyota HILUX Exhaust Pipe — Figure 1702

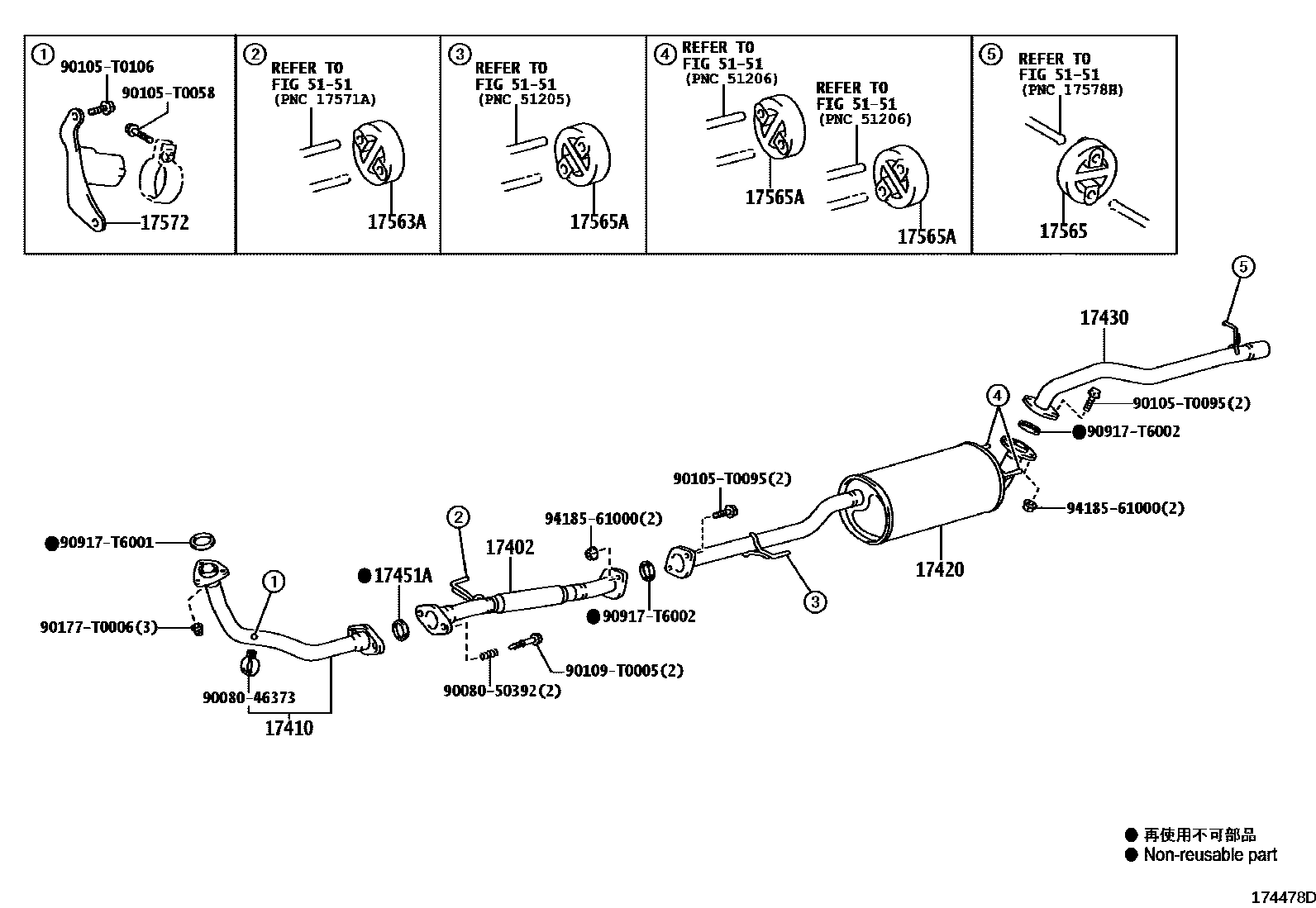

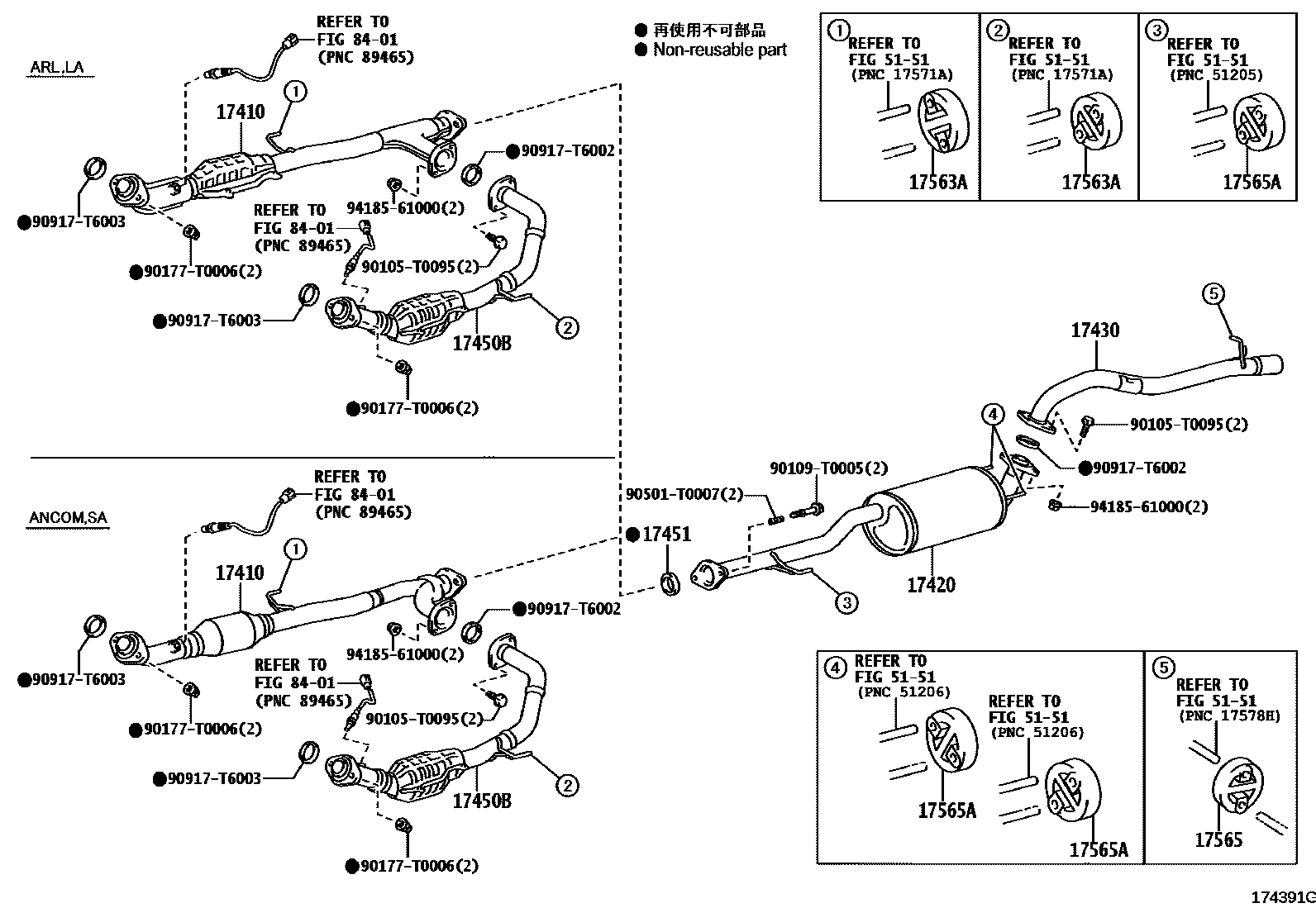

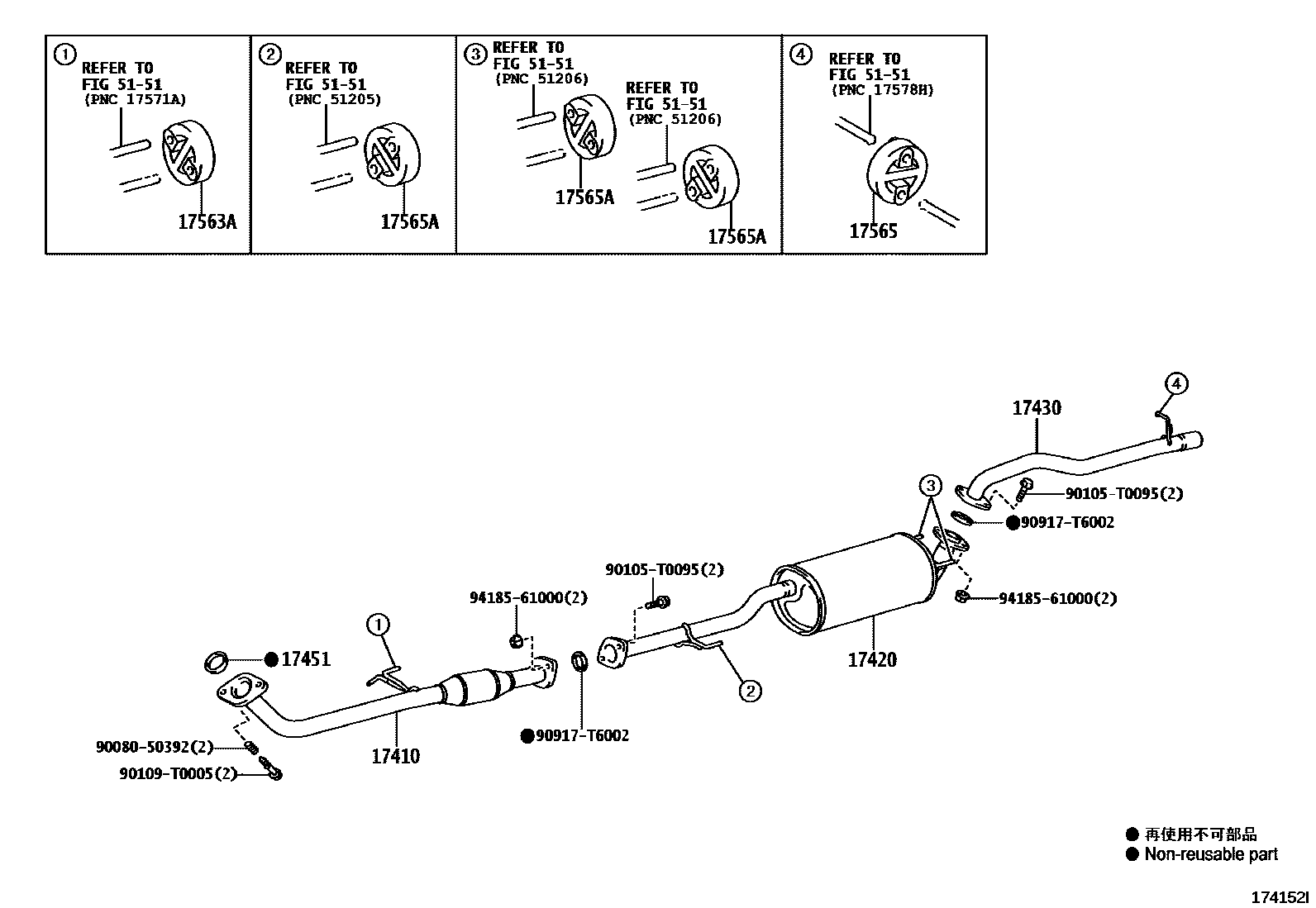

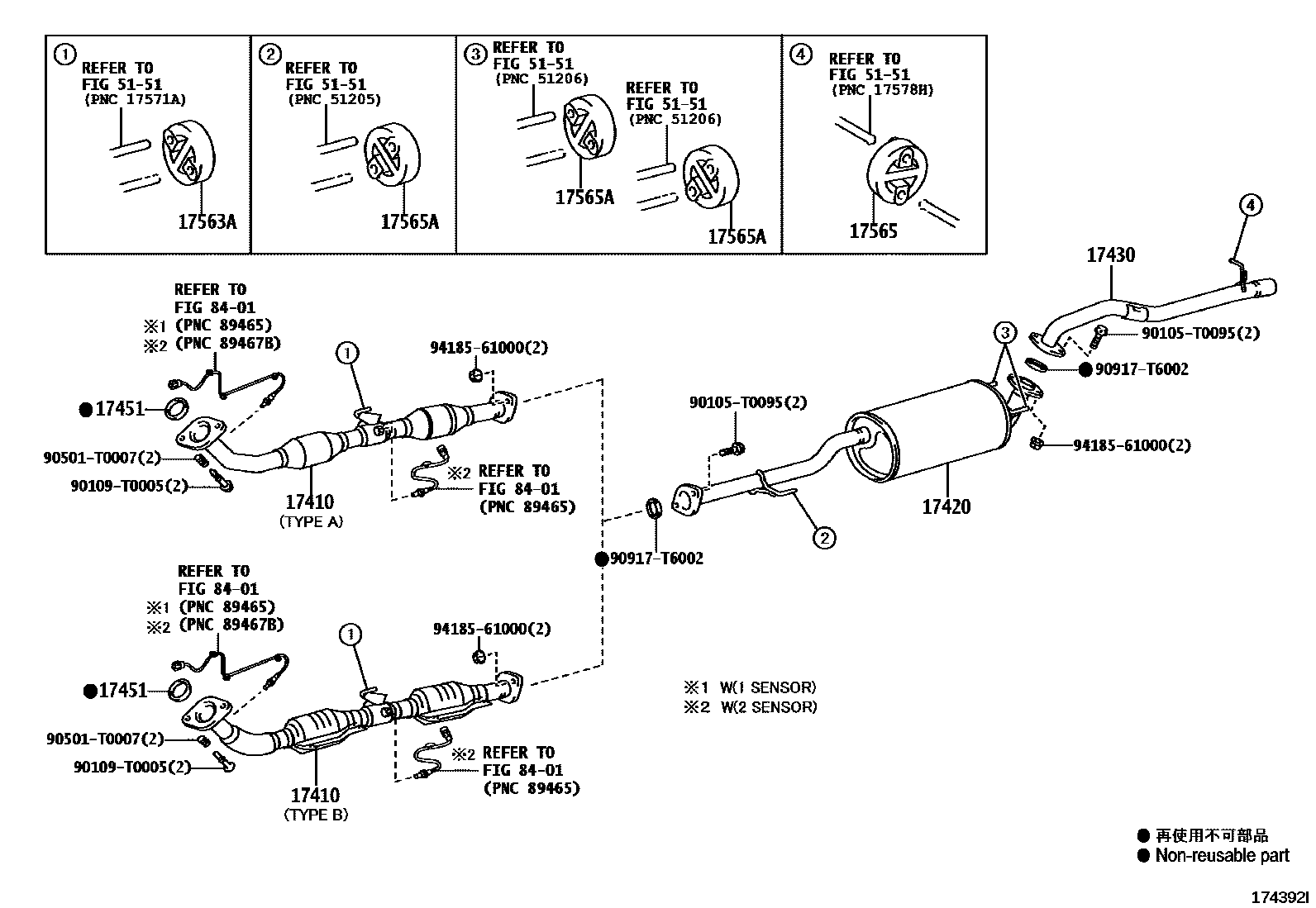

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17402 | No. 2 front exhaust pipe sub-assembly | 17402-05020 |
| 17410 | Front exhaust pipe assembly | 17401-05110 · 17401-0C190 · 17401-0C210 · 17401-0C220 · 17401-0C250 · 17401-0C370 · 17401-0L030 · 17401-0L050 · 17401-0L060 · 17401-0L070 · 17401-0L090 · 17401-0L100 · 17401-0P030 · 17410-0C080 · 17410-0C110 · 17410-0P030 · 17410-0P220 |
| 17420 | Central exhaust pipe assembly | 17403-0C020 · 17403-0C021 · 17403-0C030 · 17403-0C110 · 17403-0L060 · 17403-0L061 · 17403-0L080 · 17403-0L081 · 17403-0L090 · 17403-0L091 · 17403-0P030 · 17403-0P031 |
| 17430 | Exhaust tailpipe assembly | 17405-0L080 · 17405-0L081 · 17405-0L110 · 17405-0L111 · 17405-0L140 · 17405-0L141 |
| 17450B | No. 2 front exhaust pipe assembly | 17450-0P040 · 17450-0P050 · 17450-0P060 · 17450-0P140 · 17450-0P150 |
| 17451 | Exhaust pipe gasket | 17451-0C010 · 17451-0L010 |
| 17451A | No. 2 exhaust pipe gasket | 17451-0C010 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0L040 · 17565-0M010 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0L040 · 17565-0M010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0L040 · 17565-0M010 |
| 17572 | No. 1 exhaust pipe bracket | 17571-05050 |
