Toyota HILUX Oil Filter — Figure 1502

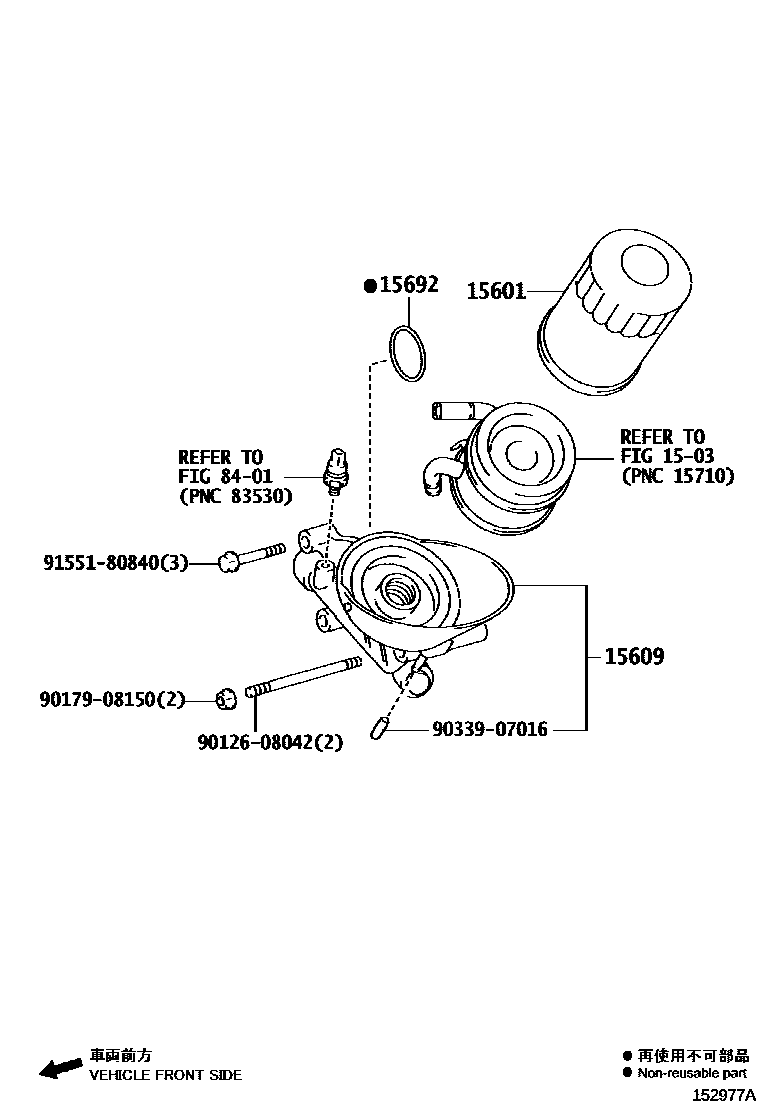

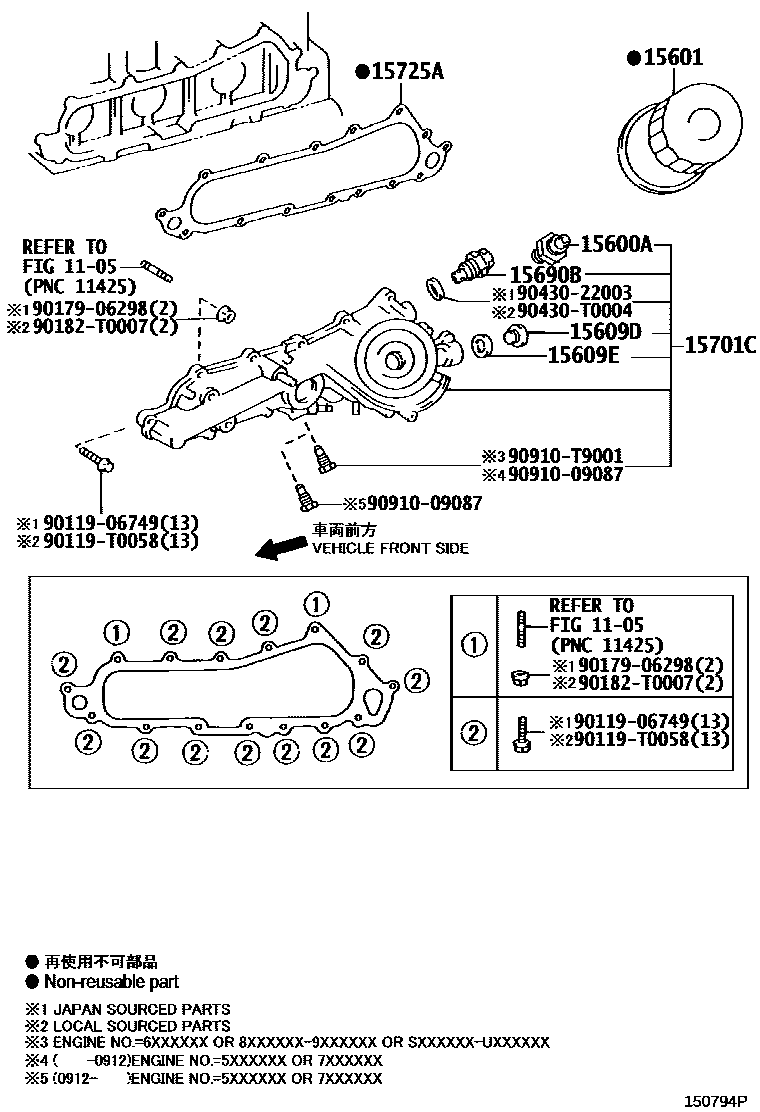

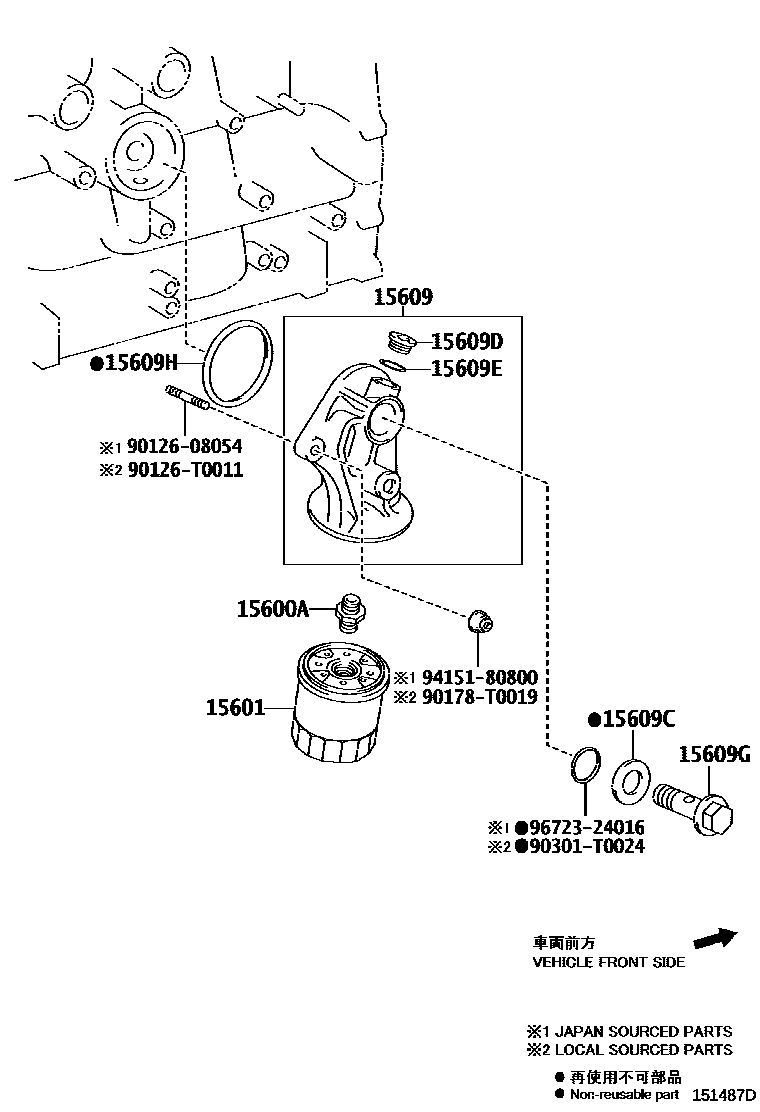

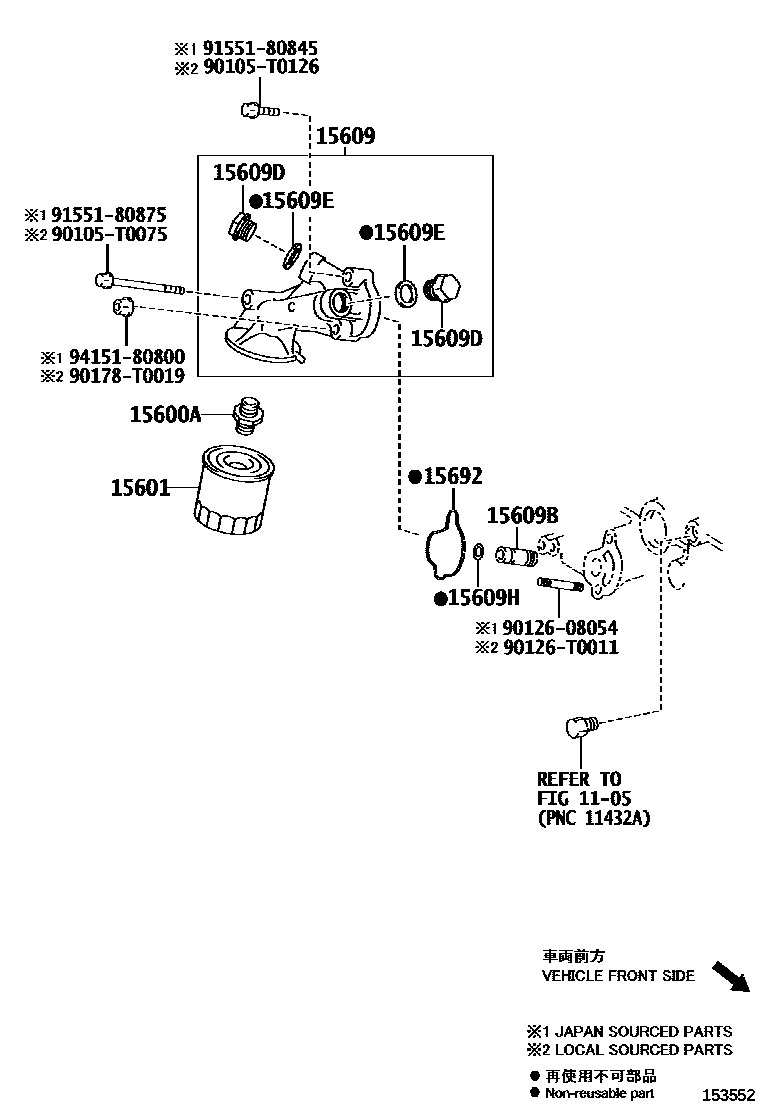

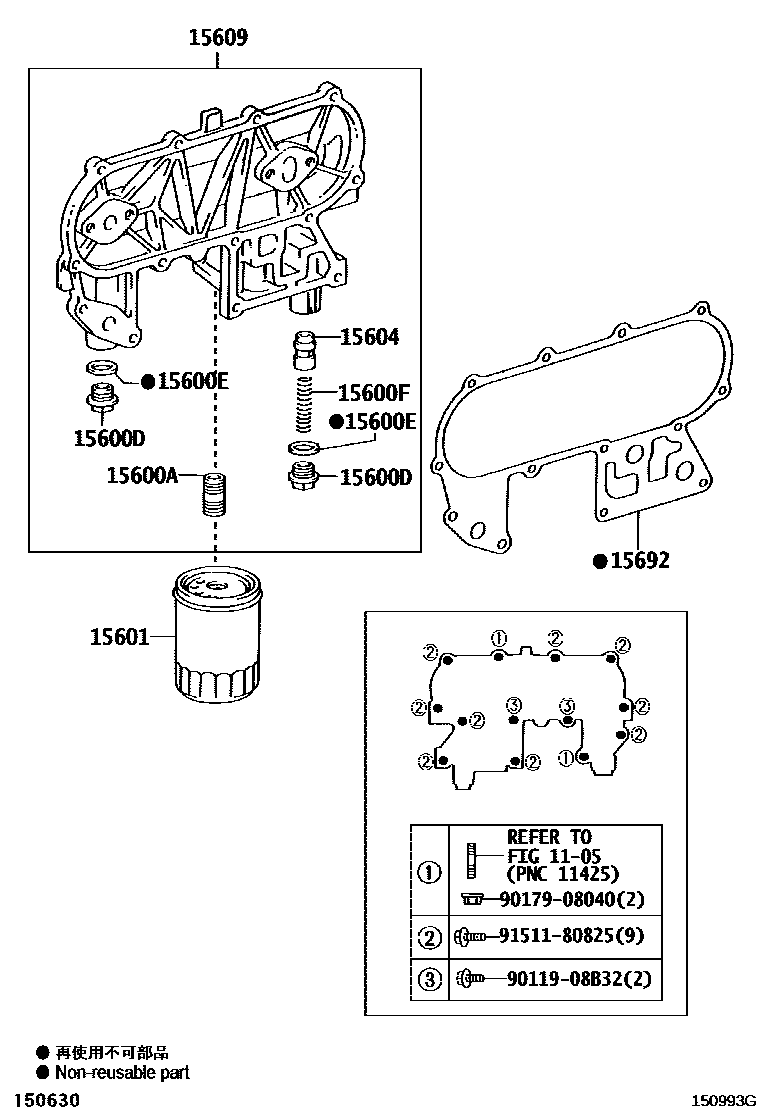

Toyota HILUX EPC diagram 1502, Oil Filter, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600A | Connector (for oil filter) | 90404-19002 · 90404-19011 · 90404-19015 · 90404-19022 · 90404-T0001 · 90404-T0002 |
| 15600D | Screw plug (for oil filter) | 90341-18015 |
| 15600E | Gasket (for oil filter) | 90430-18029 |
| 15600F | Compression spring (for oil filter) | 90501-16026 |
| 15601 | Oil filter sub-assembly | 15600-41010 · 90915-20003 · 90915-20004 · 90915-TB001 |
| 15604 | Oil safety valve sub-assembly | 15131-54010 |
| 15609 | Oil filter bracket sub-assembly | 15609-0C010 · 15609-0C020 · 15609-54014 · 15609-75110 · 15609-75120 · 15670-31010 |
| 15609B | Connector (for oil filter bracket) | 90404-19017 · 90404-T0003 |
| 15609C | Gasket (for oil filter holder connector) | 90430-28004 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-20002 · 90341-22002 · 90341-T0006 · 90341-T0010 |
| 15609E | Headed straight thread plug liner | 15134-67020 · 90430-22011 · 90430-T0005 · 90430-T0009 |
| 15609G | Connector bolt (for oil filter bracket) | 90401-19010 · 90401-T0005 |
| 15609H | O-ring (for oil filter bracket) | 90301-17017 · 90301-68005 · 90301-T0023 · 90301-T0028 |
| 15690B | Oil cooler pressure reducing valve assembly | 15690-0L010 · 15690-0L011 · 15690-64010 · 15690-64011 |
| 15692 | Oil filter holder gasket | 15692-0C010 · 15692-31010 · 15692-54050 · 15692-75011 |
| 15701C | Oil cooler cover sub-assembly | 15701-0L030 · 15701-30080 · 15701-30081 · 15701-30090 · 15701-30091 |
| 15725A | Oil cooler cover gasket | 15725-0L010 · 15725-67010 |
