Toyota HILUX Cylinder Block — Figure 1105

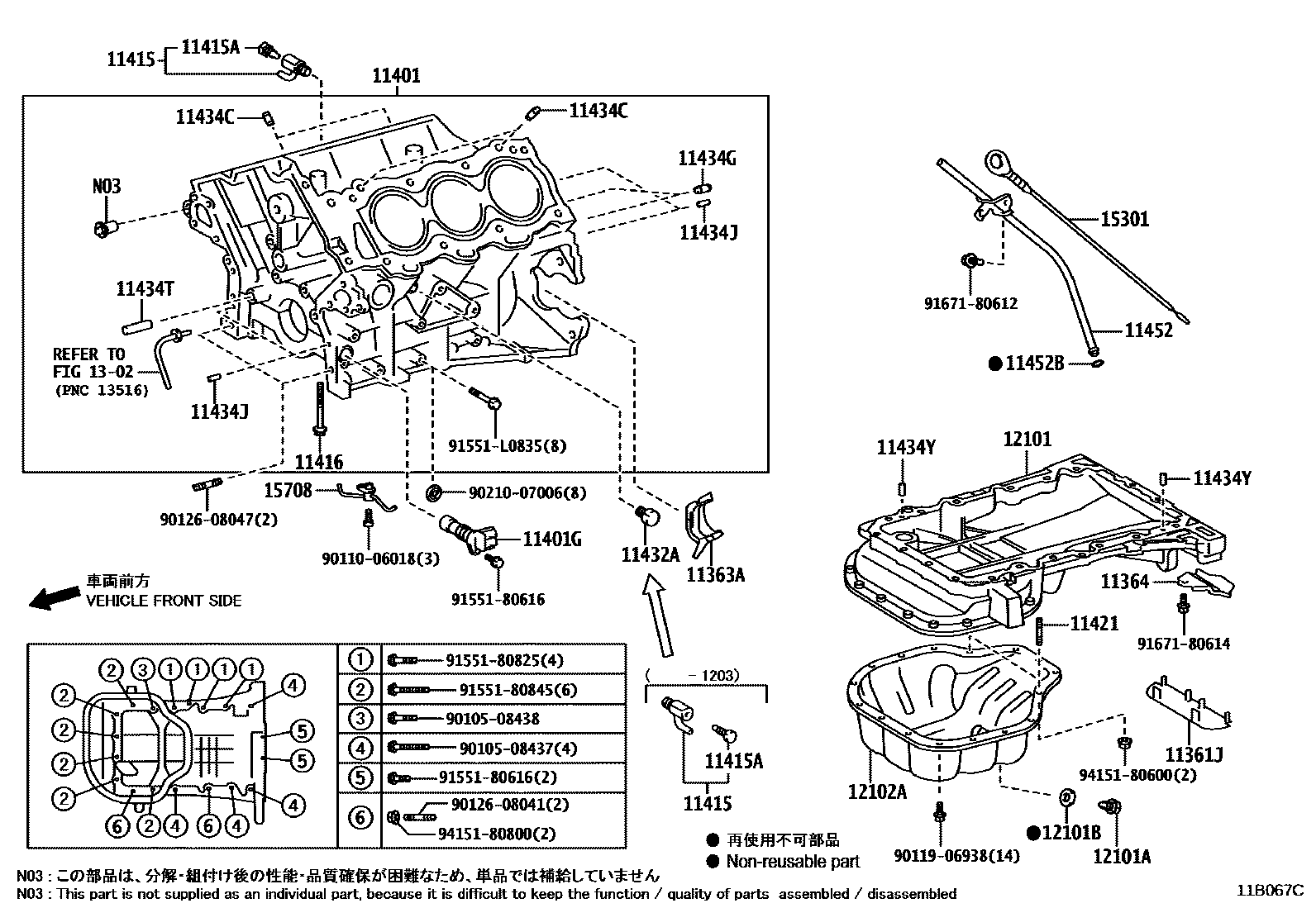

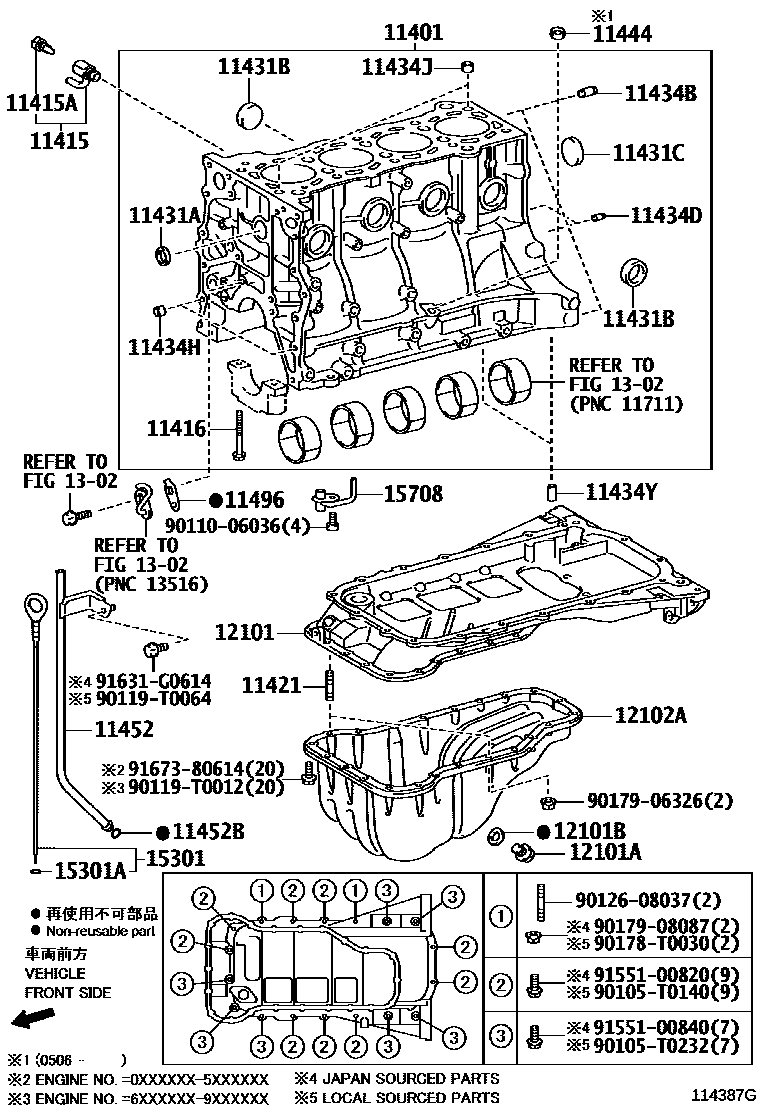

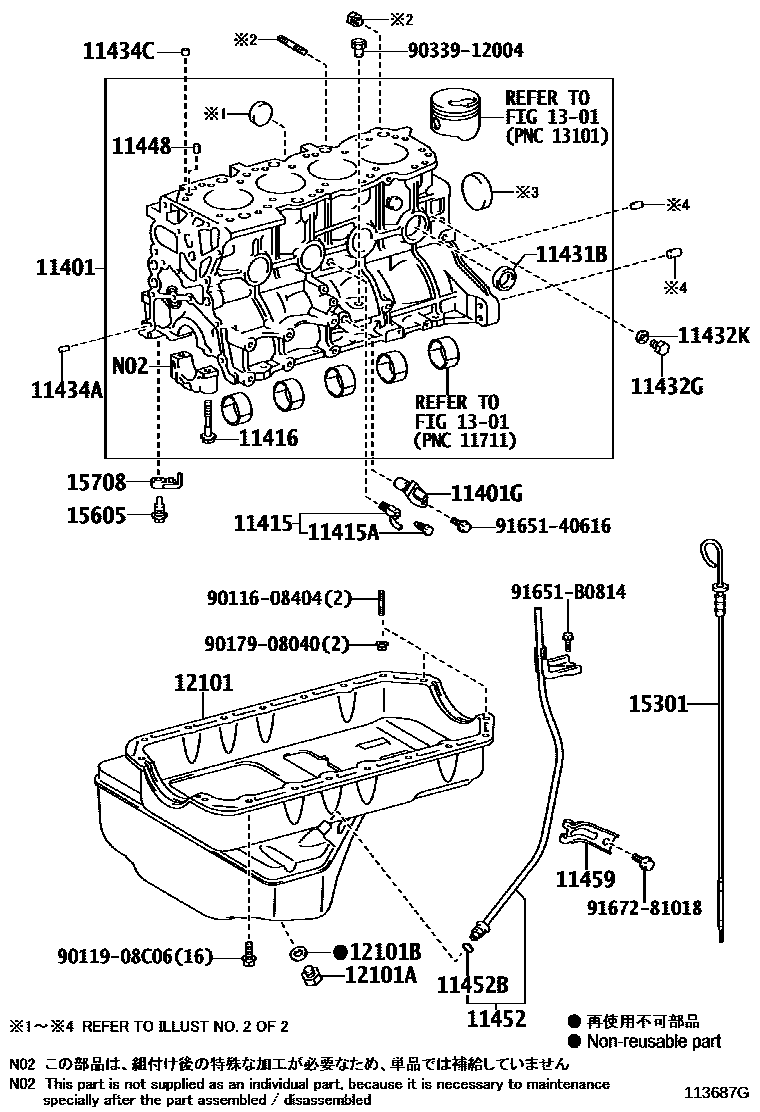

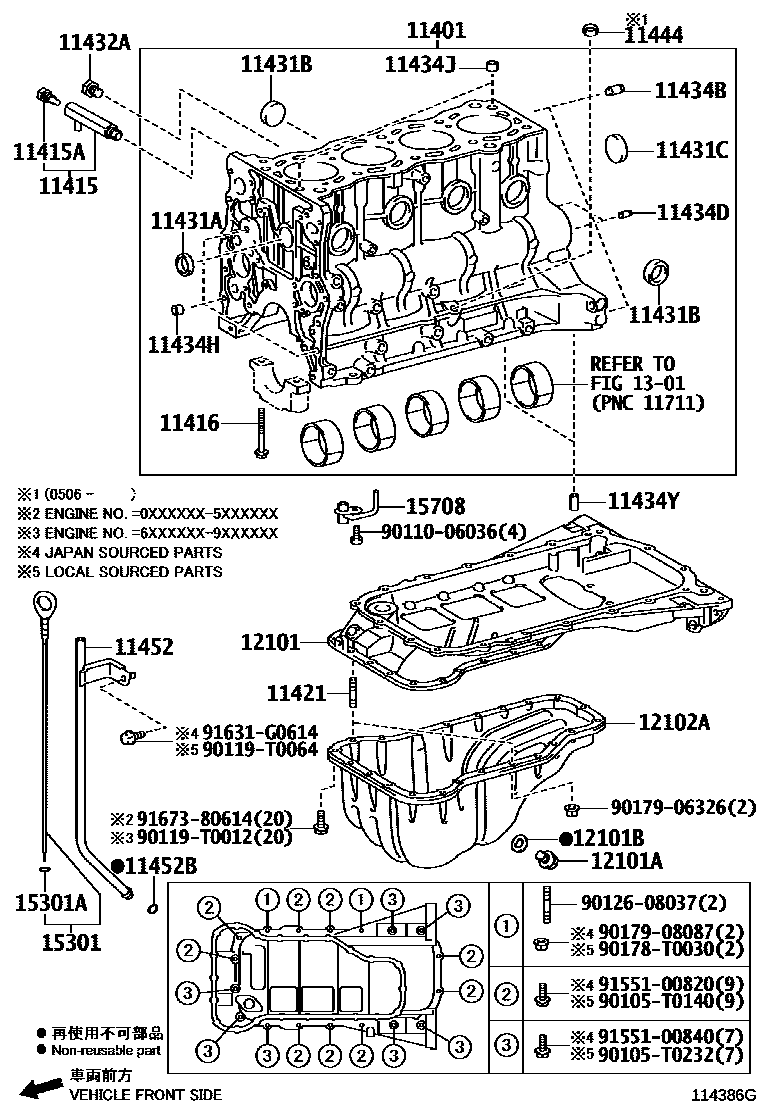

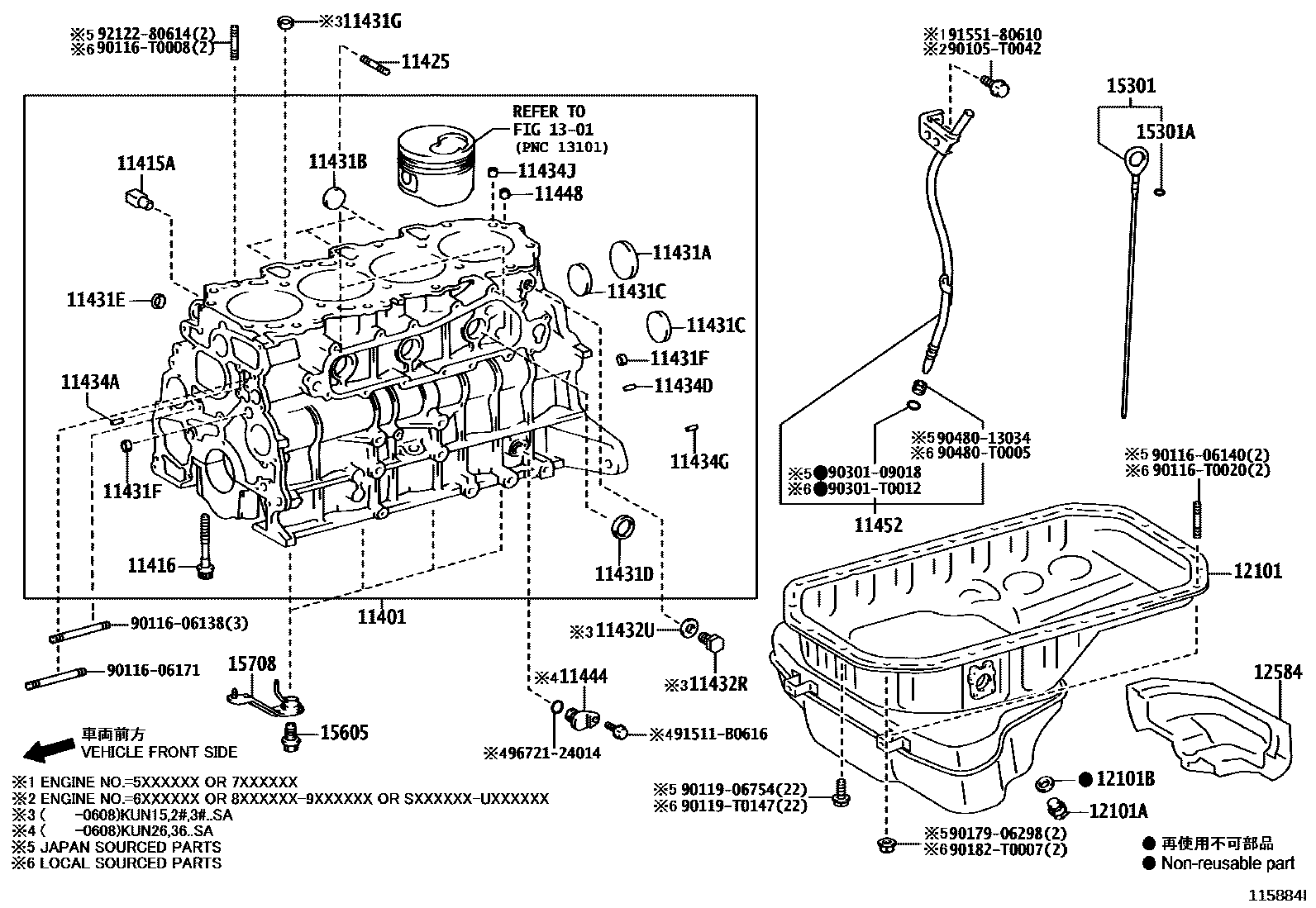

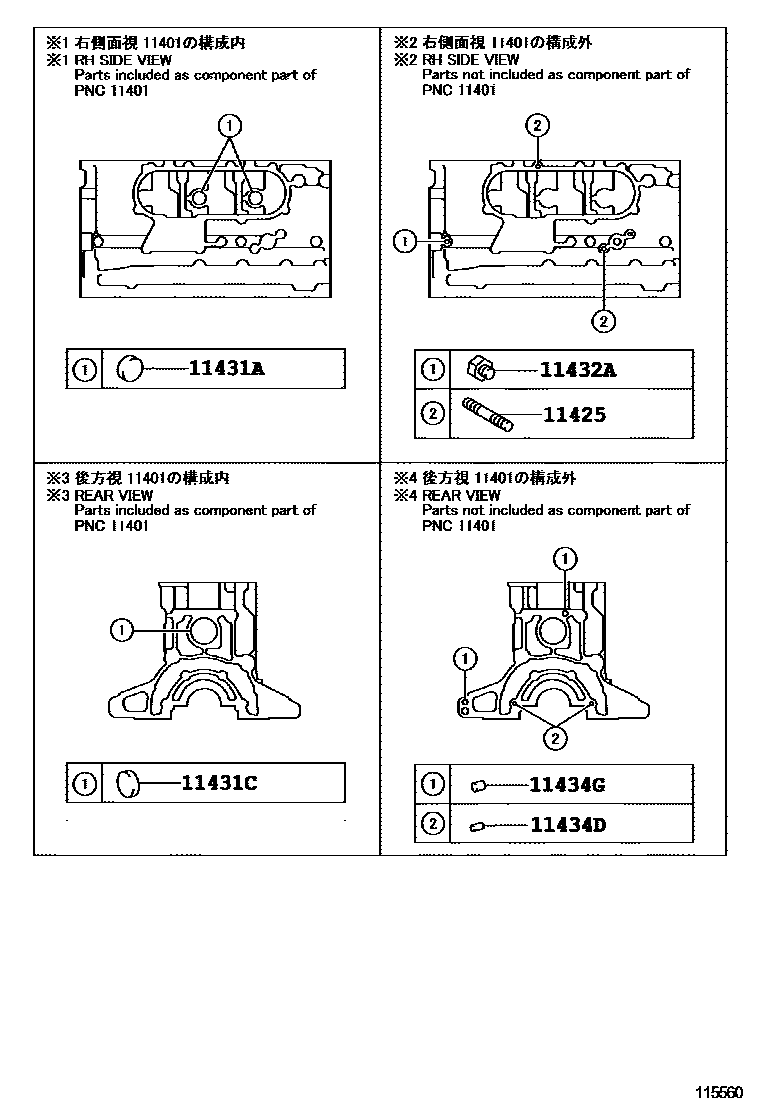

Toyota HILUX EPC diagram 1105, Cylinder Block, with 6 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-31040 |
| 11363A | Flywheel housing side cover | 11363-31020 |
| 11364 | No. 1 flywheel housing sub-bottom cover plate | 11364-0P010 · 11364-31020 |
| 11401 | Cylinder block sub-assembly | 11401-09360 · 11401-09370 · 11401-09400 · 11401-09410 · 11401-09490 · 11401-09491 · 11401-09492 · 11401-09700 · 11401-09701 · 11401-09702 · 11401-09740 · 11401-09770 · 11401-39695 · 11401-39795 · 11401-39796 · 11401-39895 · 11401-39896 · 11401-39897 · 11401-59765 · 11401-59766 · 11401-59767 · 11401-80760 · 11401-80763 · 11401-80772 · 11401-80773 · 11401-80782 · 11401-80791 · 11401-80792 · 11401-80795 |
| 11401G | crankshaft position sensor | 90919-05005 · 90919-05057 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09110 · 90910-09118 · 90910-09125 · 90910-09129 · 90910-T9002 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90334-14002 · 90339-T0002 · 90910-09087 · 90910-T9001 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02061 · 90910-02072 · 90910-02092 · 90910-02113 · 90910-02176 · 90910-02179 · 90910-T2002 · 90910-T2003 |
| 11421 | Stud bolts (for oil pan) | 90126-06015 · 90126-06028 |
| 11425 | Studs (for oil filter) | 90116-06171 · 90116-T0012 · 92112-80825 |
| 11431A | No. 1 sealing plug (for cylinder block) | 90331-T0004 · 90331-T0008 · 96411-42500 · 96411-62500 · 96411-63000 · 96411-64500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 90331-T0005 · 96411-43500 · 96411-63500 |
| 11431C | No. 3 sealing plug (for cylinder block) | 90331-T0007 · 96411-45000 · 96411-64000 · 96411-65000 |
| 11431D | No. 4 sealing plug (for cylinder block) | 90331-35004 · 90331-T0002 |
| 11431E | No. 5 sealing plug (for cylinder block) | 90331-T0003 · 96411-62000 |
| 11431F | No. 6 sealing plug (for cylinder block) | 90331-T0006 · 96411-61800 |
| 11431G | sealing plug | 90331-14006 |
| 11432A | No. 1 headed tapered thread plug | 90345-51006 · 90345-52001 · 90345-53009 |
| 11432G | No. 5 headed straight thread plug | 90341-12006 |
| 11432K | Headed straight thread plug liner | 90430-12221 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-12006 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-12221 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08120 · 90250-T0007 · 90253-11021 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 · 90250-T0018 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90253-15005 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 · 90250-T0012 · 90250-T0017 · 90253-11021 |
| 11434G | Direct sales (for end plates) | 90250-10113 · 90250-10192 · 90250-T0008 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-11005 · 90253-T0005 |
| 11434J | Ring pin (for cylinder head assembly) | 90250-04097 · 90253-15001 · 90253-15016 · 90253-T0002 · 90253-T0007 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-04097 · 90253-14004 · 90253-T0006 |
| 11444 | hole plug | 11444-67020 · 11444-75020 |
| 11448 | Cylinder block oil orifice | 11448-0L010 · 11448-54020 · 11448-67010 |
| 11452 | Engine oil level gauge guide | 11409-0C010 · 11409-0C011 · 11409-0C020 · 11409-0C021 · 11409-75090 · 11452-0L010 · 11452-0L020 · 11452-30070 · 11452-31070 · 11452-54190 |
| 11452B | O-ring (for oil level gauge guide) | 90301-09018 · 90301-T0025 · 96721-19010 · 96723-19010 |
| 11459 | Oil level gauge guide bracket | 11459-54030 |
| 11496 | Oil hole cover gasket | 11496-0C010 · 11496-75011 |
| 12101 | Oil pan sub-assembly | 12101-0C010 · 12101-0C020 · 12101-0L030 · 12101-0L040 · 12101-30090 · 12101-30100 · 12101-54340 · 12101-75150 · 12111-31130 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-T0004 |
| 12101B | Gasket (for oil pan drain plug) | 90080-43030 · 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0C010 · 12102-0C020 · 12102-31060 · 12102-75040 |
| 12584 | No. 4 cylinder block vibration isolation pad | 12584-0L010 |
| 15301 | Engine oil level scoring assembly | 15301-0C010 · 15301-0L030 · 15301-0L040 · 15301-30070 · 15301-31060 · 15301-54111 · 15301-75100 |
| 15301A | O-ring (for engine oil level gauge) | 90301-T0018 · 96741-19005 |
| 15605 | Oil check valve sub-assembly | 15605-0L010 · 15605-17030 · 15605-54010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0L010 · 15708-0L011 · 15708-30011 · 15708-31020 · 15708-54060 · 15708-75010 |
