Toyota HILUX Cylinder Head — Figure 1104

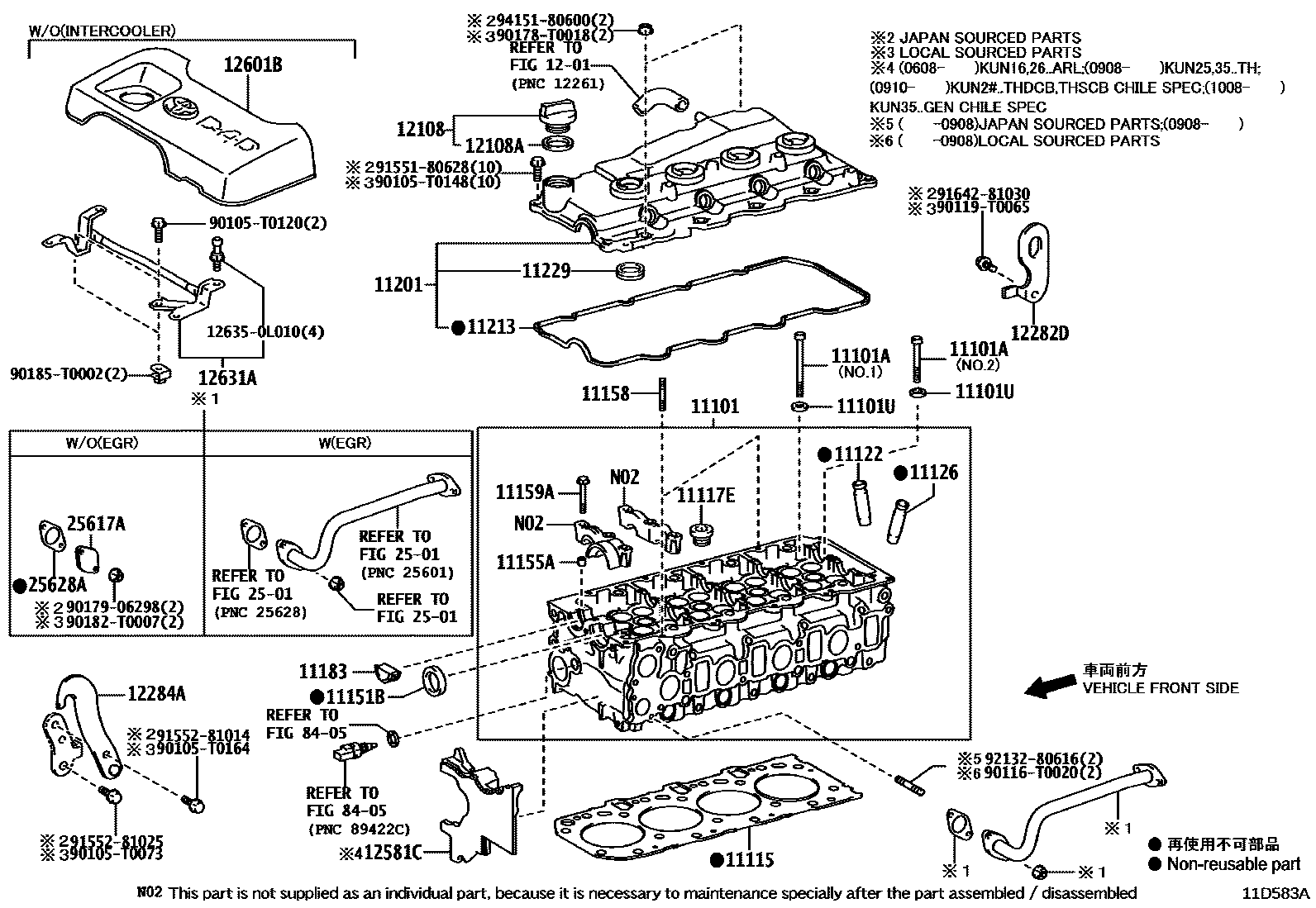

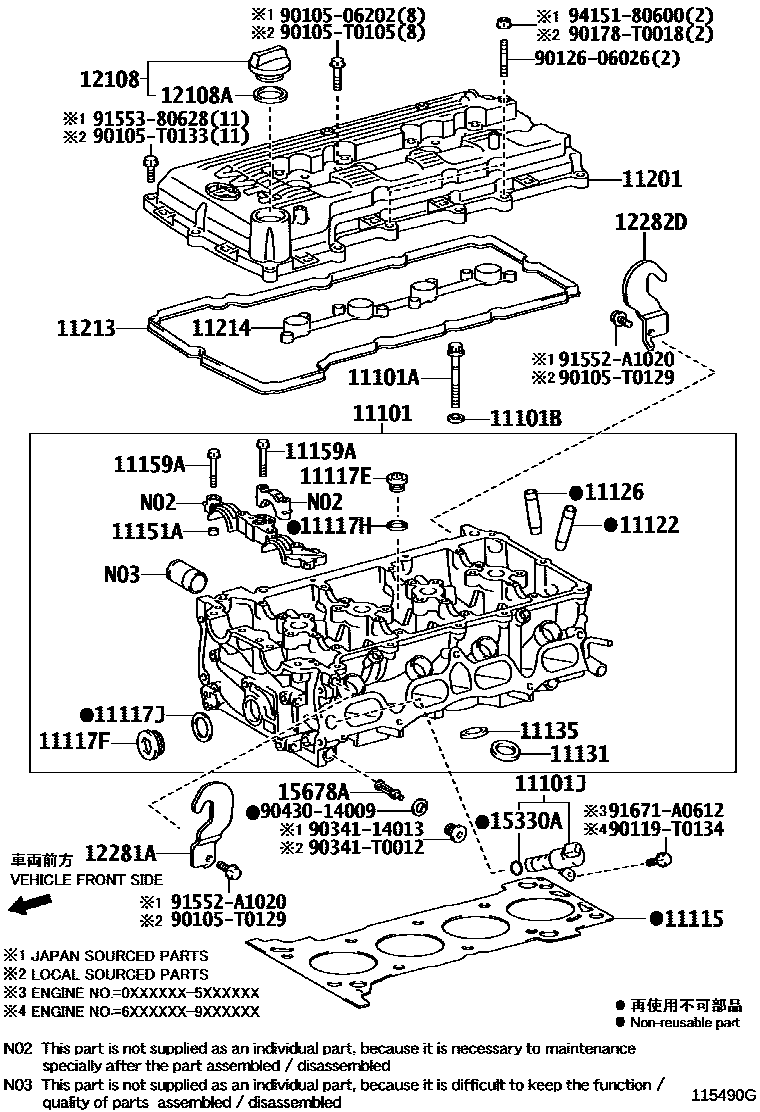

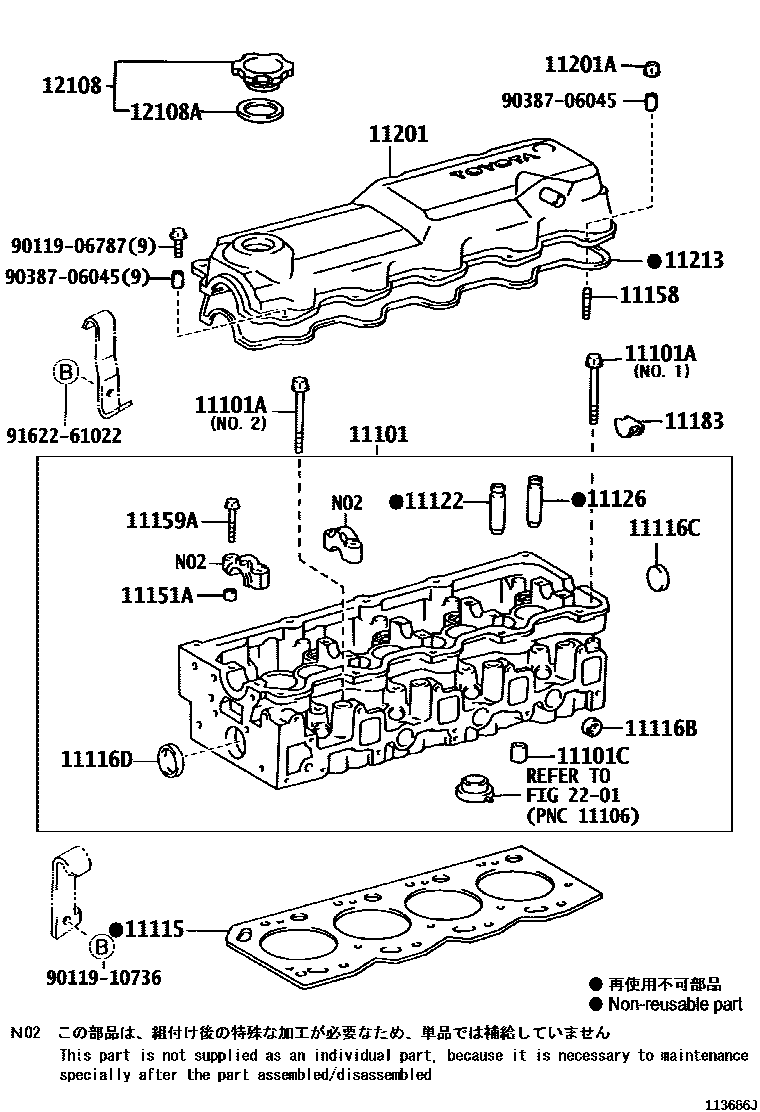

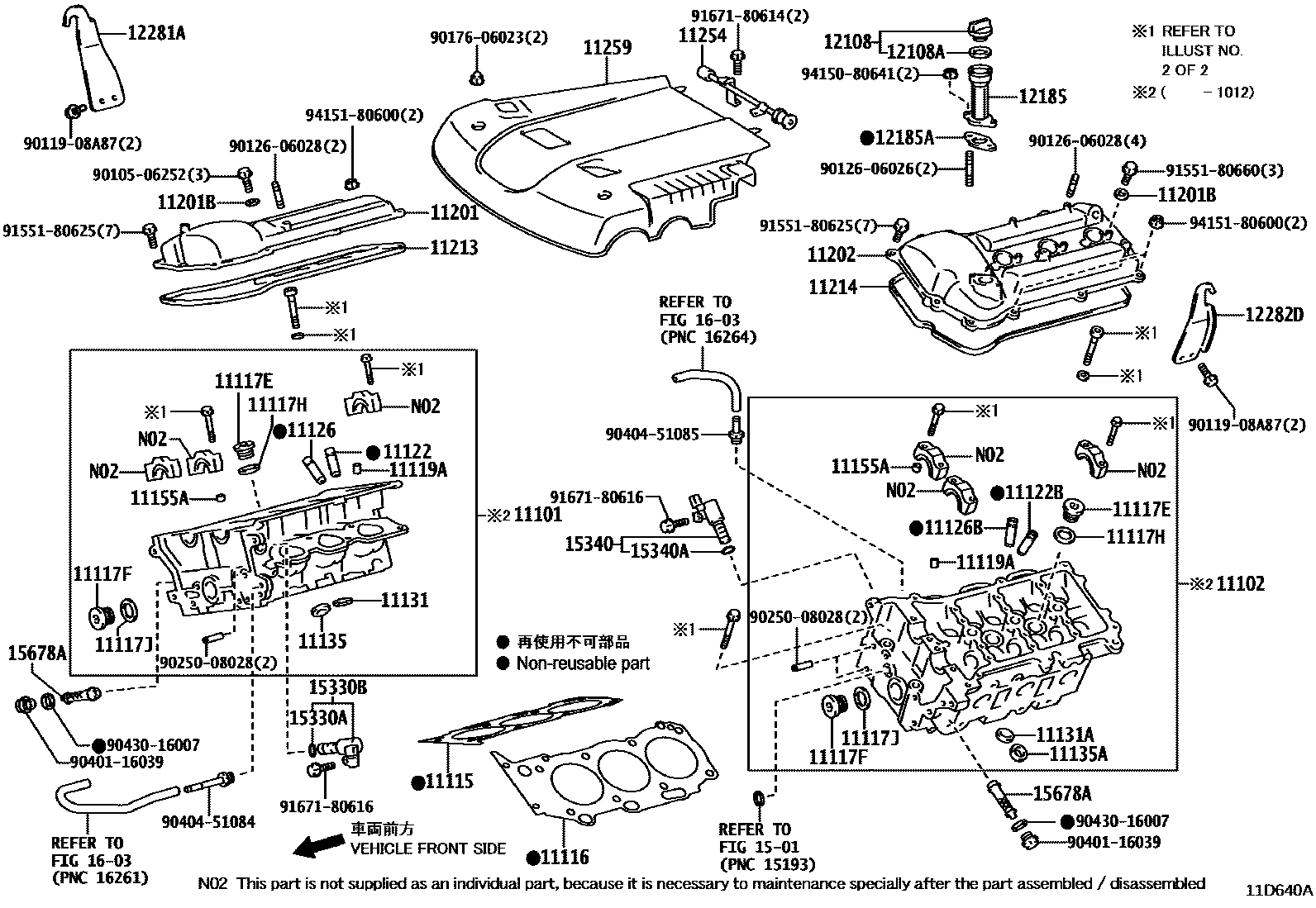

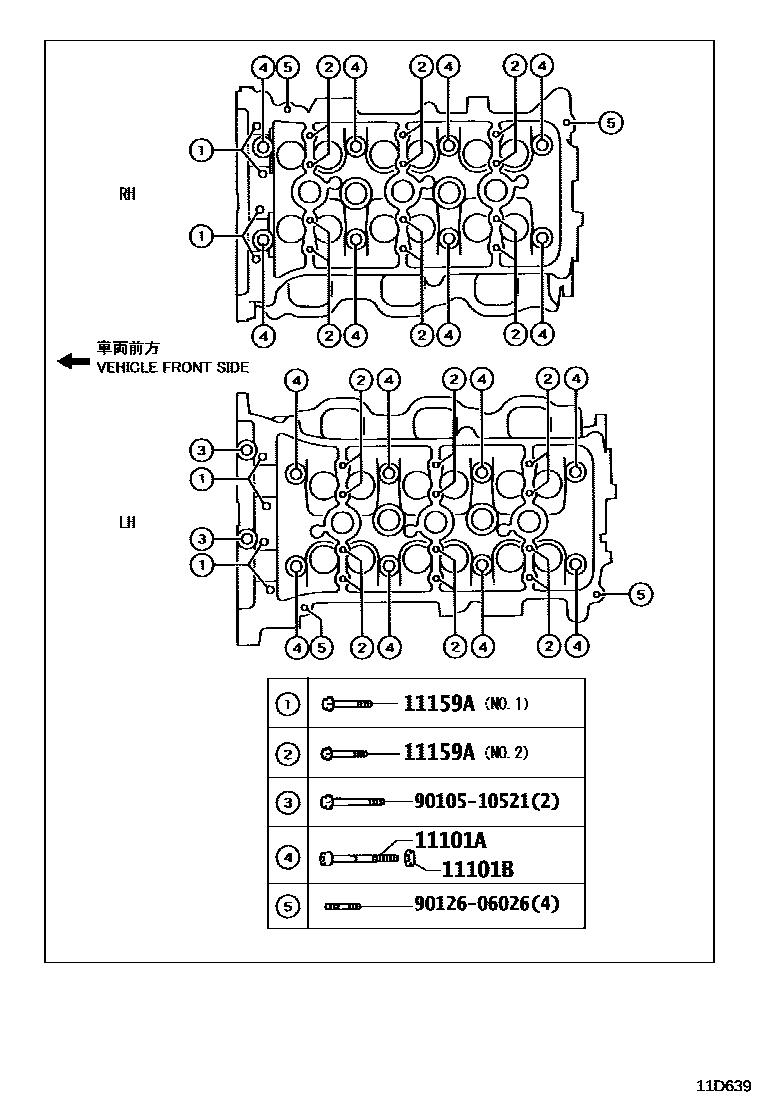

Toyota HILUX EPC diagram 1104, Cylinder Head, with 5 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-0C010 · 11101-0C030 · 11101-0C040 · 11101-0L050 · 11101-0L051 · 11101-0L060 · 11101-30070 · 11101-30071 · 11101-30080 · 11101-30081 · 11101-39755 · 11101-54150 · 11101-75141 · 11101-75190 · 11101-75200 · 11101-75240 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02080 · 90910-02081 · 90910-02091 · 90910-02145 · 90910-02146 · 90910-02149 · 90910-02162 · 90910-T2005 · 90910-T2006 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-11034 · 90560-T0015 |
| 11101C | Nozzle (for cylinder head) | 90440-15003 |
| 11101J | Camshaft timing oil control valve assembly | 15330-75010 · 15330-75020 |
| 11101U | SPACER (FOR CYLINDER HEAD SET BOLT) | 90560-13023 · 90560-T0005 |
| 11102 | left cylinder head | 11102-39235 |
| 11115 | GASKET, CYLINDER HEAD | 11115-0C010 · 11115-0C011 · 11115-0C020 · 11115-0C021 · 11115-31030 · 11115-31031 · 11115-75041 · 11115-75042 · 11115-75050 · 11115-75051 |
| 11116 | No. 2 cylinder head gasket | 11116-31010 · 11116-31011 |
| 11116B | No. 2 sealing plug | 96411-62500 |
| 11116C | No. 3 sealing plug | 96411-63000 |
| 11116D | No. 4 sealing plug | 96411-64500 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 · 90341-20002 · 90341-24011 · 90341-T0005 |
| 11117F | No. 2 headed straight thread plug | 90341-27006 · 90341-32002 · 90341-T0009 |
| 11117H | Gasket (for coolant hole) | 90430-20004 · 90430-24013 · 90430-T0010 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-27005 · 90430-32004 · 90430-33001 |
| 11119A | No. 1 direct sales | 90250-05021 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-20020 · 11122-30020 · 11122-54020 · 11122-75020 · 11123-20020 · 11123-30020 · 11123-54020 · 11123-75020 |
| 11122B | No. 2 intake valve guide bushing | 11122-20020 · 11123-20020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-30020 · 11122-54020 · 11122-75020 · 11123-30020 · 11123-54020 · 11123-75020 · 11126-20020 · 11127-20020 |
| 11126B | No. 2 exhaust valve guide bushing | 11126-20020 · 11127-20020 |
| 11131 | intake valve seat | 11131-0C010 · 11131-0C020 · 11131-31010 · 11131-75080 · 11131-75090 · 11132-31010 · 11132-75080 · 11132-75090 |
| 11131A | No. 2 intake valve seat | 11131-31010 · 11132-31010 |
| 11135 | Exhaust valve seat | 11135-0C010 · 11135-0C020 · 11135-31030 · 11135-75080 · 11135-75100 · 11136-31030 · 11136-75080 · 11136-75100 |
| 11135A | No. 2 exhaust valve seat | 11135-31030 · 11136-31030 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-10006 · 90253-11021 · 90253-T0004 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90080-31097 · 90311-32019 |
| 11155A | PIN, RING W/HEAD | 90253-10004 · 90253-11021 · 90253-T0001 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90116-06149 · 92122-80616 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-08166 · 90105-08353 · 90119-06902 · 90119-07011 · 90119-07013 |
| 11183 | PLUG, SEMICIRCULAR | 11183-0L010 · 11183-54020 · 11183-67020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0C010 · 11201-0C011 · 11201-31220 · 11201-75051 · 11201-75052 · 11210-0L020 · 11210-30110 · 11210-54051 |
| 11201A | Cap nut (for cylinder head cover) | 90179-06319 |
| 11201B | Gasket (for cylinder head cover) | 90210-06013 |
| 11202 | Left cylinder head cover sub-assembly | 11202-31010 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-05010 · 11213-0C010 · 11213-0L010 · 11213-30040 · 11213-31030 · 11213-54050 · 11213-75040 · 11213-75041 |
| 11214 | No. 2 cylinder head cover gasket | 11214-0C010 · 11214-31010 · 11214-75010 · 11214-75011 |
| 11229 | GASKET, CYLINDER HEAD COVER, NO.3 | 23682-0L010 · 23682-30020 |
| 11254 | V-shaped cylinder block cover No. 1 bracket | 11254-31010 |
| 11259 | V-shaped cylinder head | 11259-0P020 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0H020 · 12180-21010 · 12180-28010 · 12180-38010 · 12180-73011 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 12195-73010 · 90080-43027 · 90430-35001 · 90430-37004 · 90430-37140 |
| 12185 | Oil filler cap housing | 12185-0P010 · 12185-50020 |
| 12185A | Oil filler cap gasket | 12196-50010 |
| 12281A | Engine No. 1 hanger | 12281-0C010 · 12281-0C030 · 12281-31060 · 12281-75040 |
| 12282D | ENGINE HANGER, NO.2 | 12281-0C010 · 12281-0C030 · 12281-75040 · 12282-31040 · 12282-67030 |
| 12284A | ENGINE HANGER, NO.1 UPPER | 12284-30020 · 12284-30060 |
| 12581C | INSULATOR, CYLINDER BLOCK | 12581-0L010 · 12581-30010 |
| 12601B | No. 1 engine hood sub-assembly | 12601-0L030 |
| 12631A | hood bracket | 12631-0L010 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90099-14137 |
| 15330B | Right camshaft timing oil control valve assembly | 15330-31010 |
| 15340 | Left camshaft timing oil control valve assembly | 15340-31010 |
| 15340A | O-ring (for camshaft timing oil control valve) | 90099-14137 |
| 15678A | Oil control valve filter | 15678-0C010 · 15678-21010 · 15678-31010 |
| 25617A | EGR HOLE COVER, NO.2 | 25617-0L010 · 25617-30010 |
| 25628A | GASKET, EGR HOLE COVER, NO.2 | 25628-0L010 · 25628-30020 |
