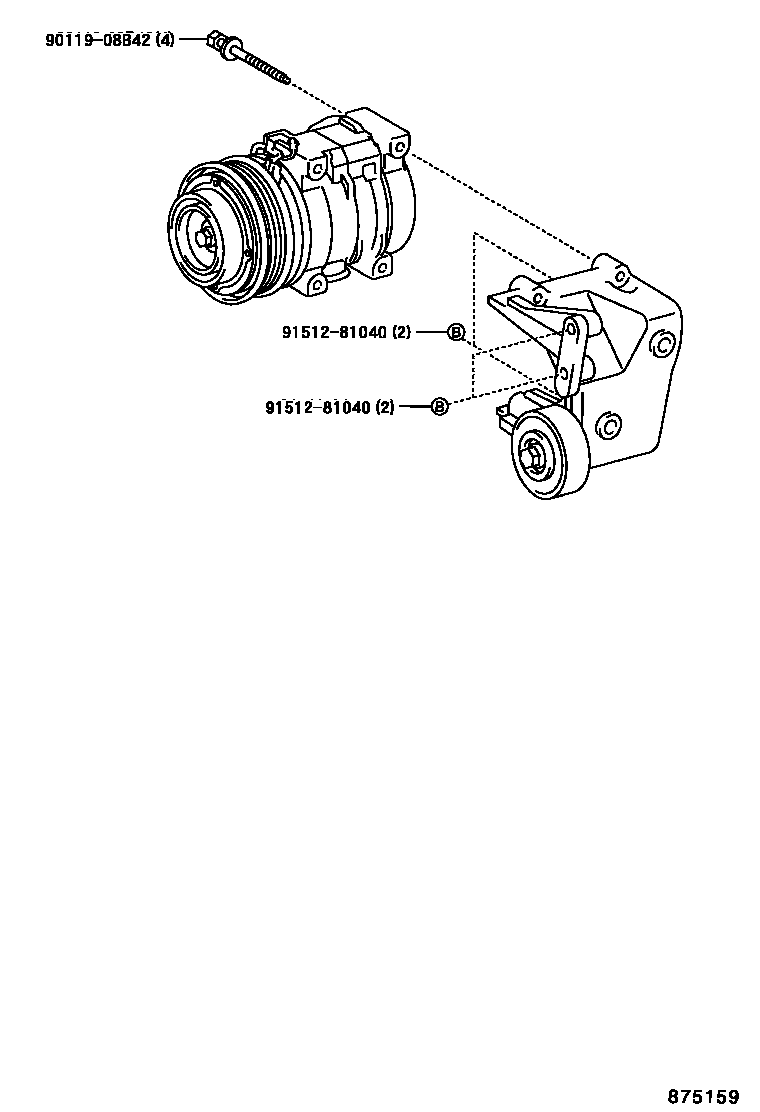

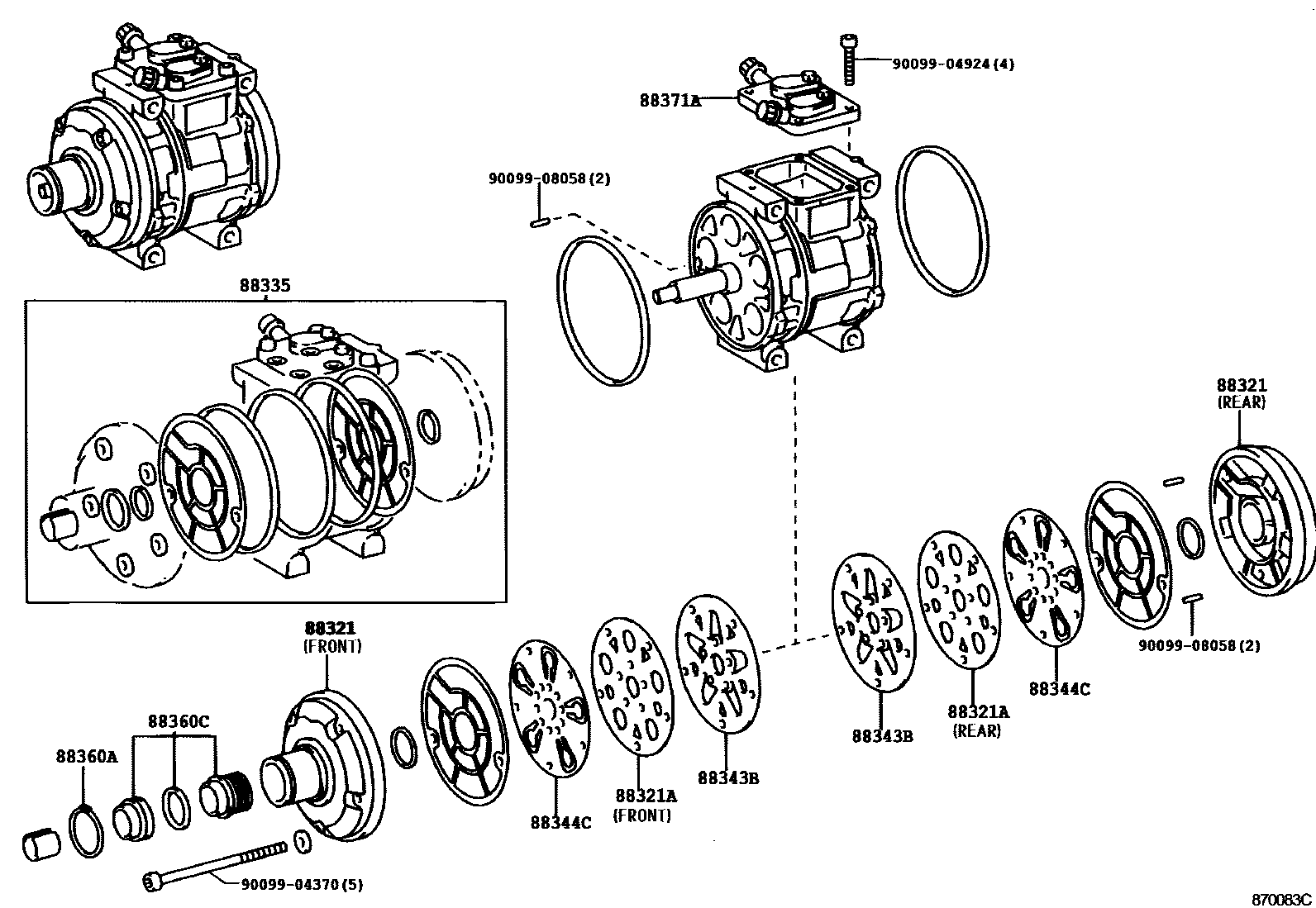

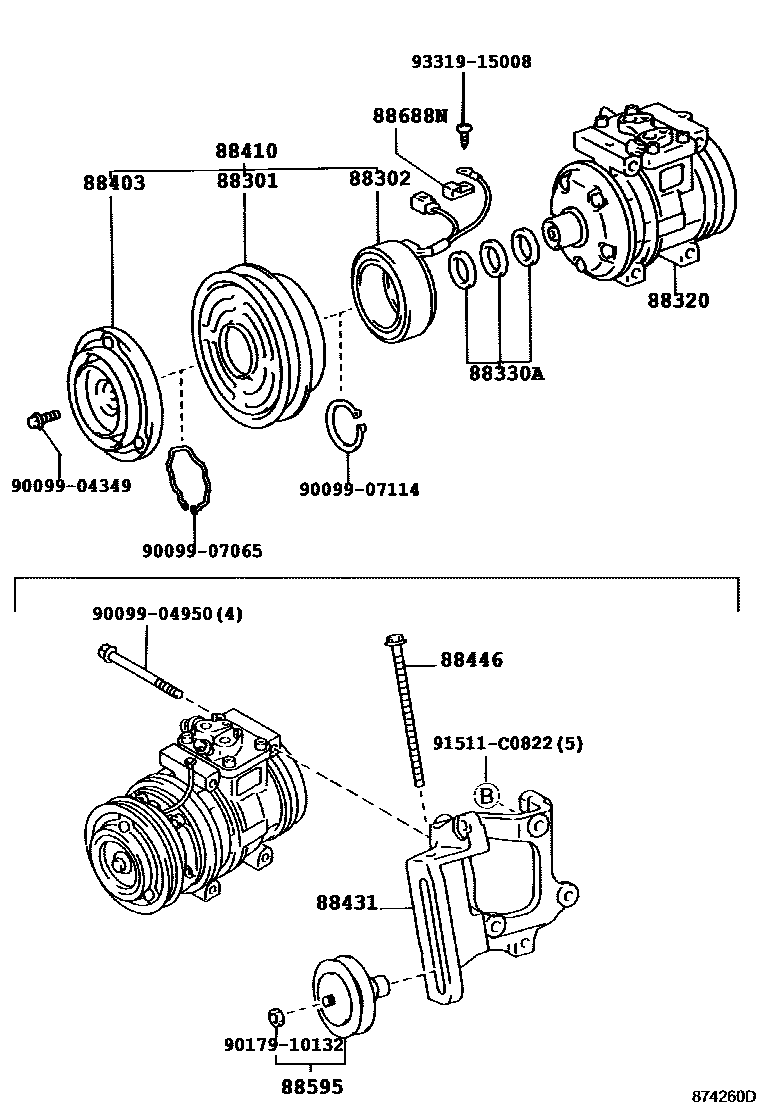

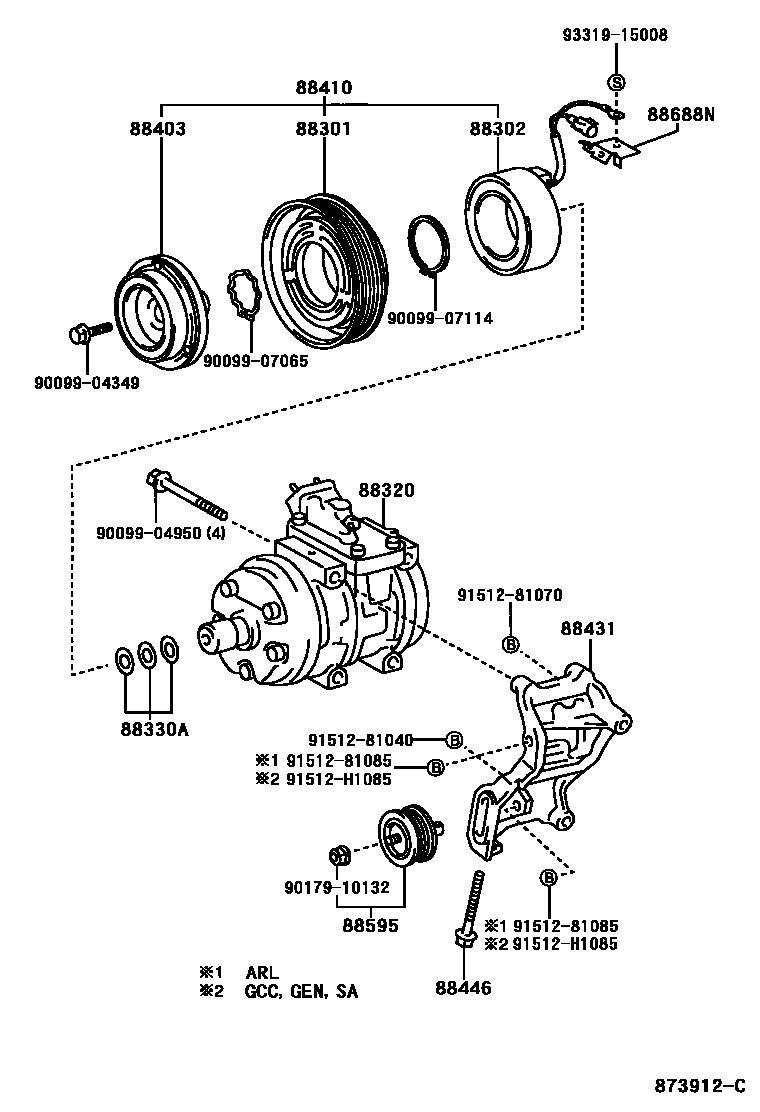

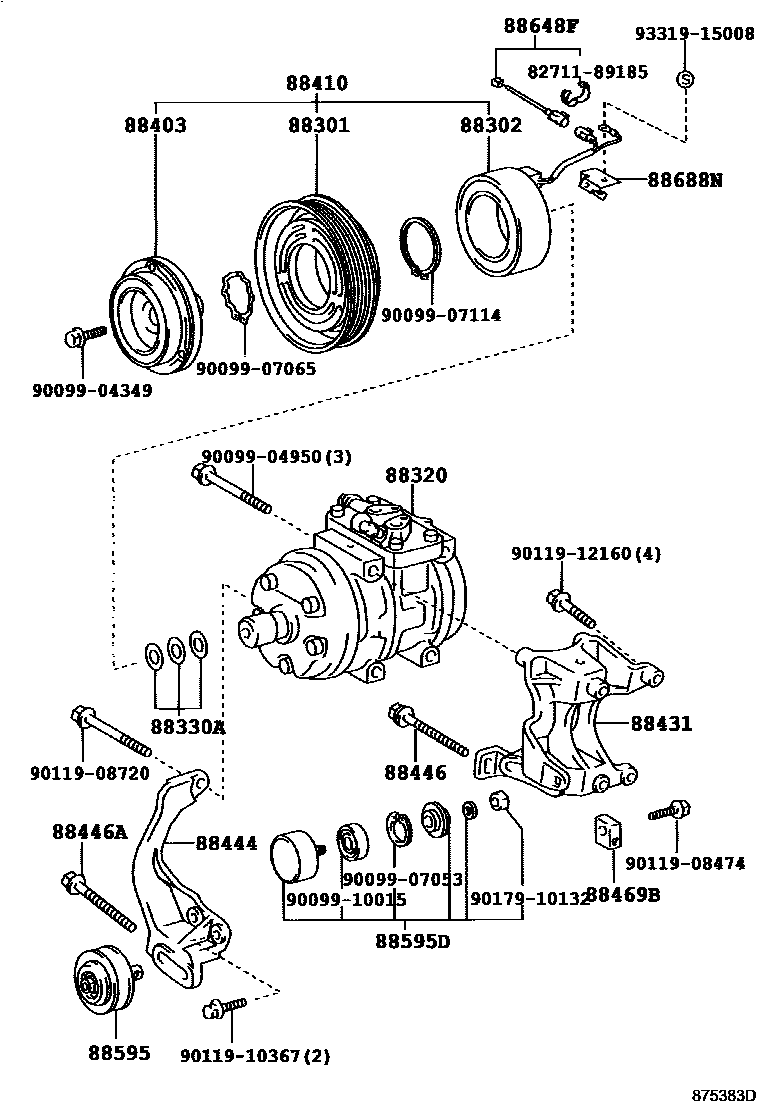

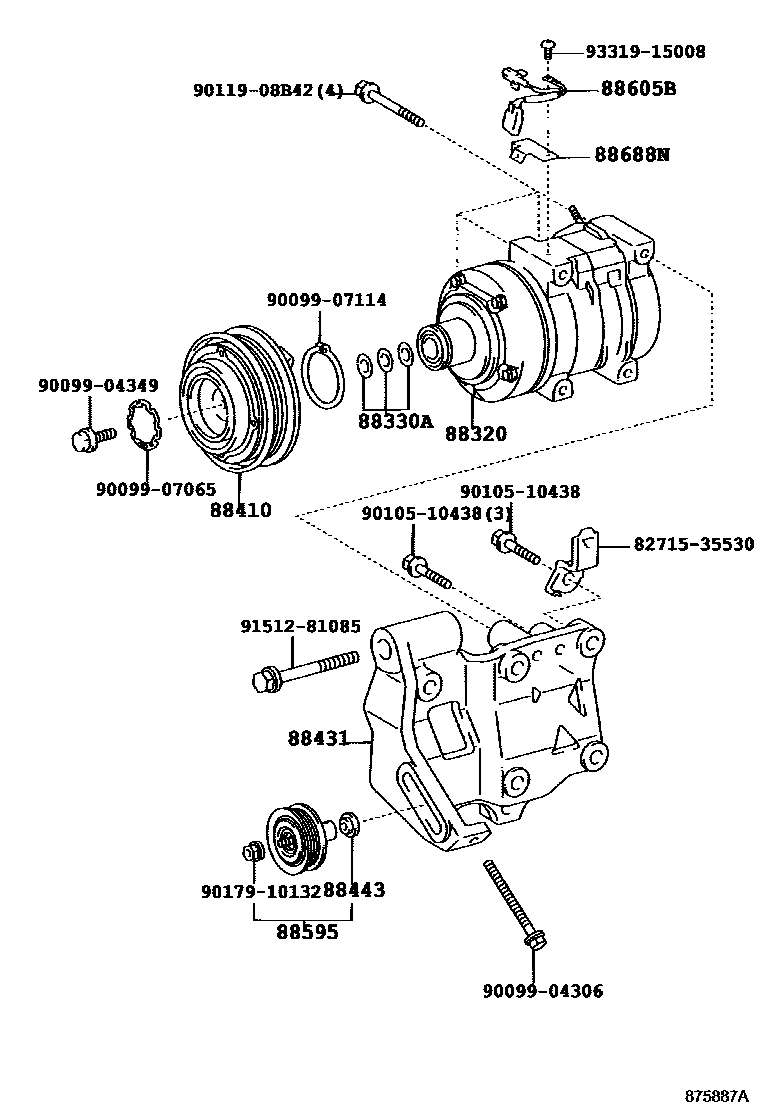

Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719
Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12150 · 88412-2A060 · 88412-30430 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-2A030 |
| 88320 | Cooler Compressor Assembly | 88320-35620 · 88320-35630 · 88320-35640 · 88320-35650 · 88320-35660 · 88320-37080 |
| 88321 | Cooler compressor cylinder head | 88321-32010 · 88322-32040 |
| 88321A | Valve sub-assembly | 88341-22010 · 88342-22010 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88335 | Overhaul gasket assembly | 88335-2B030 |
| 88343B | suction valve reed | 88343-14020 |
| 88344C | Discharge valve reed | 88344-22010 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88360C | Shaft seal assembly | 88360-2B020 |
| 88371A | suction valve | 88371-35270 · 88371-35280 · 88371-35290 · 88371-35300 · 88371-35310 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-30290 |
| 88410 | Magnetic Clutch Assembly | 88410-22480 · 88410-34040 · 88410-35380 |
| 88431 | Compressor No. 1 mounting bracket | 88431-35200 · 88431-35220 · 88431-60180 · 88431-60220 |
| 88443 | Idler gear collar | 88443-36010 |
| 88444 | Idler gear bracket | 88444-35030 · 88444-60070 |
| 88446 | Idler gear bolt | 88446-35010 · 88446-60020 · 88446-60040 · 90099-04321 |
| 88446A | No. 2 idler pulley bolt | 88446-35030 · 88446-35040 |
| 88469B | collar | 88469-30280 |
| 88595 | Cooler compressor idler pulley | 88440-35030 · 88440-35060 · 88440-35080 · 88440-60050 |
| 88595D | Idler gear assembly | 88440-26070 |
| 88605B | Air conditioning wiring harness sub-assembly | 88605-35410 · 88605-35420 |
| 88648F | Electromagnetic clutch wiring harness | 88648-35240 · 88648-35300 · 88648-35330 |
| 88688N | cooler bracket | 88688-25200 · 88688-2D770 · 88688-35590 · 88688-60610 |
