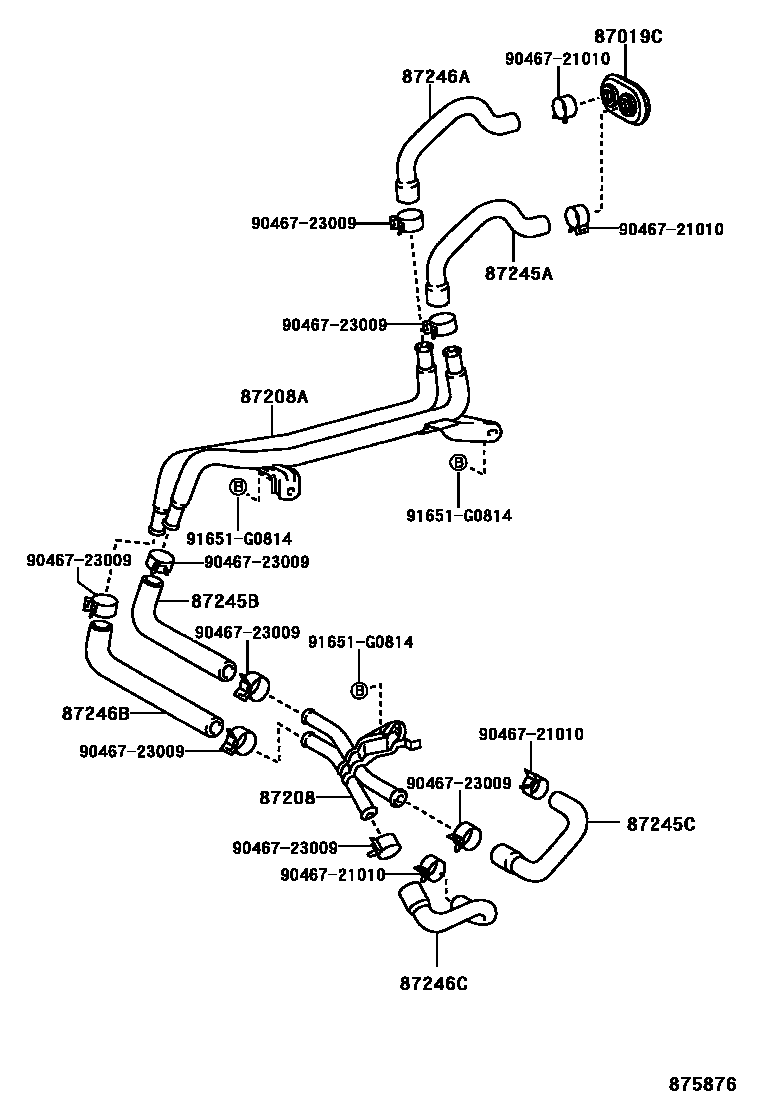

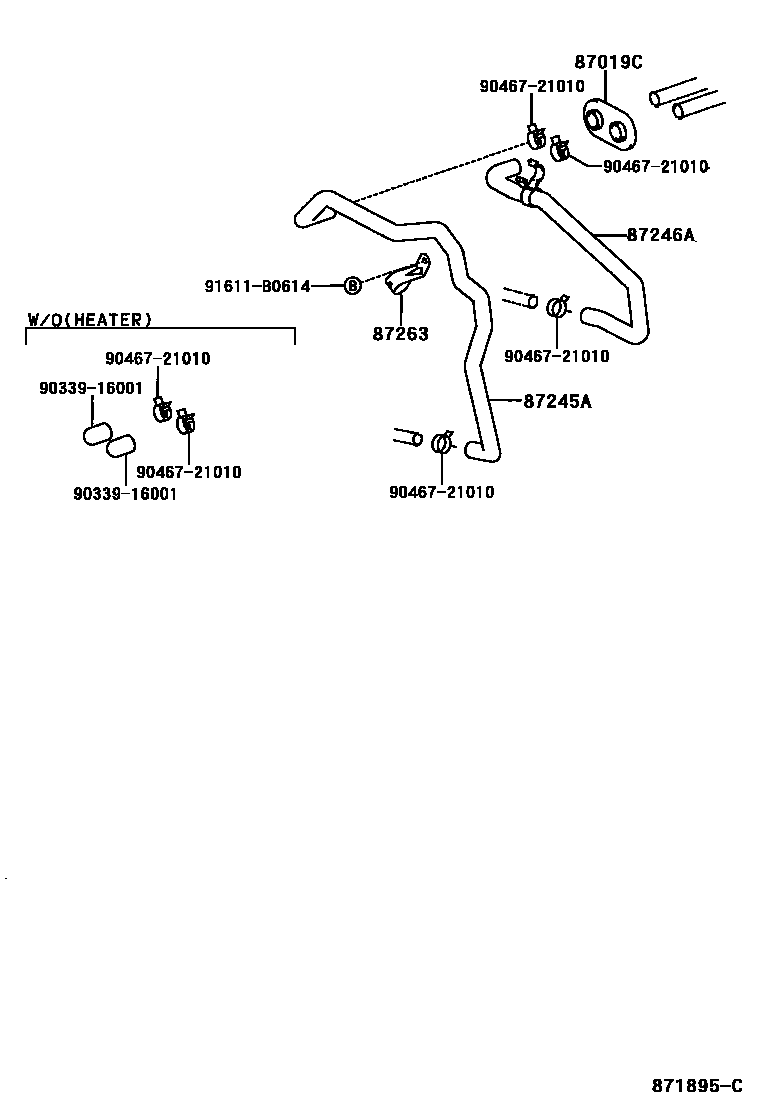

Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

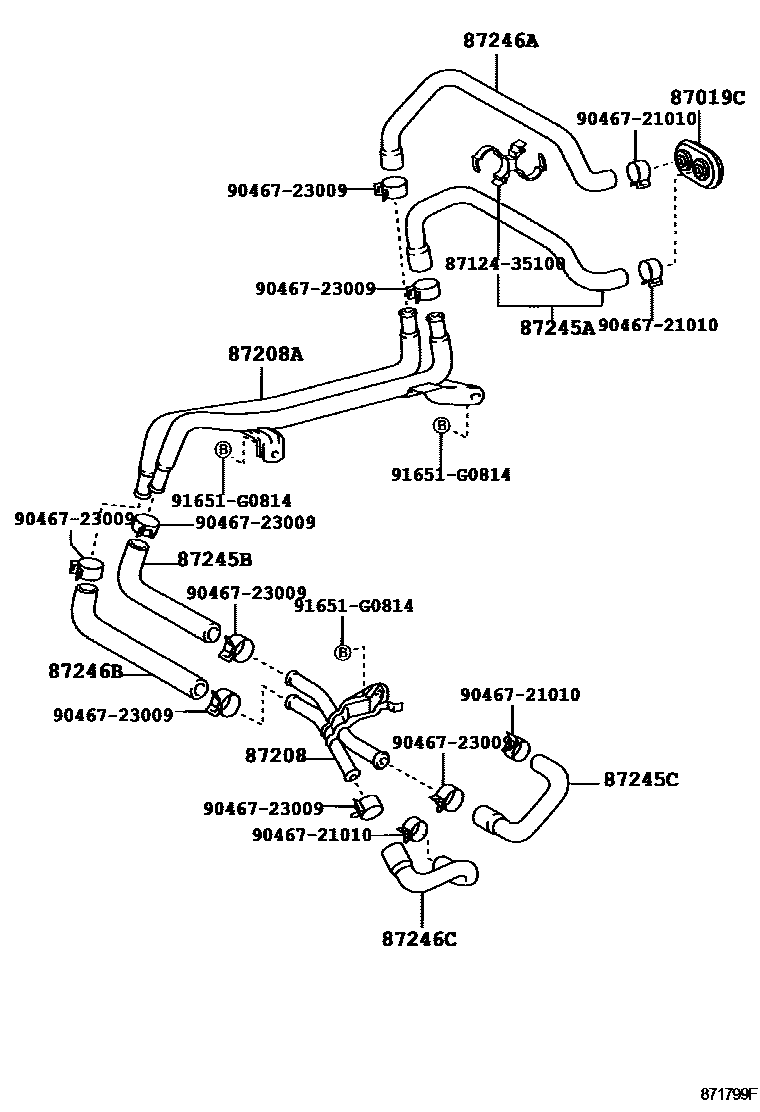

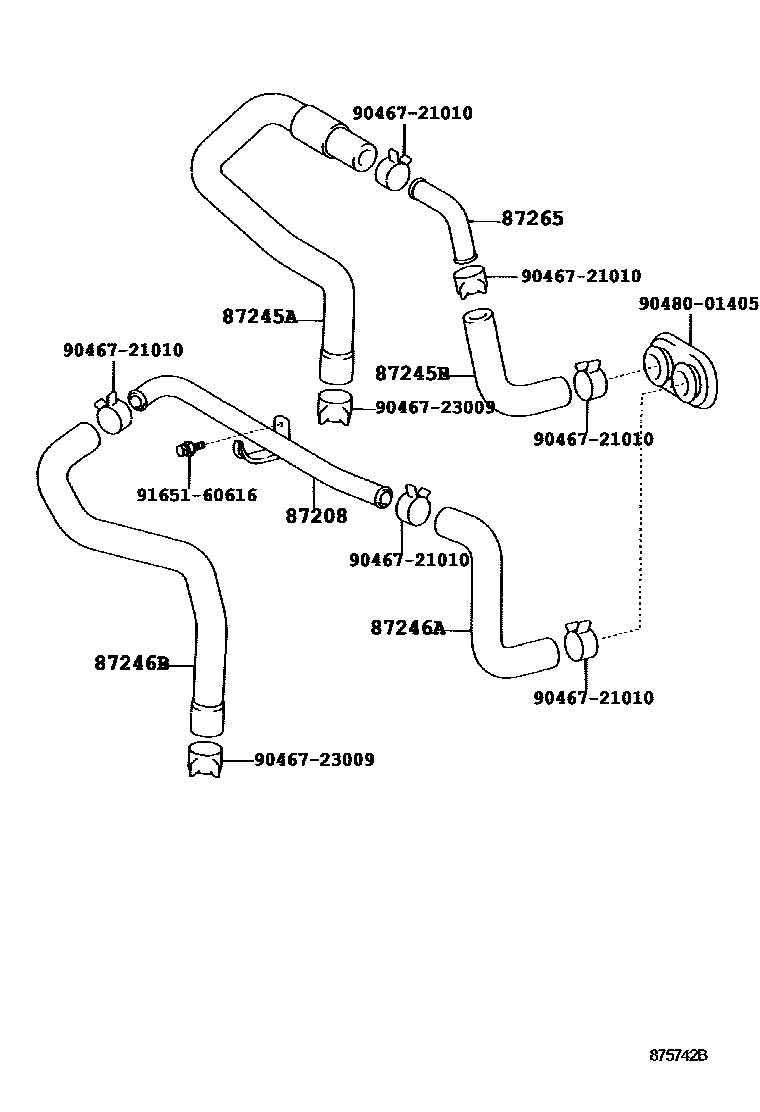

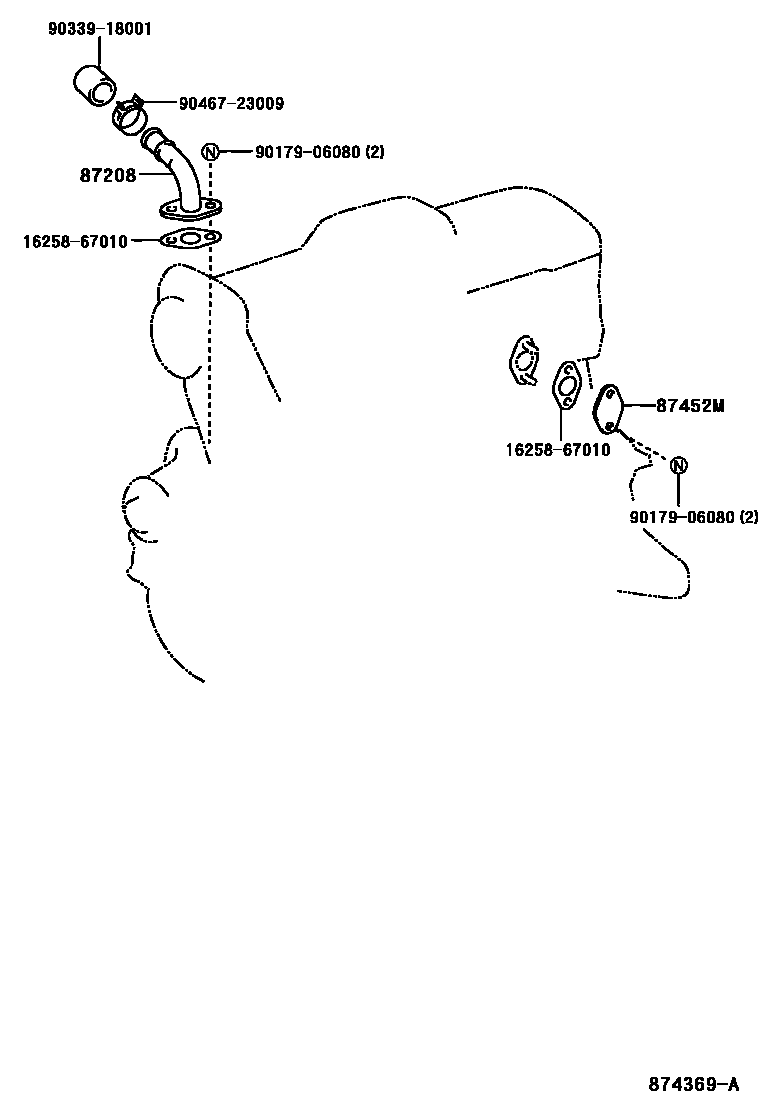

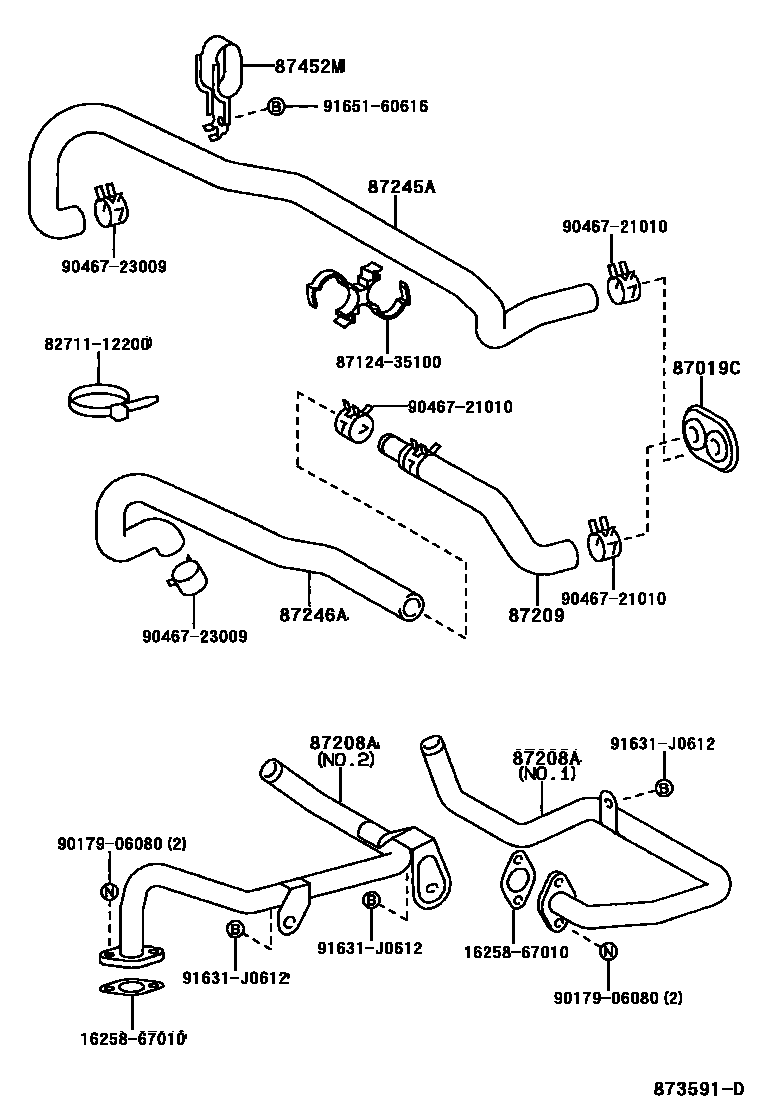

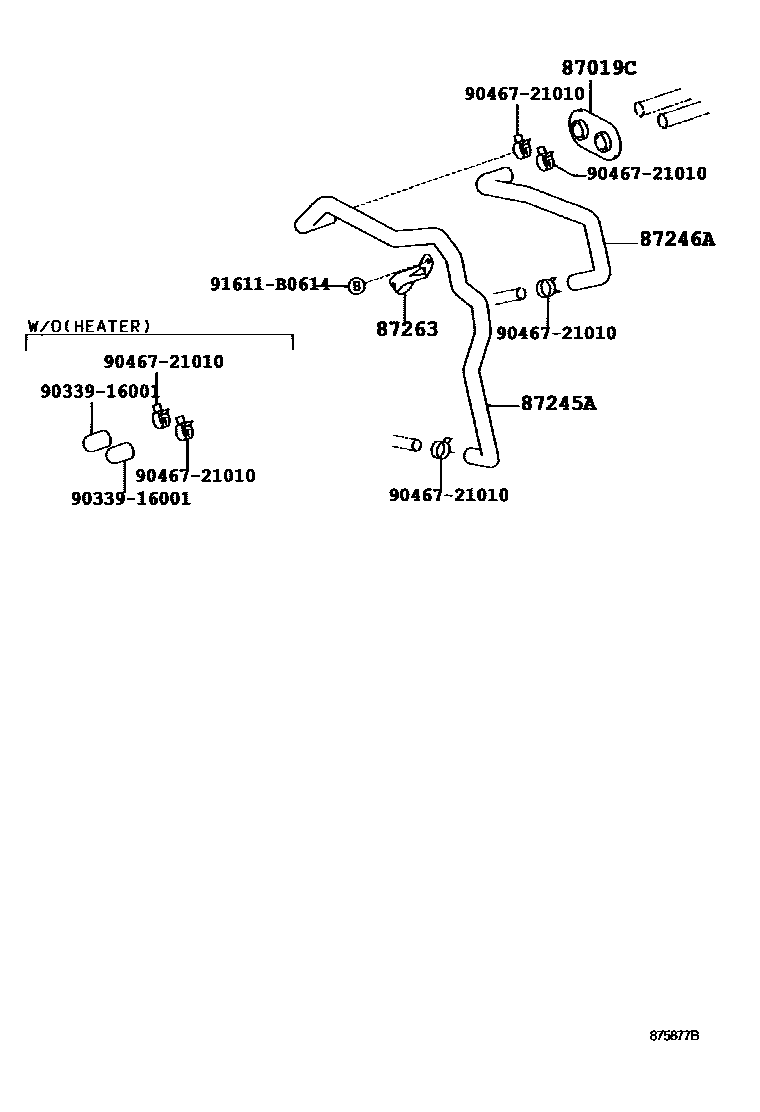

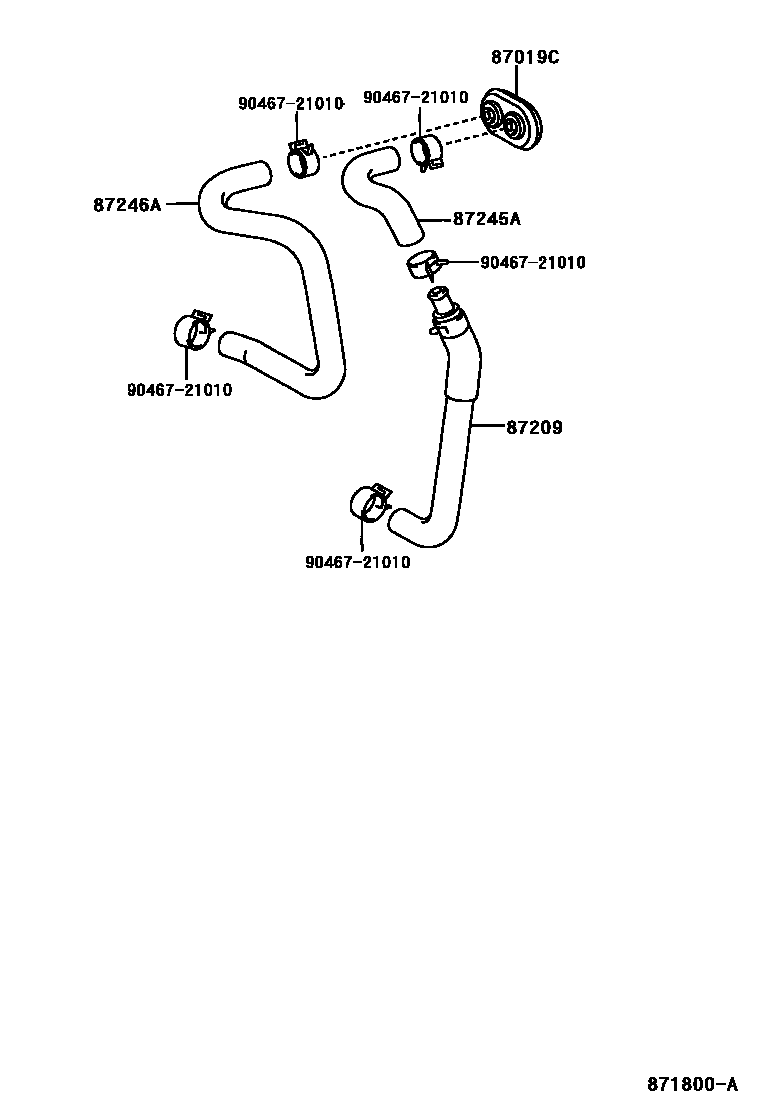

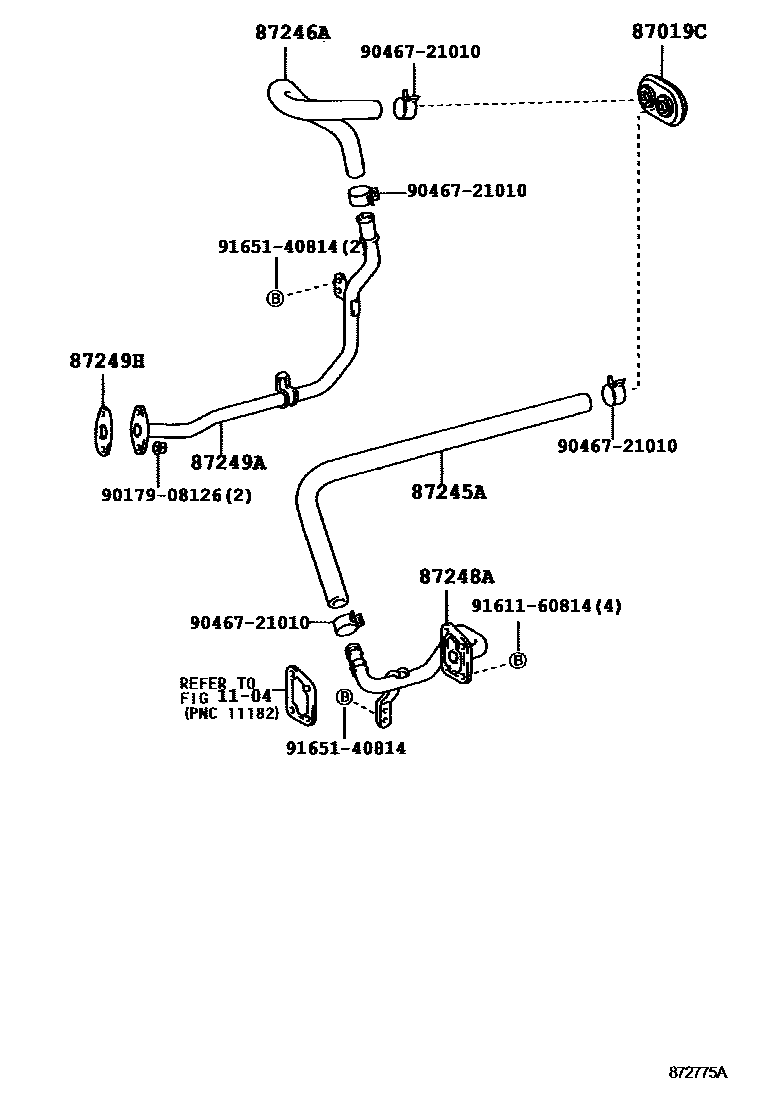

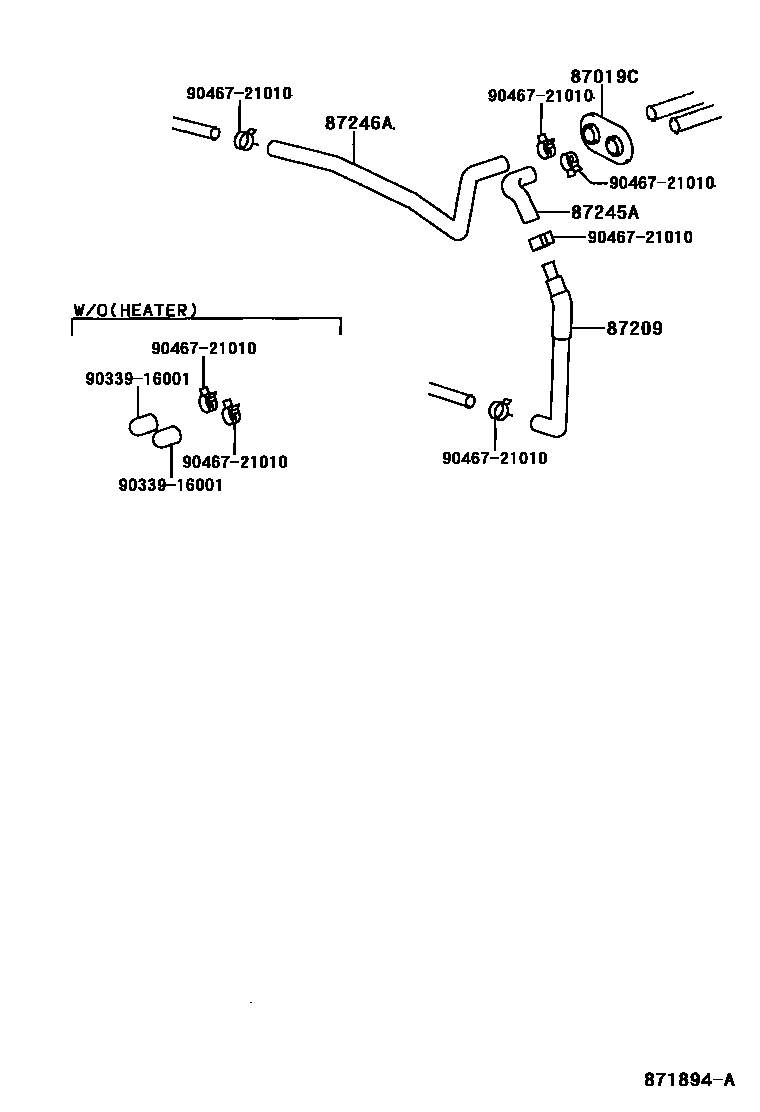

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 10 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-01405 |
| 87208 | Heater water pipe sub-assembly | 87208-26100 · 87208-35280 · 87208-35430 |
| 87208A | Heater water pipe sub-assembly A | 87208-35250 · 87208-35260 · 87208-35300 |
| 87209 | Water hose sub-assembly | 87209-35350 · 87209-35410 |
| 87245A | Heater water inlet hose A | 87245-35840 · 87245-35860 · 87245-3D050 · 87245-3D400 · 87246-35010 · 87246-35030 · 87246-35060 · 87246-35090 |
| 87245B | Heater water inlet hose B | 87245-3D410 · 87254-35010 |
| 87245C | Heater water inlet hose C | 87244-35010 |
| 87246A | Heater outlet hose A | 87245-35860 · 87245-35890 · 87245-3D010 · 87245-3D020 · 87245-3D030 · 87245-3D040 · 87245-3D180 · 87245-3D360 · 87246-35020 |
| 87246B | Heater outlet hose B | 87242-35010 · 87246-35100 |
| 87246C | Heater outlet hose C | 87243-35010 |
| 87248A | Heater water inlet pipe A | 87208-89110 |
| 87249A | Heater outlet pipe A | 87208-89126 |
| 87249H | Outlet pipe gasket | 17175-72011 |
| 87263 | No. 1 heater water pipe bracket | 87263-35020 |
| 87265 | Heater water hose connector | 87265-35470 |
| 87452M | Rear heater tube No. 4 bracket | 87452-35010 · 87452-35030 |
