Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715

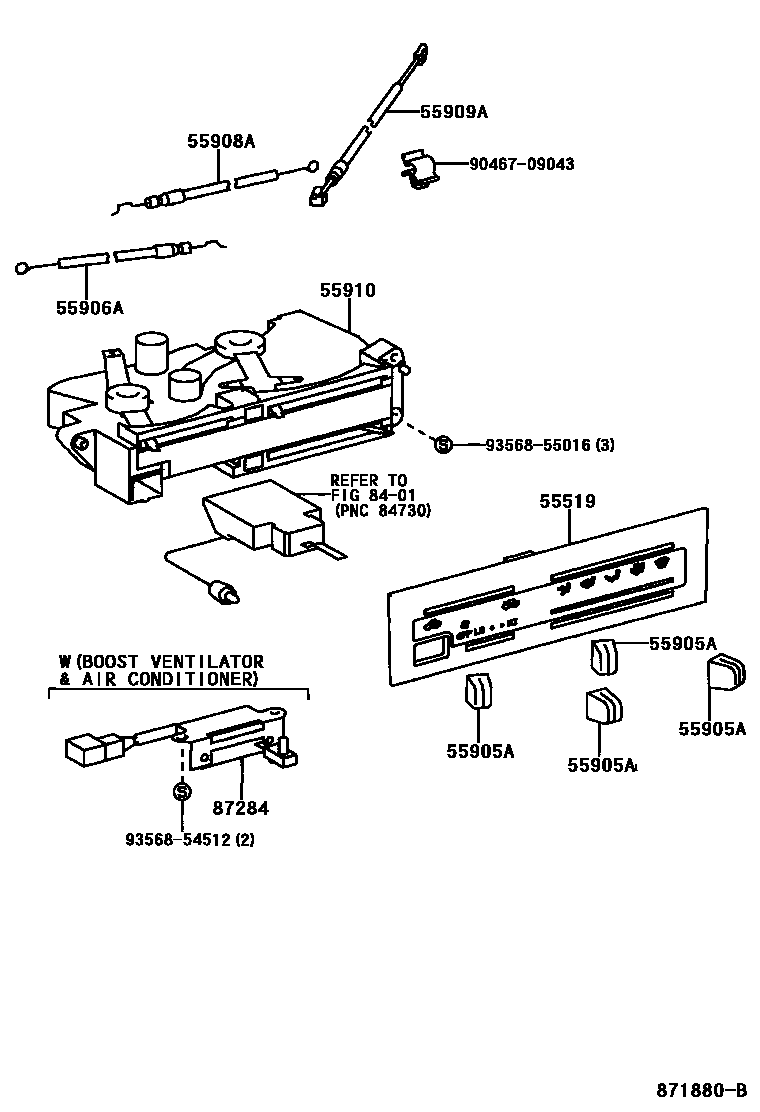

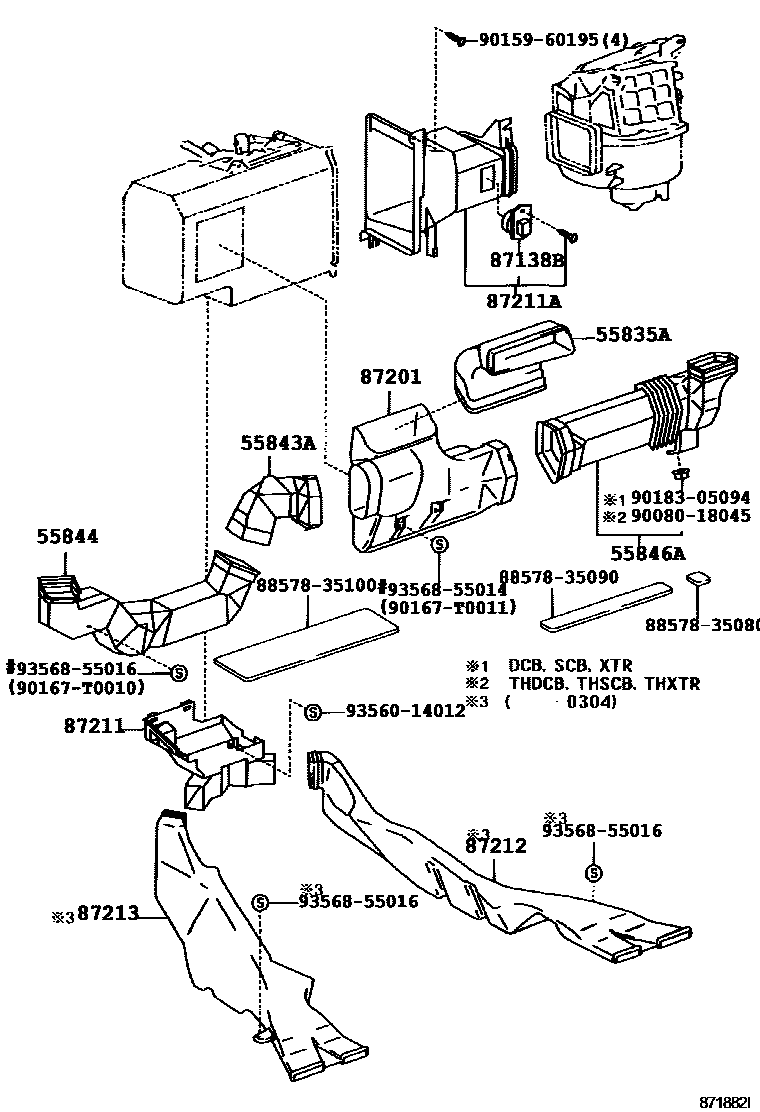

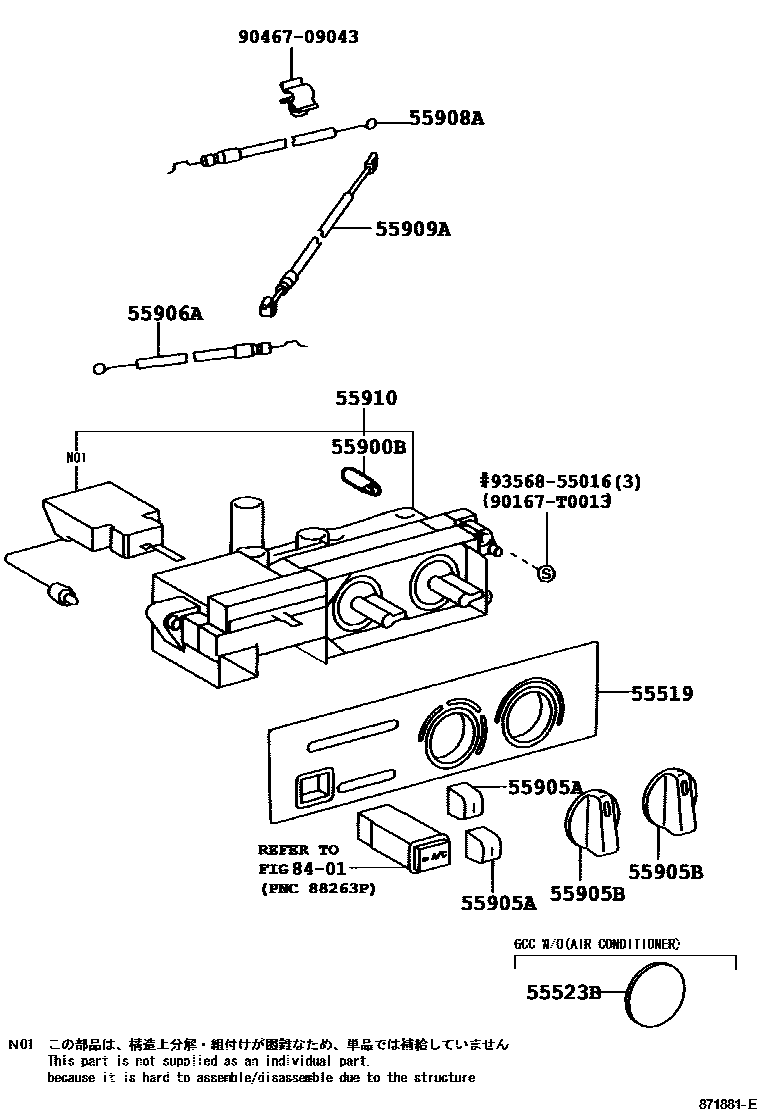

Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55082E | Air duct sub-assembly from front wall to air register No. 2 | 55082-35010 |
| 55519 | Heater controller nameplate | 55519-35160 · 55519-35170 · 55519-35180 · 55519-35190 · 55519-35200 · 55519-35210 · 55519-35220 · 55519-35230 · 55519-35240 · 55519-35250 · 55519-35260 |
| 55523B | Heater control opening cover | 55523-35030 |
| 55835A | Central air duct from heater to air register | 55835-04050 · 55835-35030 · 55835-35040 |
| 55841B | From the front wall to the air register No. 1 air duct | 55841-35020 |
| 55843A | Air duct No. 1 from heater to air register | 55843-04050 · 55843-04051 · 55843-35010 · 55843-35020 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-04070 · 55844-35020 · 55844-35030 · 55844-35040 · 55844-35050 |
| 55846A | Air duct No. 4 from heater to air register | 55846-04050 · 55846-35030 · 55846-35040 · 55846-35050 · 55846-35060 |
| 55900B | air conditioning control light bulb | 90010-05153 · 90981-11014 |
| 55905A | Heater control button | 55905-0A010 · 55905-0A020 · 55905-89115 |
| 55905B | Heater control button 2 | 55905-35160 |
| 55906A | Defroster damper control cable sub-assembly | 55906-35050 · 55906-35060 · 55906-35110 · 55906-35120 |
| 55908A | Intake air valve control cable sub-assembly | 55908-35040 · 55908-35050 · 55908-35090 |
| 55909A | Air mix damper control cable sub-assembly | 55909-35070 · 55909-35080 · 55909-35100 · 55909-35110 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-35080 · 55910-35090 · 55910-35100 · 55910-35110 · 55910-35130 · 55910-35150 · 55910-35160 · 55910-35170 · 55910-35180 |
| 87138B | Heater Blower Resistor | 87138-35080 |
| 87201 | No. 1 air duct sub-assembly | 87201-35010 · 87201-35020 |
| 87211 | No. 1 air duct | 87211-35160 · 87211-35170 · 87211-35200 |
| 87211A | Duct No. 2 | 87211-35180 · 87211-35190 |
| 87212 | No. 1 rear air duct | 87212-35010 · 87212-35011 |
| 87213 | No. 2 rear air duct | 87213-35010 · 87213-35011 |
| 87284 | Variable resistor sub-assembly | 88622-89104 |
