Toyota HILUX 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712

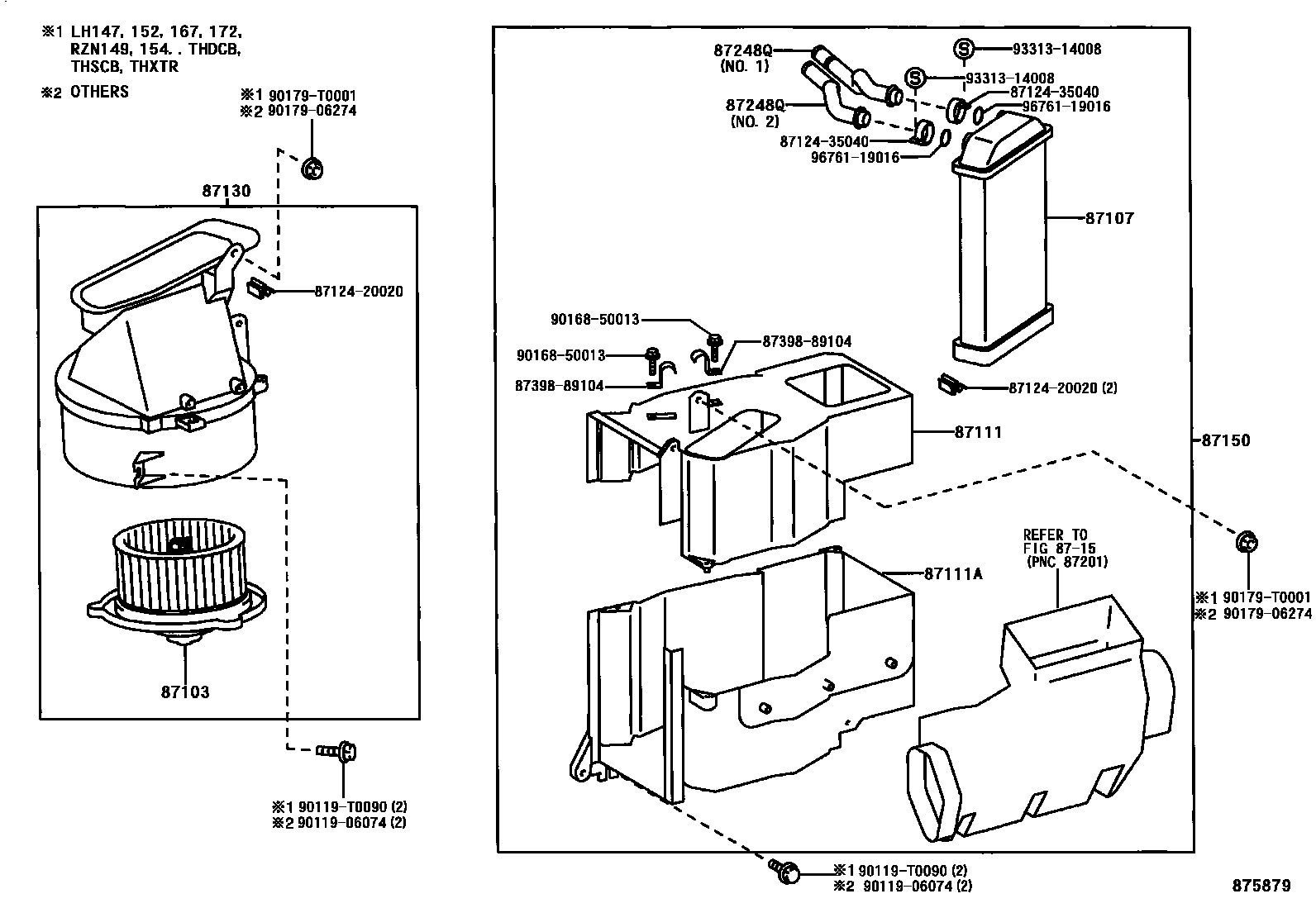

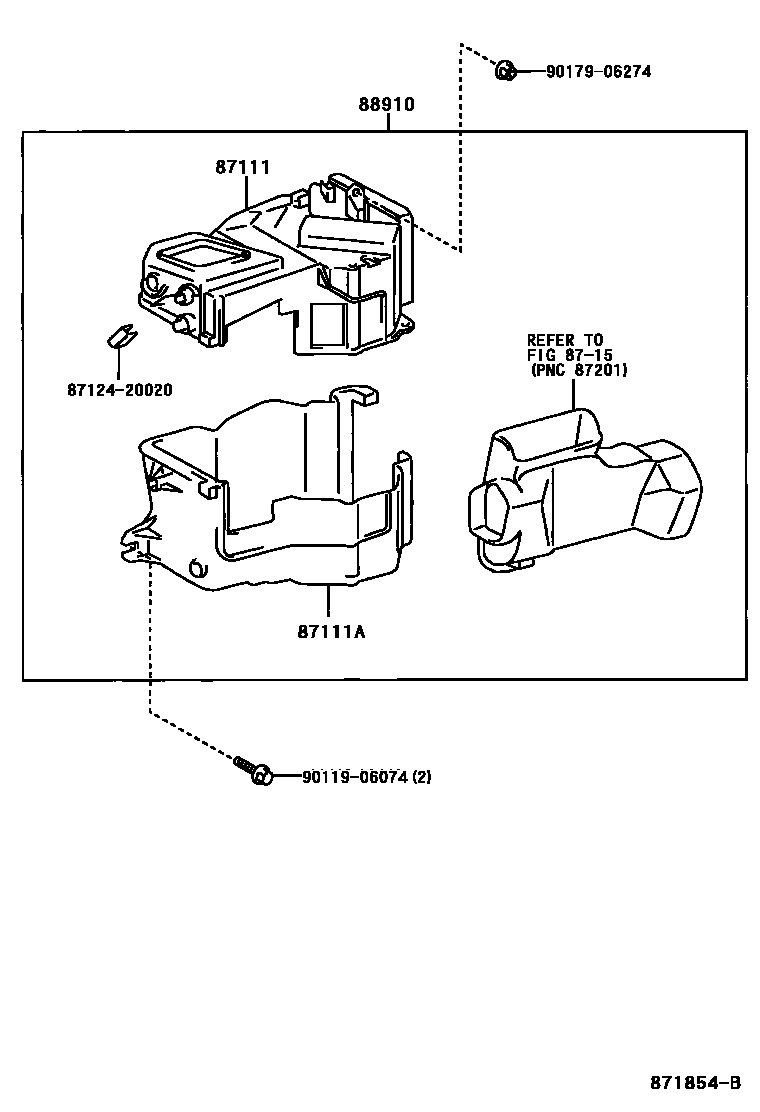

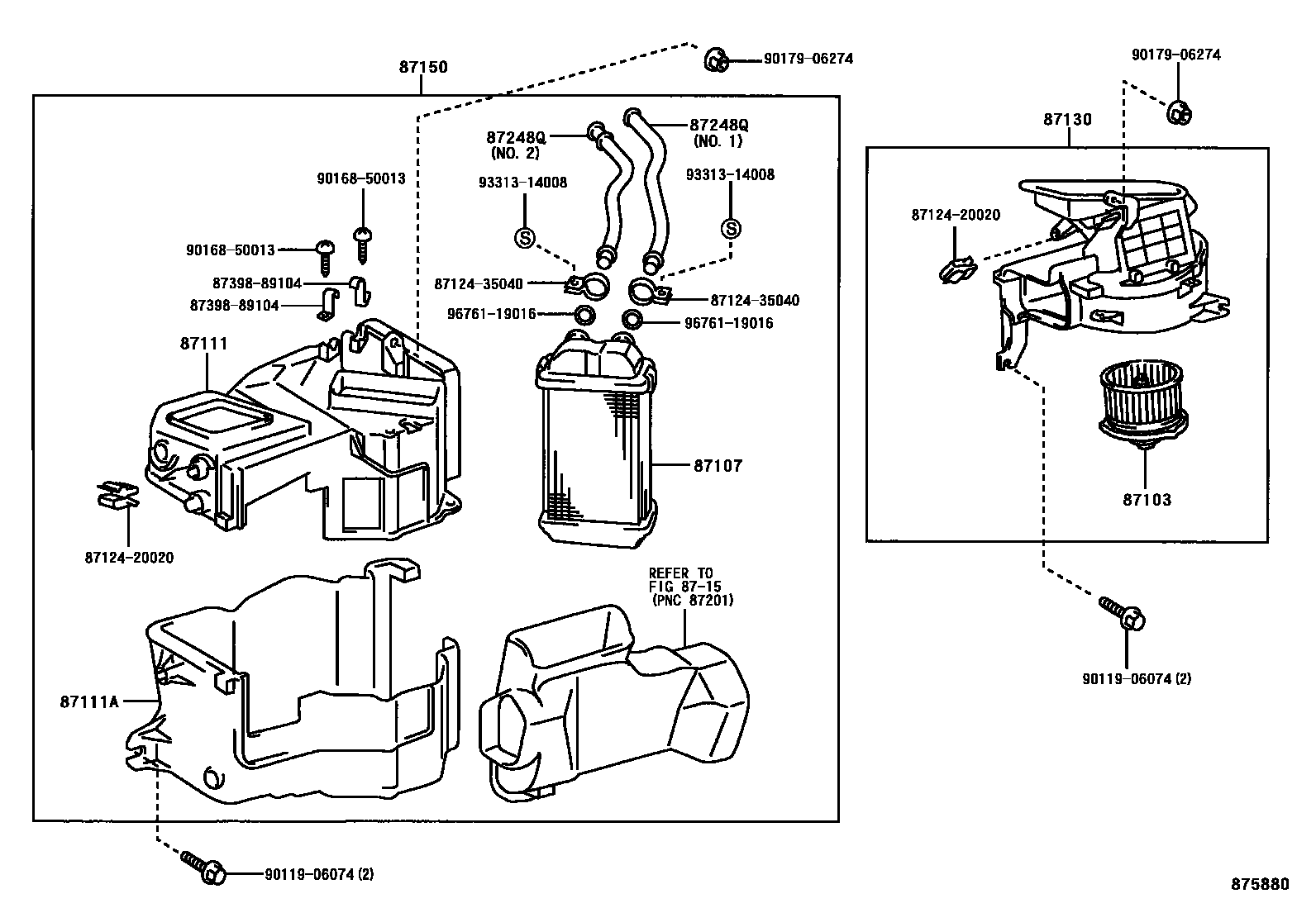

Toyota HILUX EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-35010 · 87103-35030 · 87103-60171 · 87103-60172 |
| 87107 | Heater radiator device sub-assembly | 87107-35070 · 87107-35080 |
| 87111 | heater shell | 87111-35220 · 87111-35240 · 87111-35260 · 87111-35280 |
| 87111A | heater shell | 87111-35230 · 87111-35250 · 87111-35270 · 87111-35290 |
| 87130 | Front heater blower assembly | 87130-35090 · 87130-35100 |
| 87150 | Heater radiator assembly | 87150-35160 · 87150-35170 · 87150-35180 · 87150-35230 |
| 87248Q | Front heater radiator water pipe | 87156-35090 · 87156-35100 · 87156-35110 · 87156-35120 · 87156-35130 |
| 88910 | Auxiliary ventilation device assembly | 88910-35010 · 88910-35020 |
