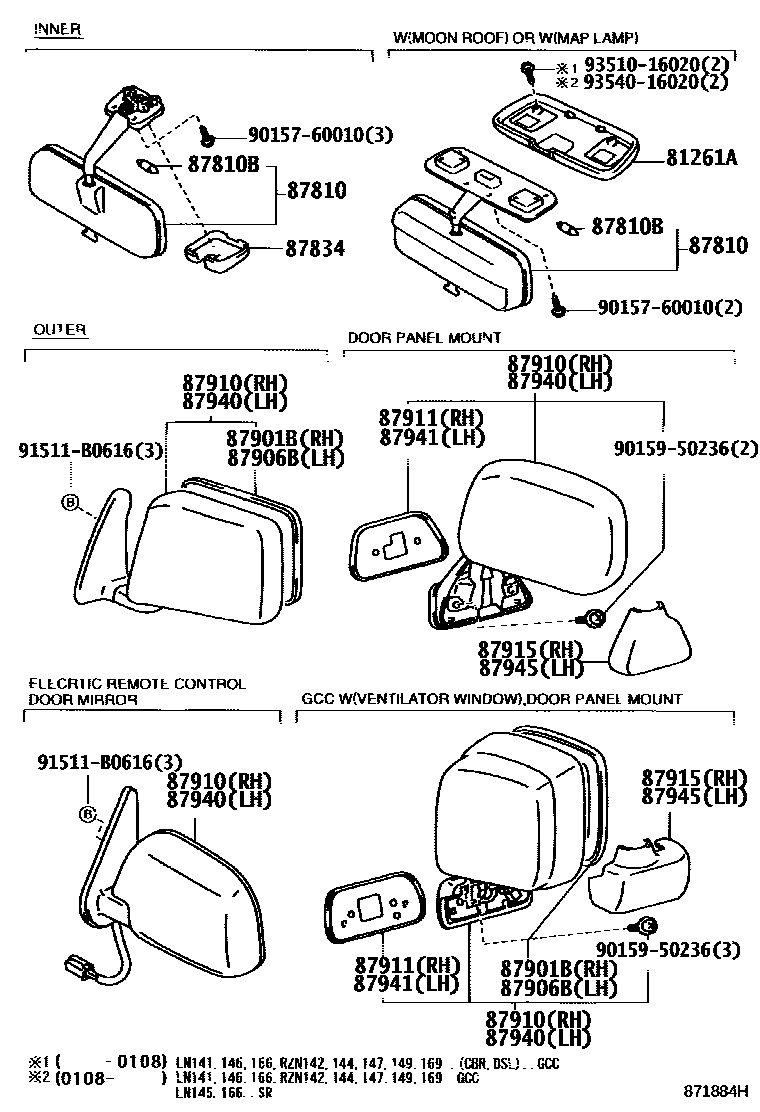

Toyota HILUX 后视镜 — Figure 8701
Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810B | Interior rearview mirror light bulb | 99132-13050 |
| 87834 | Interior rearview mirror stay fixing cover | 87834-89104 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-35440 · 87931-35450 · 87931-35460 · 87931-35470 · 87931-35480 · 87931-35690 · 87931-35700 · 87931-35710 · 87931-35740 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-35410 · 87961-35420 · 87961-35430 · 87961-35440 · 87961-35450 · 87961-35640 · 87961-35660 · 87961-35690 |
| 87910 | Right exterior rearview mirror assembly | 87910-35440 · 87910-35450 · 87910-35460 · 87910-35470 · 87910-35480 · 87910-35490 · 87910-35500 · 87910-35510 · 87910-35520 · 87910-35550 · 87910-35570 · 87910-35690 · 87910-35700 · 87910-35710 · 87910-35740 · 87910-35780 · 87910-35790 · 87910-35800 · 87910-35810 · 87910-35820 |
| 87911 | Right exterior mirror pad | 87911-35010 · 87911-35020 |
| 87915 | Right exterior rearview mirror cover | 87915-35020 · 87915-89106 |
| 87940 | Left exterior rearview mirror assembly | 87940-35410 · 87940-35420 · 87940-35430 · 87940-35440 · 87940-35450 · 87940-35460 · 87940-35470 · 87940-35480 · 87940-35490 · 87940-35520 · 87940-35540 · 87940-35640 · 87940-35650 · 87940-35660 · 87940-35690 · 87940-35730 |
| 87941 | Left exterior mirror pad | 87941-35010 · 87941-35020 |
| 87945 | Left exterior rearview mirror cap | 87945-35030 · 87945-89106 |
