Toyota HILUX 喇叭 — Figure 8611

Toyota HILUX EPC diagram 8611, 喇叭, with 1 images and 3 PNC and OE references.

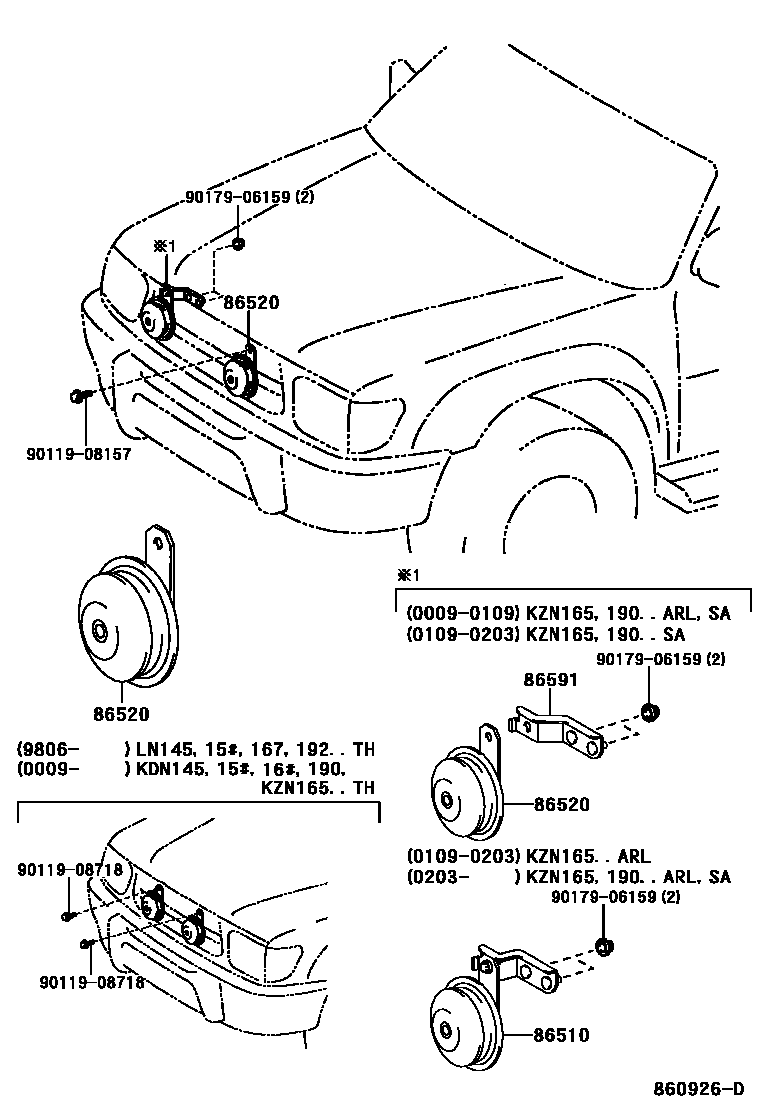

Toyota HILUX 喇叭 EPC diagram — 860926D
喇叭 — 860926D (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-35130
86520Subwoofer assembly86520-20300 · 86520-22260 · 86520-28050 · 86520-28080 · 86520-28180 · 86520-33060 · 86520-33070 · 86520-35080 · 86520-35100 · 86520-35150 · 86520-35160 · 86520-44010 · 86520-60130
86591speaker bracket86591-35010
