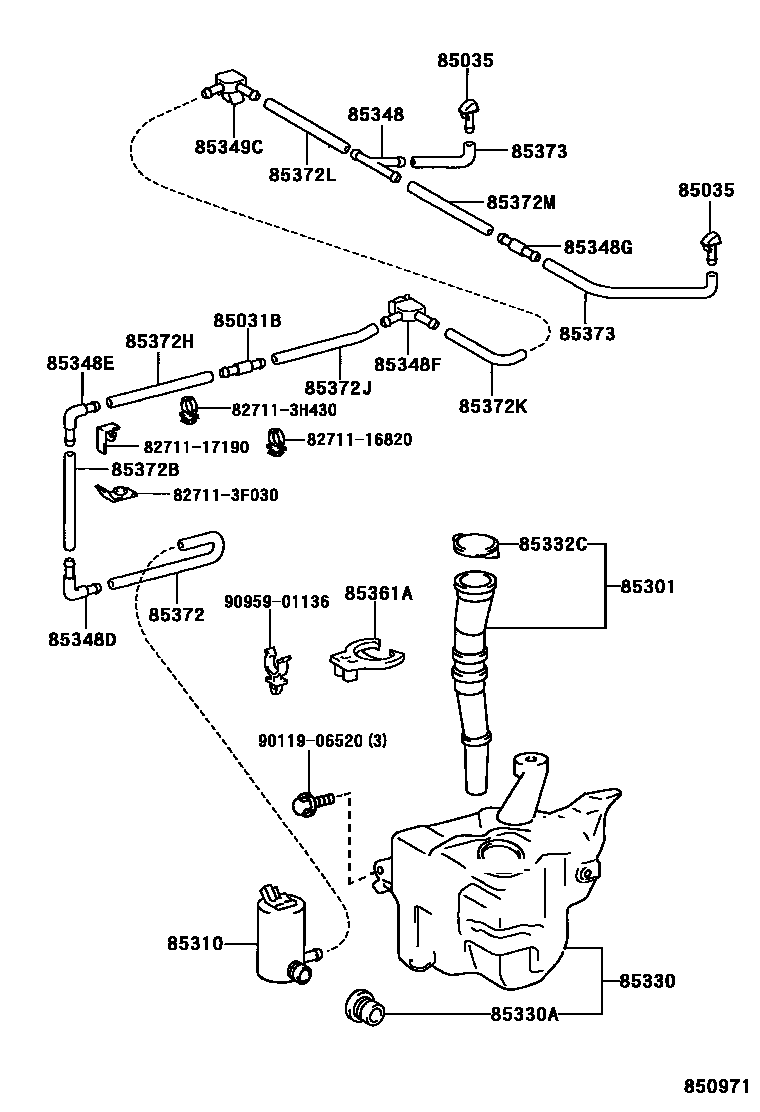

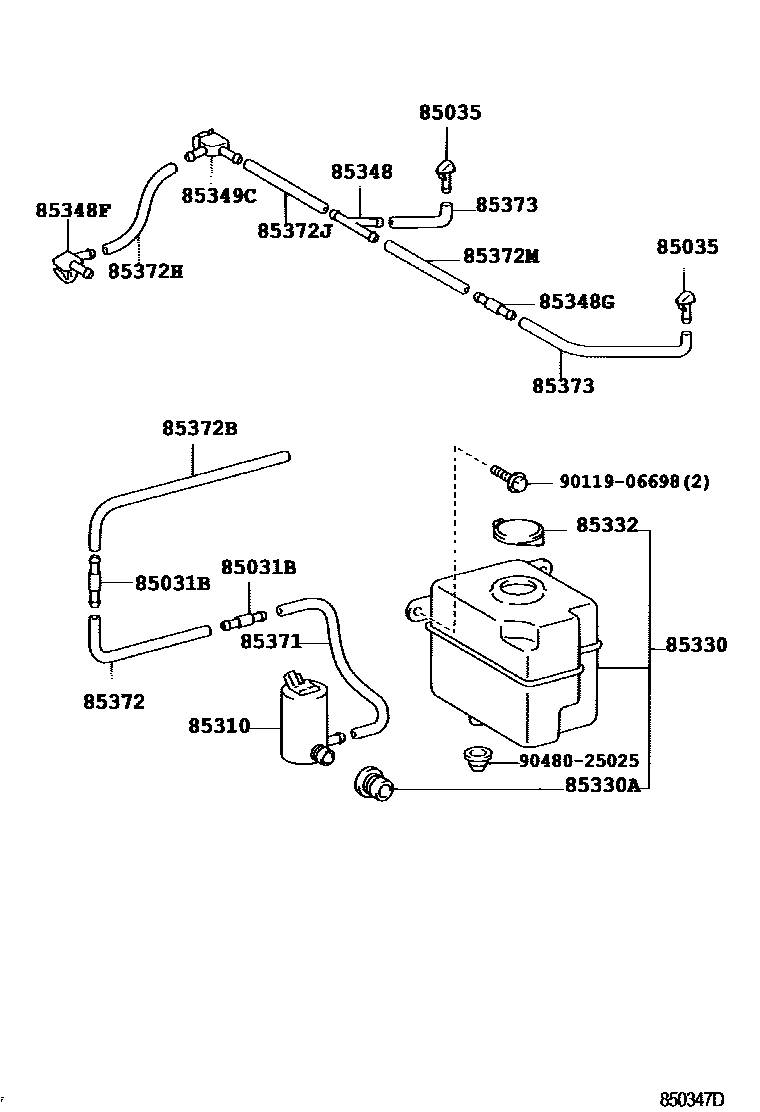

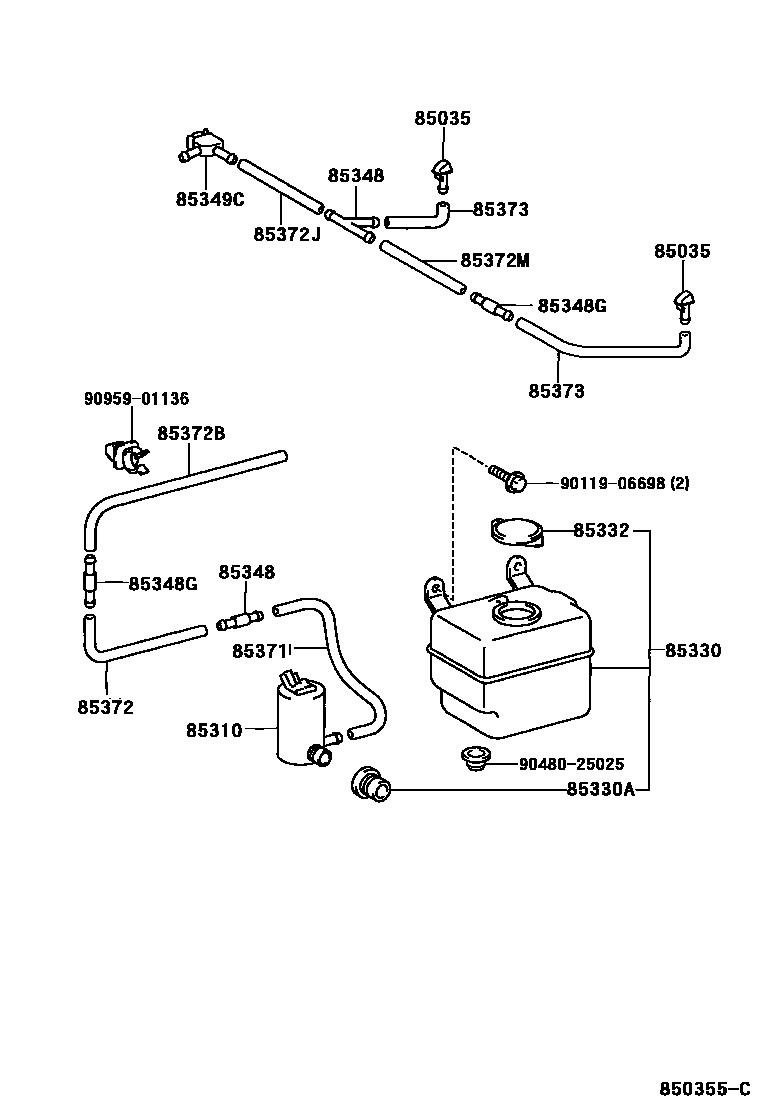

Toyota HILUX 挡风玻璃清洗器 — Figure 8503
Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85375-12520 |
| 85035 | Cleaner nozzle sub-assembly | 85381-04020 · 85381-04050 · 85381-35030 · 85381-35040 |
| 85301 | Cleaner water inlet sub-assembly | 85301-35050 |
| 85310 | Windshield washer motor and pump assembly | 85310-95J03 · 85330-60140 |
| 85330 | Windshield washer fluid tank assembly | 85315-35280 · 85315-35290 · 85315-35300 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-34050 |
| 85332C | Front washer water tank cover | 85316-33050 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 |
| 85348D | No. 1 windshield washer elbow joint | 85355-20200 |
| 85348E | No. 2 windshield washer elbow joint | 85355-20200 |
| 85348F | No. 3 windshield washer elbow joint | 85377-34010 |
| 85348G | Windshield washer hose connector No. 2 | 85349-89122 |
| 85349C | No. 4 windshield washer elbow joint | 85377-32220 |
| 85361A | Windshield washer bracket No. 1 | 85361-35060 |
