Toyota HILUX 防盗装置 — Figure 8424

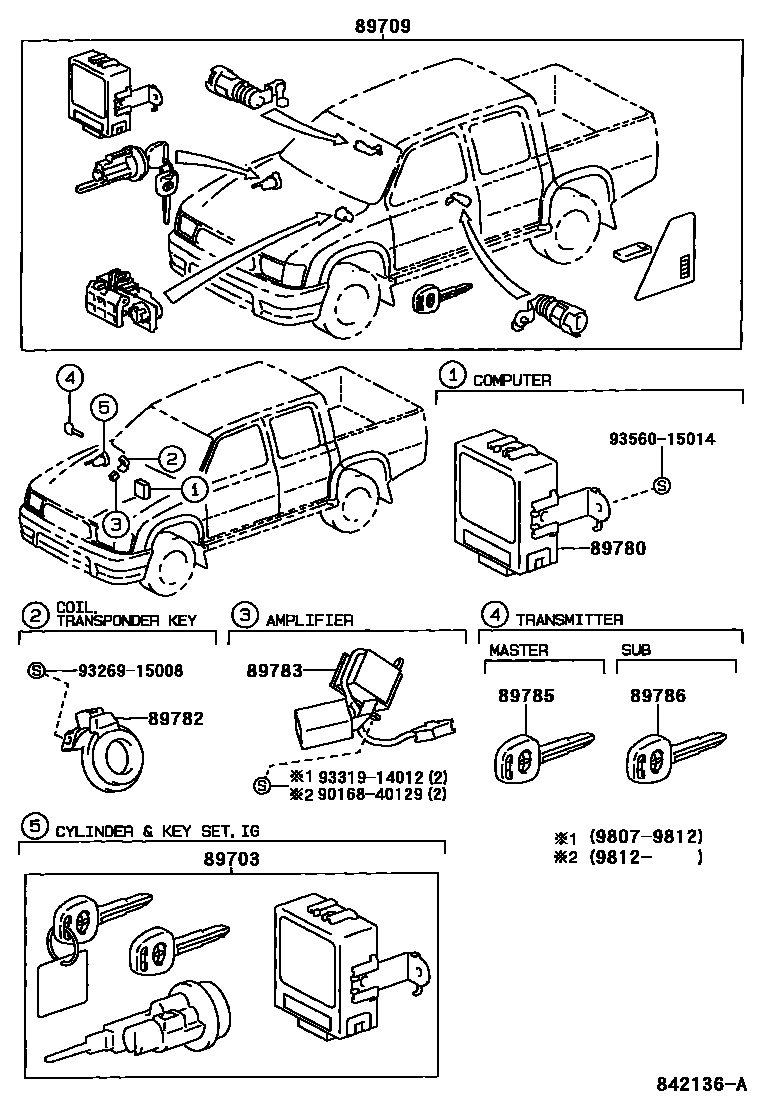

Toyota HILUX EPC diagram 8424, 防盗装置, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89703 | Ignition lock cylinder and key assembly with transceiver | 89703-35010 · 89703-35120 |
| 89709 | Transceiver key ECU assembly | 89709-35011 · 89709-35021 · 89709-35030 · 89709-35240 · 89709-35250 · 89709-35260 |
| 89780 | Transceiver key ECU assembly | 89780-35010 · 89780-35080 |
| 89782 | transceiver key coil | 89782-44010 |
| 89783 | transceiver key amplifier | 89783-35010 |
| 89785 | transceiver key master transmitter | 89785-35020 · 89785-35060 |
| 89786 | transceiver key secondary transmitter | 89786-35030 · 89786-35040 · 89786-35080 |
