Toyota HILUX ABS 和 VSC — Figure 8414

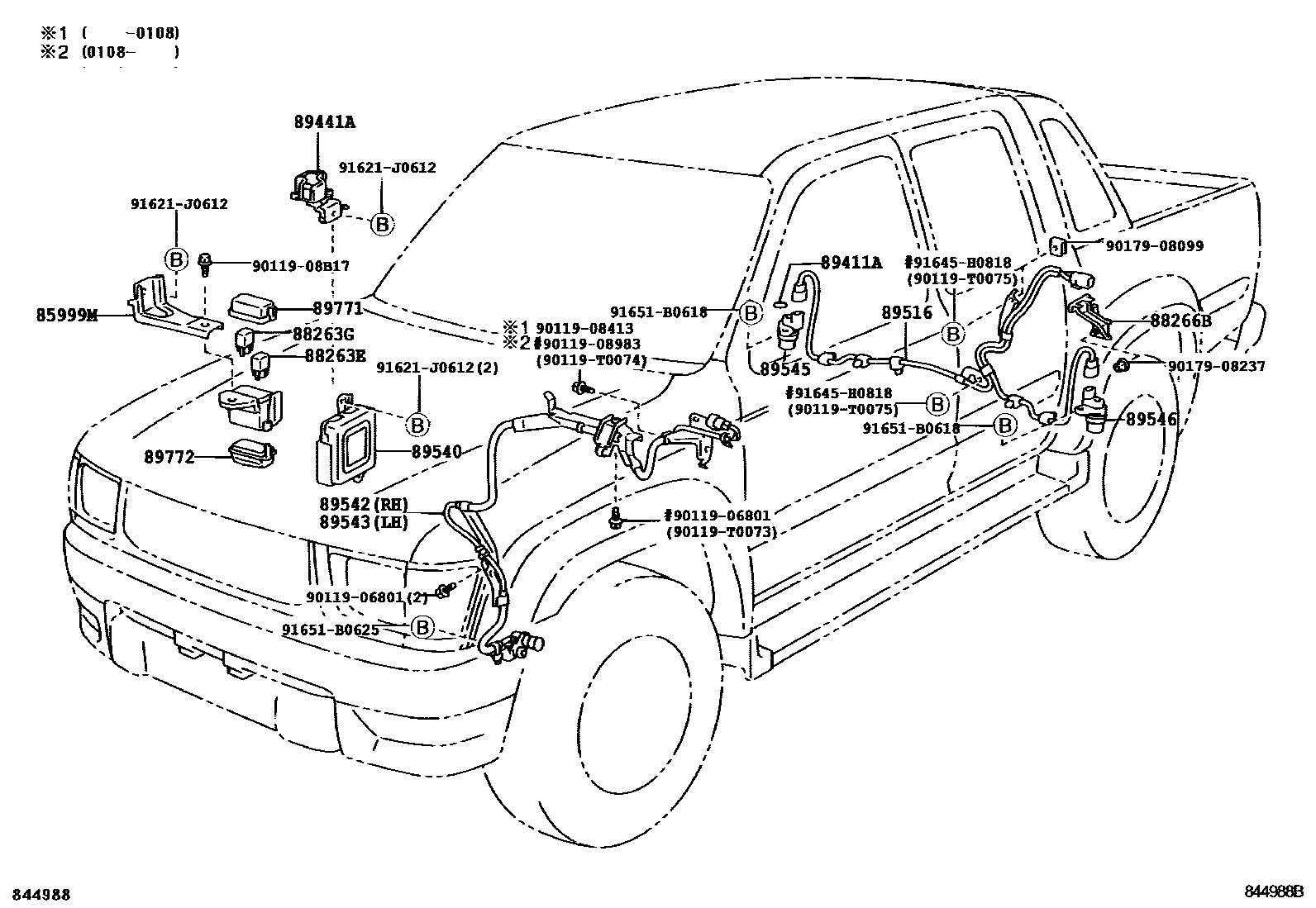

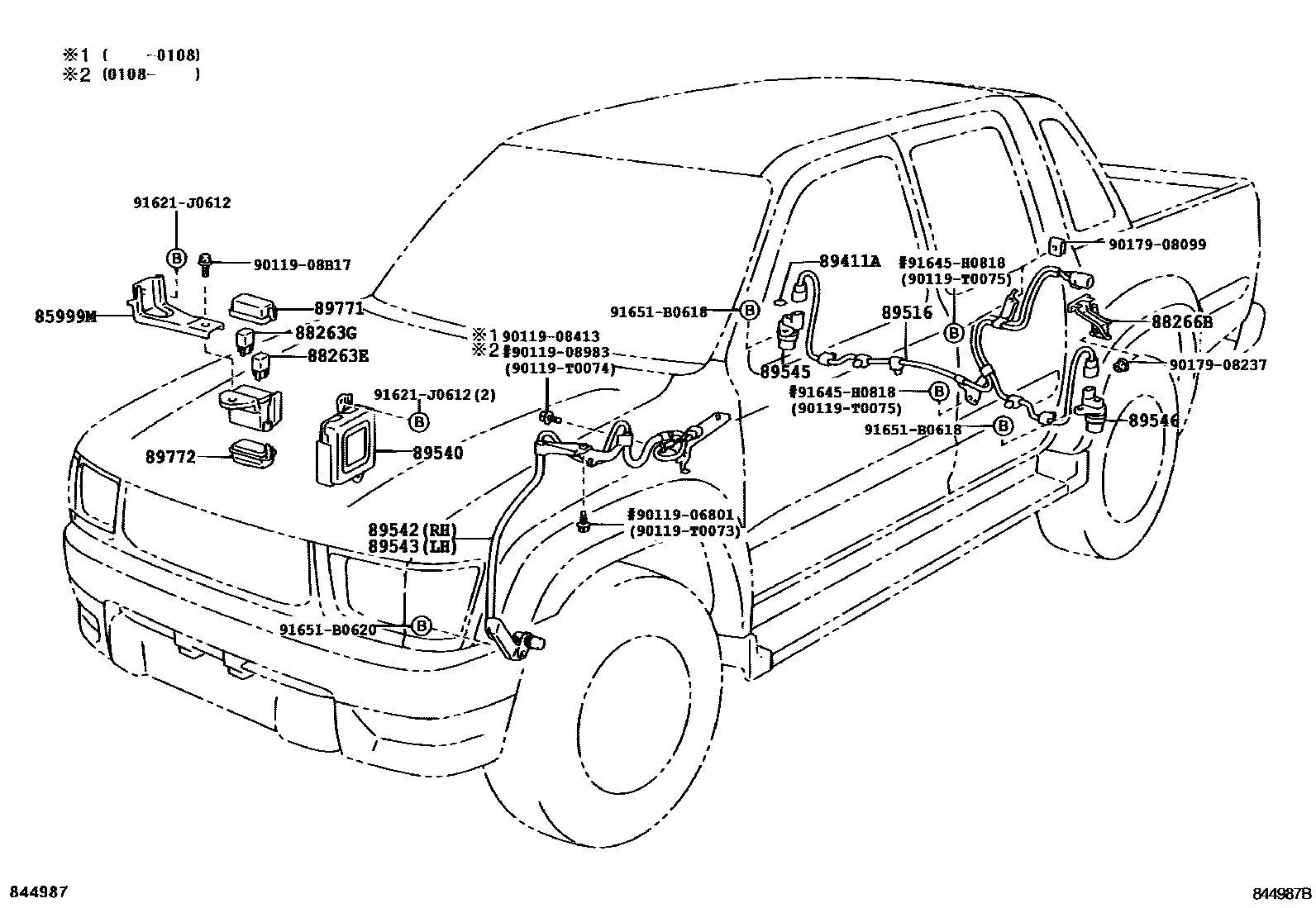

Toyota HILUX EPC diagram 8414, ABS 和 VSC, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-35100 · 85999-35110 |
| 88263E | No. 2 anti-skid control relay | 88263-24030 |
| 88263G | Anti-skid control relay | 88263-14110 |
| 88266B | No. 1 anti-skid control sensor clip | 88266-35600 |
| 89411A | O-ring (for speed sensor) | 96723-19021 |
| 89441A | deceleration sensor | 89440-35040 · 89440-35050 |
| 89516 | Anti-skid control sensor wiring harness | 89516-35050 · 89516-35060 |
| 89540 | Anti-skid control ECU assembly | 89540-35140 · 89540-35150 · 89540-35170 · 89540-35180 · 89540-35200 |
| 89542 | Right front wheel speed sensor | 89542-35080 · 89542-35090 |
| 89543 | Left front wheel speed sensor | 89543-35080 · 89543-35090 |
| 89545 | Right rear wheel speed sensor | 89545-35020 |
| 89546 | Left rear wheel speed sensor | 89546-35020 |
| 89771 | ABS relay box upper cover | 89771-12010 |
| 89772 | ABS relay box lower cover | 89772-12010 |
