Toyota HILUX 超速档和电子控制变速器 — Figure 8410

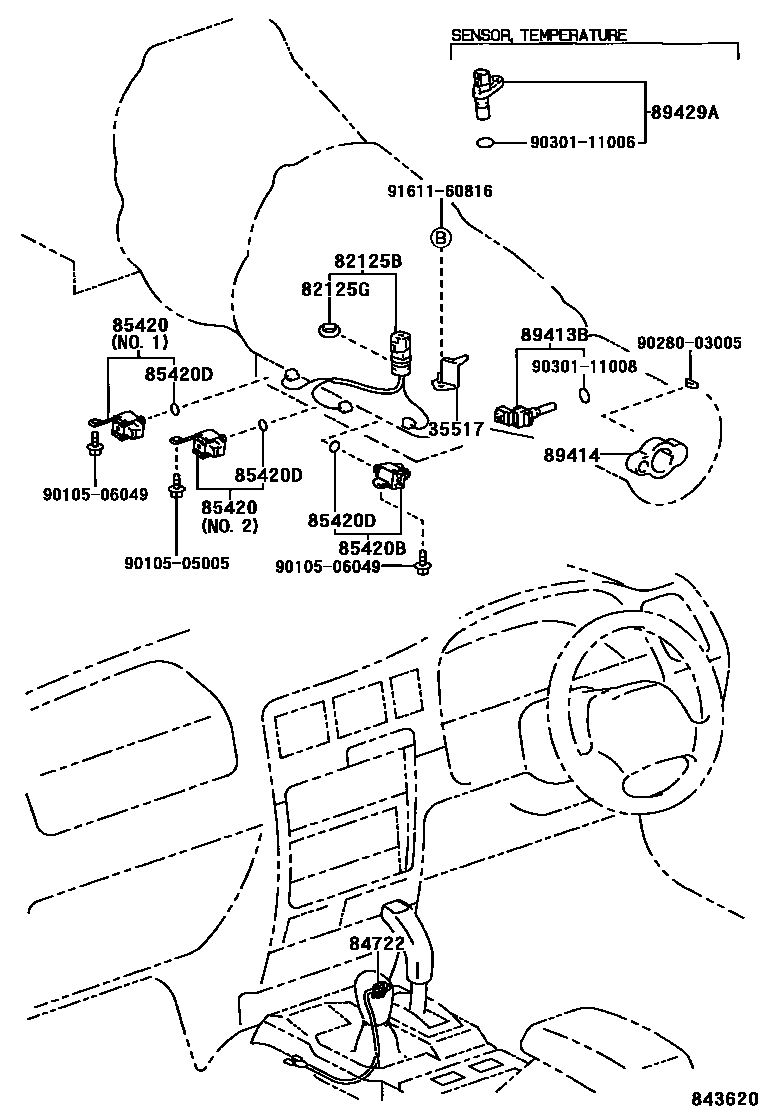

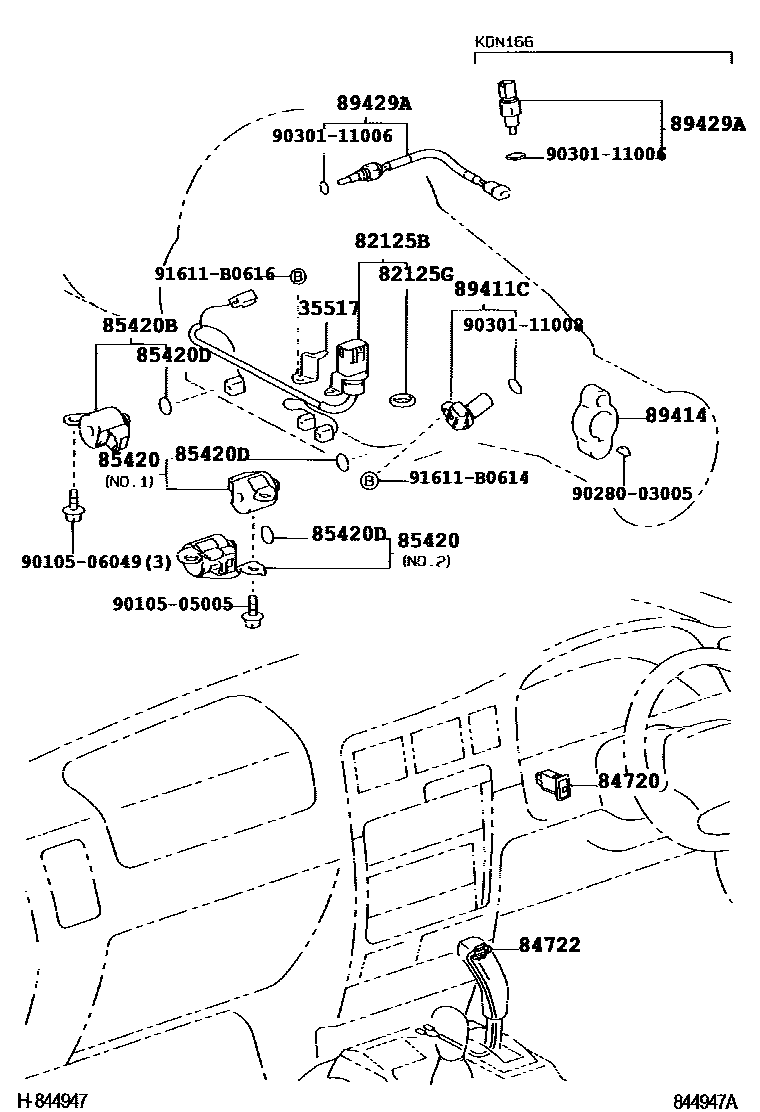

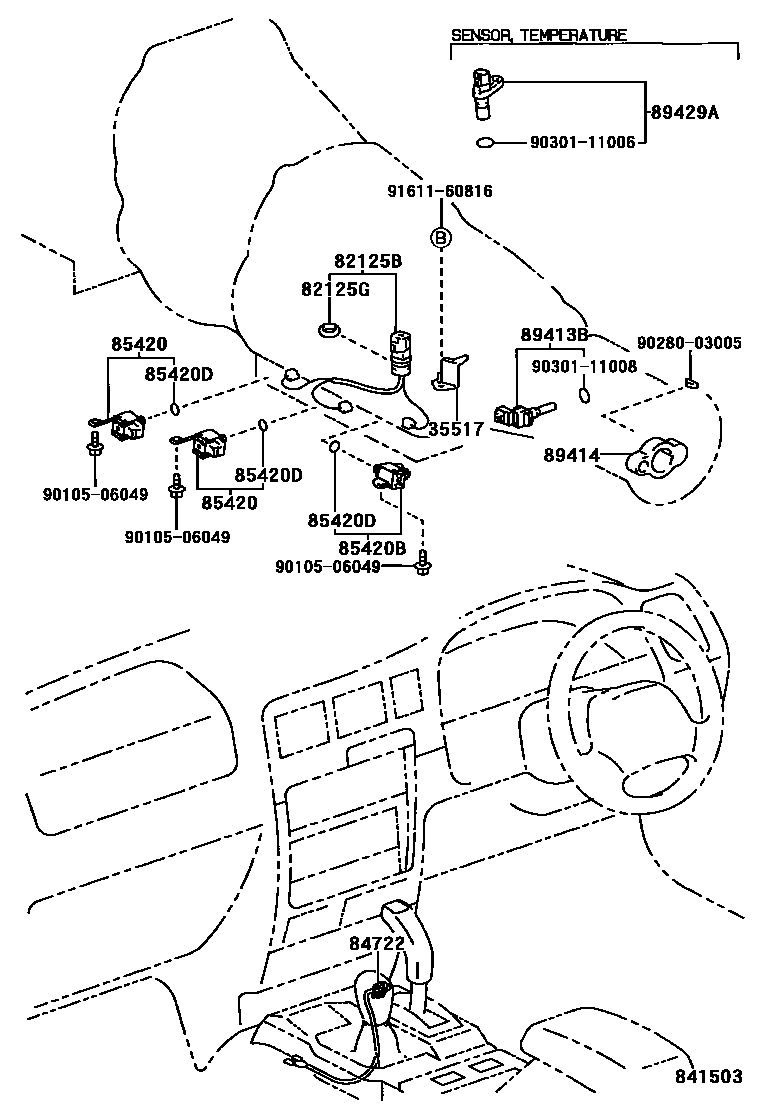

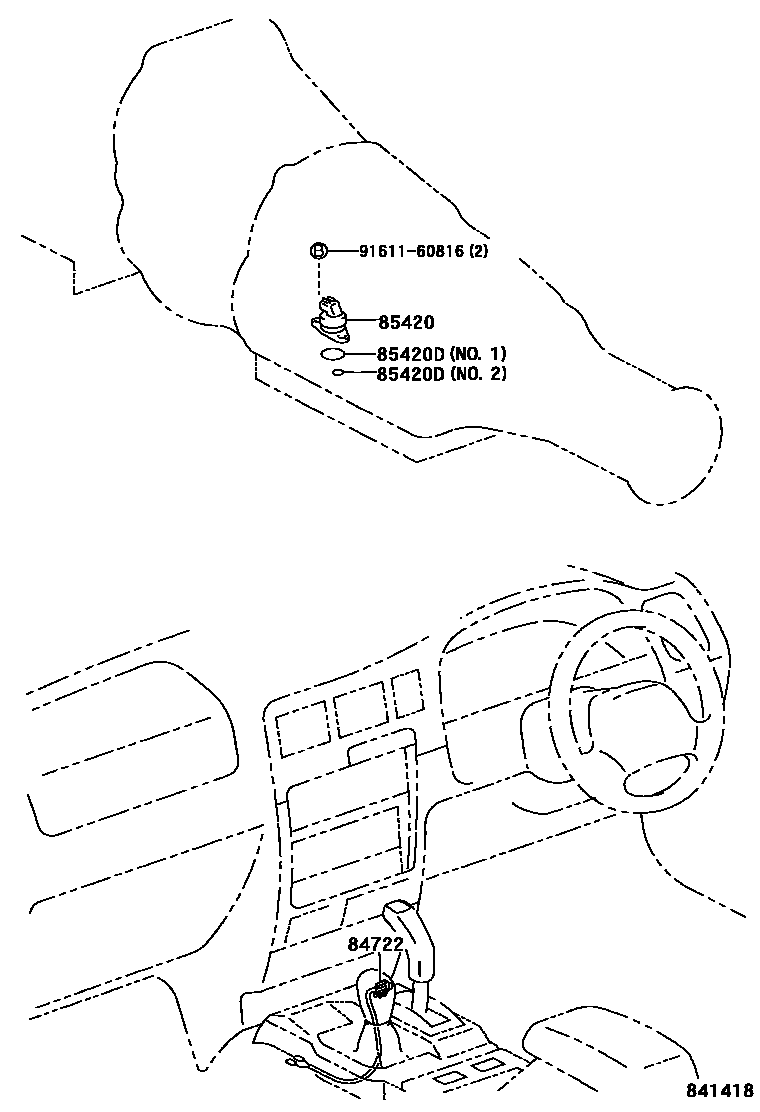

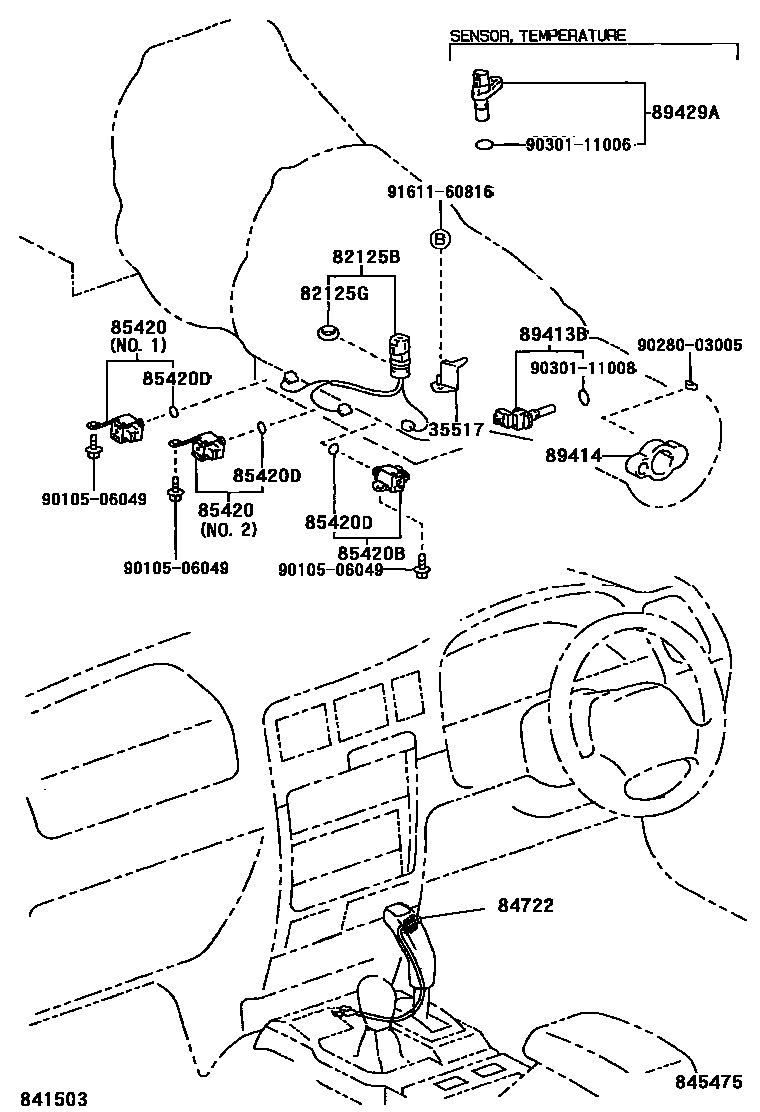

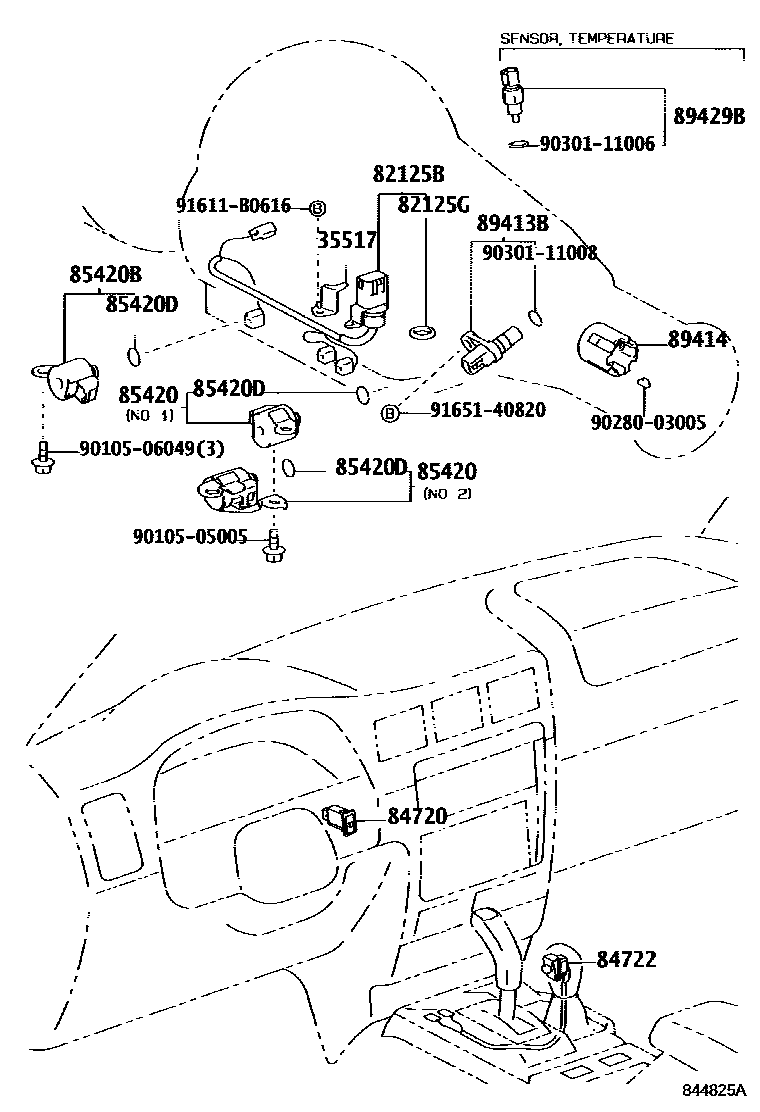

Toyota HILUX EPC diagram 8410, 超速档和电子控制变速器, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35517 | Transmission harness locking plate | 35517-30010 |
| 82125B | Transmission wiring harness | 82125-22240 · 82125-30400 · 82125-60310 |
| 82125G | O-ring (for transmission wiring harness) | 96721-24018 |
| 84720 | Mode selection switch assembly | 84720-35070 |
| 85420 | Transmission solenoid valve assembly | 35250-30050 · 35250-30070 · 35250-30120 · 35250-30130 · 85420-21090 · 85420-21100 · 85420-22150 · 85420-22170 · 85420-30160 · 85420-30200 |
| 85420B | Transmission solenoid valve assembly | 35250-50030 · 85420-30220 · 85420-30260 · 85420-30270 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 · 90301-11001 · 90301-23001 |
| 89411C | Speed sensor | 89411-50010 |
| 89413B | Transmission speed sensor | 89413-24010 |
| 89414 | sensor rotor | 89414-22010 · 89414-35020 |
| 89429A | temperature sensor | 89429-34010 · 89429-35042 |
| 89429B | No. 2 temperature sensor | 89429-34010 |
