Toyota HILUX 电子控制柴油机(ECD) — Figure 8405

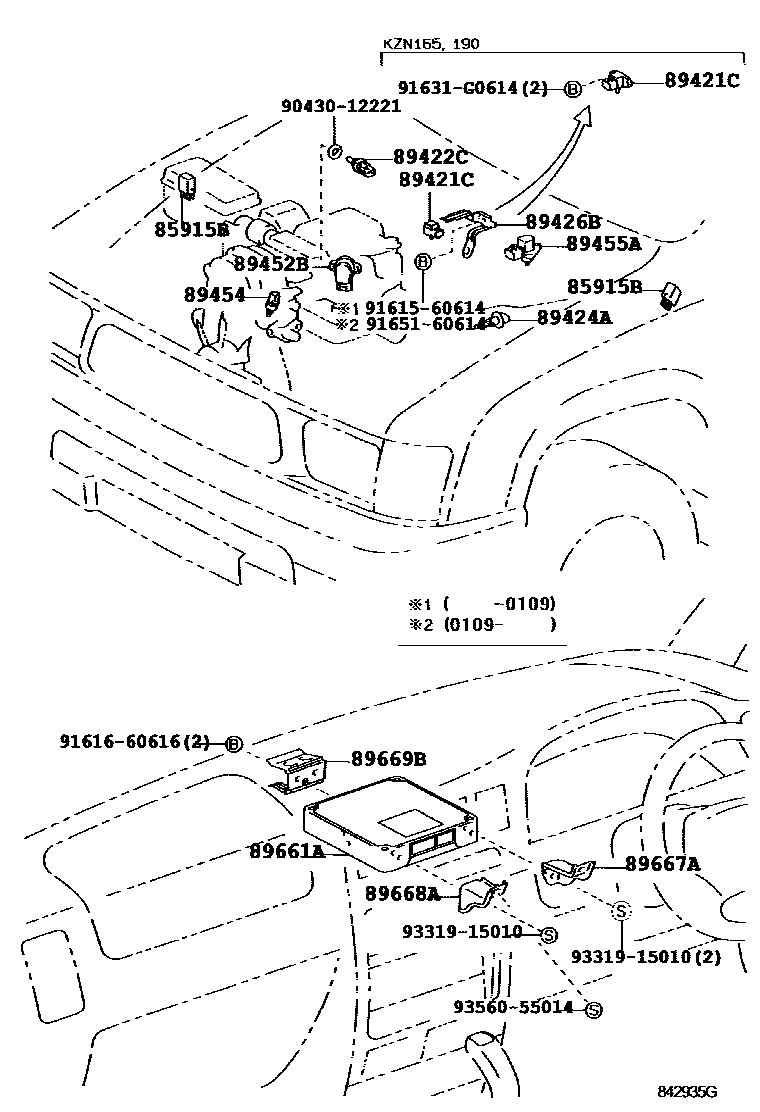

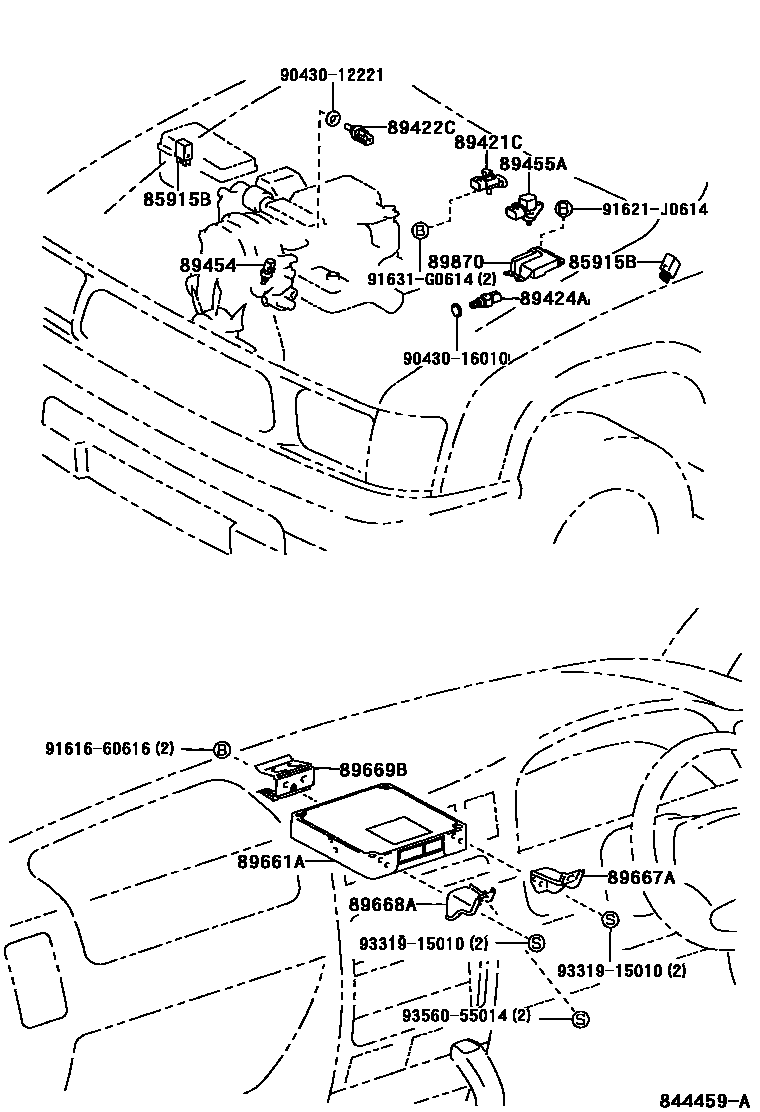

Toyota HILUX EPC diagram 8405, 电子控制柴油机(ECD), with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915B | Main relay (for diesel turbine) | 90080-87008 · 90987-02012 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-12102 · 89421-20210 · 89421-60030 |
| 89422C | Diesel engine water temperature sensor | 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-12010 · 89424-60010 |
| 89426B | Vacuum sensor holder | 89426-35070 |
| 89452B | Throttle position sensor | 89452-22090 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89455A | EGR valve position sensor | 89455-35020 |
| 89661A | Engine control ECU | 89666-35010 · 89666-35240 · 89666-35241 · 89666-35300 · 89666-35310 · 89666-35330 · 89666-35370 · 89666-35380 · 89666-35390 · 89666-35480 · 89666-35481 · 89666-35530 · 89666-35540 · 89666-35550 · 89666-35600 |
| 89667A | No. 1 engine control ECU bracket | 89667-35110 |
| 89668A | No. 2 engine control ECU bracket | 89668-35140 · 89668-35160 |
| 89669B | No. 3 engine control ECU bracket | 89669-35070 |
| 89870 | Relief control valve driver assembly | 89870-35040 |
