Toyota HILUX 后牌照灯 — Figure 8113

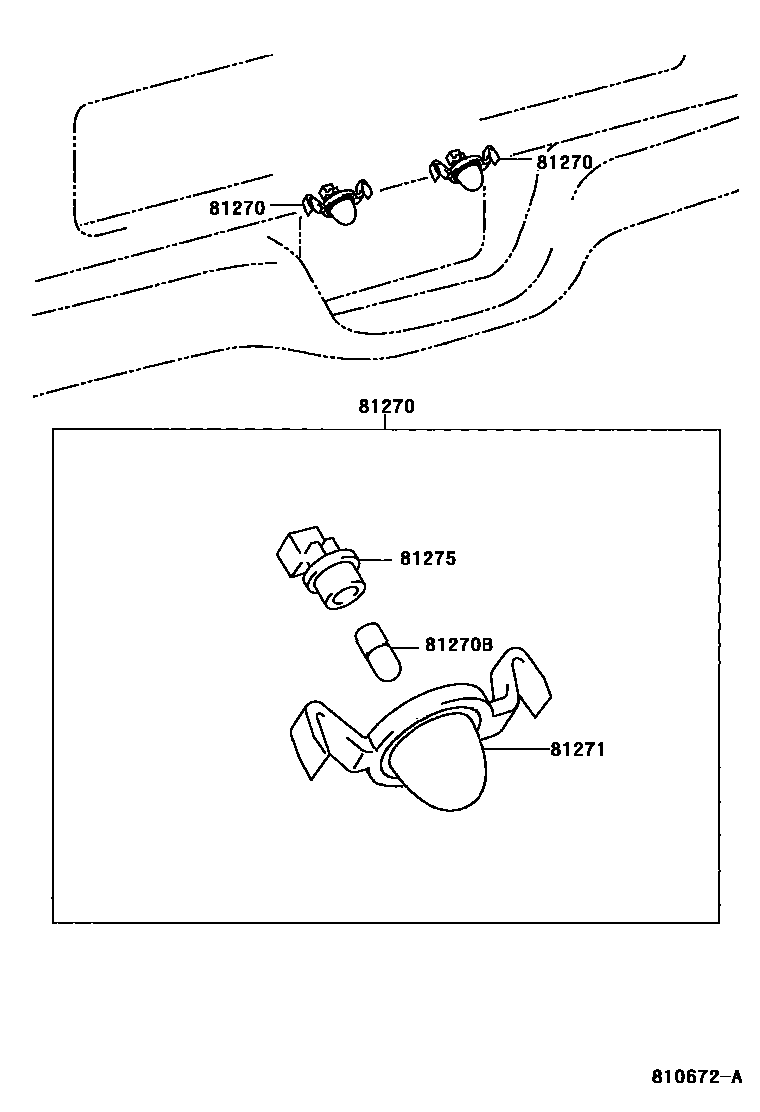

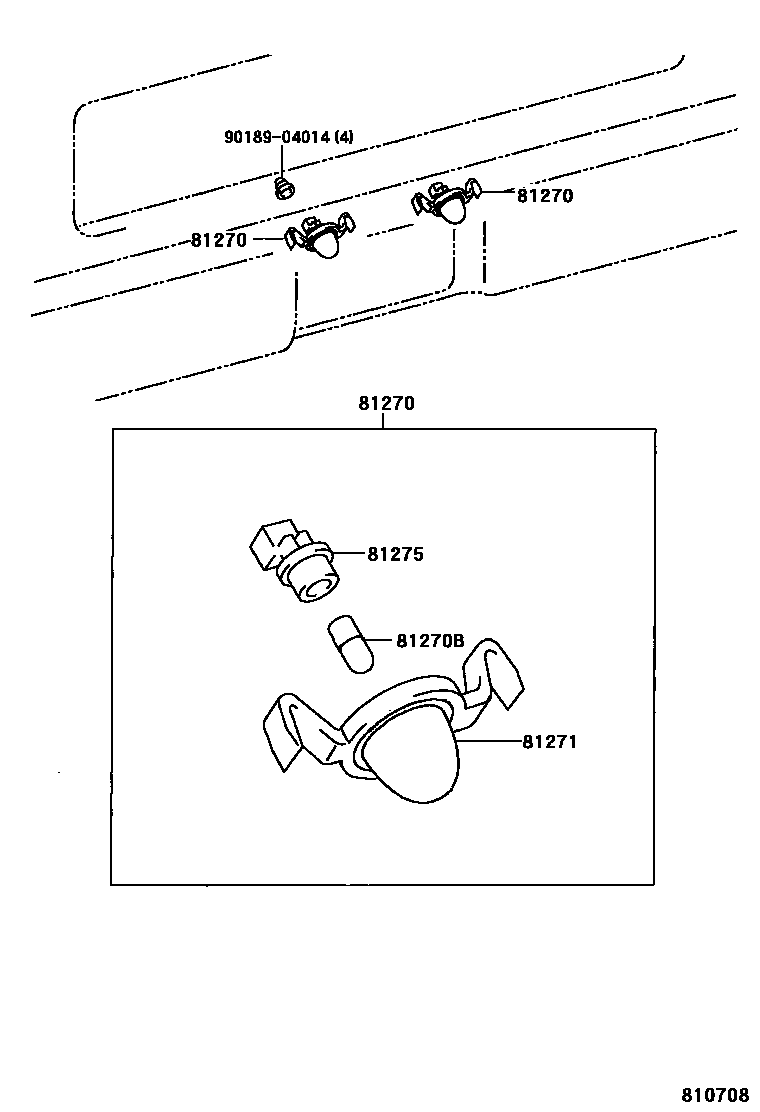

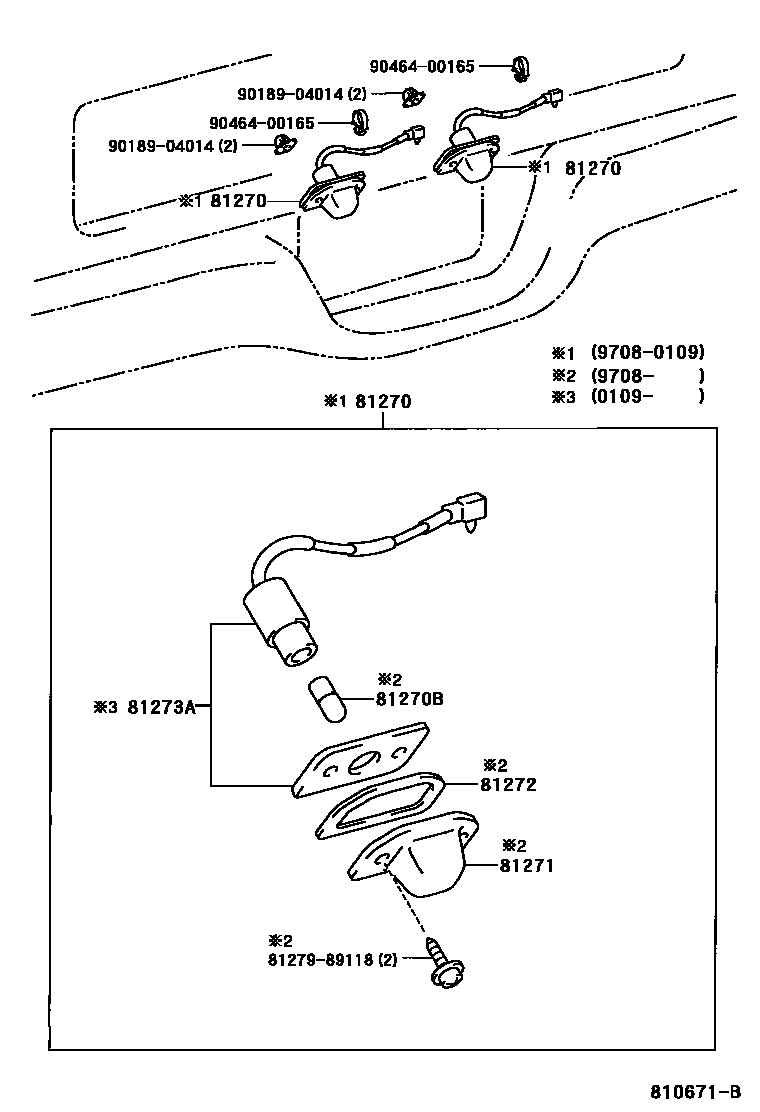

Toyota HILUX EPC diagram 8113, 后牌照灯, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-35110 · 81270-89124 · 81270-89128 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-35110 · 81271-89110 |
| 81272 | License plate lamp shade gasket | 81272-89110 |
| 81273A | license plate light body | 81273-89124 · 81273-89128 |
| 81275 | License plate lamp holder and wiring harness | 90075-99012 |
