Toyota HILUX Headlamp — Figure 8101

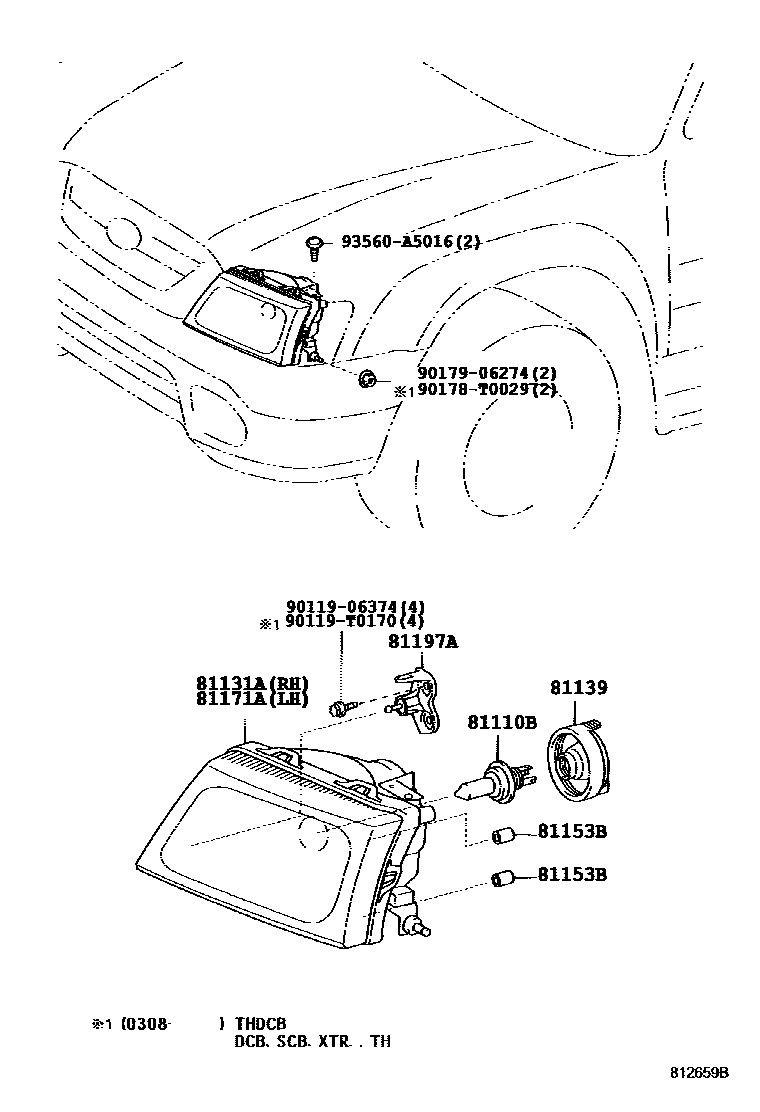

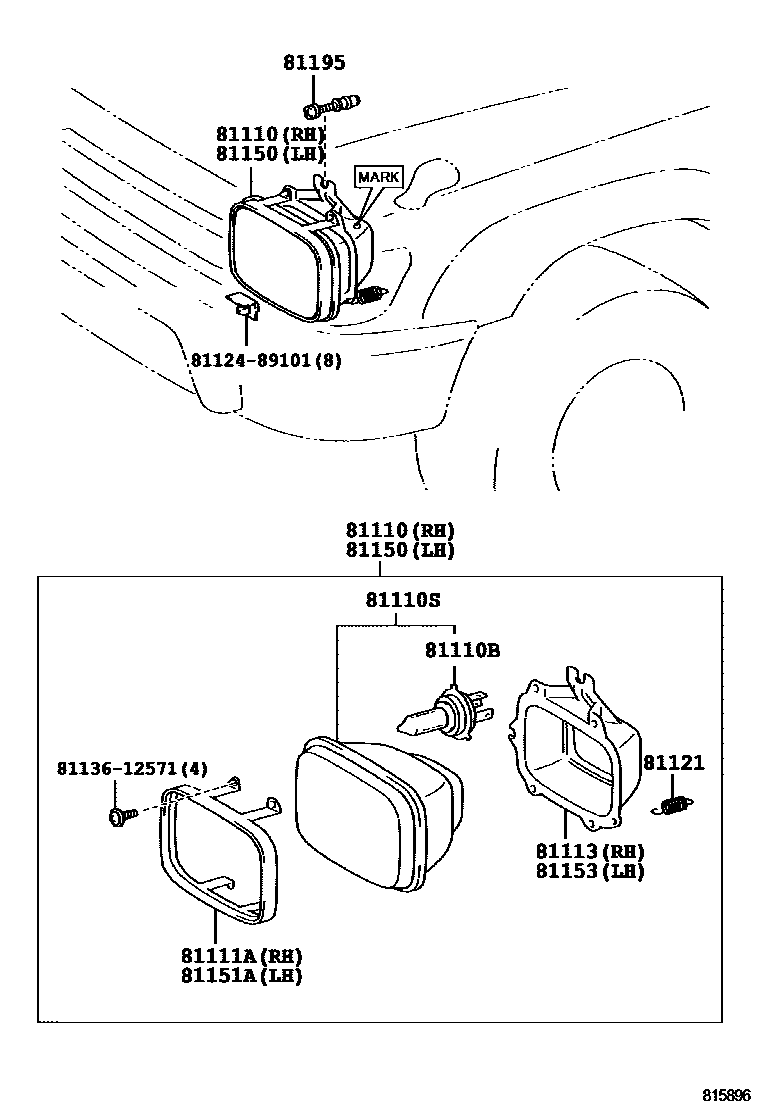

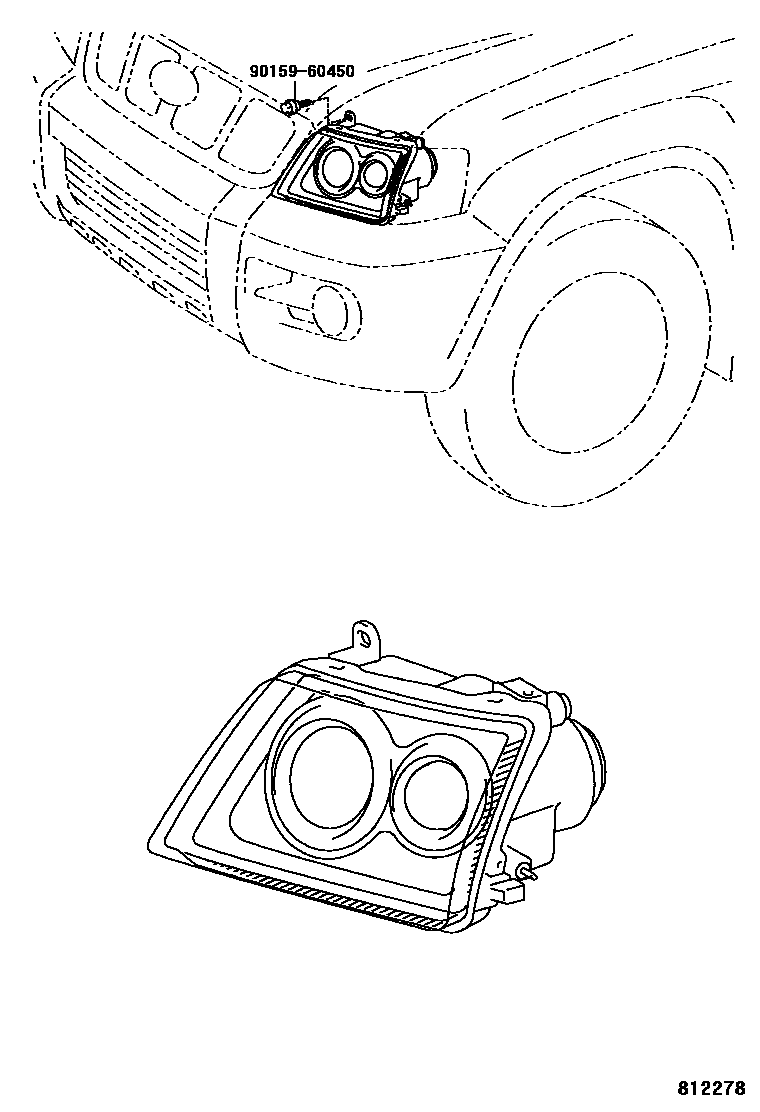

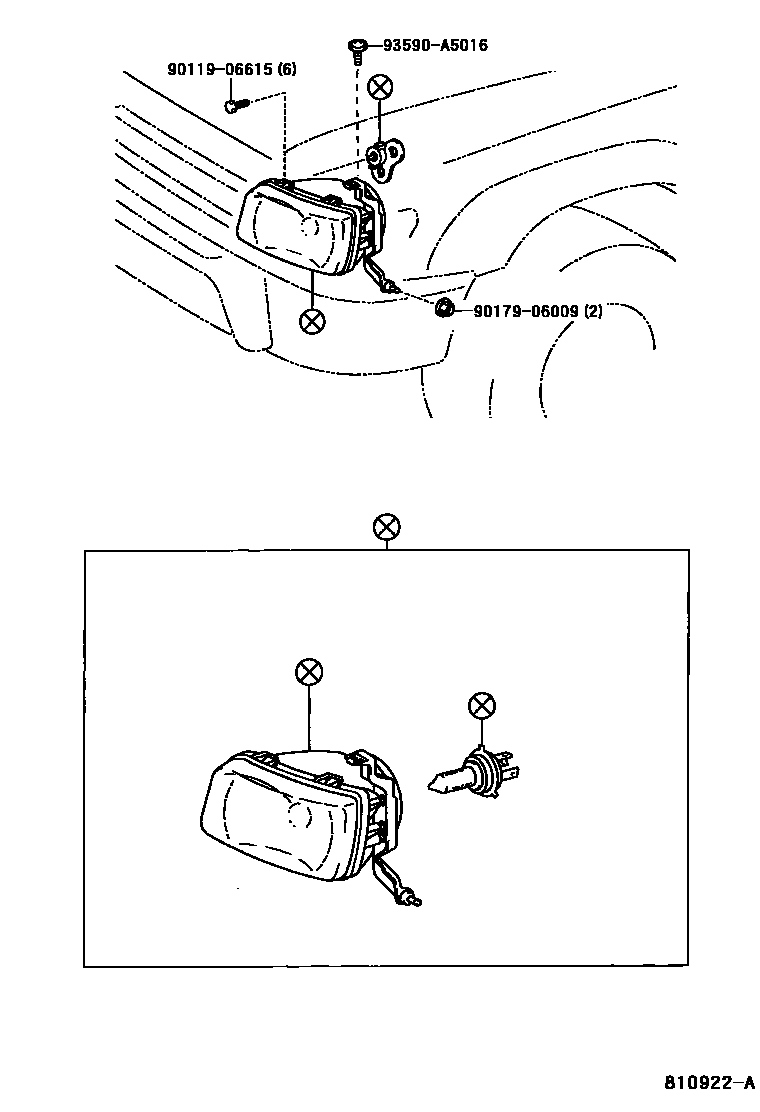

Toyota HILUX EPC diagram 8101, Headlamp, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-35160 · 81110-35170 · 81110-35250 · 81110-35260 · 81110-35300 · 81110-89149 · 81110-89150 · 81110-89153 · 81110-89154 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13015 · 90981-13016 · 90981-13058 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04001 · 90981-04004 · 90981-04006 · 90981-04008 · 90981-04009 · 90981-04011 · 90981-04015 · 90981-04043 · 90981-04044 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-16020 |
| 81113 | Right No. 1 closed lamp seat | 81113-89149 |
| 81121 | headlight spring | 81121-14670 · 81121-17010 |
| 81131A | Right headlight assembly | 81130-35340 · 81130-35350 · 81130-35360 · 81130-35370 · 81130-35380 · 81130-35390 |
| 81139 | Headlight lamp holder cover | 81139-16770 |
| 81150 | Left headlight assembly | 81150-35080 · 81150-35150 · 81150-35230 · 81150-35240 · 81150-35280 · 81150-89149 · 81150-89150 · 81150-89153 · 81150-89154 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-16020 |
| 81153 | No. 1 closed lamp seat on the left | 81153-89149 |
| 81153B | headlight support | 81128-22630 |
| 81171A | Left headlight assembly | 81170-35320 · 81170-35330 · 81170-35340 · 81170-35350 · 81170-35360 · 81170-35370 |
| 81195 | headlight screw | 81195-35010 |
| 81197A | Headlight aiming gear | 81197-04010 · 81197-35020 |
