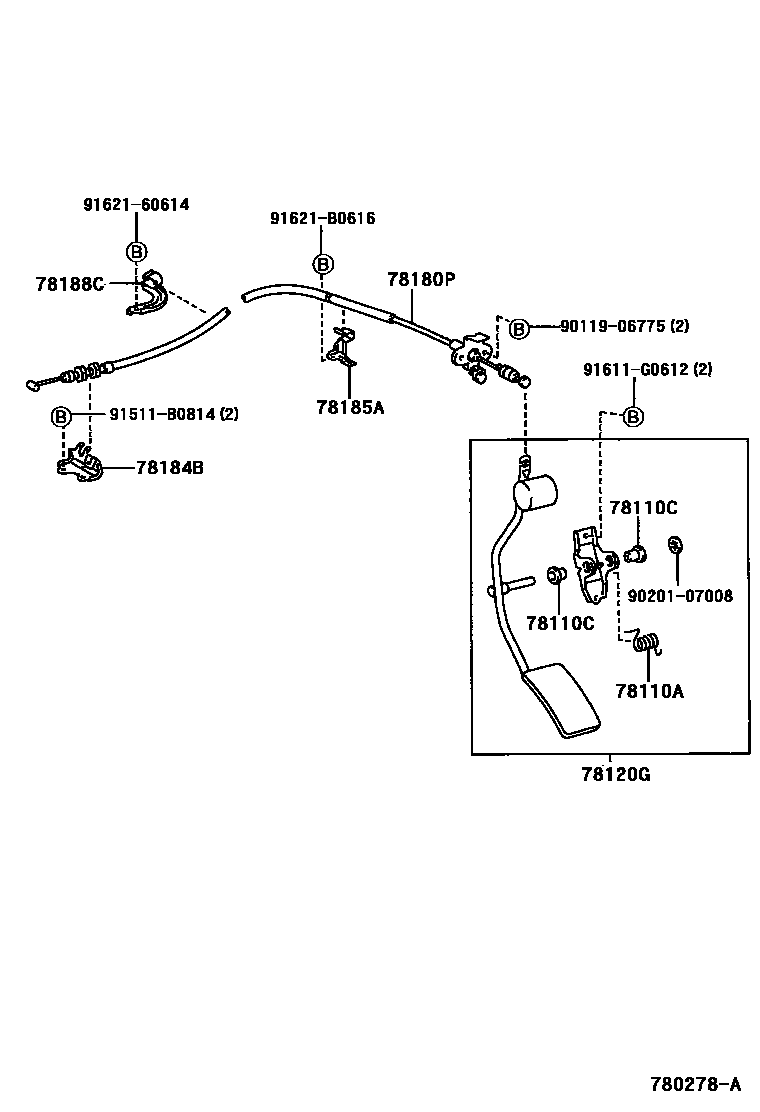

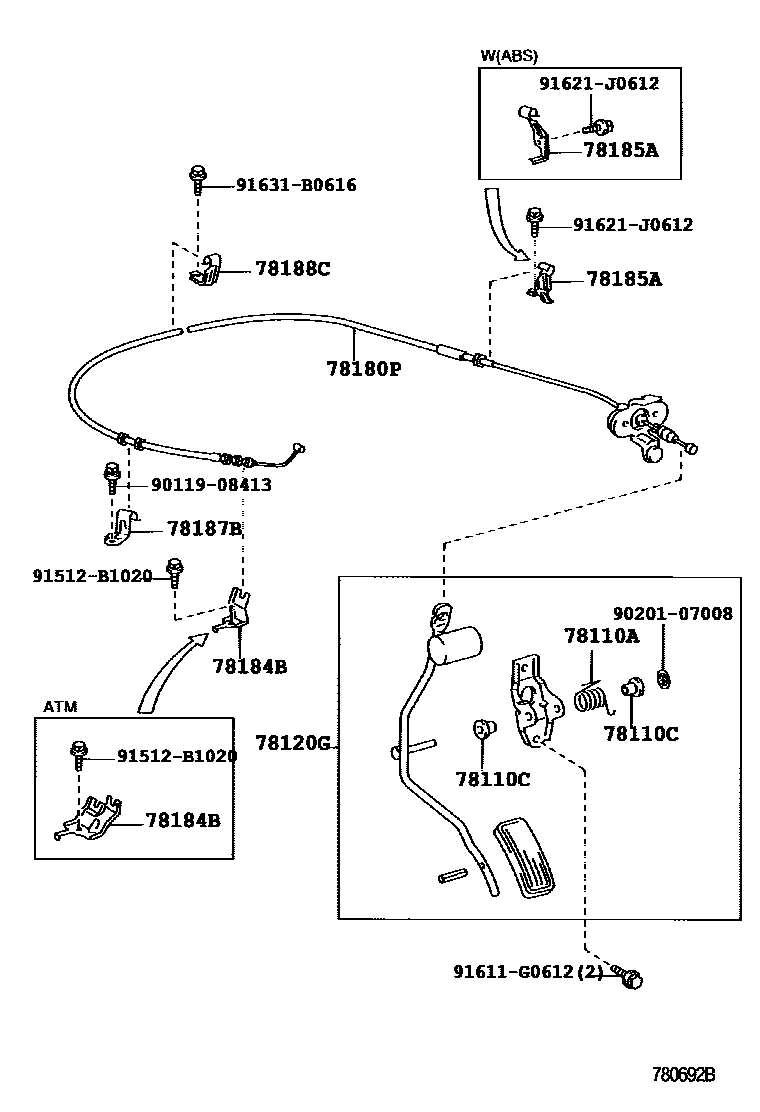

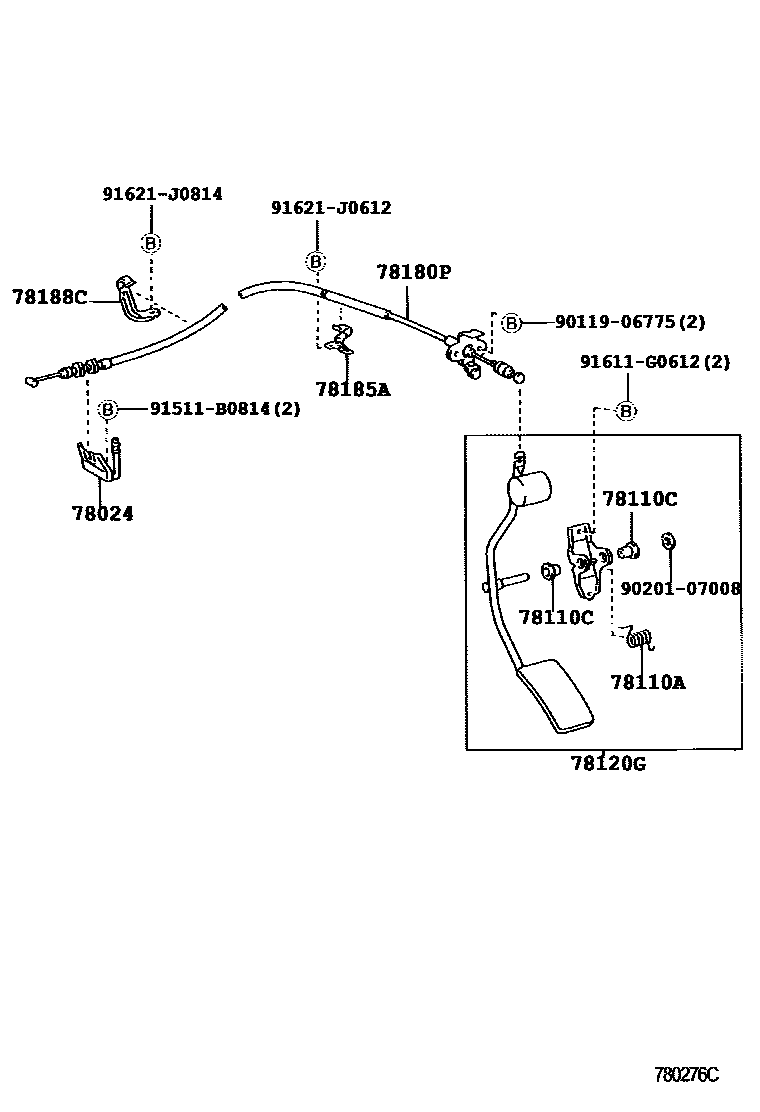

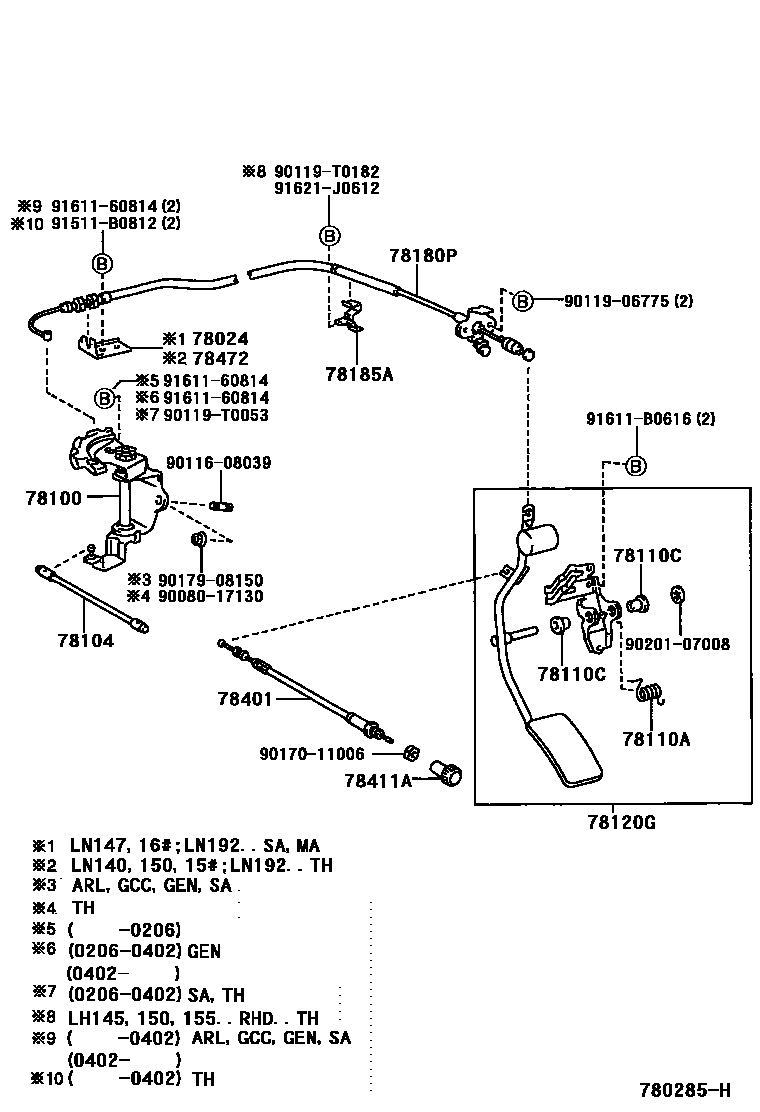

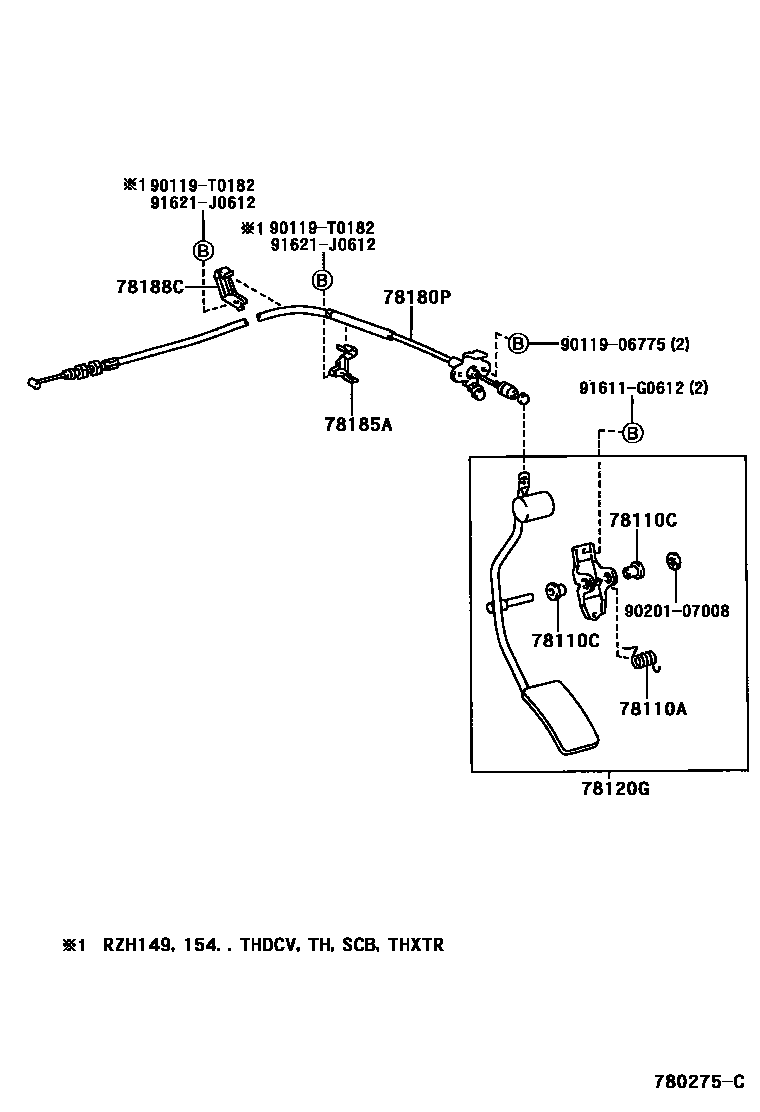

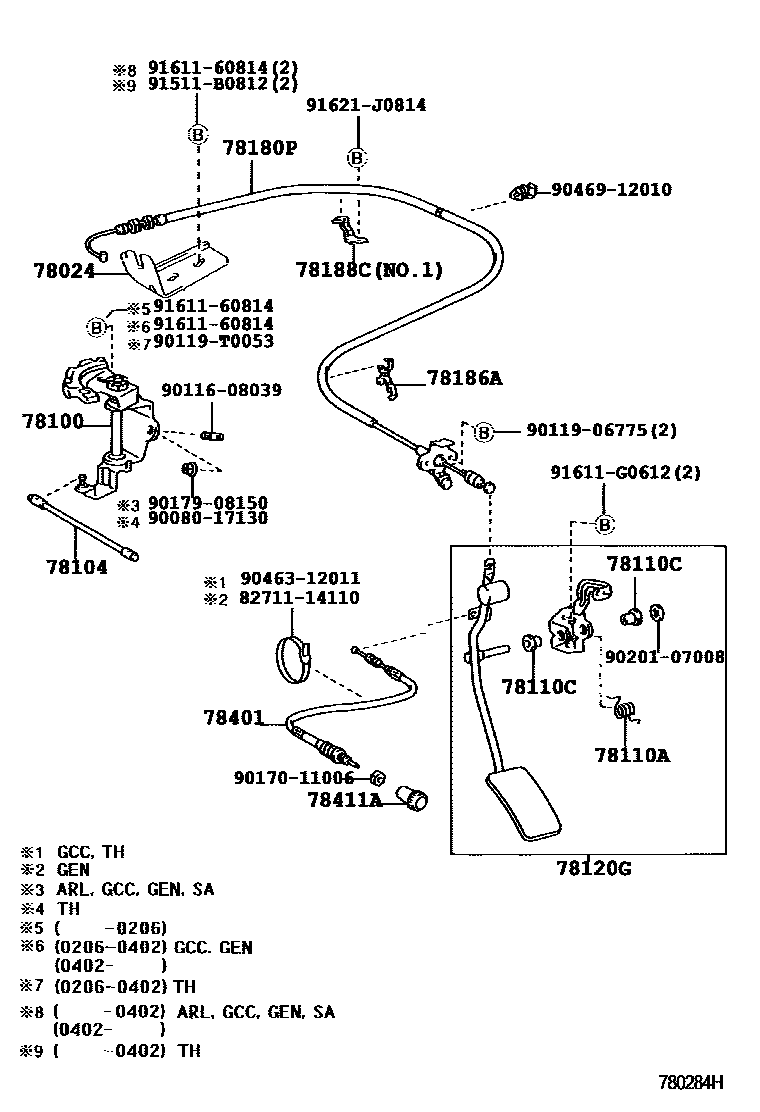

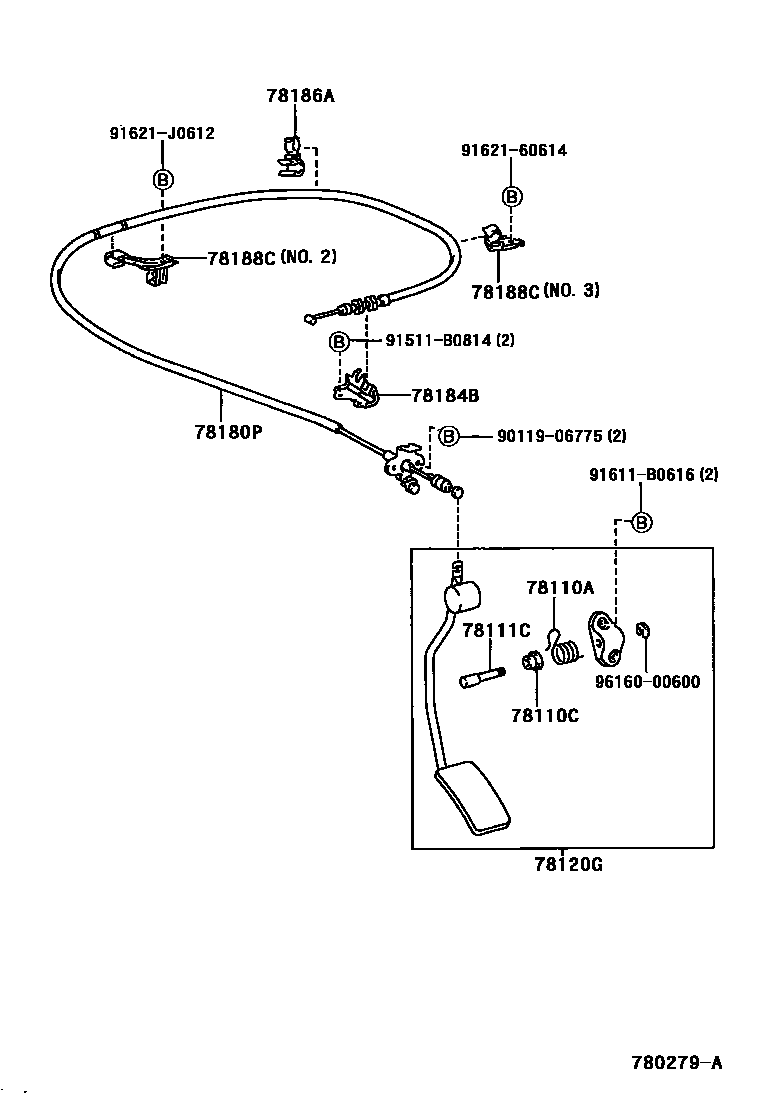

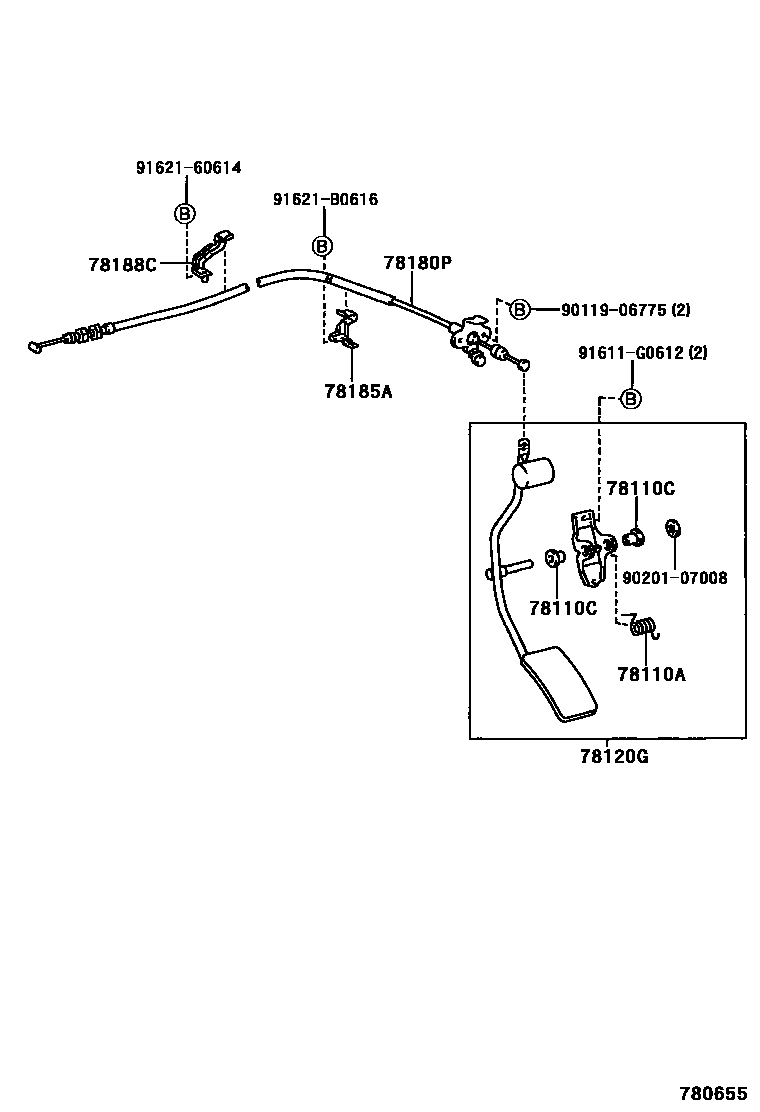

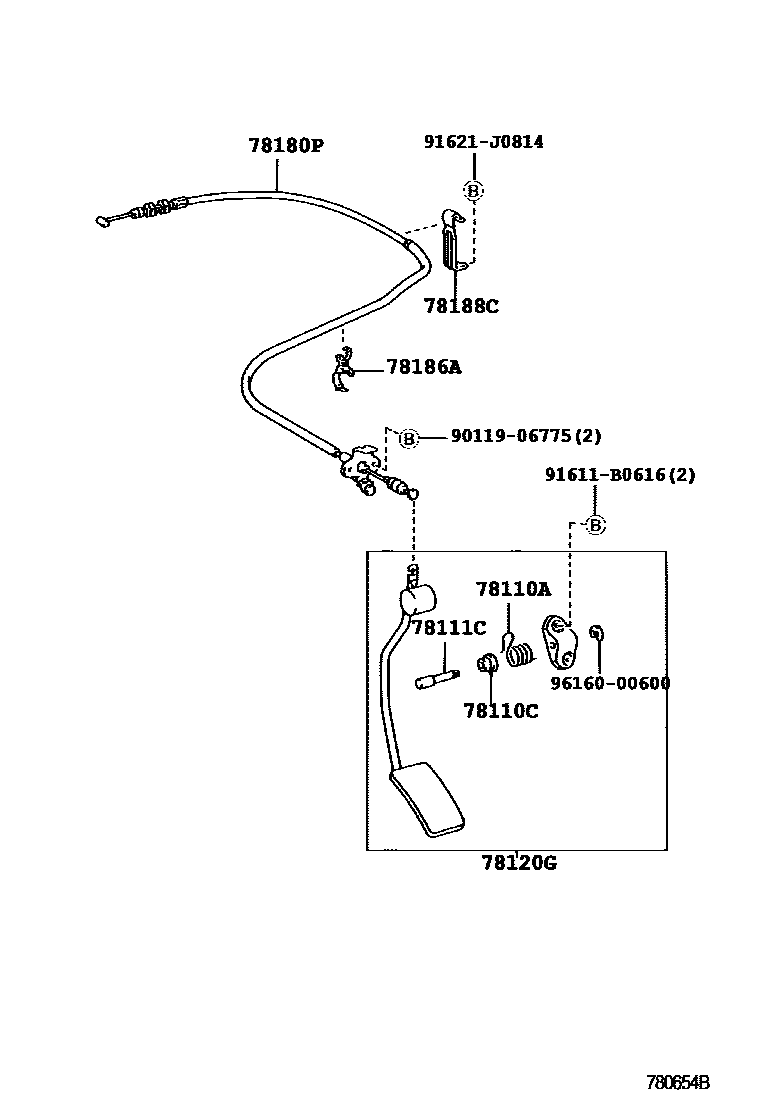

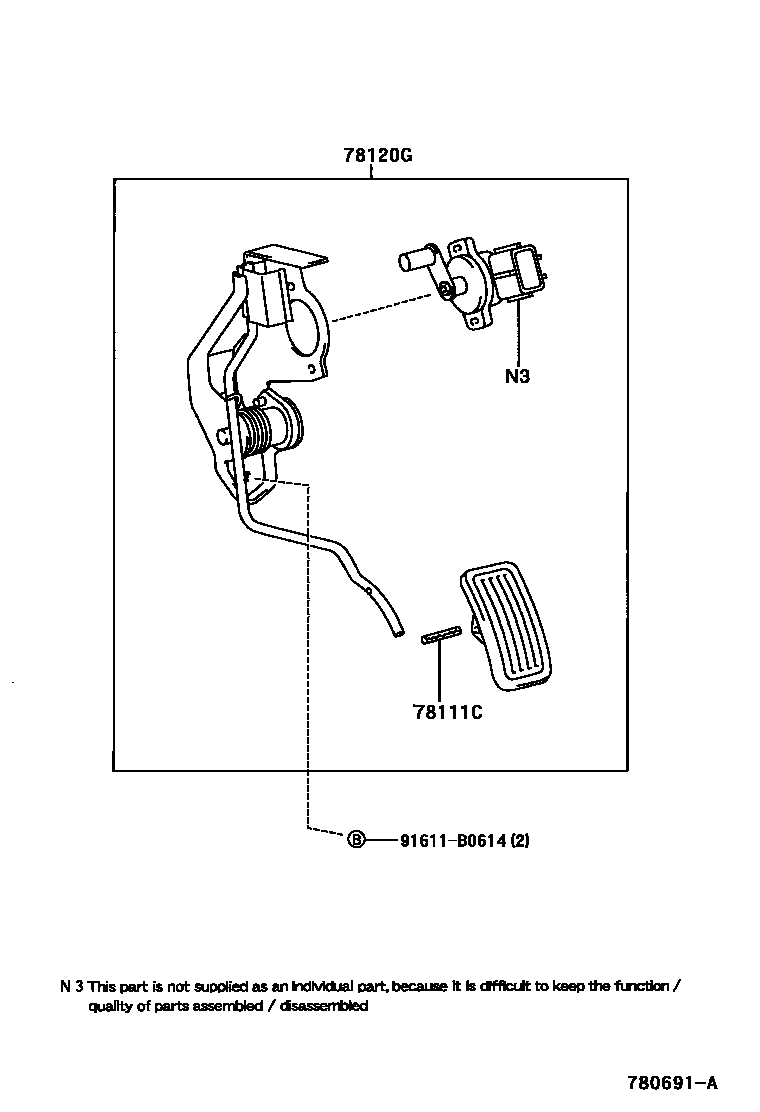

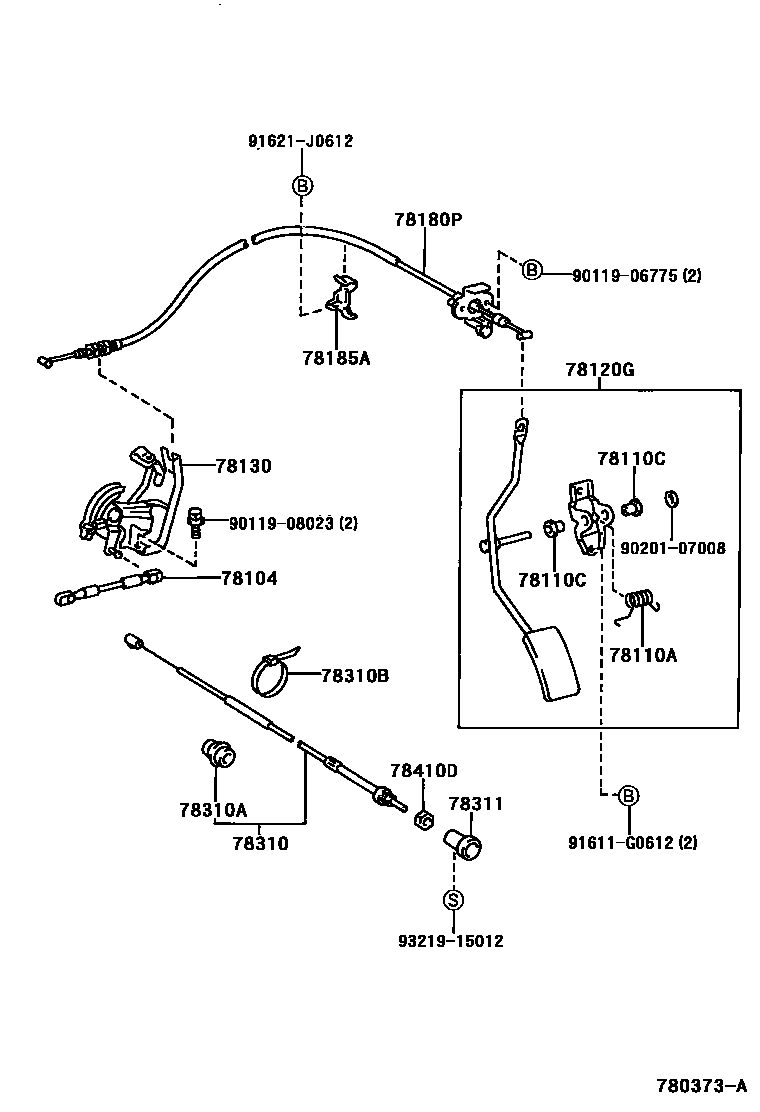

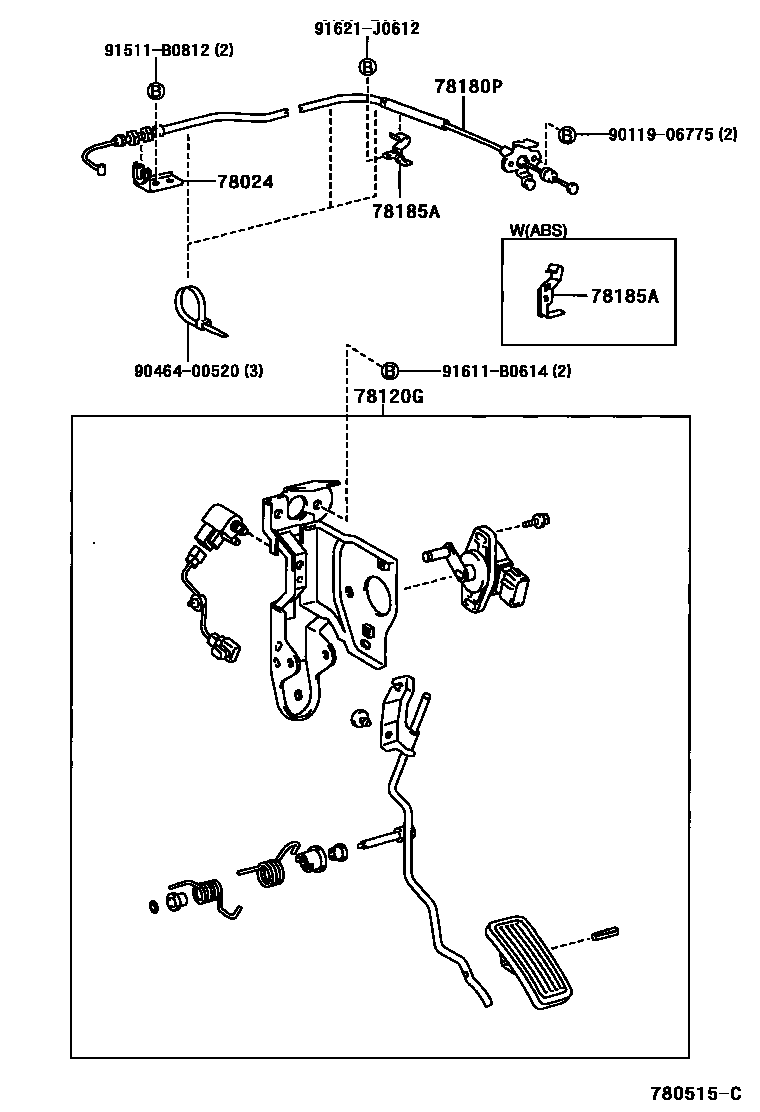

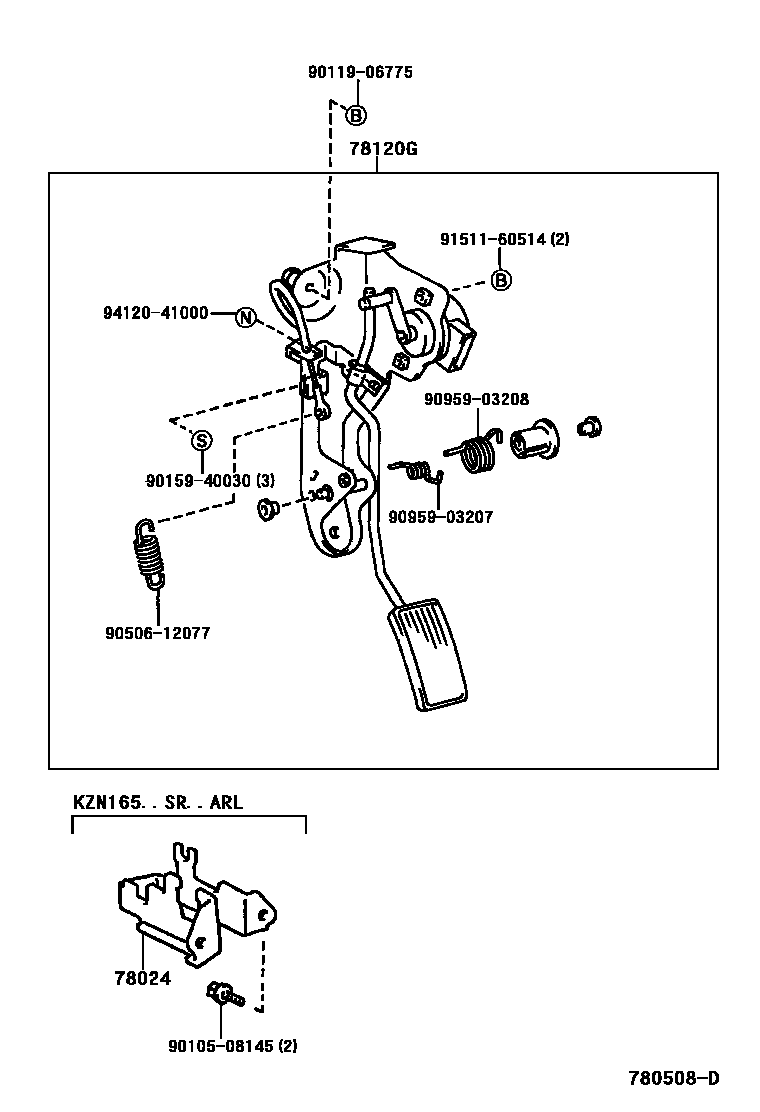

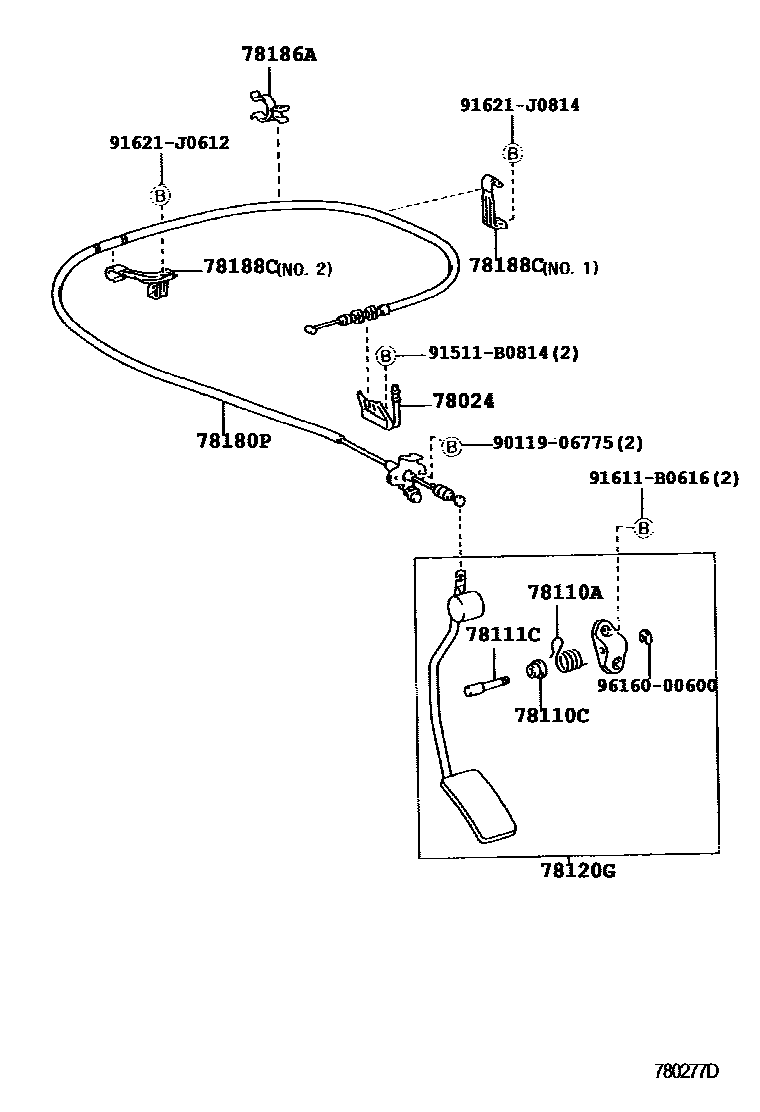

Toyota HILUX accelerator pedal connecting rod — Figure 7851
Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 14 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-22100 · 78024-34011 · 78024-60030 |
| 78100 | Accelerator pedal connecting rod assembly | 78100-35071 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-22140 · 78104-89106 |
| 78110A | Spring (for accelerator pedal lever) | 90508-14066 · 90508-23075 · 90959-03051 · 90959-03085 · 90959-03087 · 90959-03088 · 90959-03089 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-08063 · 90386-12022 |
| 78111C | pin (for gas pedal) | 90249-08066 · 90254-04019 |
| 78120G | Accelerator pedal lever assembly | 78010-35010 · 78010-35020 · 78010-35060 · 78120-35080 · 78120-35150 · 78120-35160 · 78120-35170 · 78120-35180 · 78120-35200 · 78120-35210 · 78120-35220 · 78120-35230 · 78120-35290 · 78120-35370 |
| 78130 | Accelerator pedal right-angle lever assembly | 78130-35030 |
| 78180P | Accelerator pedal control cable assembly | 78180-04100 · 78180-04110 · 78180-04120 · 78180-04130 · 78180-35310 · 78180-35320 · 78180-35330 · 78180-35340 · 78180-35360 · 78180-35370 · 78180-35380 · 78180-35390 · 78180-35400 · 78180-35420 · 78180-35430 · 78180-35450 · 78180-35460 · 78180-35510 · 78180-35530 |
| 78184B | Throttle pedal control cable bracket | 78024-26010 · 78184-35080 · 78184-35090 |
| 78185A | No. 2 accelerator pedal control cable clip | 78185-35070 · 78185-35080 · 78185-35090 · 78185-35100 · 78185-35110 |
| 78186A | No. 3 accelerator pedal control cable clip | 78186-35060 · 78186-35100 · 78186-35110 |
| 78187B | Accelerator pedal cable return spring bracket | 78187-35010 |
| 78188C | No. 5 accelerator pedal control cable clip | 78188-35010 · 78188-35040 · 78188-35050 · 78188-35060 · 78188-35070 · 78188-35080 · 78188-35090 · 78188-35100 · 78188-35130 |
| 78310 | Choke door cable assembly | 78310-35050 |
| 78310A | Choke cable retaining ring | 90480-15001 |
| 78310B | Choke cable clip | 90463-12002 |
| 78311 | Choke control cable button | 78311-89103 |
| 78401 | Throttle valve control cable sub-assembly | 78401-35070 · 78401-35080 · 78401-35090 |
| 78410D | throttle nut | 90170-11006 |
| 78411A | Throttle control cable button | 78411-89105 |
| 78472 | Throttle control cable bracket | 78472-04010 · 78472-35010 |
