Toyota HILUX 徽标和铭牌 — Figure 7551

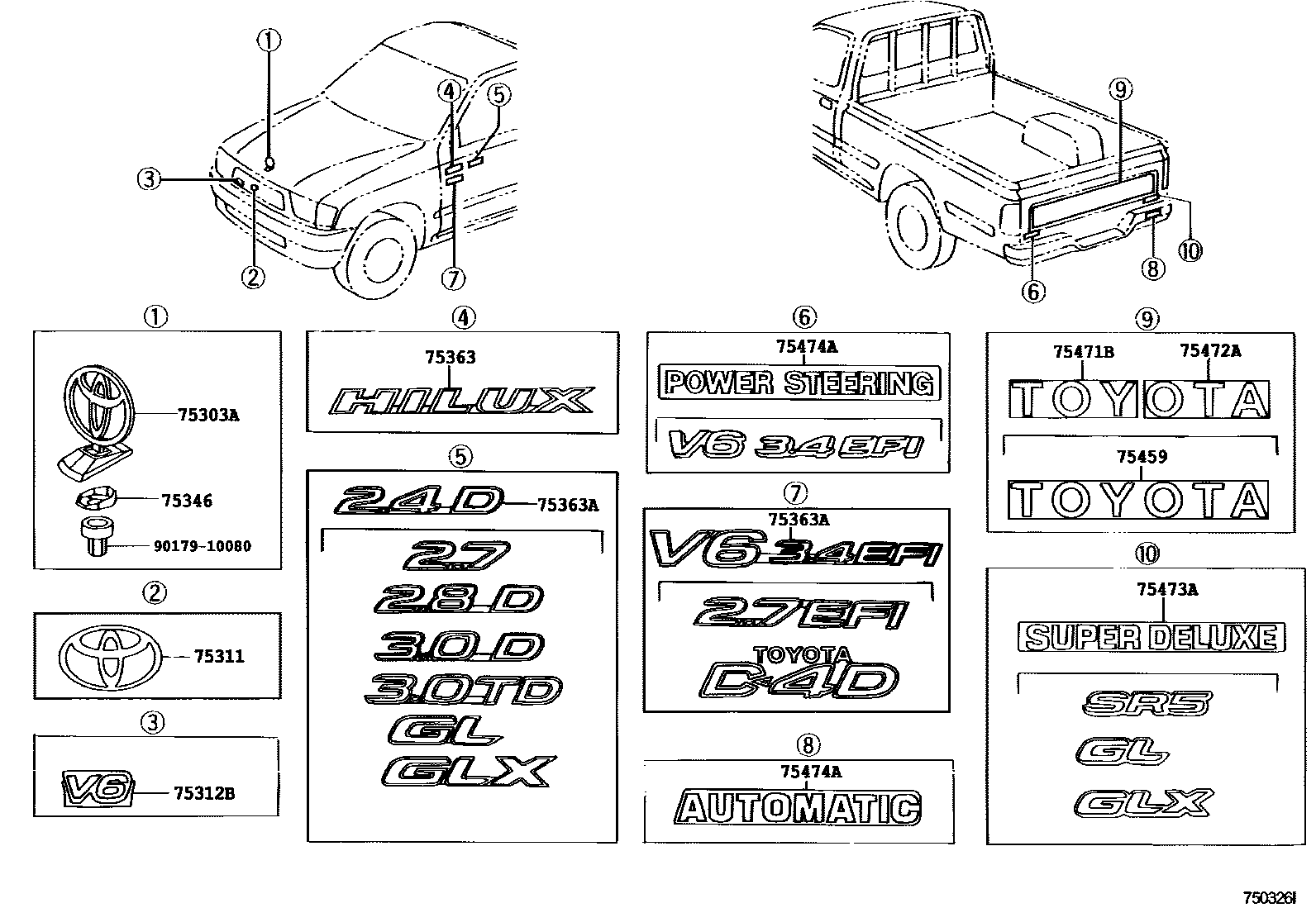

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75303A | Engine cover plate sub-assembly | 75303-35030 · 75303-35040 |
| 75311 | Radiator grille (or front panel) plate | 75311-04030 · 75311-04050 · 75311-35090 · 75311-35190 · 75311-35200 · 75311-35210 |
| 75312B | Radiator grille number 2 plate | 75312-35050 |
| 75346 | Engine trim part 2 gasket | 75346-35010 · 75346-35020 |
| 75363 | door nameplate | 75361-04010 · 75361-35010 |
| 75363A | Door name plate No. 2 | 75362-04010 · 75362-04020 · 75362-35010 · 75362-35020 · 75362-35030 · 75362-35050 · 75362-35060 · 75362-35070 · 75362-35090 · 75362-35100 · 75363-35010 · 75363-35020 |
| 75471B | No. 1 nameplate on rear body | 75471-35030 |
| 75472A | No. 2 nameplate on rear body | 75472-35130 |
| 75473A | No. 2 nameplate on rear body | 75472-35050 · 75472-35060 · 75472-35070 · 75472-89126 |
| 75474A | No. 4 nameplate on rear body | 75472-35120 · 75474-35010 · 75474-89112 |
