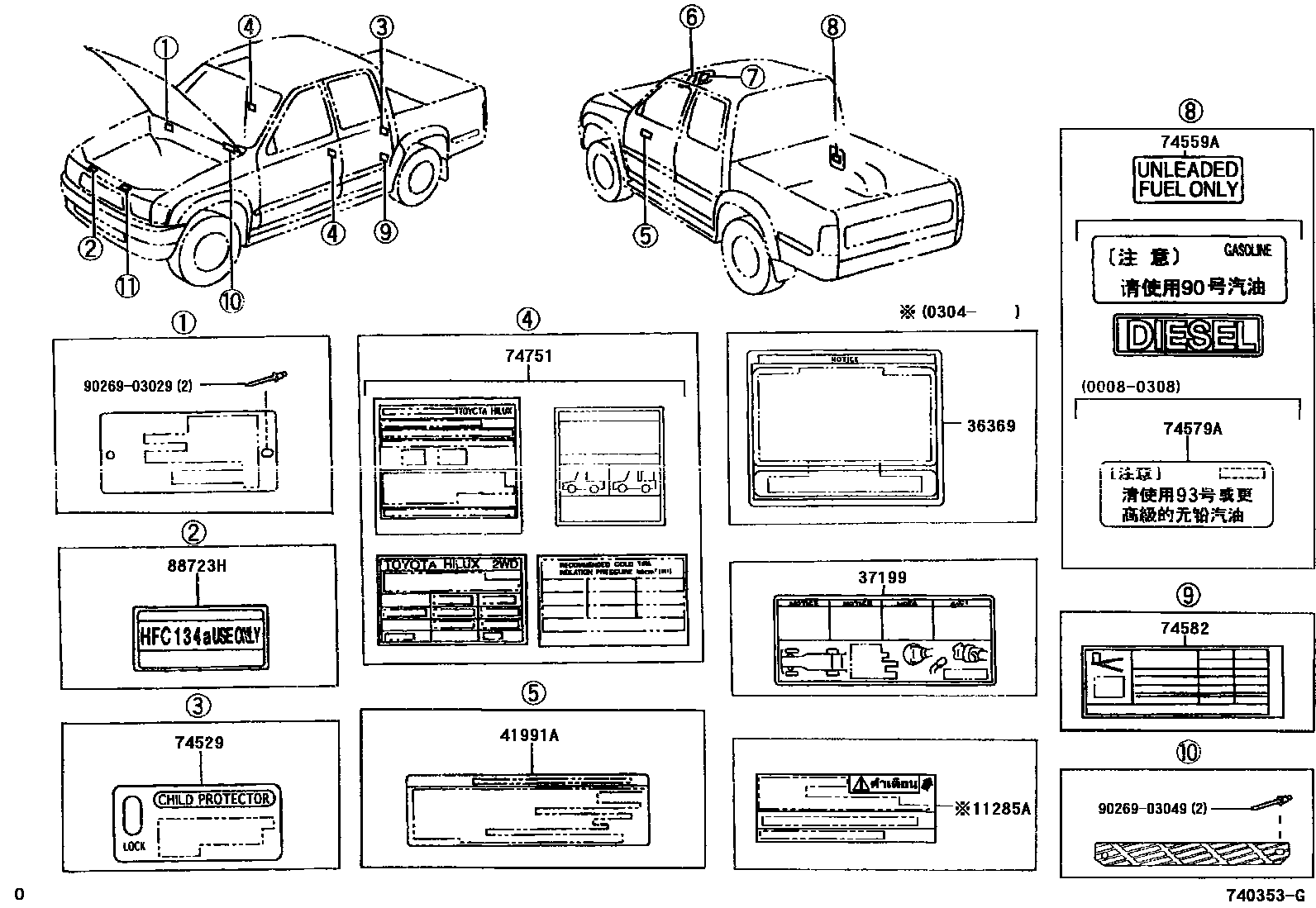

Toyota HILUX warning nameplate — Figure 7455
Toyota HILUX EPC diagram 7455, warning nameplate, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-YE010 |
| 36369 | Transfer case information label | 36369-35390 · 36369-35400 · 36369-35450 |
| 37199 | Maintenance warning nameplate | 37199-35220 · 37199-35320 |
| 41991A | warning nameplate | 41991-35020 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-28010 · 74559-89101 |
| 74579A | Unleaded Fuel Information Label | 74579-26010 |
| 74582 | Load sensing valve marking plate | 47939-35350 · 47939-35360 · 47939-35370 · 47939-35380 · 47939-35390 · 47939-35430 · 47939-35440 · 47939-35470 · 47939-35480 · 47939-35500 · 47939-35510 · 47939-35520 · 47939-35600 |
| 74751 | tire pressure information label | 42661-35160 · 42661-35161 · 42661-35180 · 42661-35181 · 42661-35260 · 42661-35261 · 42661-35270 · 42661-35271 · 42661-35460 · 42661-35471 · 42661-35472 · 42661-35560 · 42661-35570 · 42661-35580 |
| 88723H | Cooler maintenance warning label | 88723-20040 |
