Toyota HILUX 座椅和座椅滑轨 — Figure 7151

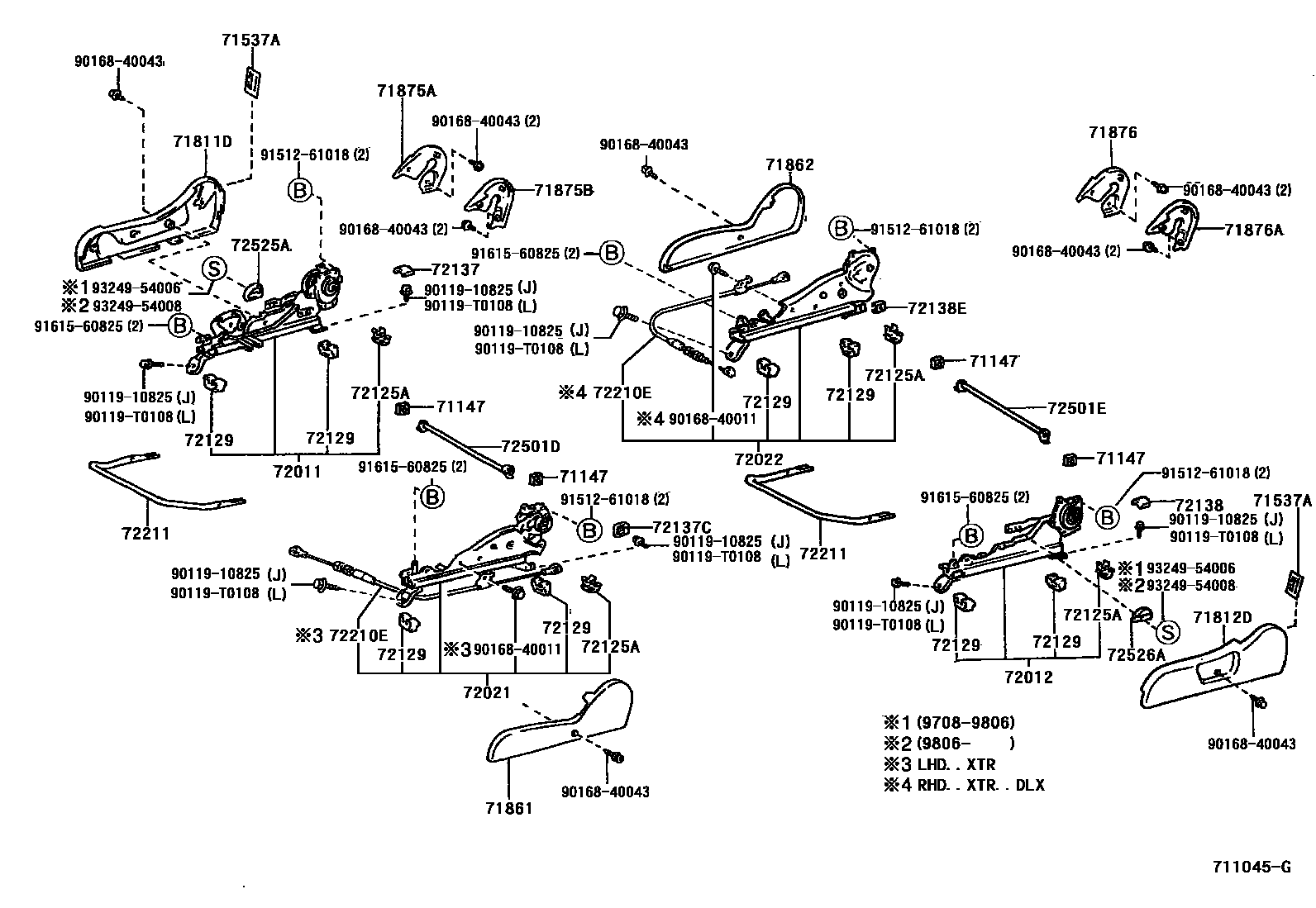

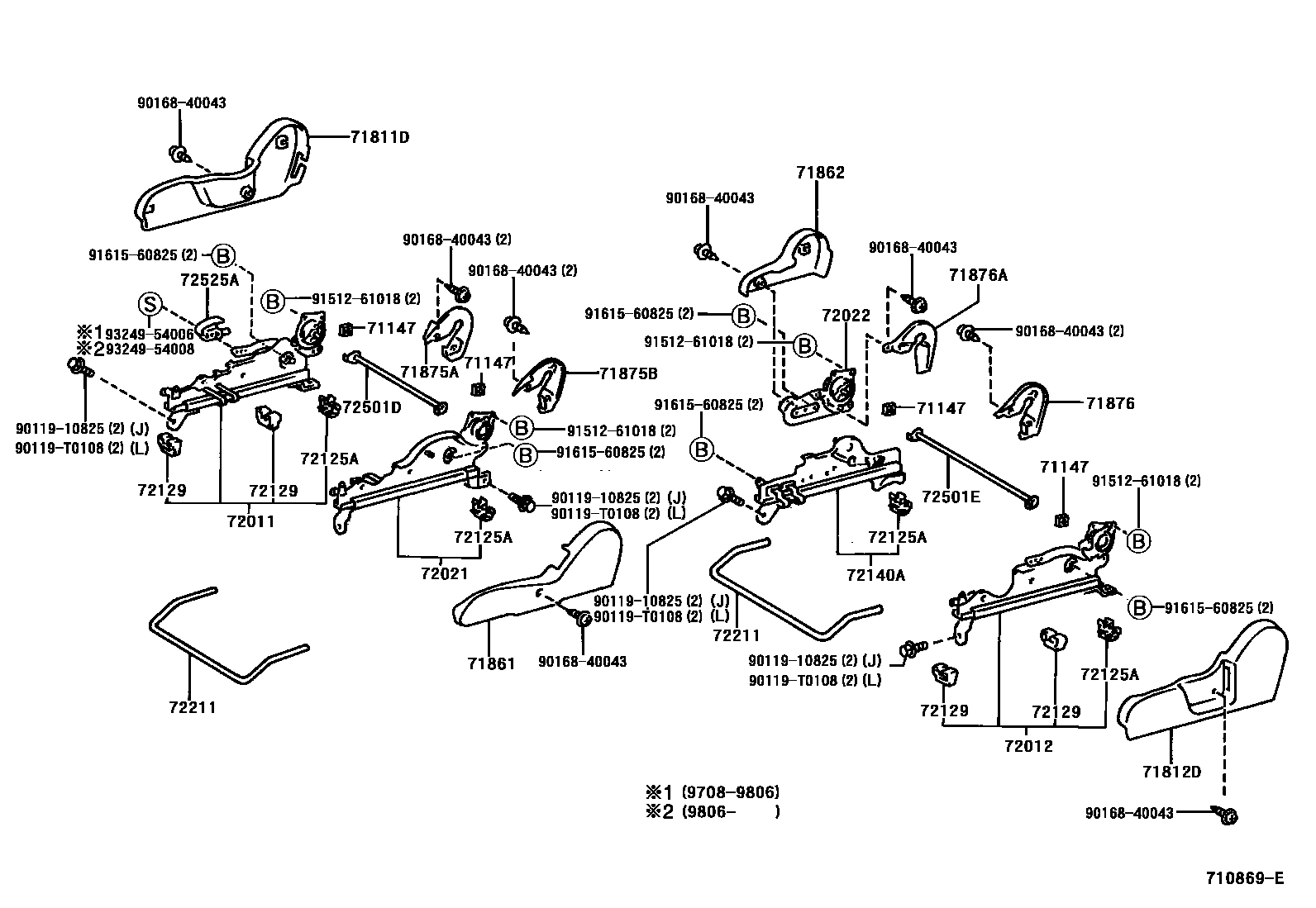

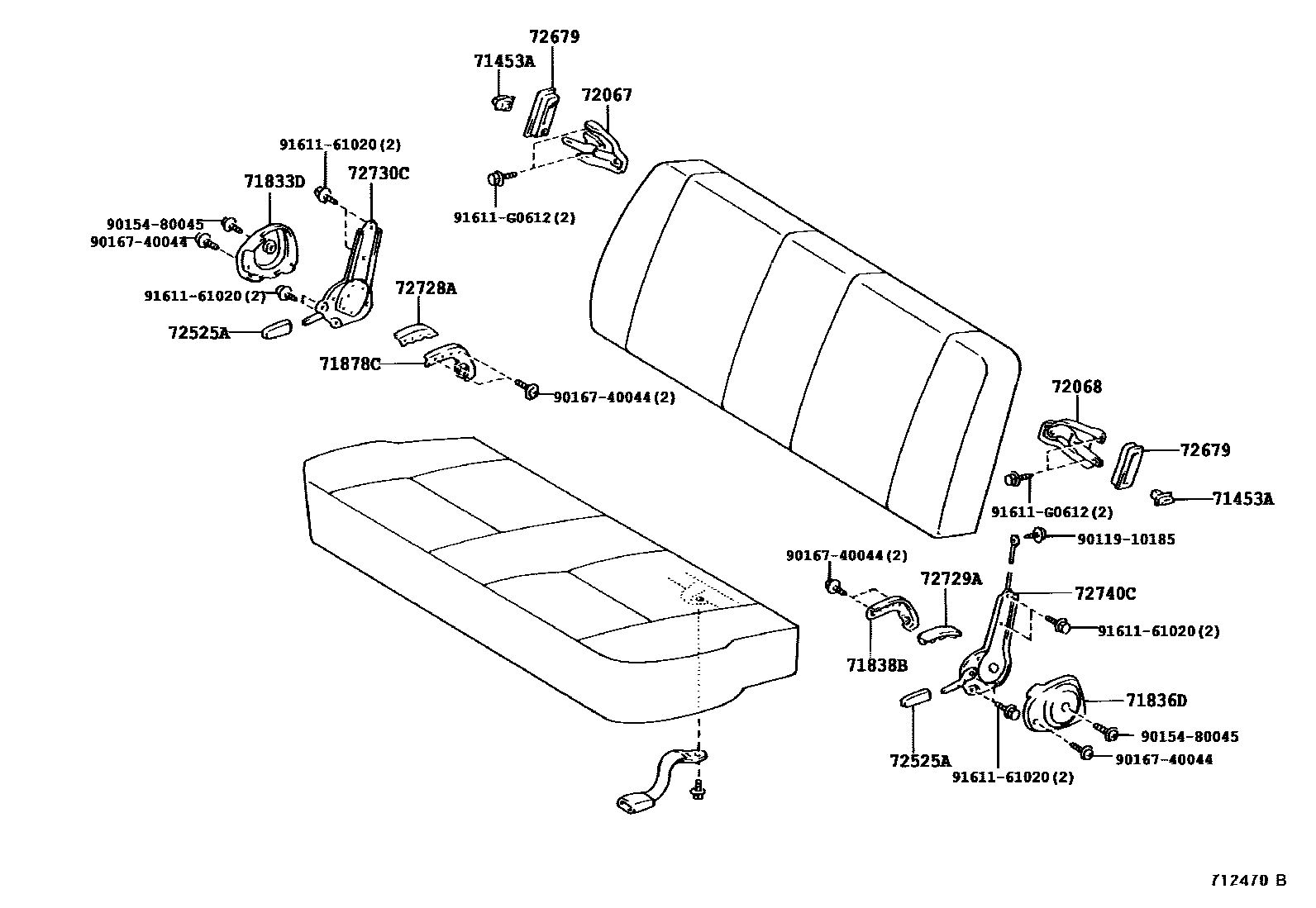

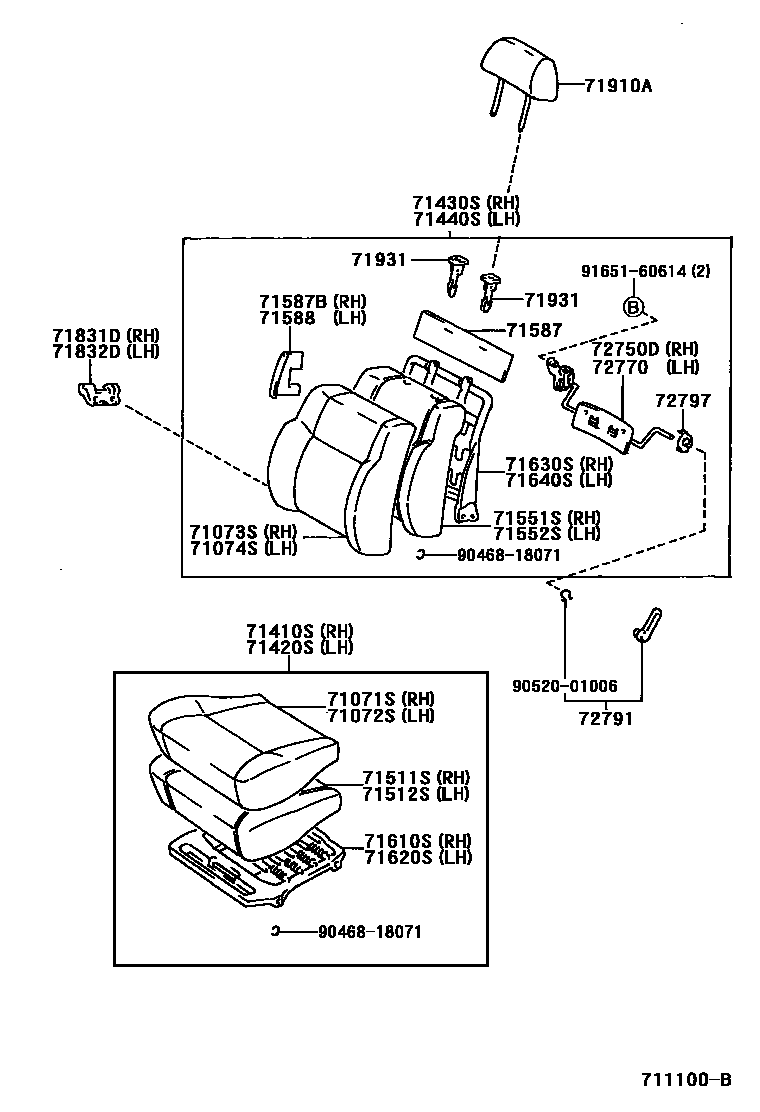

Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 11 images and 94 PNC and OE references.
PNC and OE references

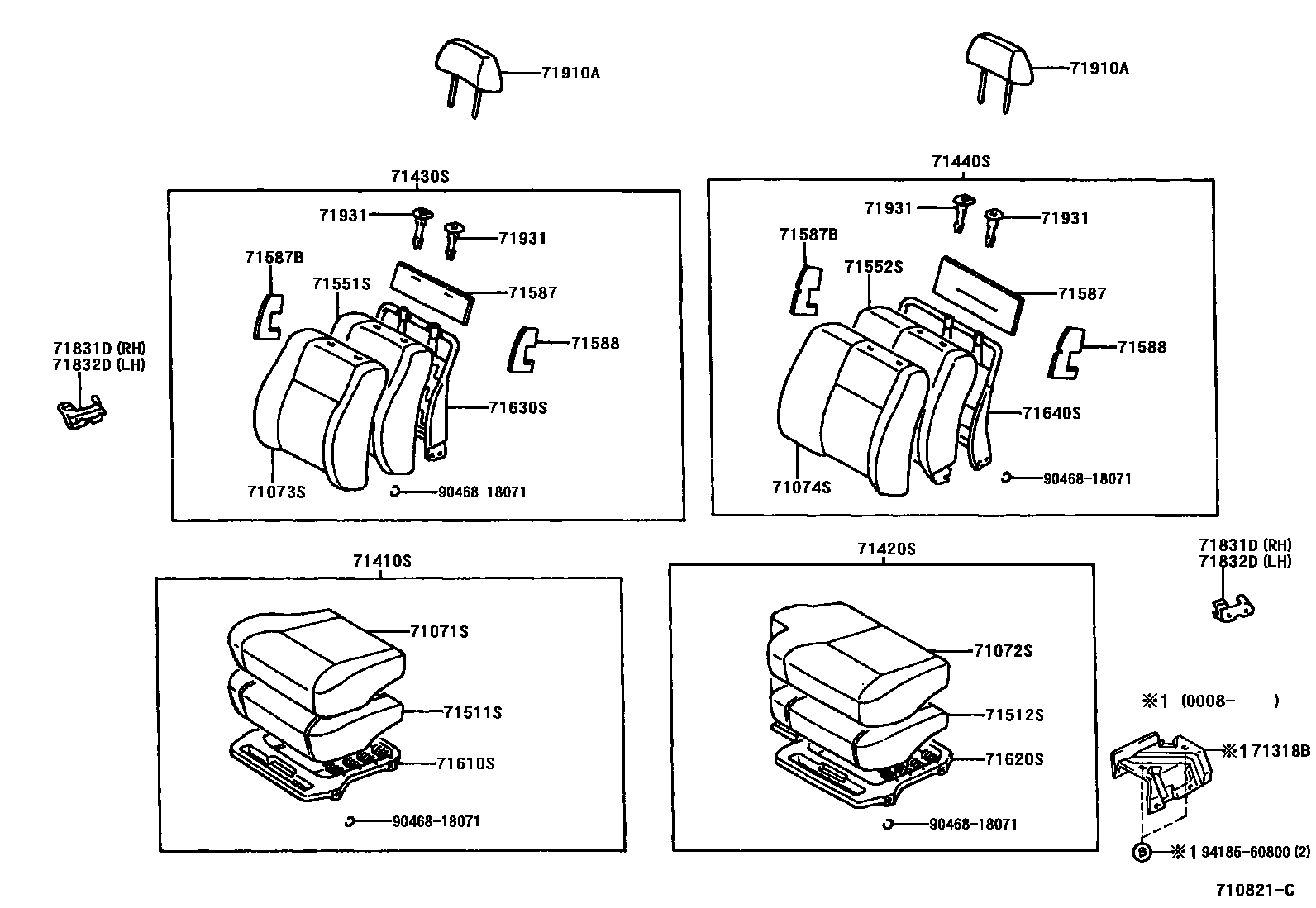

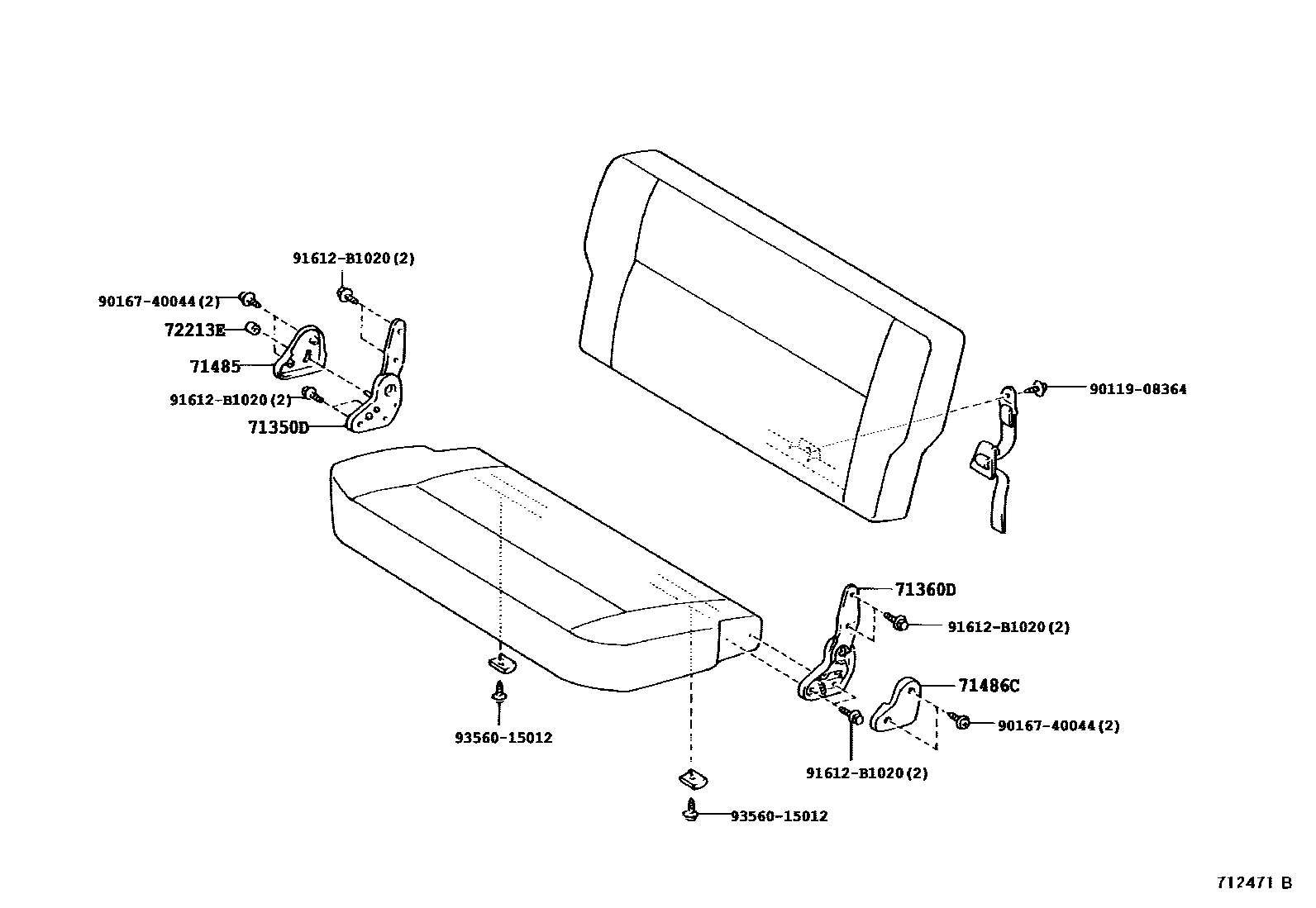

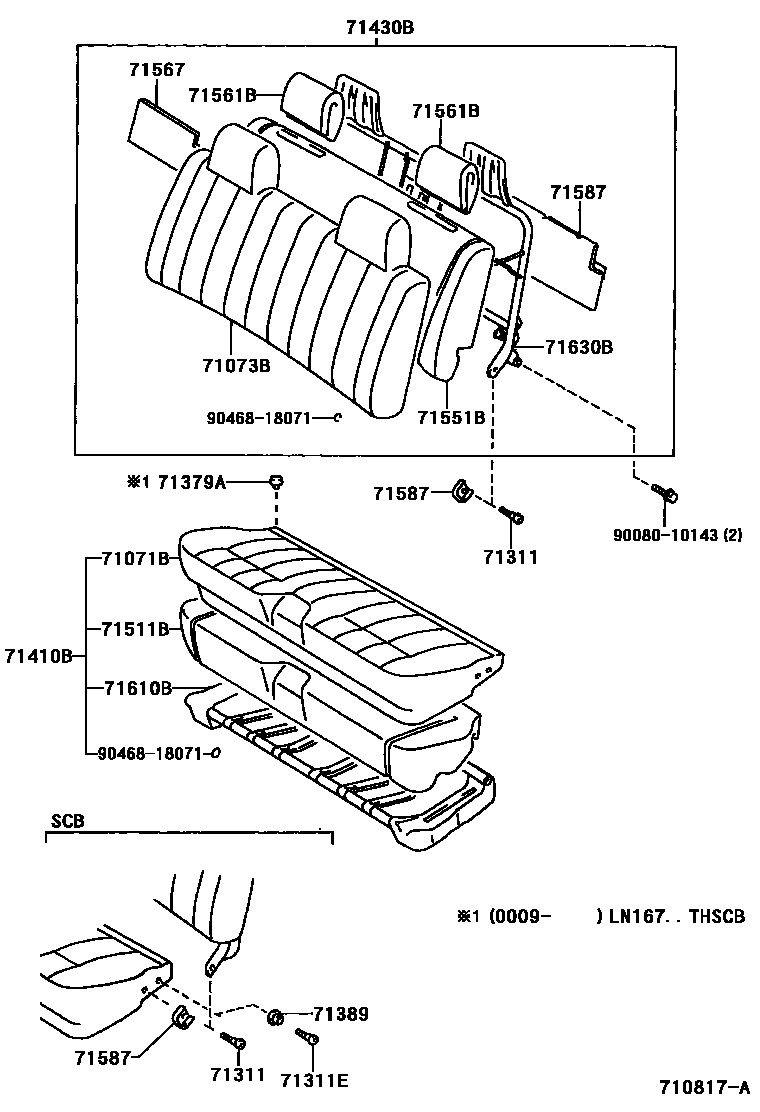

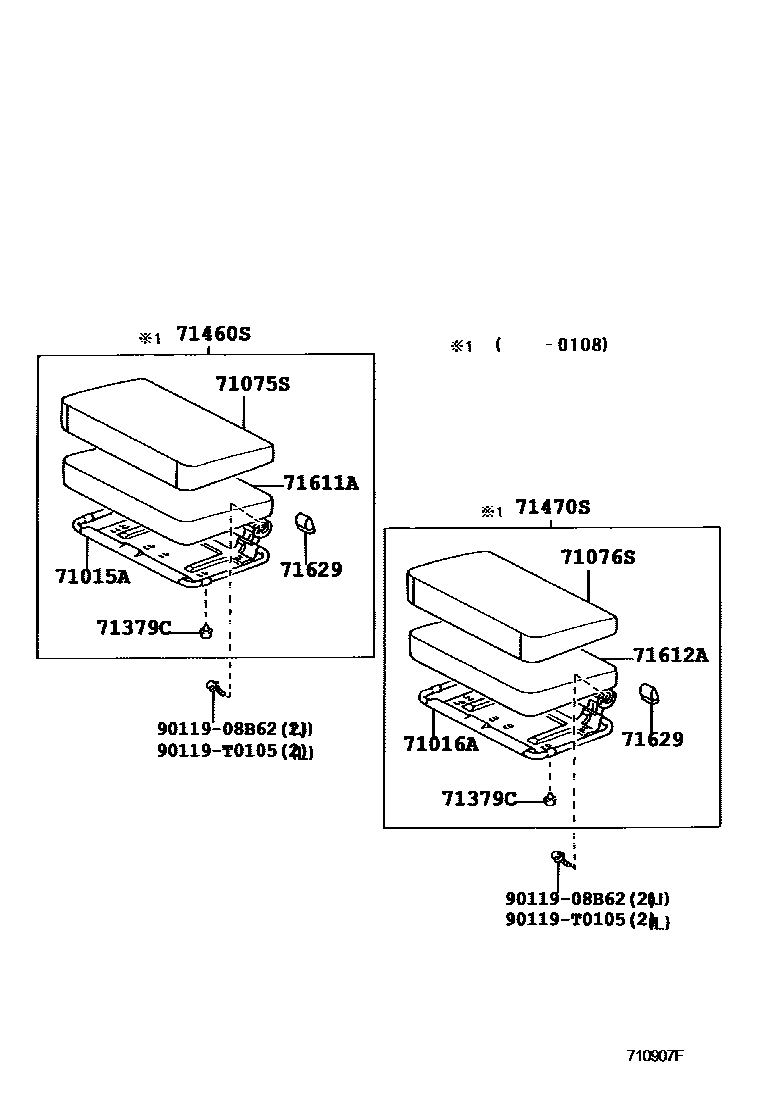

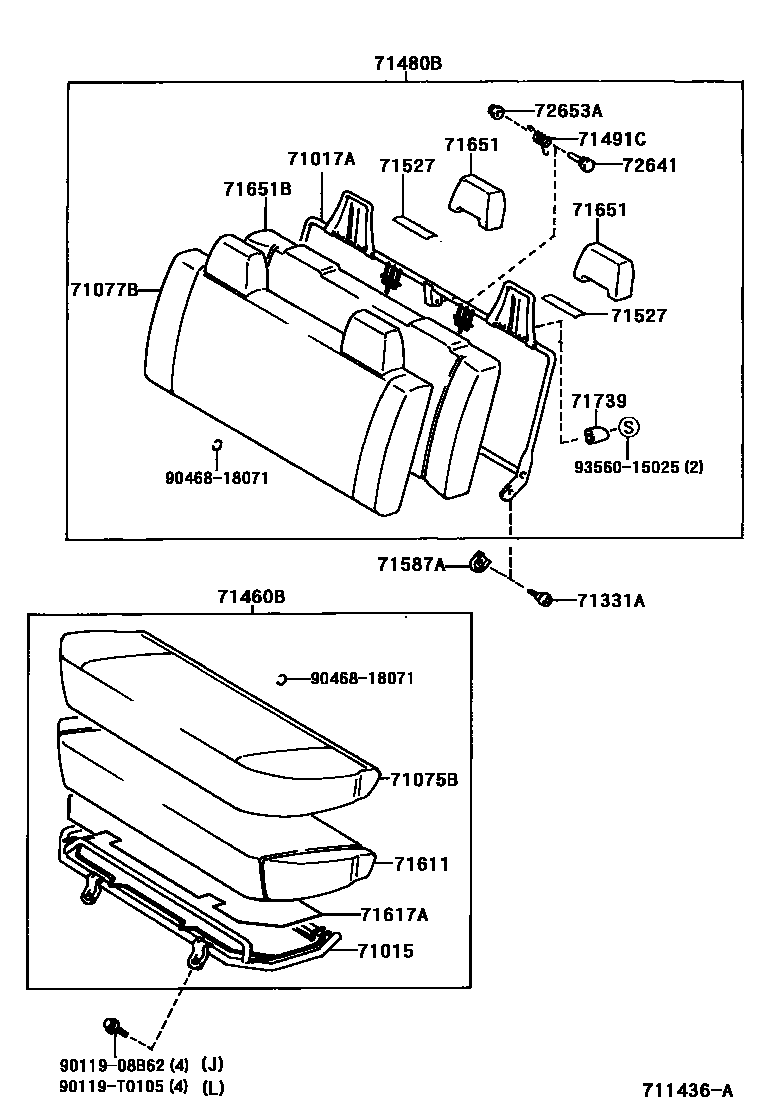

| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-04020 · 71015-35040 · 71015-35050 |
| 71015A | Rear right seat cushion frame sub-assembly | 71015-35060 |
| 71016A | Rear left seat cushion frame sub-assembly | 71015-35060 |
| 71017A | Rear seat back frame sub-assembly | 71017-04020 · 71017-04030 · 71017-35090 · 71017-35100 · 71017-35110 · 71017-35150 · 71017-35160 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-04520 |
| 71072S | Front left seat cushion cover (for split seats) | 71071-04520 |
| 71073S | Front right seat back cover (for split seats) | 71073-04160 · 71073-04410 |
| 71074S | Front left seat back cover (for split seats) | 71073-04160 · 71073-04410 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-04130 |
| 71077B | Rear seat backrest cover (for bench seat) | 71077-04170 |
| 71147 | seat spring muffler | 71147-04020 · 71147-35010 |
| 71311 | Front seat hinge pin | 71311-35020 · 71311-89105 |
| 71311E | Bushing (for rear seat hinge pin) | 71311-89105 |
| 71318B | Center seat cushion reinforcement | 71318-35030 |
| 71331A | Rear seat hinge pin | 71331-35050 |
| 71350D | No. 2 seat hinge assembly on the right side of the rear row | 71350-95J46 |
| 71360D | Hinge assembly of No. 2 seat on the left side of the rear row | 71360-95J19 |
| 71379A | Front seat vertical handle stop | 71379-35010 |
| 71379C | Rear seat cushion block | 79124-35010 |
| 71389 | Center seat hinge spacer | 71389-35010 |
| 71410B | Front seat cushion assembly (for bench seat) | 71410-04860 · 71410-3D480 · 71410-3D490 |
| 71420S | Front left seat cushion assembly (for split seats) | 71410-04860 |
| 71430B | Front seat back assembly (for bench seat) | 71430-04570 · 71430-3G210 · 71430-3G220 · 71430-3G230 |
| 71440S | Front left seat back assembly (for split seats) | 71430-04570 |
| 71460B | Rear seat cushion assembly (for bench seat) | 71460-04180 · 71560-35080 |
| 71460S | Rear right seat cushion assembly (for split seats) | 71460-3D160 |
| 71470S | Rear left seat cushion assembly (for split seats) | 71460-3D160 |
| 71480B | Rear seat back assembly (for bench seat) | 71480-04070 |
| 71491C | Rear seat fixed spring | 71491-89101 |
| 71511B | Front seat cushion upholstery (for bench seats) | 71511-04120 · 71511-35060 · 71511-35070 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-04100 · 71511-04130 · 71511-35080 · 71511-35090 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-04100 · 71511-04130 · 71511-35080 · 71511-35090 · 71512-04020 · 71512-35030 |
| 71527 | Front seat cushion muffler tape | 71527-34010 |
| 71551B | Front seat back cushions (for bench seats) | 71551-04110 · 71551-04120 · 71551-35060 |
| 71551S | Front right seat back cushion (for split seats) | 71551-04080 · 71551-35070 · 71551-35080 |
| 71552S | Front left seat back cushion (for split seats) | 71551-04080 · 71551-35070 · 71551-35080 · 71552-04020 · 71552-35020 |
| 71561B | Padded front seat backrest | 71561-04020 · 71561-35060 · 71561-35080 |
| 71567 | Front seat back safety cushion | 71567-35010 |
| 71587 | Front seat back edge protective cover | 71587-04020 · 71587-04040 · 71587-04060 · 71587-35040 · 71587-35050 · 71587-35060 · 71587-89103 |
| 71587A | Rear seat back edge protective cover | 71587-35010 |
| 71587B | Front seat back edge protective cover | 71587-04050 · 71587-60080 |
| 71588 | Front seat back edge protective cover No. 2 | 71588-04010 · 71588-60030 |
| 71610B | Front seat cushion spring assembly (for bench seats) | 71610-04070 · 71610-35070 · 71610-35080 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-04060 · 71610-04090 · 71610-35090 · 71610-35100 |
| 71611 | Rear seat cushion cushion | 71611-04010 · 71611-35030 · 71611-35060 |
| 71611A | Rear right seat cushion | 71611-35040 |
| 71612A | Rear left seat cushion | 71611-35040 |
| 71617A | Rear seat cushion lower lining | 71617-04040 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-04060 · 71610-04090 · 71610-35090 · 71610-35100 · 71620-04020 · 71620-35020 |
| 71630B | Front seat back spring assembly (for bench seat) | 71630-04080 · 71630-35160 · 71630-35170 · 71630-35180 · 71630-35210 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-04060 · 71630-04110 · 71630-35130 · 71630-35140 · 71630-35150 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-04060 · 71630-04110 · 71630-35130 · 71630-35140 · 71630-35150 · 71640-04030 · 71640-35040 |
| 71651 | Rear seat 1 backrest cushion | 71661-04010 · 71661-35010 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-04030 · 71651-35050 |
| 71739 | seat support cushion | 71739-35020 |
| 71811D | Front right seat cushion guard | 71811-04020 |
| 71812D | Front left seat cushion guard | 71812-04030 |
| 71831D | Front right seat hinge cover | 71831-04020 · 71831-35050 |
| 71832D | Front left seat hinge cover | 71832-04020 · 71832-35050 |
| 71861 | Front seat cushion right inner guard panel | 71861-04020 |
| 71862 | Front seat cushion left inner guard panel | 71862-04030 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-04020 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-04030 |
| 71876 | Left backrest tilt adjuster inner cover | 71876-04040 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-04050 |
| 71910A | Front seat headrest assembly | 71910-04060 · 71910-04250 |
| 71931 | Front seat headrest bracket | 71930-04010 · 71931-04010 |

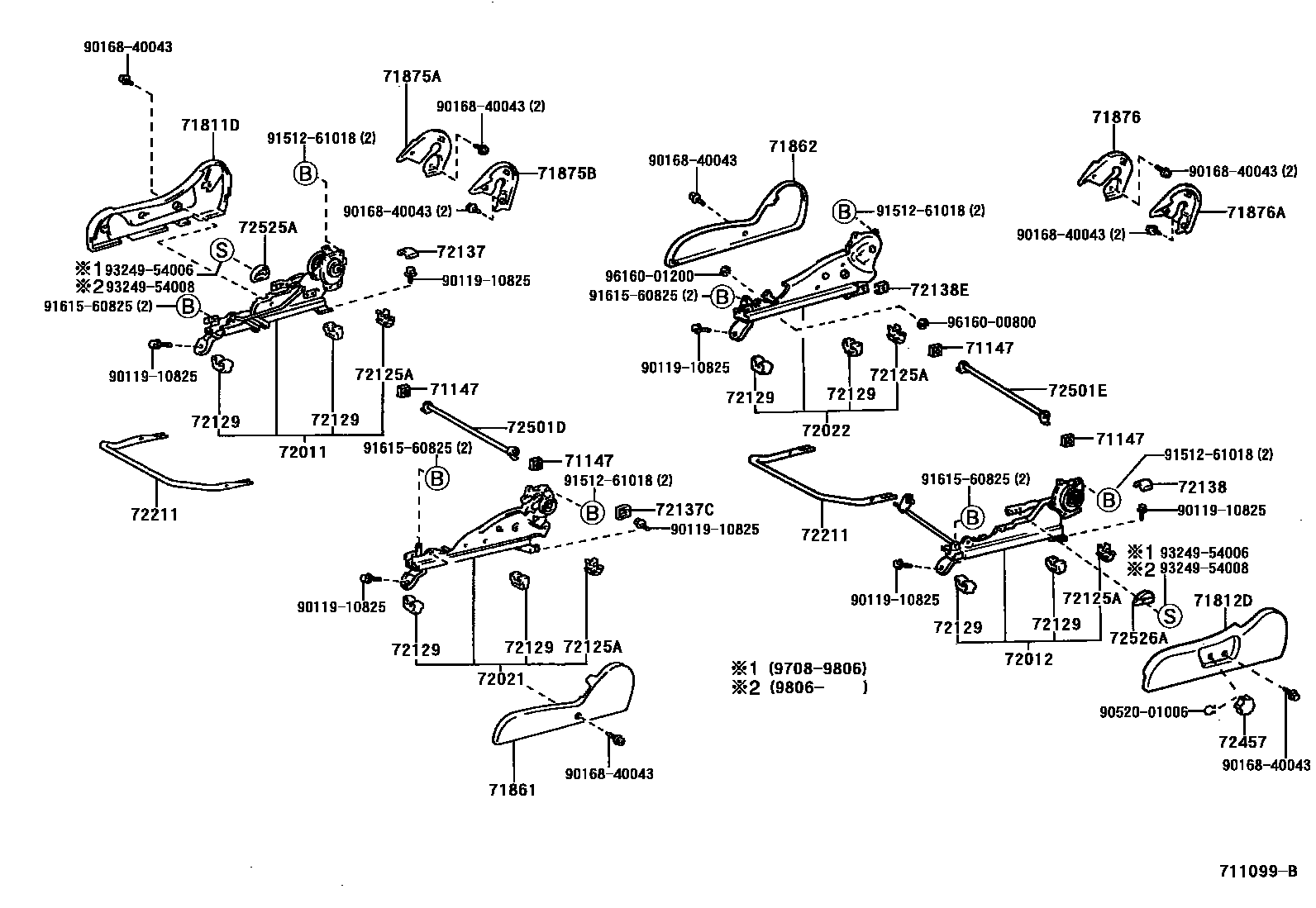

| 72011 | Front right seat outer adjuster sub-assembly | 72011-04050 · 72011-35110 · 72011-35120 · 72011-35130 · 72011-35150 · 72011-35160 · 72011-35170 · 72011-35180 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-04040 · 72012-04050 · 72012-35130 · 72012-35140 · 72012-35150 · 72012-35160 · 72012-35180 · 72012-35190 · 72012-35200 · 72012-35210 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-04050 · 72021-35110 · 72021-35120 · 72021-35130 · 72021-35140 · 72021-35190 · 72021-35200 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-04050 · 72022-04060 · 72022-35130 · 72022-35140 · 72022-35150 · 72022-35170 · 72022-35200 · 72022-35210 · 72022-35220 · 72022-35230 · 72072-35010 · 72072-35020 |
| 72067 | Rear right seat back lock control lever sub-assembly | 72067-44010 |
| 72068 | Rear left seat back lock control lever sub-assembly | 72068-44010 |

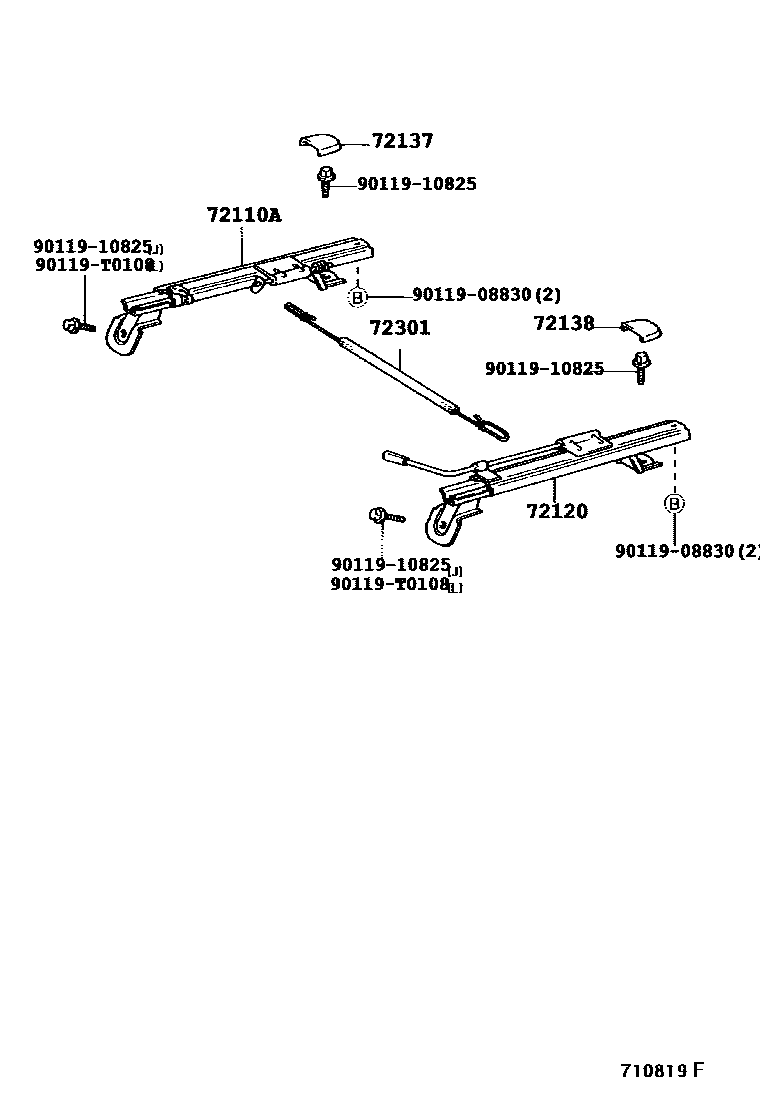

| 72110A | Front right seat outer slide rail assembly | 72110-35100 · 72110-35110 · 72110-35120 · 72110-35130 |
| 72120 | Front left seat outer slide rail assembly | 72120-35110 · 72120-35120 · 72120-35130 · 72120-35140 |
| 72125A | Rear seat upper slide rail cover | 72125-10010 · 72125-44010 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-12010 · 72129-44030 |
| 72140A | Front left seat inner slide rail assembly | 72140-35100 |
| 72210E | Seat slide control cable assembly (for walk-in compartments) | 72210-35070 · 72210-35080 |
| 72211 | Seat slide adjustment handle | 72211-04010 · 72211-35010 · 72212-04010 · 72212-35010 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-04030 · 72301-35040 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-04030 · 72501-35010 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-04030 · 72501-35010 · 72501-35030 |
| 72525A | Right seat back recliner release handle | 72525-04050 |
| 72526A | Left seat back recliner release handle | 72526-04020 |
| 72641 | Rear seat back lock pin | 72641-89101 |
| 72653A | Rear seat back lock lever buckle | 72653-89101 |
| 72728A | Front right seat backrest inclination adjuster protective cover | 72728-95J04 |
| 72729A | Front left seat backrest inclination adjuster protective cover | 72729-95J00 |
| 72730C | Right No. 2 seat backrest angle adjuster assembly | C7300-01010 |
| 72740C | Left No. 2 seat backrest tilt adjuster assembly | C7400-01010 |
| 72750D | Right lumbar support adjuster assembly | 72750-35020 |
| 72770 | Left lumbar support adjuster assembly | 72760-35020 |
| 72797 | lumbar support spacer | 72797-50010 |
