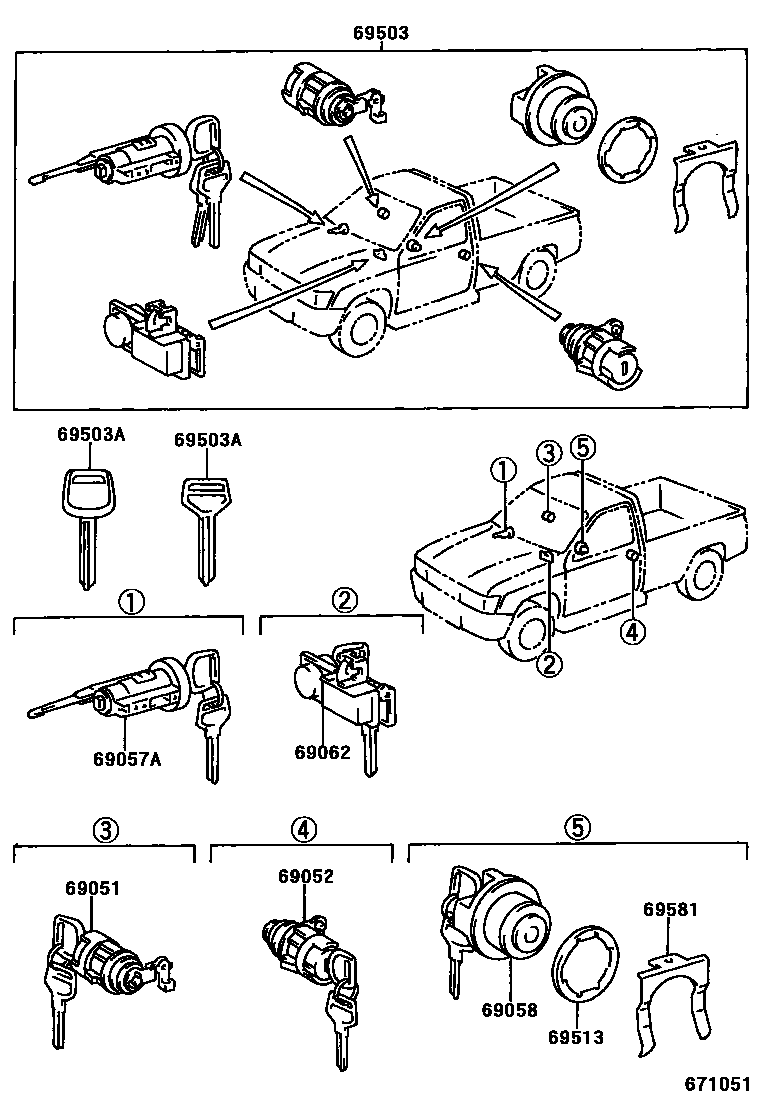

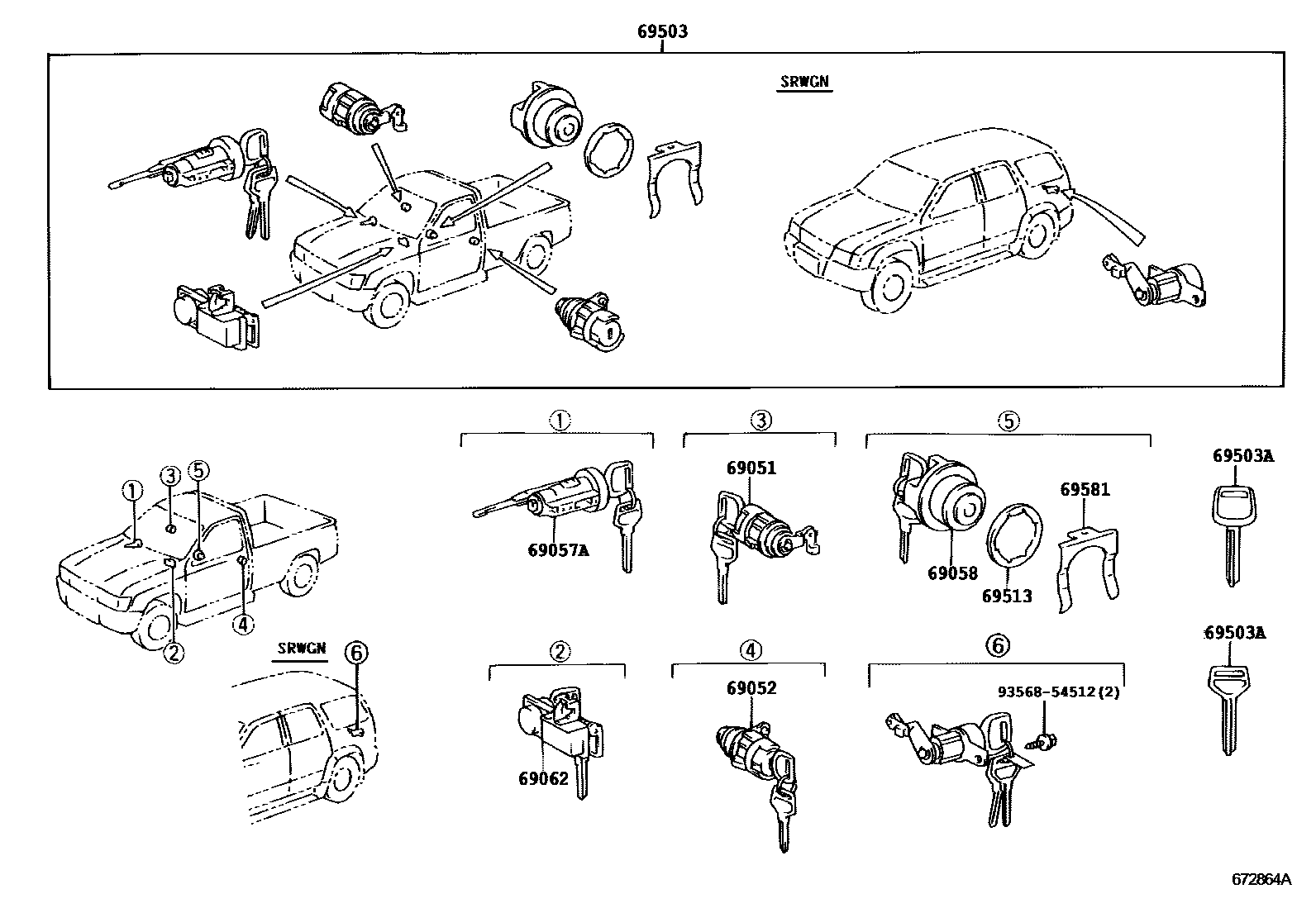

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-04010 · 69051-35100 · 69051-35110 |
| 69052 | Left door lock cylinder and key assembly | 69052-04010 · 69052-35100 · 69052-35110 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-04010 · 69057-35100 · 69057-35110 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-04010 · 69058-04020 · 69058-04030 · 69058-35030 · 69058-35040 · 69058-35070 · 69058-35080 · 69058-35090 · 69058-35110 · 69058-35160 · 69058-35170 |
| 69062 | Glove box lock cylinder and key assembly | 69056-04010 · 69056-35050 · 69056-35060 |
| 69503 | Door lock cylinder components | 69005-04010 · 69005-04020 · 69005-04030 · 69005-04040 · 69005-04050 · 69005-35510 · 69005-35511 · 69005-35520 · 69005-35521 · 69005-35530 · 69005-35531 · 69005-35550 · 69005-35560 · 69005-35570 · 69005-35580 · 69005-35590 · 69005-35630 · 69005-35640 · 69005-35650 · 69005-35660 |
| 69503A | external tooth key | 90999-00130 · 90999-00132 · 90999-00137 · 90999-00165 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
