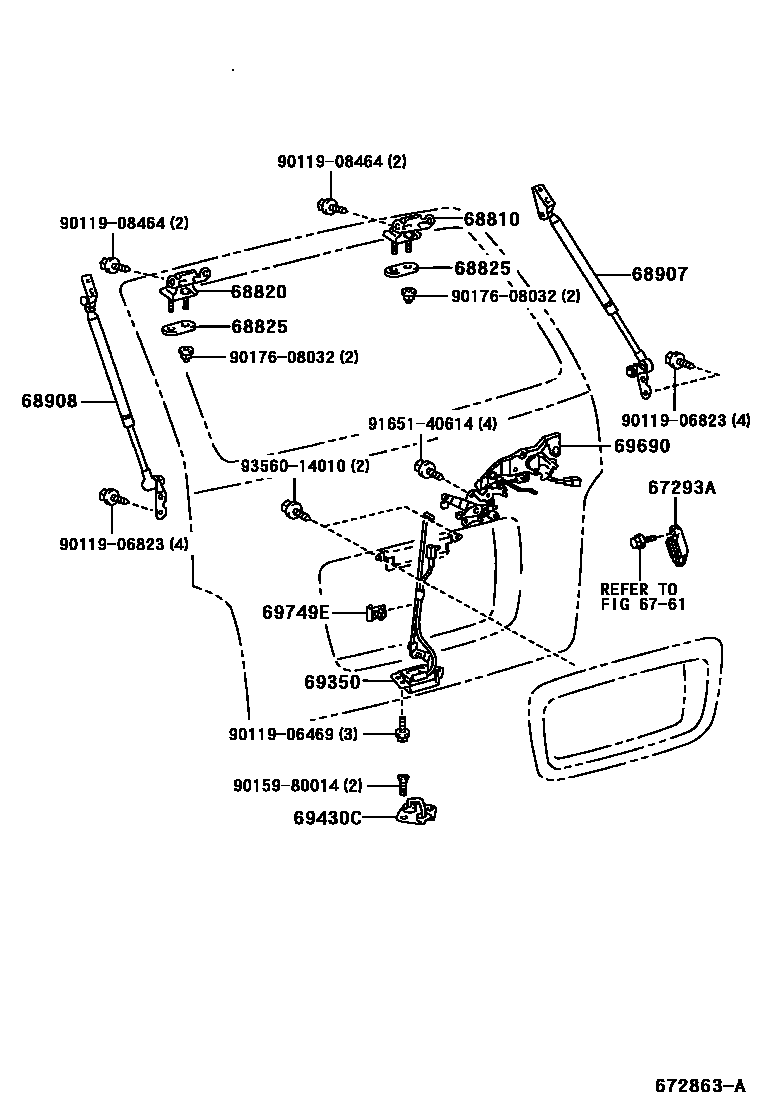

Toyota HILUX 背门锁和合页 — Figure 6762
Toyota HILUX EPC diagram 6762, 背门锁和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67293A | Back door stop cushion | 67293-D0010 · 67294-D0010 |
| 68810 | Back door upper hinge assembly | 68810-95J02 |
| 68820 | Back door lower hinge assembly | 68820-95J02 |
| 68825 | Back door hinge plate | 68825-95700 |
| 68907 | Back door right damping strut sub-assembly | C4650-01020 |
| 68908 | Rear door left damping strut sub-assembly | C4660-01020 |
| 69350 | Rear door lock assembly | C4770-01010 |
| 69430C | Back door lock assembly | C4709-01010 |
| 69690 | Back door remote control assembly | C4830-01010 |
| 69749E | Rear door lock link clamp | 69749-30020 |
