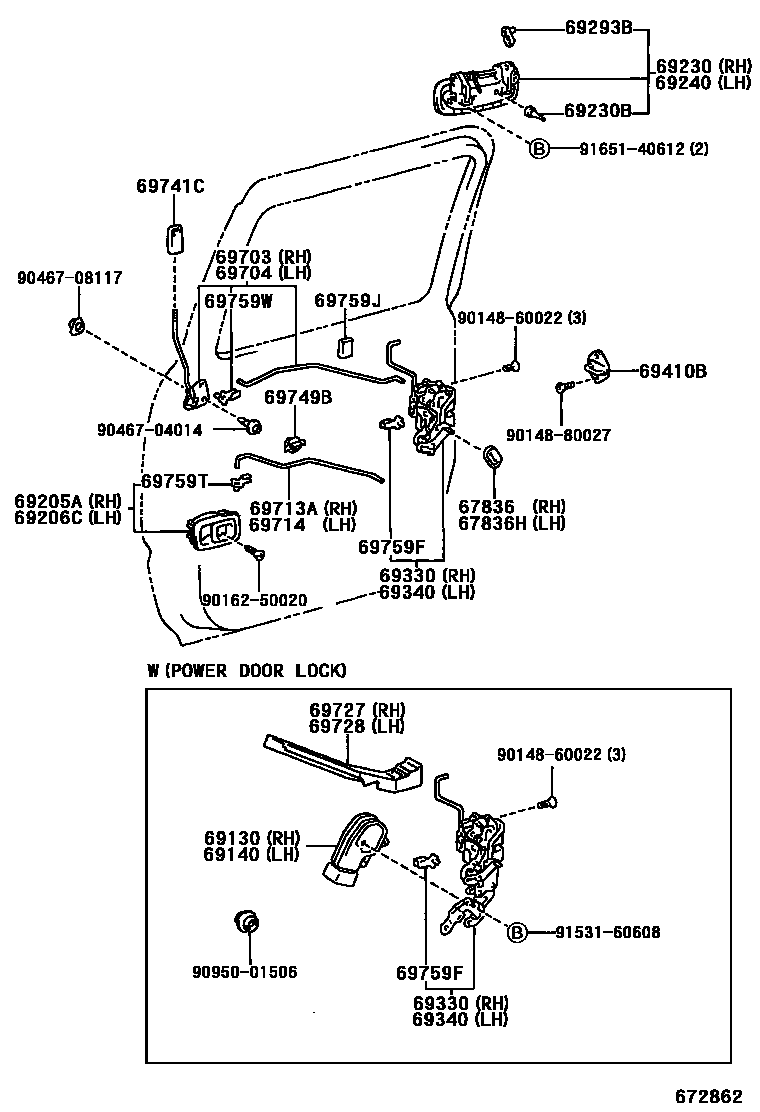

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-14010 · 67836-95D00 |
| 67836H | Left rear door lock child restraint cover | 67836-14010 · 67836-95D00 |
| 69130 | Right rear door lock actuator assembly | 69130-35050 |
| 69140 | Left rear door lock actuator assembly | 69140-35050 |
| 69230 | Right rear door outer handle assembly | 69230-35070 · 69230-35080 · 69230-35140 · 69230-35150 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04014 |
| 69240 | Left rear door outer handle assembly | 69240-35070 · 69240-35080 · 69240-35140 · 69240-35150 |
| 69293B | Rear door outer handle buckle | 69293-12030 · 69293-12040 |
| 69330 | Right rear door door lock assembly | 69330-35120 · 69330-35130 · 69330-35160 · 69330-35170 · C4710-01010 |
| 69340 | Left rear door lock assembly | 69340-35120 · 69340-35130 · 69340-35160 · 69340-35170 · C4740-01010 |
| 69410B | Rear door lock plate assembly | 69410-87001 |
| 69703 | Right rear door lock control link sub-assembly | 69703-35040 |
| 69704 | Left rear door lock control link sub-assembly | 69704-35040 |
| 69713A | Right rear door lock remote control lever | 69713-35050 · C4085-01021 |
| 69714 | Left rear door lock remote control lever | 69714-35050 · C4086-01021 |
| 69727 | Right rear door inner locking link guard | 69727-35020 |
| 69728 | Left rear door inner locking link guard | 69728-35020 |
| 69741C | Rear door lock control button | 69741-12040 |
| 69749B | Rear door lock link clamp | 69749-12030 · 69749-12070 |
| 69759F | Rear door lock control link buckle | 69759-20020 · 69759-20030 · 69759-20040 · 69759-20050 · 69759-24030 · 69759-24040 |
| 69759J | Door lock link silencer | 69759-04090 · 69759-12060 · 69759-95500 |
| 69759T | Rear door inner handle buckle | 69759-20060 · 69759-20070 |
| 69759W | Rear door lock control link buckle | 69759-20020 · 69759-20030 · 69759-24080 · 69759-24090 |
