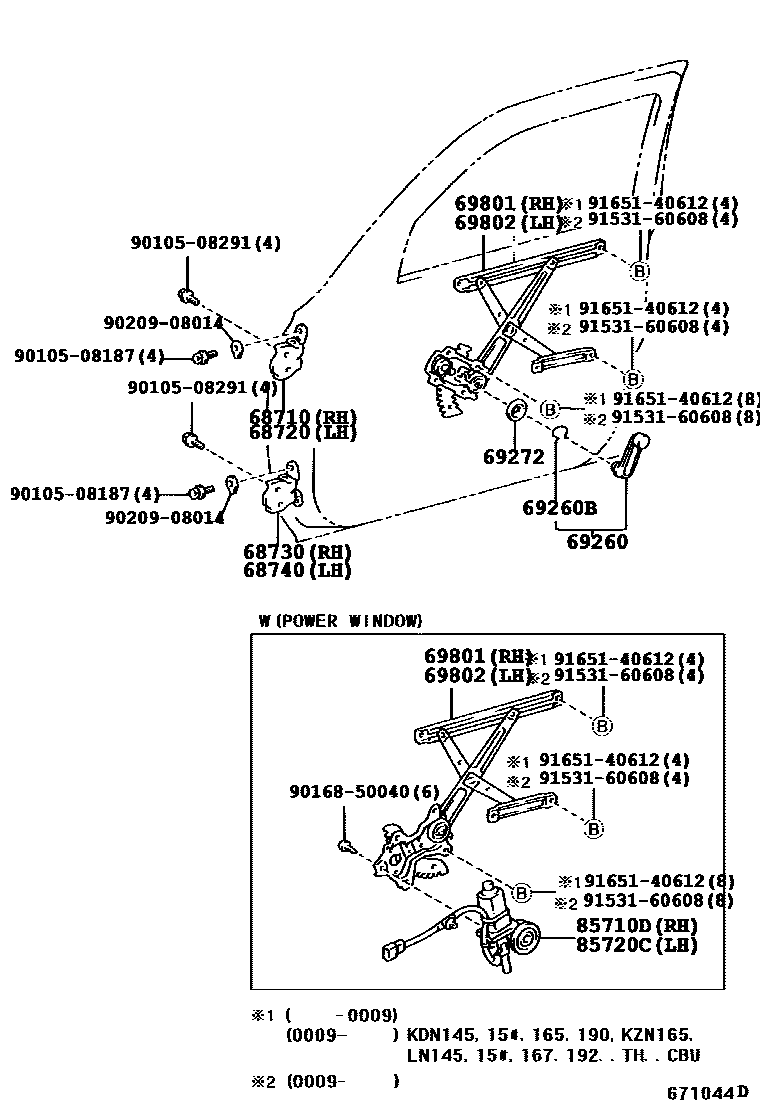

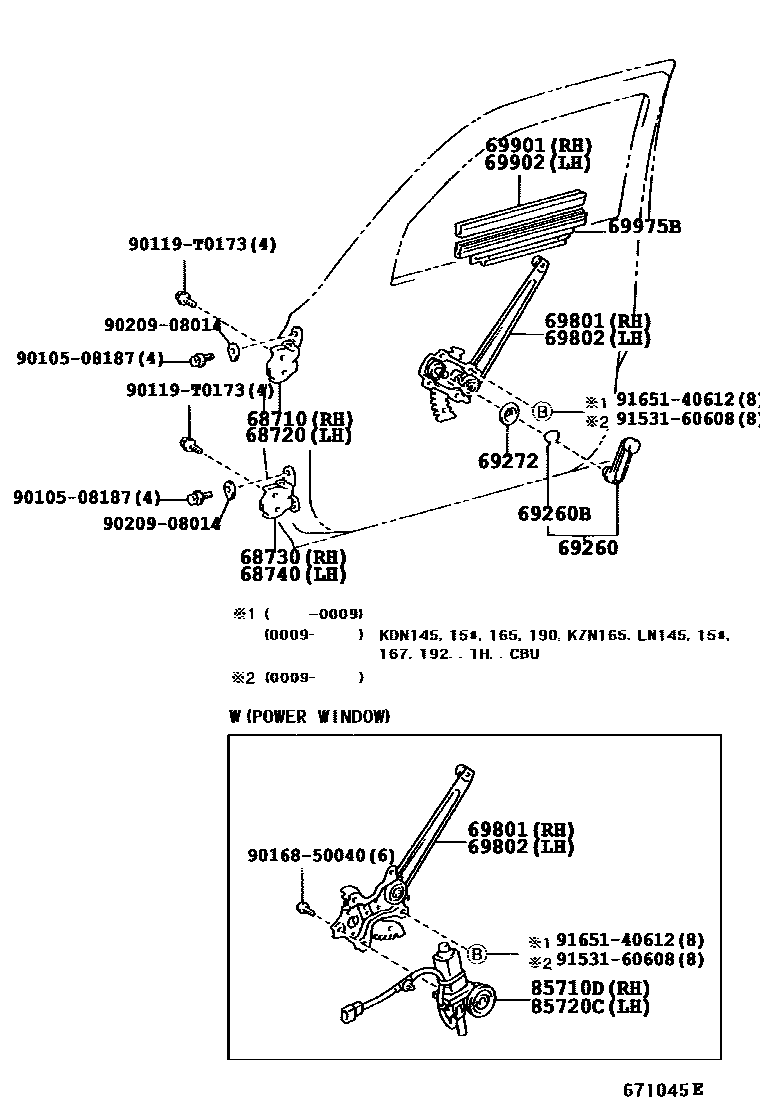

Toyota HILUX 前门车窗升降器和合页 — Figure 6754
Toyota HILUX EPC diagram 6754, 前门车窗升降器和合页, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-04010 |
| 68720 | Left front door upper hinge assembly | 68730-04010 |
| 68730 | Right front door lower hinge assembly | 68730-04010 |
| 68740 | Left front door lower hinge assembly | 68710-04010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01274 |
| 69272 | Front door window lift inner handle plate | 69268-04020 · 69268-20020 · 69285-22010 |
| 69801 | Right front door window lifter sub-assembly | 69801-35110 · 69801-35130 · 69801-35140 · 69801-35150 |
| 69802 | Left front door window lifter sub-assembly | 69802-35110 · 69802-35130 · 69802-35140 · 69802-35150 |
| 69901 | Right front door glass groove sub-assembly | 69901-35020 |
| 69902 | Left front door glass groove sub-assembly | 69901-35020 |
| 69975B | Front door glass channel filler | 69971-04010 · 69971-35040 |
| 85710D | Right power window lift motor assembly | 85710-35120 |
| 85720C | Left electric window lift motor assembly | 85720-35090 |
