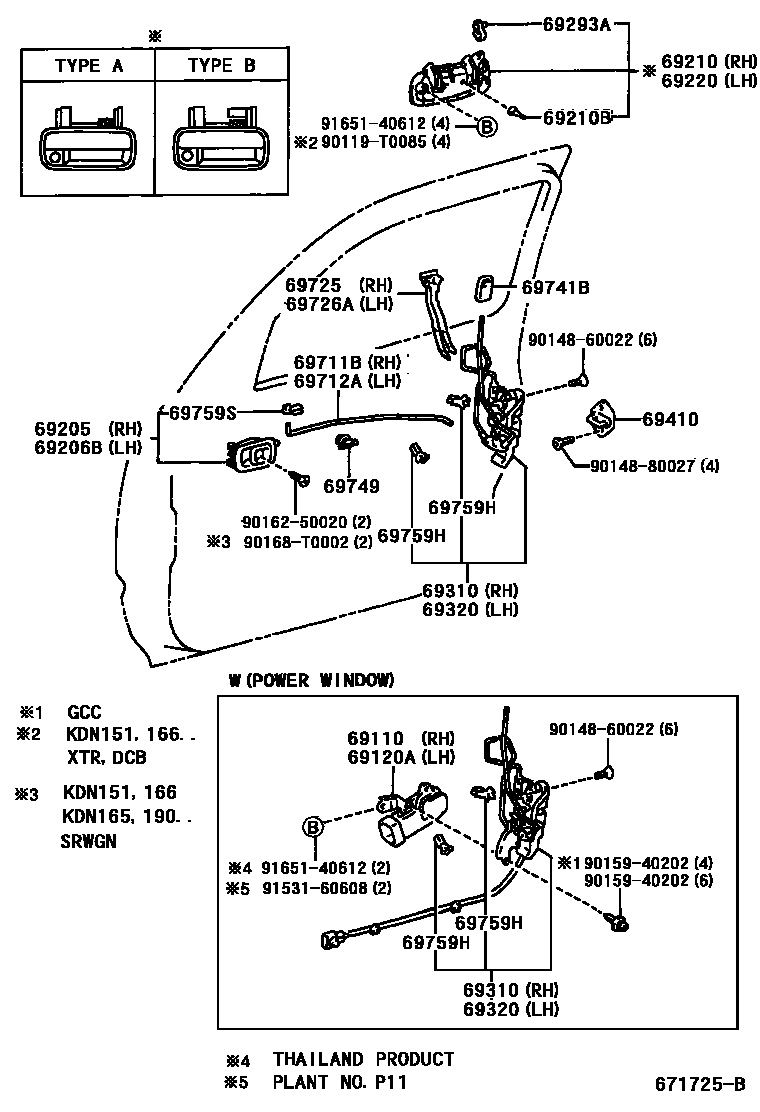

Toyota HILUX 前门锁和车门把手 — Figure 6753
Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-04010 · 69110-35040 |
| 69120A | Left front door lock actuator assembly | 69120-04010 · 69120-35040 |
| 69210 | Right front door outer handle assembly | 69210-04010 · 69210-04020 · 69210-35050 · 69210-35080 · 69210-35130 · 69210-35140 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04014 |
| 69220 | Left front door outer handle assembly | 69220-04010 · 69220-04020 · 69220-35050 · 69220-35080 · 69220-35130 · 69220-35140 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-04020 · 69310-04030 · 69310-35360 · 69310-35370 · 69310-35380 · 69310-35390 · 69310-35400 · 69310-35410 · 69310-35420 · 69310-35430 · 69310-35440 · 69310-35450 |
| 69320 | Left front door lock assembly | 69320-04020 · 69320-04030 · 69320-35360 · 69320-35370 · 69320-35380 · 69320-35390 · 69320-35400 · 69320-35410 · 69320-35420 · 69320-35430 · 69320-35440 · 69320-35450 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69711B | Right front door lock remote control lever | 69711-35050 · 69711-35060 |
| 69712A | Left front door lock remote control lever | 69712-35050 · 69712-35060 |
| 69725 | Right front door inner locking link guard | 69725-35020 · 69725-35030 |
| 69726A | Left front door inner locking link guard | 69726-35040 · 69726-35050 |
| 69741B | Front door lock control button | 69741-12040 |
| 69749 | Front door lock link clip | 69749-12070 |
| 69759H | Rear door lock No. 2 control link buckle | 69759-04020 · 69759-04030 · 69759-04040 · 69759-04050 · 69759-20040 · 69759-20050 · 69759-24010 · 69759-24020 |
| 69759S | Front door inner handle buckle | 69759-20060 · 69759-20070 |
