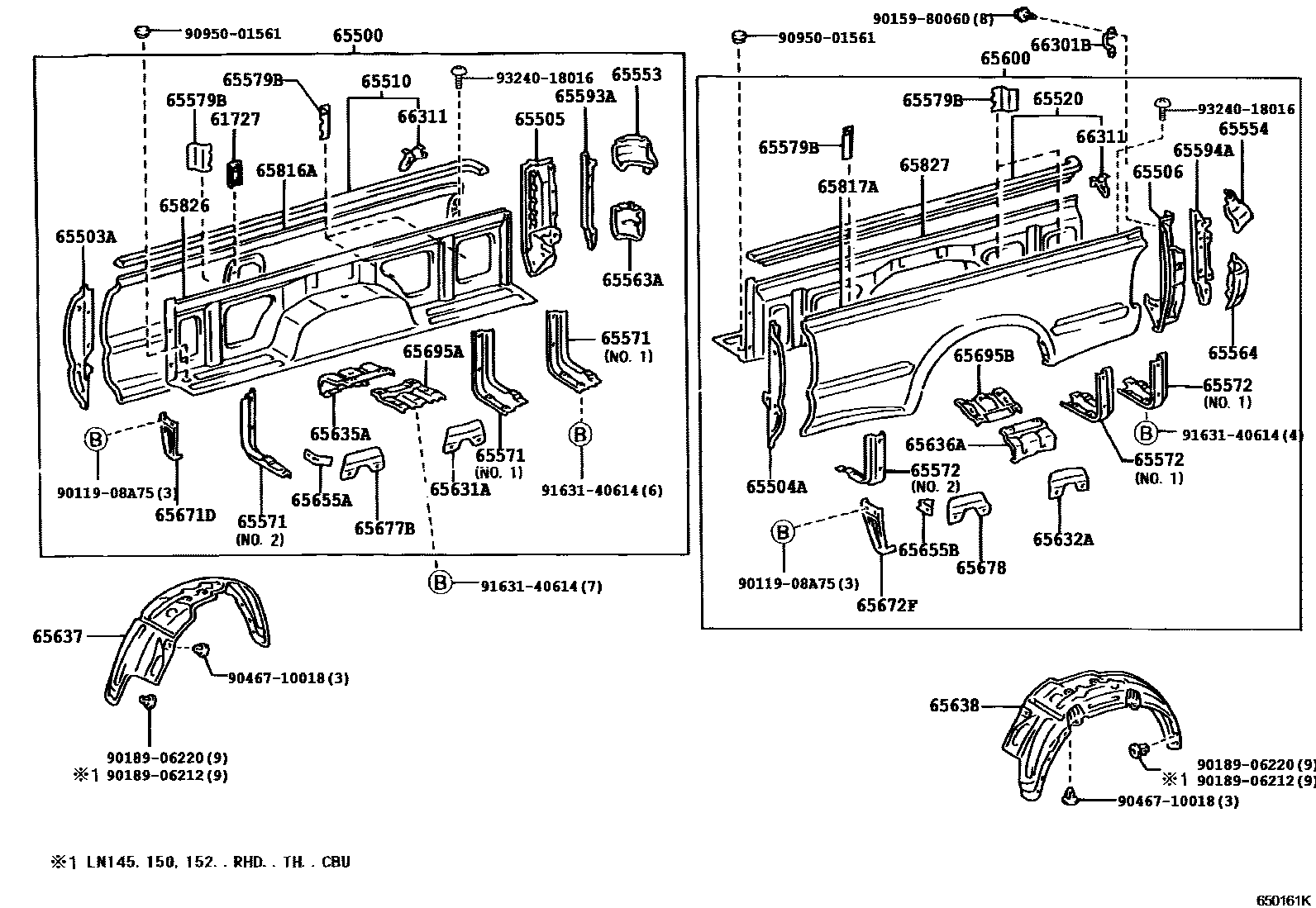

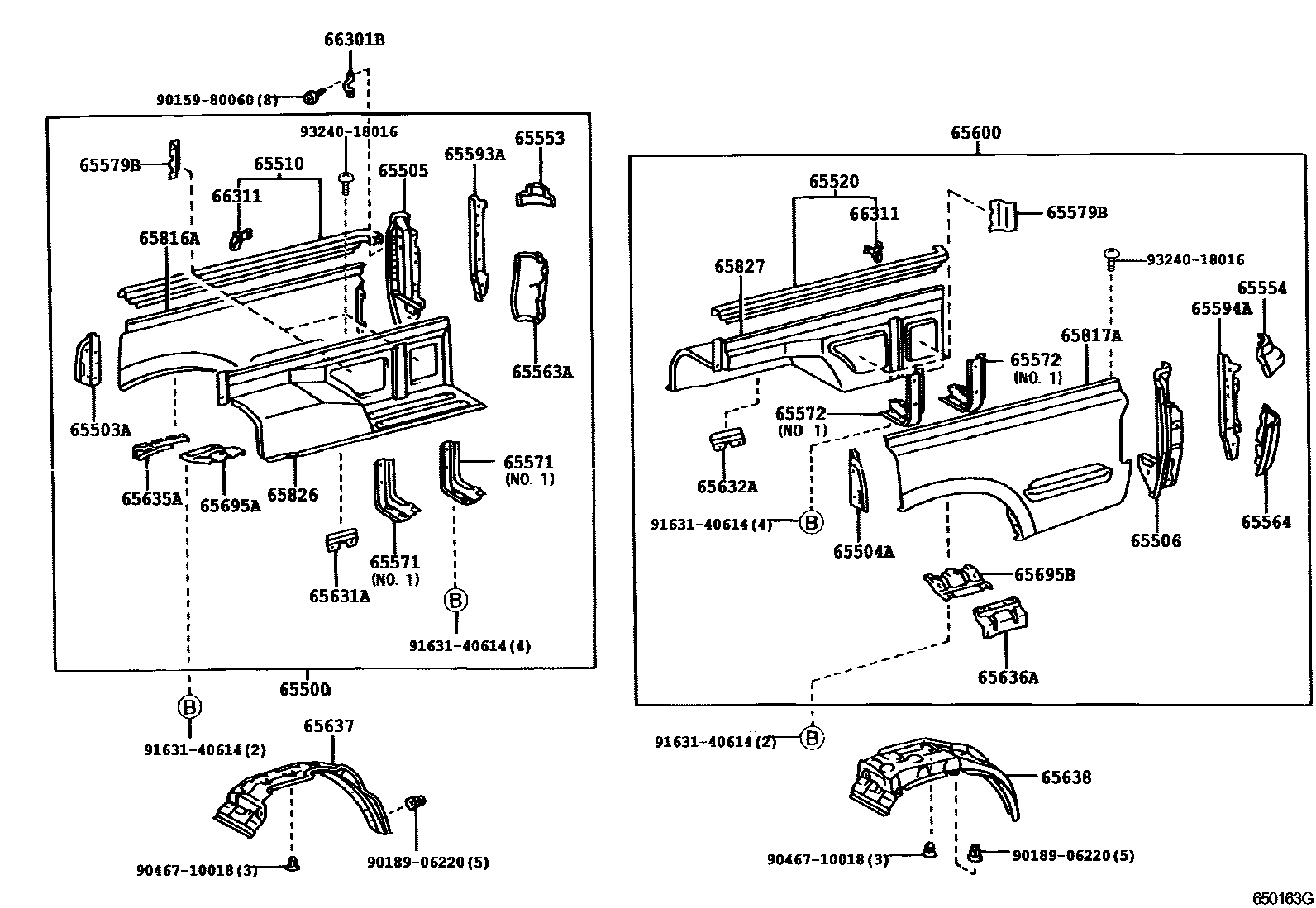

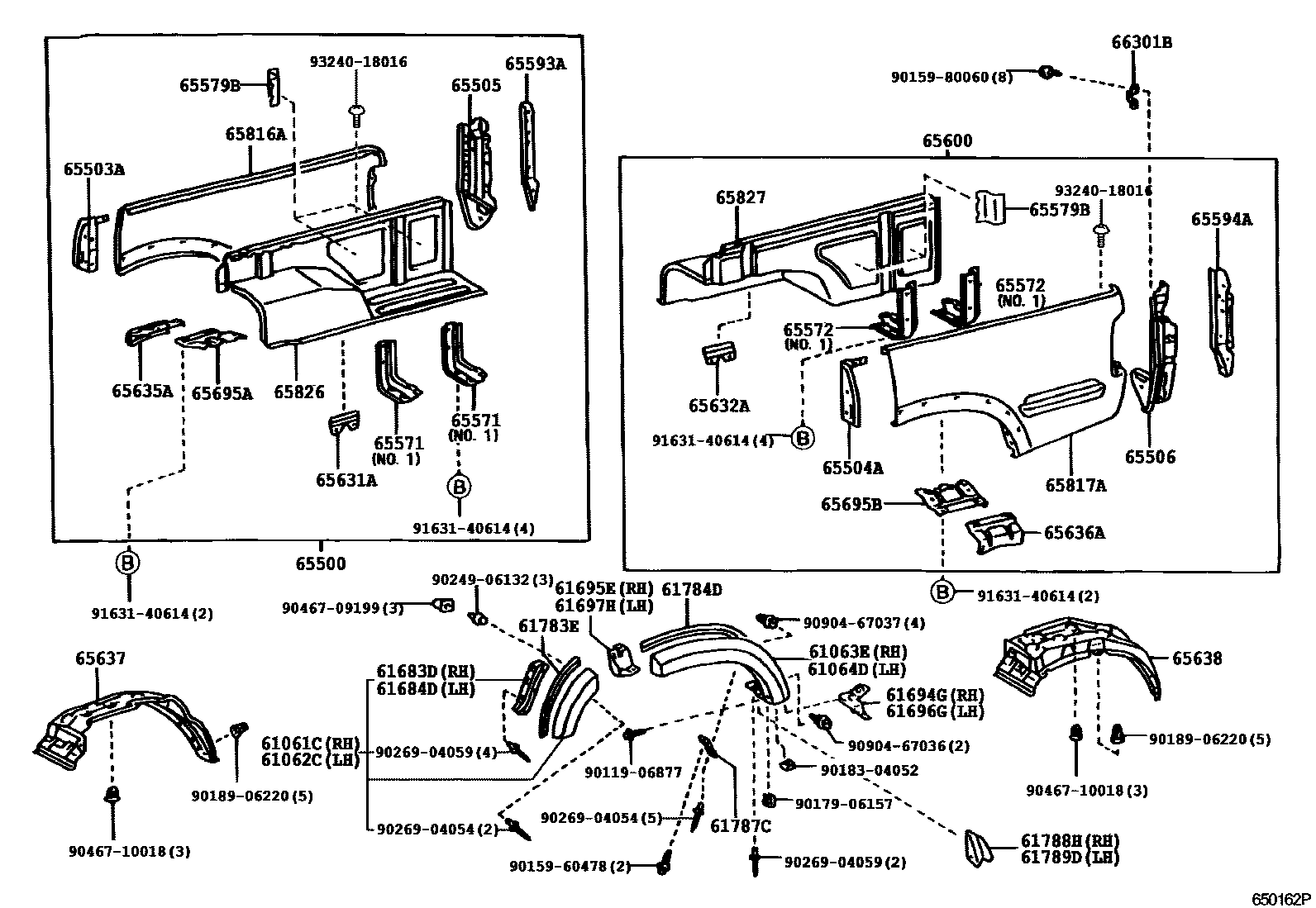

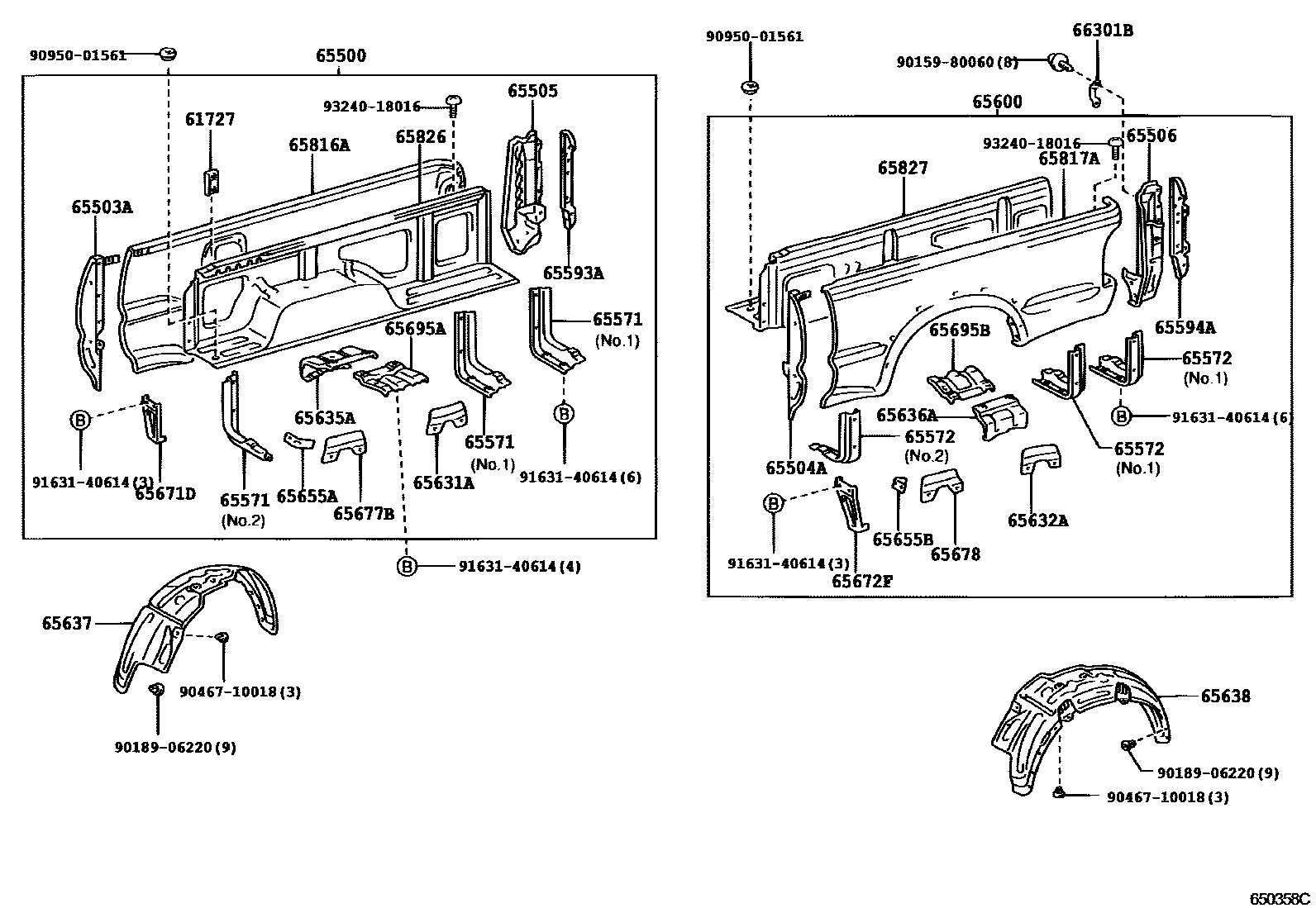

Toyota HILUX 后车身侧面板 — Figure 6554
Toyota HILUX EPC diagram 6554, 后车身侧面板, with 4 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61061C | Right rear No. 1 fender external panel sub-assembly | 61061-35900 |
| 61062C | Left rear No. 1 fender external panel sub-assembly | 61062-35900 |
| 61063E | Right rear No. 2 fender external panel sub-assembly | 61063-35900 |
| 61064D | Left rear No. 2 fender external panel sub-assembly | 61064-35900 |
| 61683D | No. 1 right rear fender external panel bracket | 61683-35040 |
| 61684D | No. 1 left rear fender external panel bracket | 61684-35040 |
| 61694G | No. 2 right rear fender external panel bracket | 61694-35010 |
| 61695E | No. 3 right rear fender external panel bracket | 61695-35010 |
| 61696G | No. 2 left rear fender external panel bracket | 61696-35010 |
| 61697H | No. 3 left rear fender external plate bracket | 61697-35020 |
| 61727 | Fuel inlet guard plate | 61727-35010 |
| 61783E | No. 1 rear fender outer panel pad | 61783-35040 |
| 61784D | No. 2 rear fender outer panel pad | 61784-35020 |
| 61787C | No. 4 rear fender external panel bracket | 61787-35010 |
| 61788H | No. 5 rear fender external panel bracket | 61788-35020 |
| 61789D | No. 6 rear fender external panel bracket | 61789-35020 |
| 65500 | Right rear body side panel assembly | 65500-04220 · 65500-04250 · 65500-04260 · 65500-04280 · 65500-04290 · 65500-04350 · 65500-04360 · 65500-04370 · 65500-04380 · 65500-35530 · 65500-35540 · 65500-35560 · 65500-35600 · 65500-35610 · 65500-35630 · 65500-35640 · 65500-35650 · 65500-35660 · 65500-35700 · 65500-35710 · 65500-35720 · 65500-35730 · 65500-35740 · 65500-35750 · 65500-35790 · 65500-35800 · 65500-35810 · 65500-35830 · 65500-35840 · 65500-35860 · 65500-35870 · 65500-35880 · 65500-35890 · 65500-3D140 · 65500-3D170 · 65500-3D230 · 65500-3D270 |
| 65503A | Right side panel front end column sub-assembly | 65503-35030 · 65503-35040 · 65503-35050 · 65551-35040 · 65551-35050 |
| 65504A | Left side panel front end column sub-assembly | 65504-35030 · 65504-35040 · 65504-35050 · 65552-35040 · 65552-35050 |
| 65505 | Right side panel rear end column sub-assembly | 65505-35010 · 65505-35020 · 65505-35030 · 65505-35040 |
| 65506 | Left side panel rear end column sub-assembly | 65506-35010 · 65506-35020 · 65506-35030 · 65506-35040 |
| 65510 | Longitudinal beam assembly on right side panel | 65510-35020 · 65510-89144 · 65510-89145 |
| 65520 | Longitudinal beam assembly on left side panel | 65520-35020 · 65520-89144 · 65520-89145 |
| 65553 | Upper right side panel rear end pillar panel | 65553-35010 · 65553-35020 |
| 65554 | Upper left side panel rear end pillar panel | 65554-35010 · 65554-35020 |
| 65563A | Lower right side panel rear end pillar panel | 65563-35010 · 65563-35020 |
| 65564 | Left lower side panel rear end pillar panel | 65564-35010 · 65564-35020 |
| 65571 | Right front side panel frame | 65571-35010 · 65572-35010 |
| 65572 | Left front side panel frame | 65571-35010 · 65572-35010 |
| 65579B | Side panel frame bracket | 65579-35010 |
| 65593A | Right side panel rear end column inner panel | 65593-35020 · 65593-35030 · 65593-35040 |
| 65594A | Left side panel rear end column inner panel | 65594-35020 · 65594-35030 · 65594-35040 |
| 65600 | Left rear body side panel assembly | 65600-04210 · 65600-04220 · 65600-04250 · 65600-04310 · 65600-04320 · 65600-35450 · 65600-35460 · 65600-35480 · 65600-35520 · 65600-35540 · 65600-35550 · 65600-35590 · 65600-35600 · 65600-35610 · 65600-35620 · 65600-35630 · 65600-35640 · 65600-35660 · 65600-35680 · 65600-35690 · 65600-35700 · 65600-35710 · 65600-35720 · 65600-35730 · 65600-35740 · 65600-35870 · 65600-3D020 · 65600-3D080 |
| 65631A | Right rear wheel house front panel | 65631-89113 |
| 65632A | Left rear wheel house front panel | 65632-89112 |
| 65635A | Right rear wheel housing panel | 65635-35010 · 65635-35020 |
| 65636A | Left rear wheel housing panel | 65636-35010 · 65636-35020 |
| 65637 | Right rear wheel house lining | 65637-35020 · 65637-35030 · 65637-35040 · 65637-35050 · 65637-35060 |
| 65638 | Left rear wheel house lining | 65638-35020 · 65638-35030 · 65638-35040 · 65638-35050 · 65638-35060 |
| 65655A | Front wheel housing seal bracket | 65655-89103 |
| 65655B | Front wheel housing seal bracket | 65655-89103 |
| 65671D | Right front side panel skirt bracket | 65671-35010 |
| 65672F | Left front side panel skirt bracket | 65672-35010 |
| 65677B | Right rear wheel house lining | 65677-35010 |
| 65678 | Left rear wheel house lining | 65678-35010 |
| 65695A | No. 2 wheel housing bracket | 65695-35020 |
| 65695B | No. 2 wheel housing bracket | 65695-35020 |
| 65816A | Right rear body side panel | 65816-35060 · 65816-35070 · 65816-35080 · 65816-35110 · 65816-35120 · 65816-35130 · 65816-35150 · 65816-35160 · 65816-35210 |
| 65817A | Left rear body side panel | 65817-35060 · 65817-35070 · 65817-35080 · 65817-35110 · 65817-35120 · 65817-35130 · 65817-35150 · 65817-35160 · 65817-35210 |
| 65826 | Right rear body inner panel | 65826-04090 · 65826-35060 · 65826-35090 · 65826-35120 · 65826-35240 · 65826-35250 · 65826-89111 · 65826-89114 |
| 65827 | Left rear body inner panel | 65827-04090 · 65827-35060 · 65827-35090 · 65827-35120 · 65827-35240 · 65827-35250 · 65827-89111 · 65827-89114 |
| 66301B | Rope hook sub-assembly | 66312-34010 |
| 66311 | rope hook | 66311-89109 |
