Toyota HILUX 后车身地板和翼子板 — Figure 6552

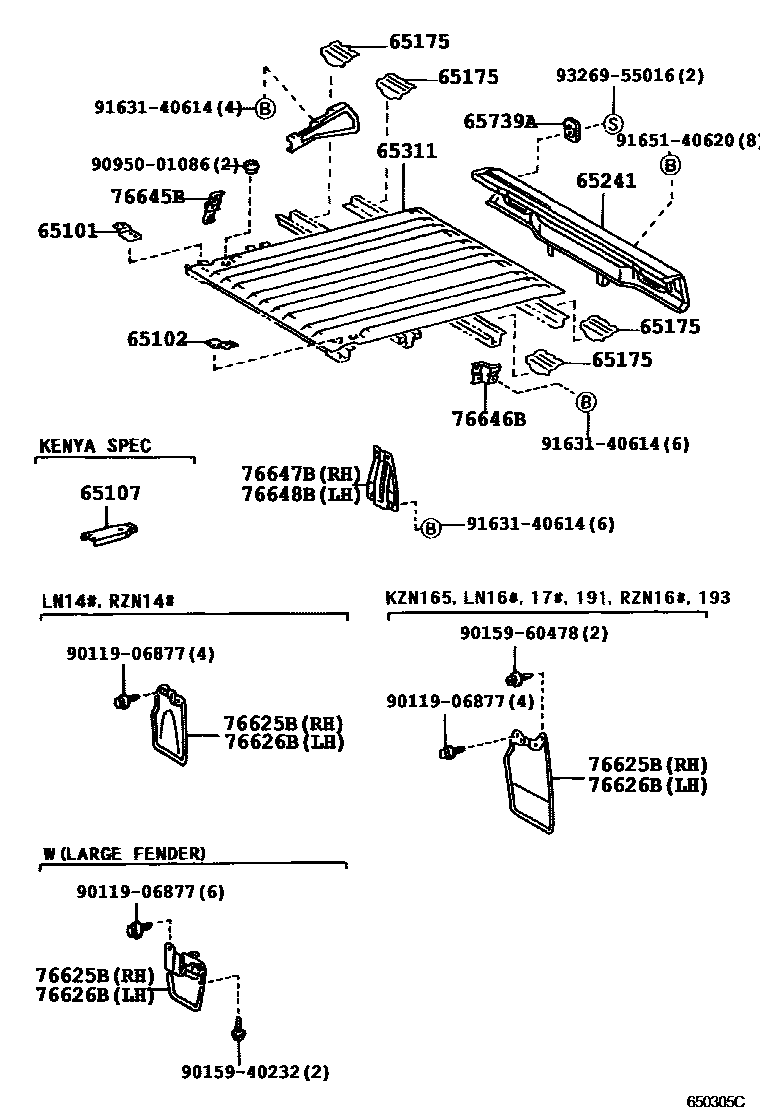

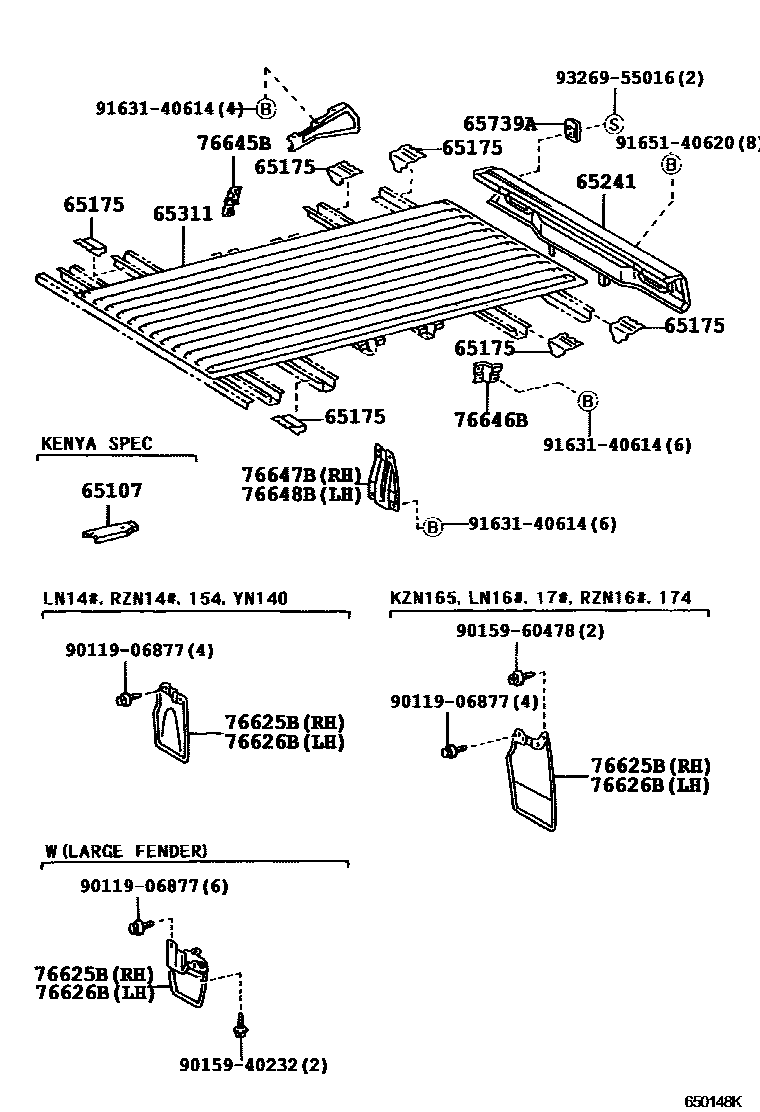

Toyota HILUX EPC diagram 6552, 后车身地板和翼子板, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65101 | No. 1 longitudinal beam mounting bracket sub-assembly | 65101-35010 |
| 65102 | No. 2 longitudinal beam mounting bracket sub-assembly | 65102-35010 |
| 65107 | No. 4 mounting bracket sub-assembly | 65107-89101 |
| 65175 | No. 3 beam corner brace | 65175-35010 |
| 65241 | rear cross member | 65240-35050 · 65240-35060 · 65240-35070 · 65240-35090 · 65240-35100 · 65240-35110 |
| 65311 | central floor | 65311-04050 · 65311-35050 · 65311-89128 · 65311-89129 |
| 65739A | Back door buffer block | 65739-04020 · 65739-89103 |
| 76625B | Right rear body fender | 76607-35050 · 76607-35060 · 76625-04120 · 76625-04130 · 76625-35140 · 76625-35150 |
| 76626B | Left rear body fender | 76608-35050 · 76608-35060 · 76626-04120 · 76626-04130 · 76626-35140 · 76626-35150 |
| 76645B | Right rear body fender bracket | 76645-35020 |
| 76646B | Left rear body fender bracket | 76646-35010 |
| 76647B | Right rear body fender bracket | 76647-35050 |
| 76648B | Left rear body fender bracket | 76648-35040 |
