Toyota HILUX 天窗板和背板 — Figure 6153

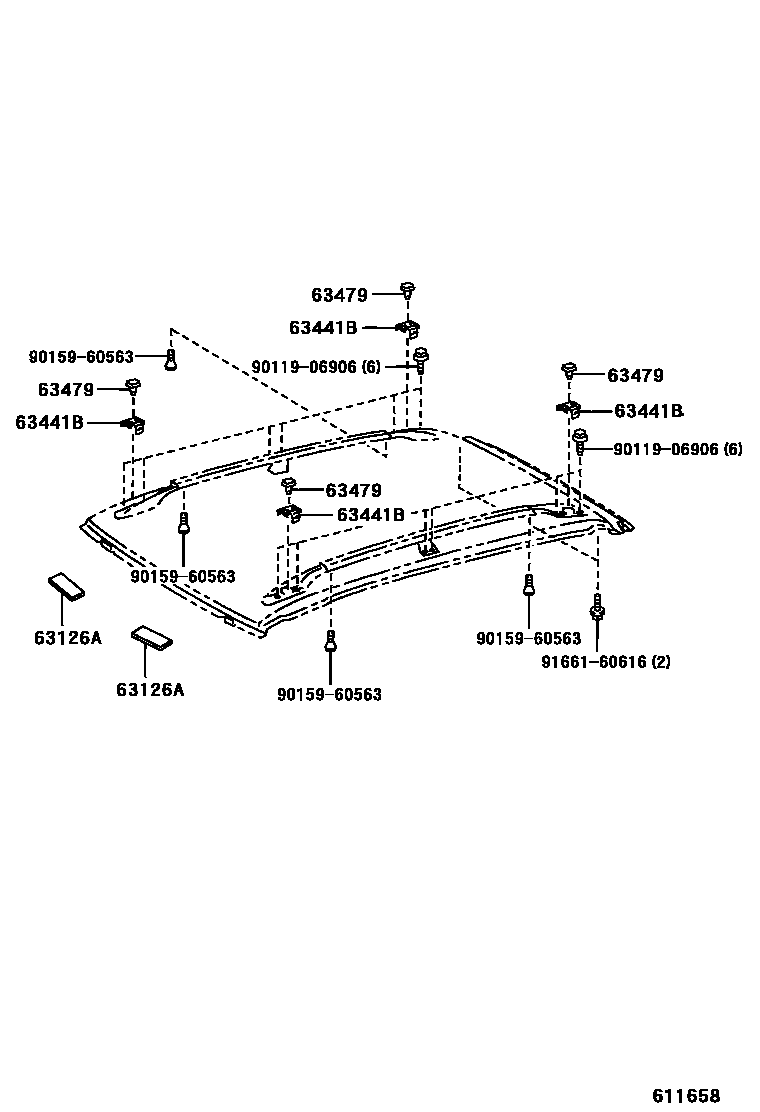

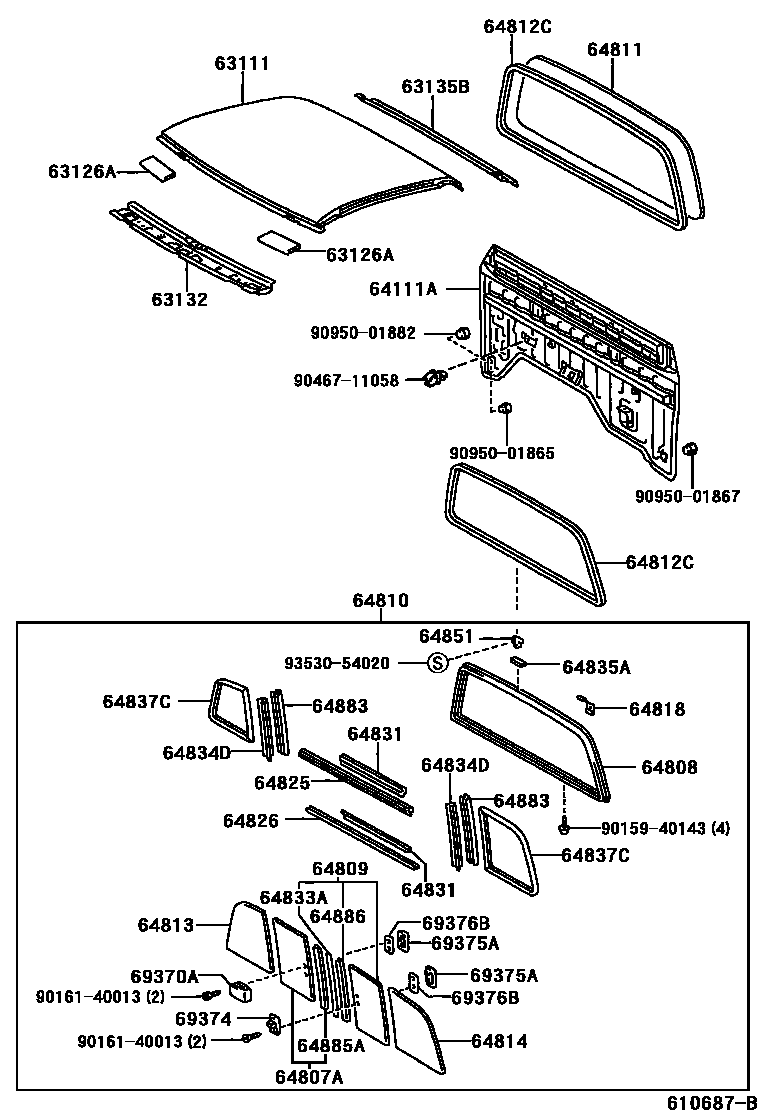

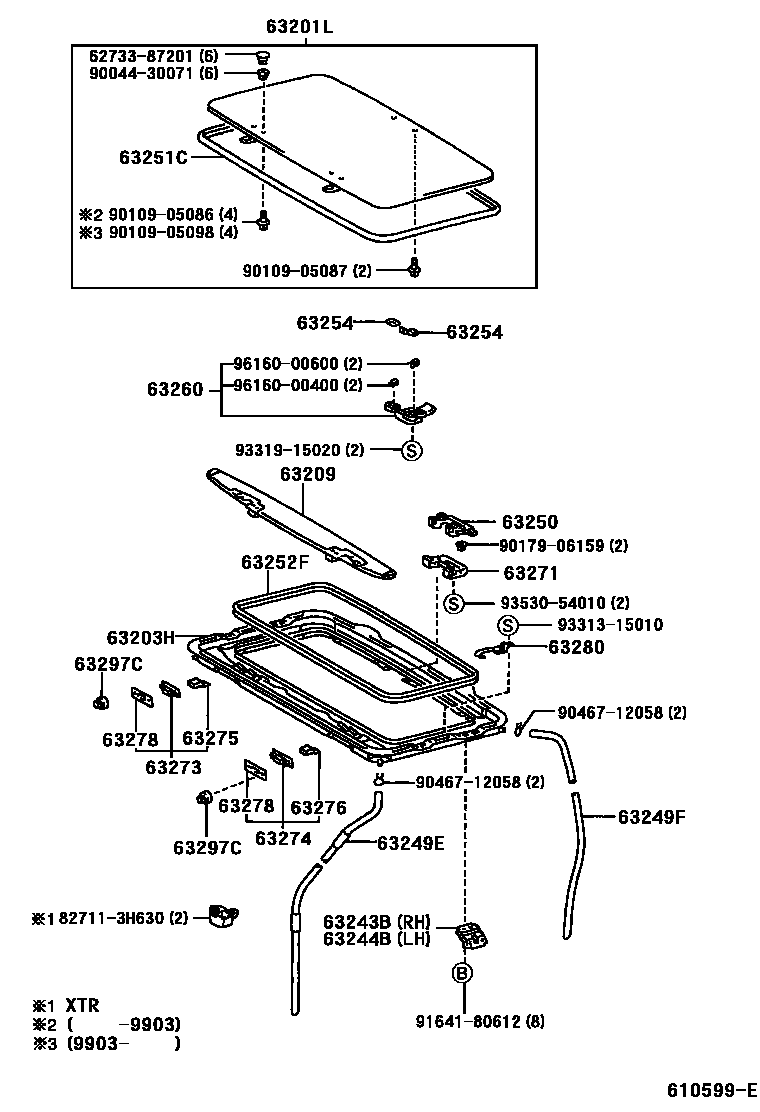

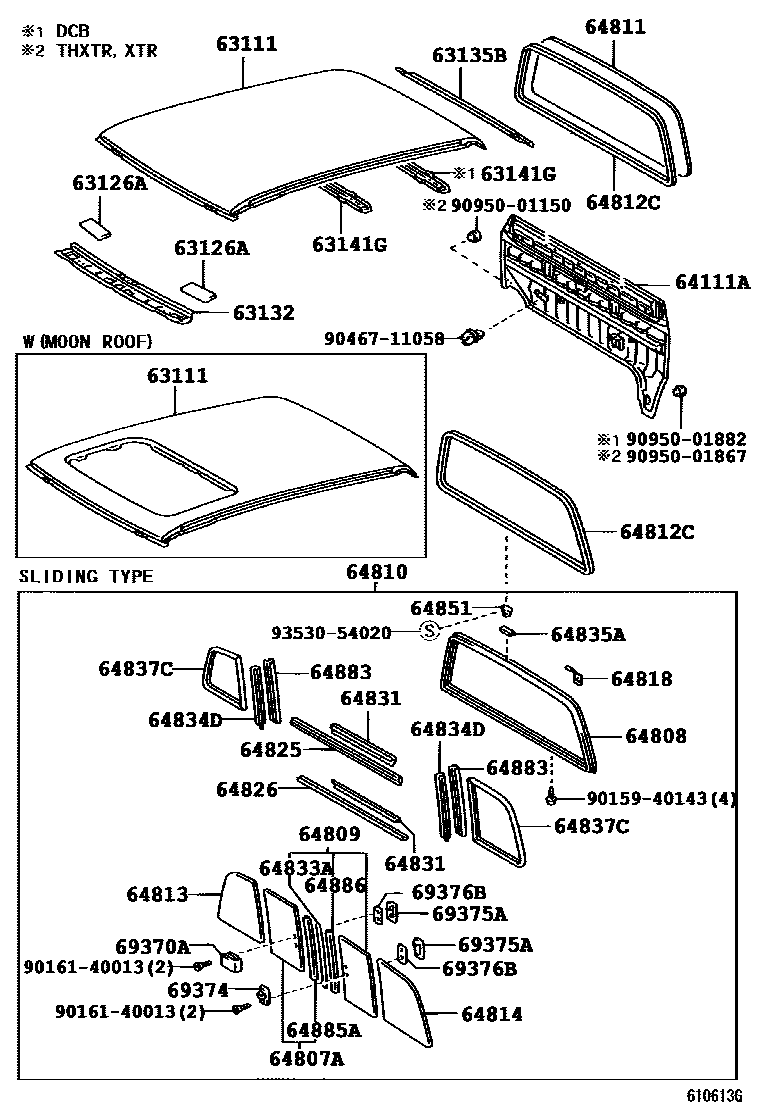

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 4 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63111 | roof panel | 63111-35150 · 63111-35190 · 63111-35200 · 63111-35220 · 63111-35240 |
| 63126A | Windshield roof shock absorber | 63126-04030 · 63126-35030 |
| 63132 | Windshield inner roof panel | 63132-35030 |
| 63135B | Upper panel inside the back window | 63135-04040 · 63135-35070 · 63135-35090 |
| 63141G | No. 1 roof panel reinforcement | 63141-35030 |
| 63201L | Removable roof glass sub-assembly | 63201-35050 · 63201-35051 · 63201-35060 · 63201-35061 |
| 63203H | Removable roof rack sub-assembly | 63203-35030 |
| 63209 | Roof deflector sub-assembly | 63209-89102 |
| 63243B | Removable roof rack right side mounting bracket | 63243-35030 · 63243-35040 |
| 63244B | Removable roof rack left mounting bracket | 63243-35040 · 63244-35020 |
| 63249E | Sliding skylight drain hose | 63249-35080 |
| 63249F | Sliding skylight drain hose | 63249-35090 · 63249-35100 |
| 63250 | Removable roof lock base assembly | 63250-17011 |
| 63251C | Removable roof seal | 63251-35040 |
| 63252F | Removable inner roof seal | 63252-35020 · 63252-35021 |
| 63254 | Removable roof glass inner rear mounting bracket | 63254-89103 · 63254-89104 |
| 63273 | Removable roof right hinge housing | 63273-17040 |
| 63274 | Removable roof left hinge housing | 63274-17040 |
| 63275 | Removable roof right hinge mount | 63275-17010 |
| 63276 | Removable roof left hinge mount | 63276-17010 |
| 63278 | Removable roof hinge housing seal | 63278-12010 |
| 63280 | Removable roof left auxiliary hook assembly | 63280-89101 |
| 63297C | Removable roof hinge housing bolts | 63297-12010 |
| 63441B | No. 1 roof rack bracket plate | 63441-31020 |
| 63479 | Roof rack fixings | 63479-31010 |
| 64111A | backplane | 64101-35050 · 64101-35060 · 64101-35080 · 64101-35100 · 64101-35120 · 64101-35130 · 64101-35150 |
| 64807A | Sliding glass sub-assembly on the right side of the back window | 64807-35010 |
| 64808 | Rear window sliding glass channel sub-assembly | 64808-35010 |
| 64809 | Rear window left sliding glass sub-assembly | 64809-35010 |
| 64810 | Rear window assembly | 64810-35010 |
| 64811 | back window glass | 64811-04040 · 64811-04050 · 64811-35010 · 64811-35030 · 64811-35031 |
| 64812C | Back window glass seal strip | 64812-04050 · 64812-35030 · 64812-35040 |
| 64813 | Back window right corner glass | 64813-35010 |
| 64814 | Back window left corner glass | 64814-35010 |
| 64818 | Back window glass spacer | 64818-89101 |
| 64825 | Rear window lift chute | 64825-35030 |
| 64826 | Lift chute under rear window | 64826-35010 |
| 64831 | Back window glass seal strip | 64831-35010 |
| 64833A | Center sealing strip of rear window trough | 64833-89114 |
| 64834D | Rear window sliding glass seal | 64834-89101 |
| 64835A | Center sealing strip of back window glass | 64835-89101 |
| 64837C | Back window corner glass seal strip | 64837-35010 |
| 64851 | Rear window sliding glass stop | 64851-89103 |
| 64883 | back window frame | 64881-35010 |
| 64885A | Rear window right glass slot | 64885-35010 |
| 64886 | Rear window left glass slot | 64886-35010 |
| 69370A | Rear window lock assembly | 69370-35010 |
| 69374 | Back window latch | 69374-89103 |
| 69375A | Rear window lock fastener | 69375-89103 |
| 69376B | Rear window lock seal | 69376-89103 |
