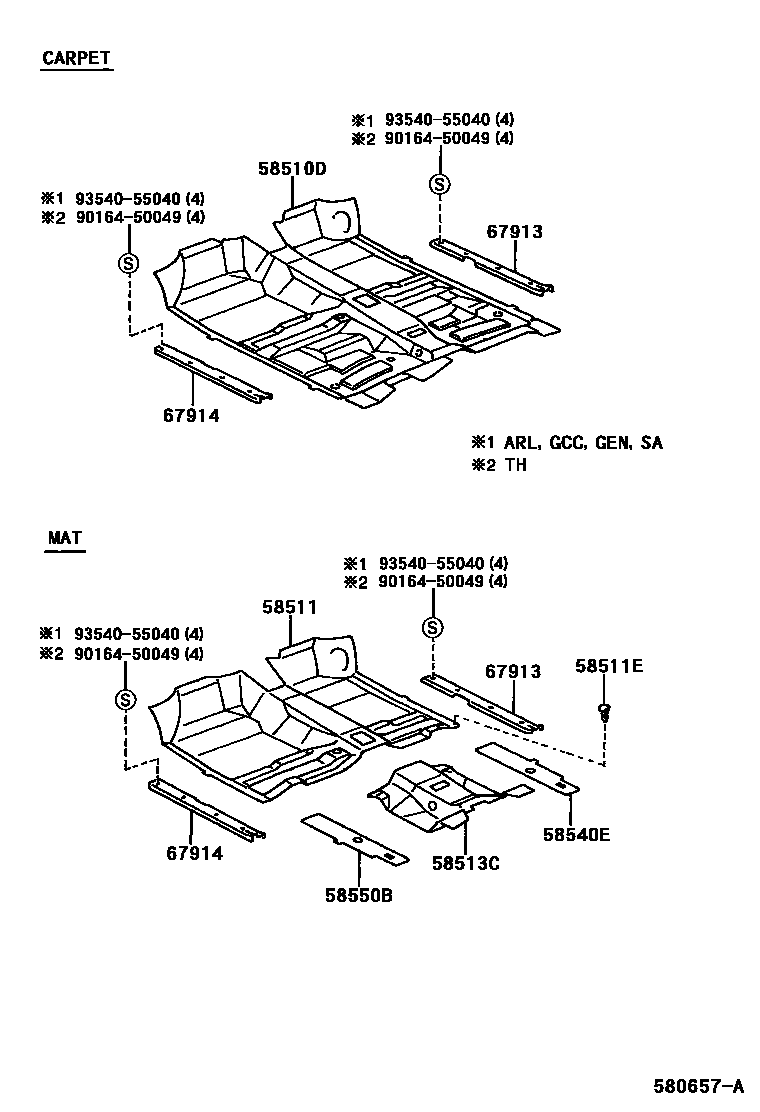

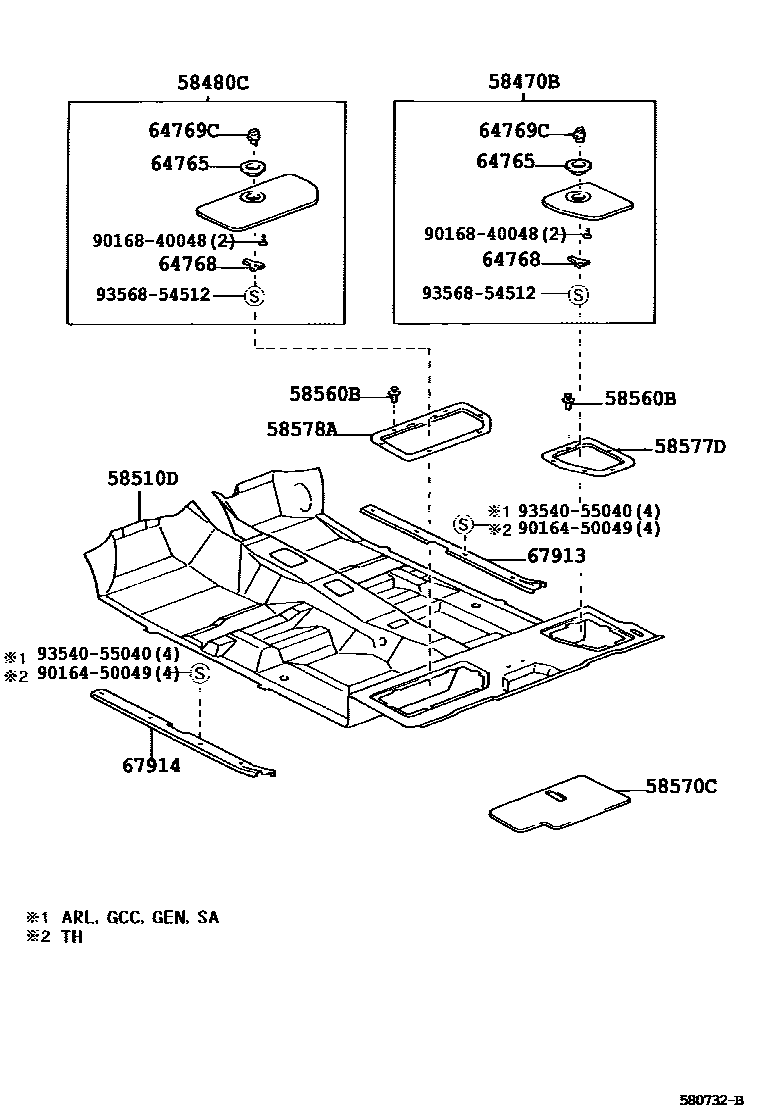

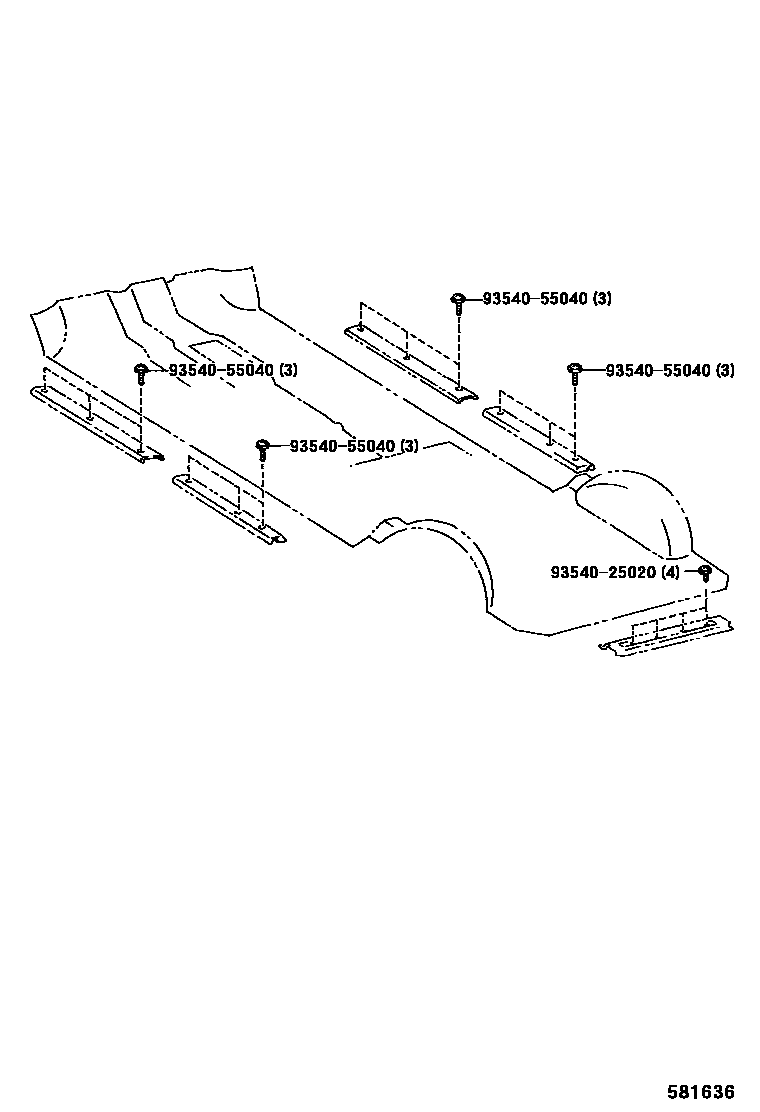

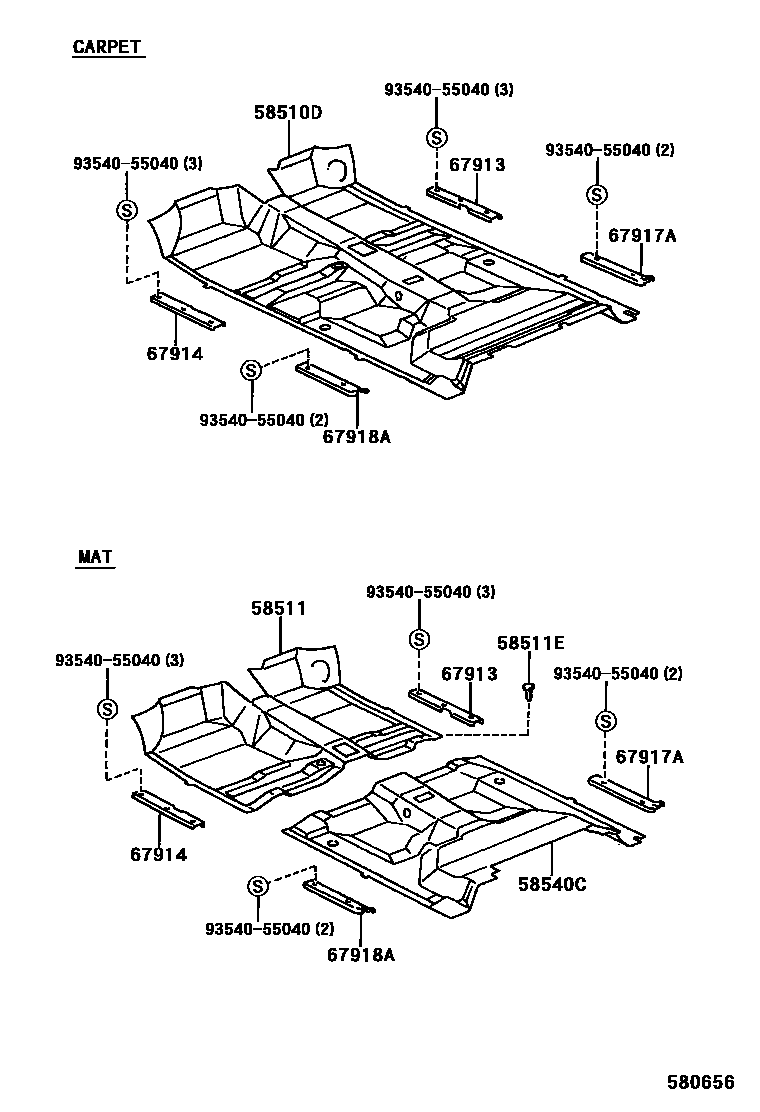

Toyota HILUX 地板垫和消声垫 — Figure 5854
Toyota HILUX EPC diagram 5854, 地板垫和消声垫, with 4 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58511 | front floor mat | 58510-3D890 · 58510-3G060 |
| 58560B | Clip (for rear carpet) | 90467-09087 |
| 58577D | Rear floor mat right support plate | 58577-35020 |
| 58578A | Rear floor mat left support plate | 58578-35020 |
| 64768 | Jack cover stop | 64768-89101 |
