Toyota HILUX 地板隔热垫 — Figure 5853

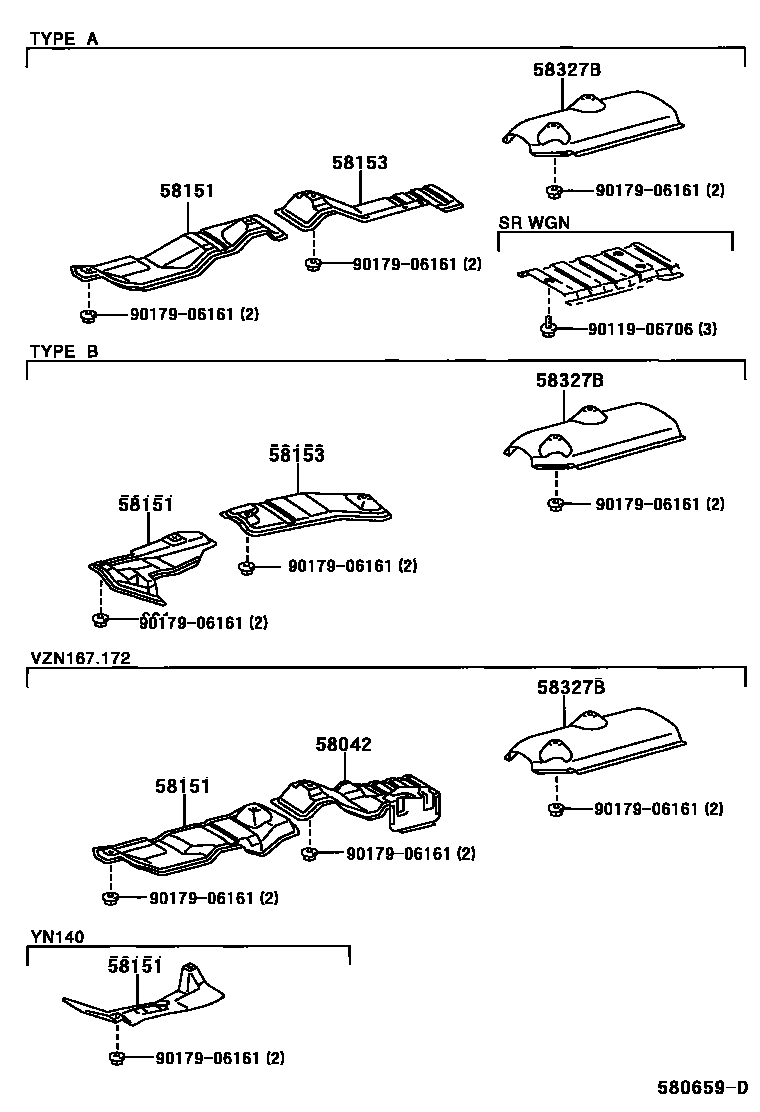

Toyota HILUX EPC diagram 5853, 地板隔热垫, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58042 | Front floor insulation pad No. 2 sub-assembly | 58042-35020 |
| 58151 | Front floor insulation mat No. 1 | 58151-04020 · 58151-35020 · 58151-35080 · 58151-35110 · 58151-89112 |
| 58153 | Front floor insulation mat No. 2 | 58153-35070 · 58153-35080 · 58153-35100 |
| 58327B | Main muffler heat insulation pad | 58327-35020 · 58327-35030 |
