Toyota HILUX 后地板和后地板梁 — Figure 5852

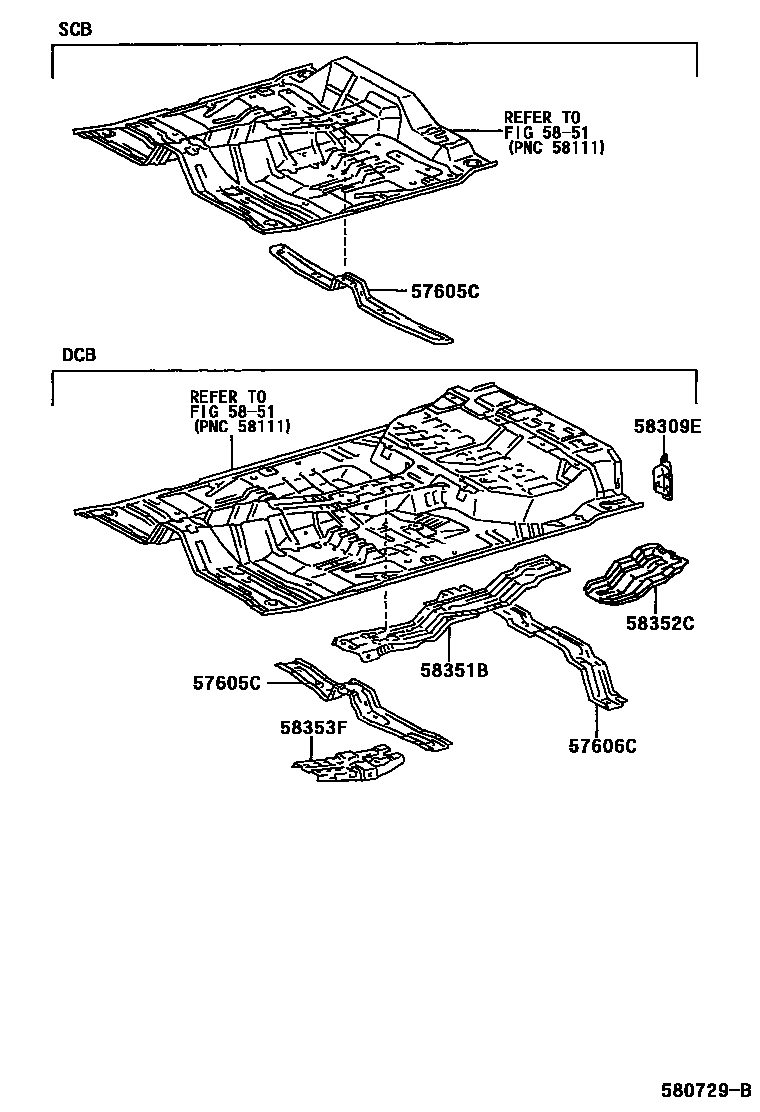

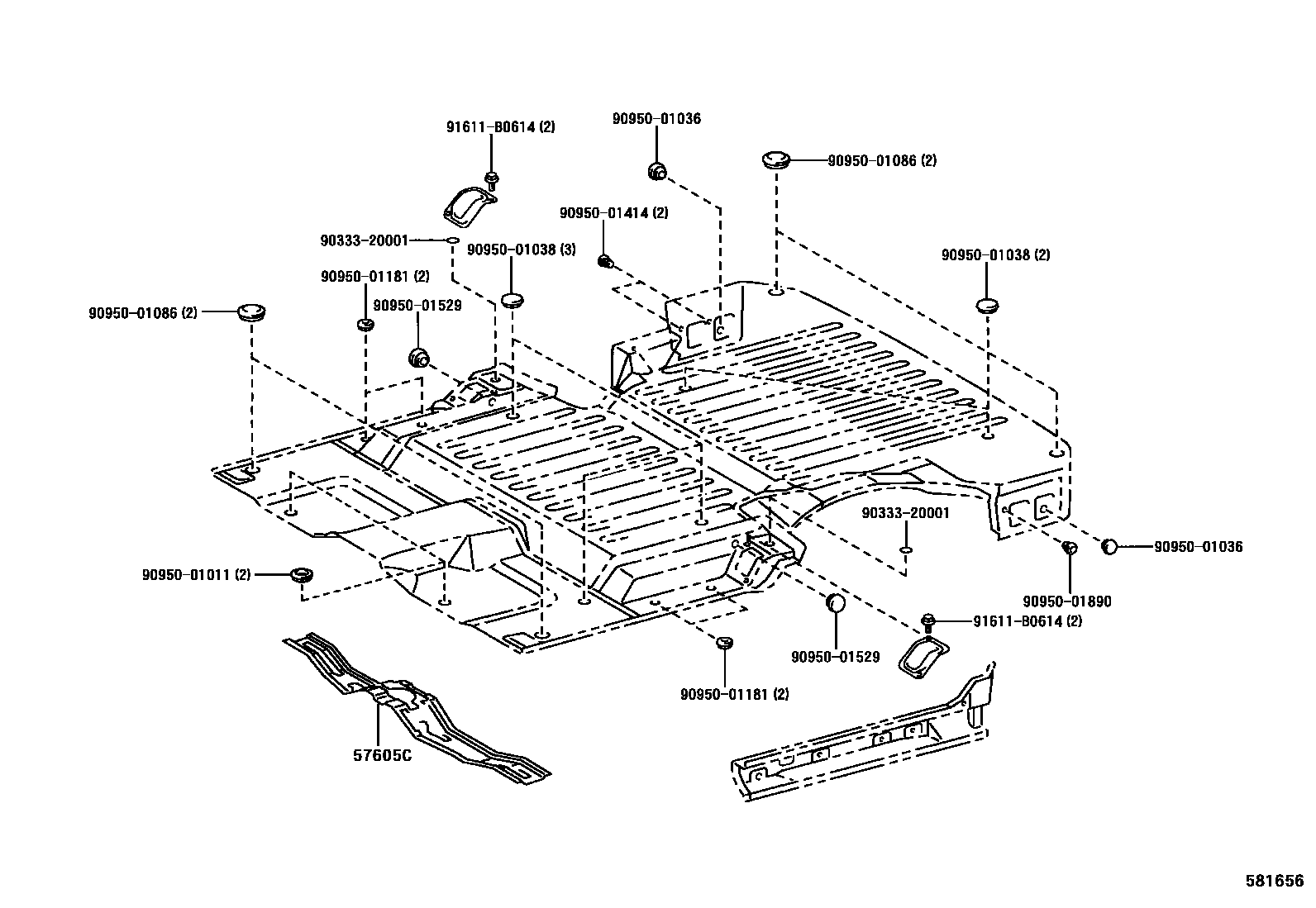

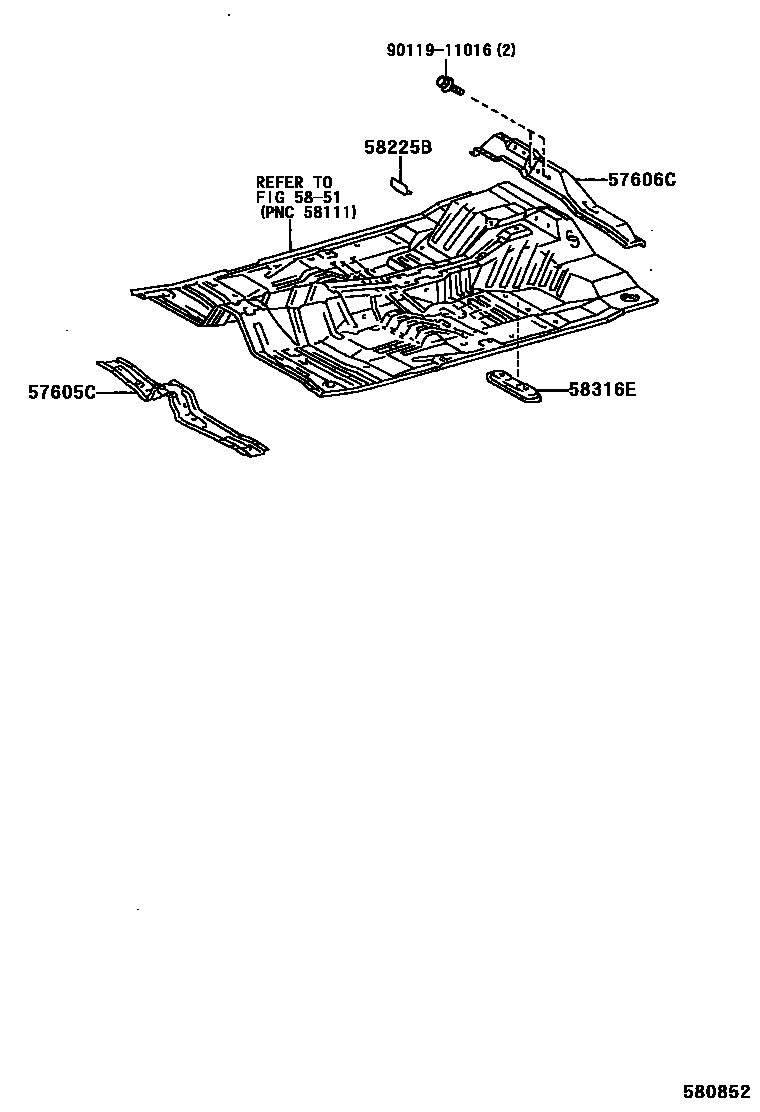

Toyota HILUX EPC diagram 5852, 后地板和后地板梁, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57605C | Rear floor cross member sub-assembly | 57605-35070 · 57605-35130 · 57605-35150 · 57605-35170 · 57605-35190 · 57605-35200 · 57605-35260 · 57605-35270 · 57605-35280 · 57605-35290 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-35020 · 57606-35050 · 57653-04010 |
| 58225B | Front floor lower right side panel | 58225-35020 |
| 58309E | Rear floor sub-assembly | 58309-35010 · 58309-35020 |
| 58316E | Rear seat assembly mounting bracket | 58316-35030 |
| 58351B | Rear floor right reinforcement | 58351-35020 |
| 58352C | Rear floor reinforcement No. 2 | 58352-35010 |
| 58353F | Rear floor reinforcement No. 3 | 58353-35010 |
