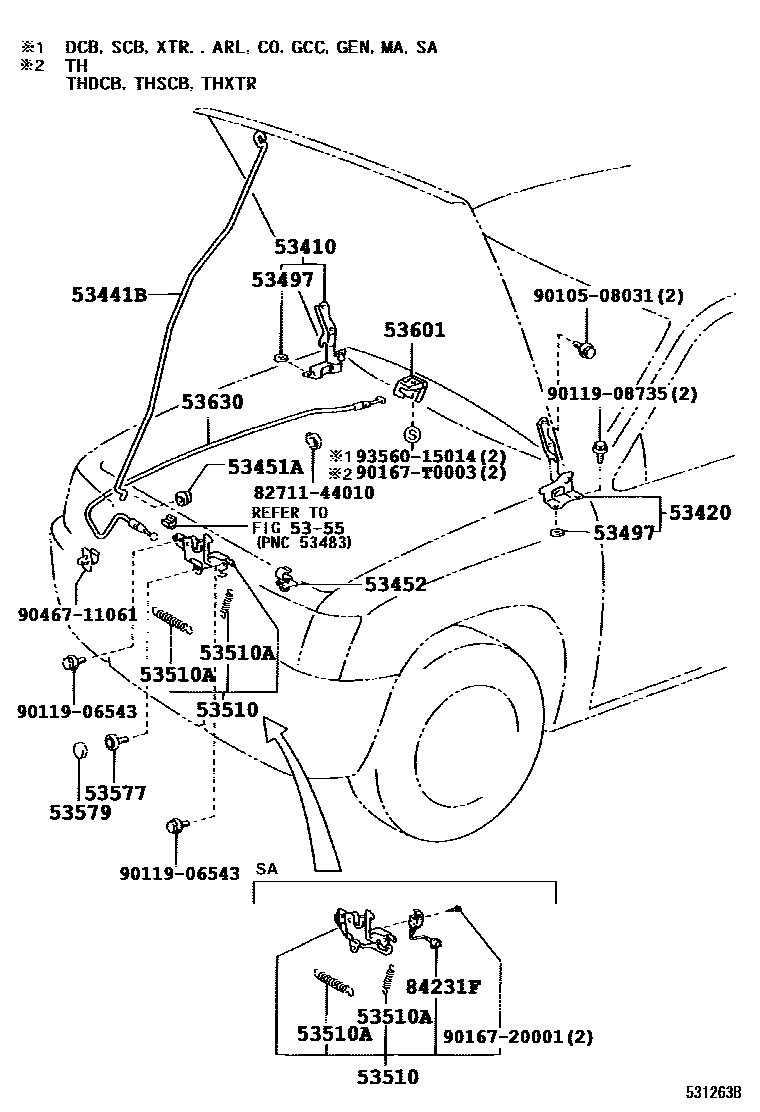

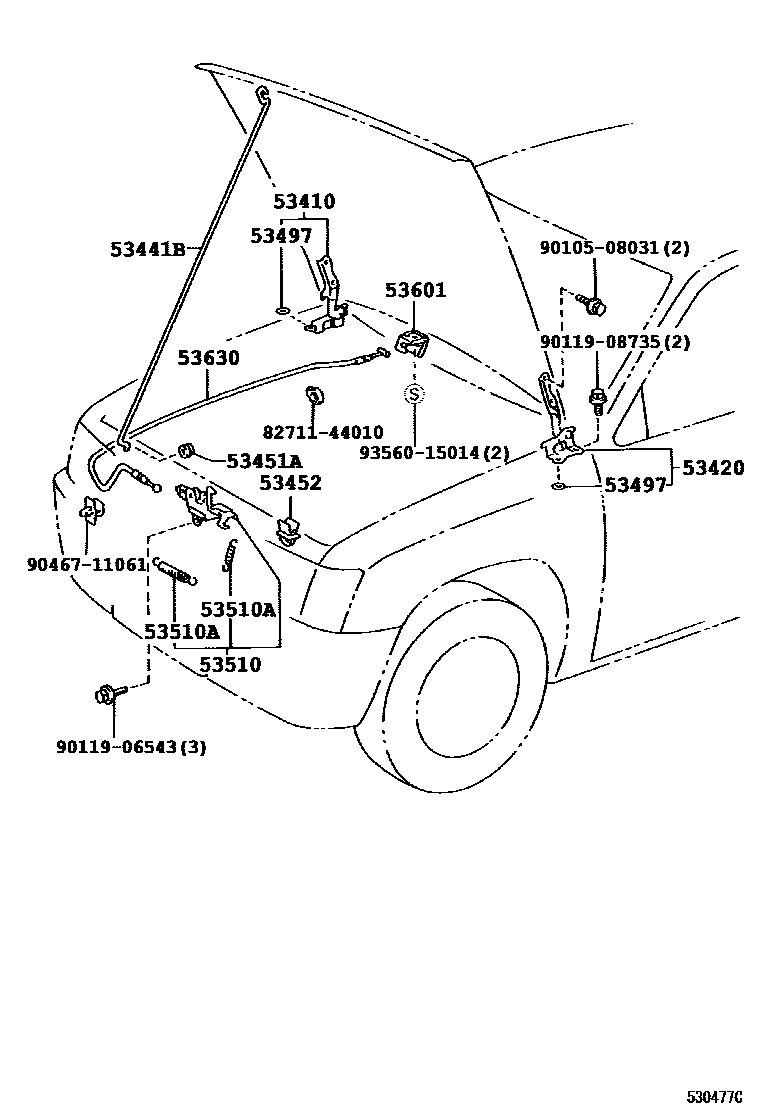

Toyota HILUX 发动机盖锁和铰链 — Figure 5354
Toyota HILUX EPC diagram 5354, 发动机盖锁和铰链, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-35030 |
| 53420 | Engine cover left hinge assembly | 53420-35030 |
| 53441B | Engine cover support rod | 53441-04050 · 53441-35030 · 53441-35031 · 53441-35050 |
| 53451A | Gasket (for engine cover support rod) | 90480-15012 · 90480-15027 |
| 53452 | Engine cover stay rod fixing | 53452-90351 · 53455-35010 |
| 53497 | No. 1 engine cover hinge gasket | 53497-35020 · 53497-35030 · 53497-35040 |
| 53510 | Engine cover lock assembly | 53510-35110 · 53510-35120 · 53510-35130 · 53510-35140 · 53510-35150 · 53510-35200 · 53510-35201 · 53510-35210 · 53510-35211 · 53510-35220 · 53510-35221 · 53510-35230 · 53510-35231 |
| 53510A | Tension spring (for hood lock) | 90506-07021 · 90506-20008 |
| 53577 | engine cover lock bolt | 53577-33010 |
| 53579 | Engine hood lock nut cover | 53579-50010 |
| 53630 | Engine hood lock control cable assembly | 53630-04030 · 53630-35040 · 53630-35050 |
| 84231F | door control light switch | 84231-35040 |
