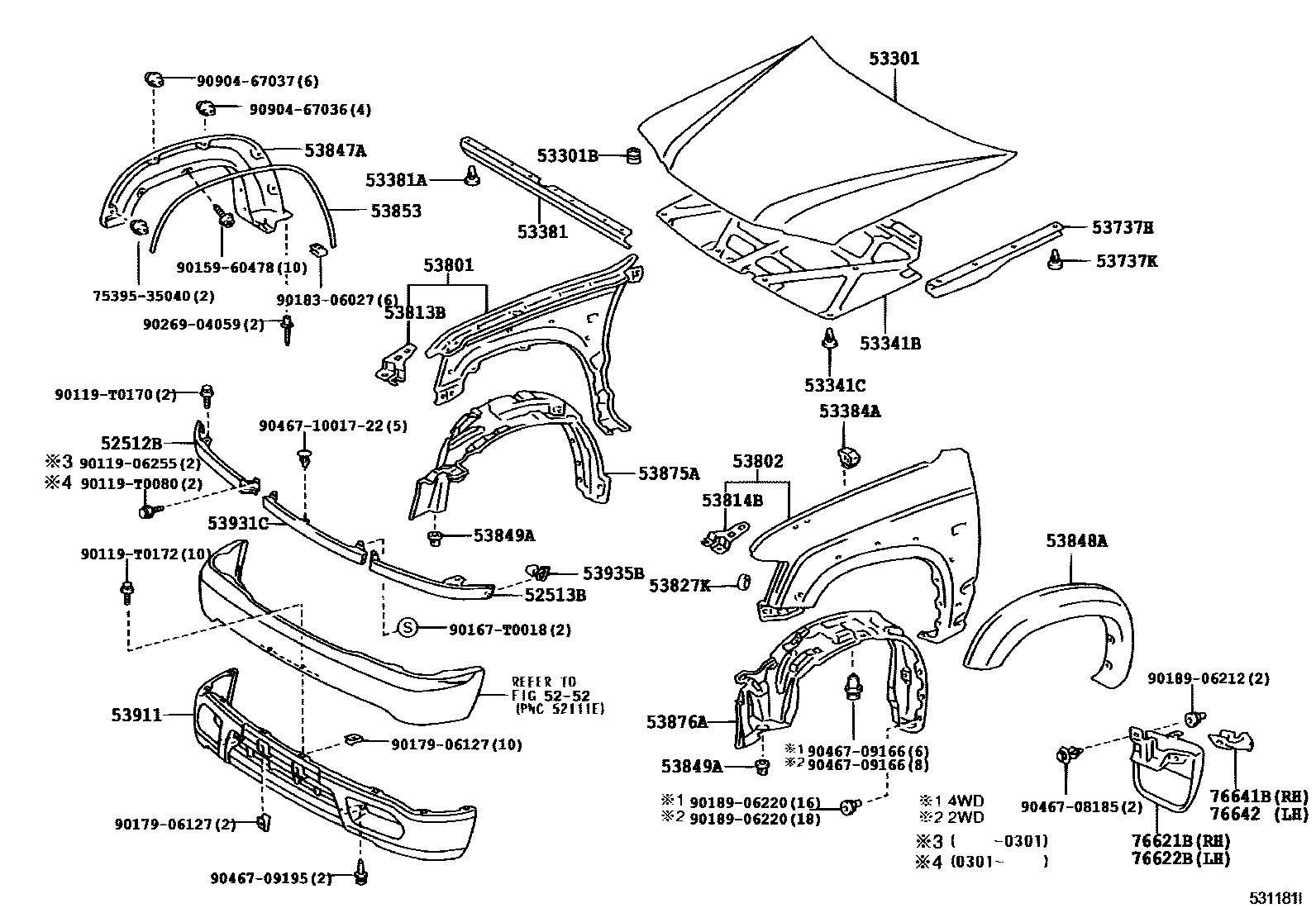

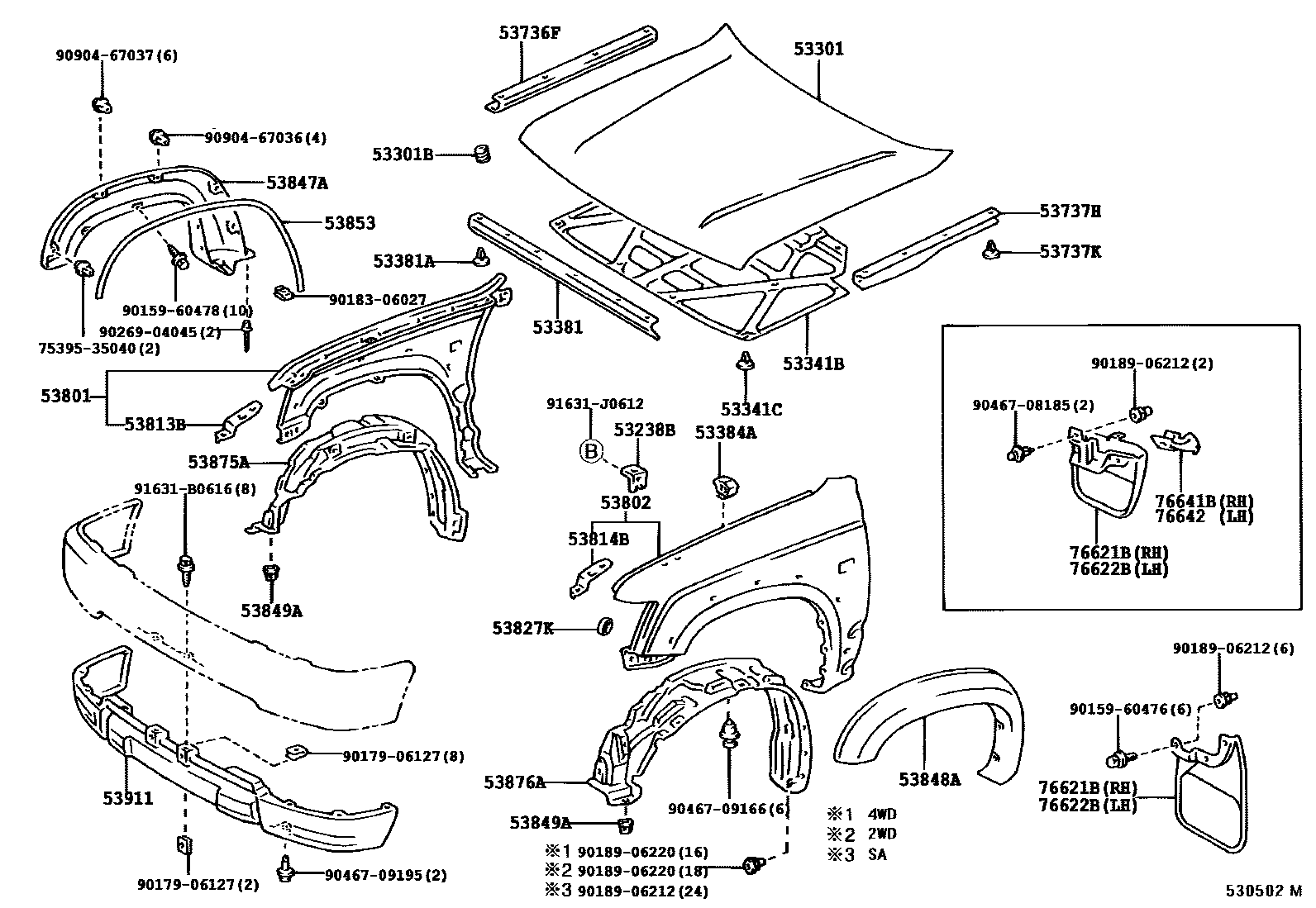

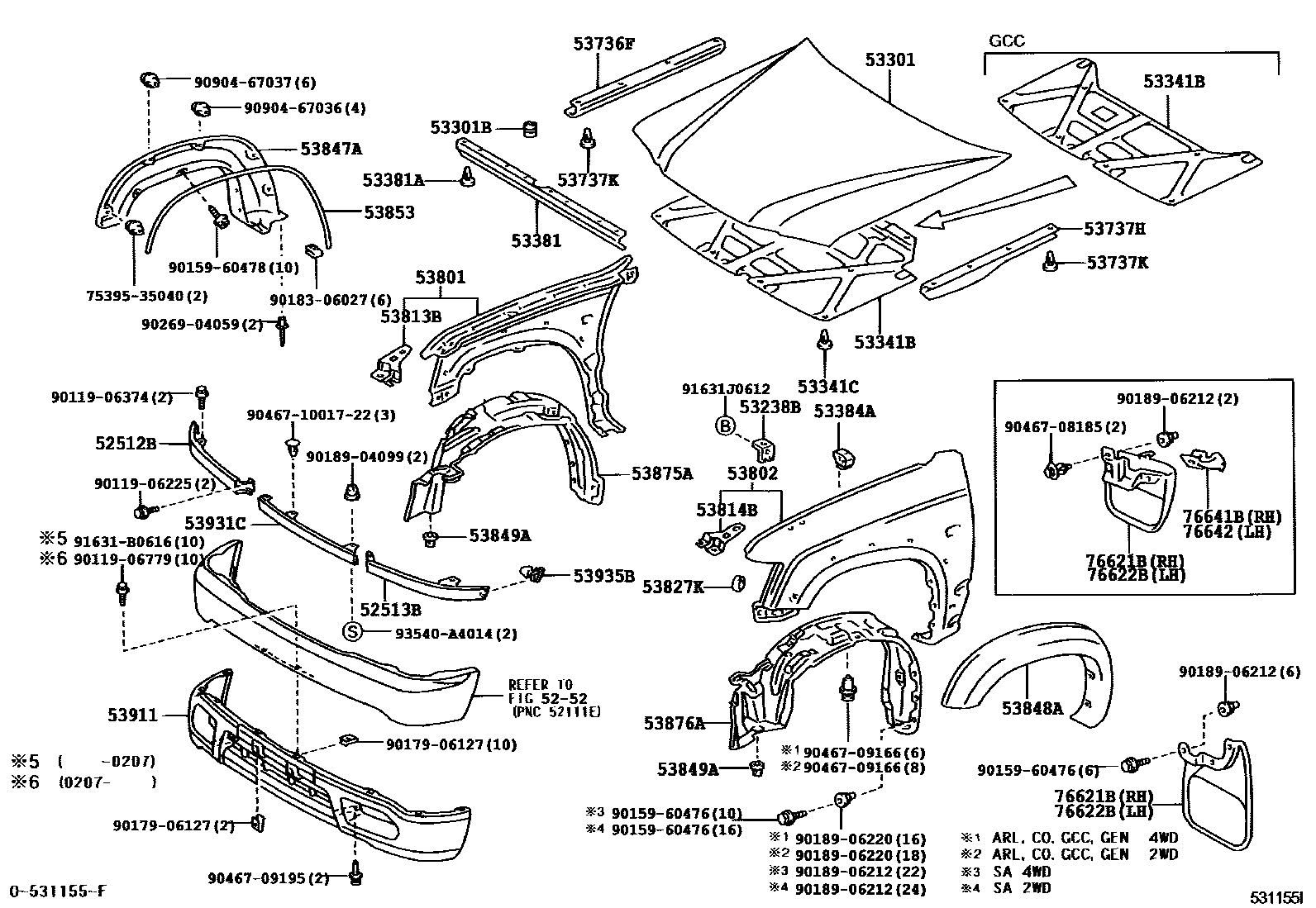

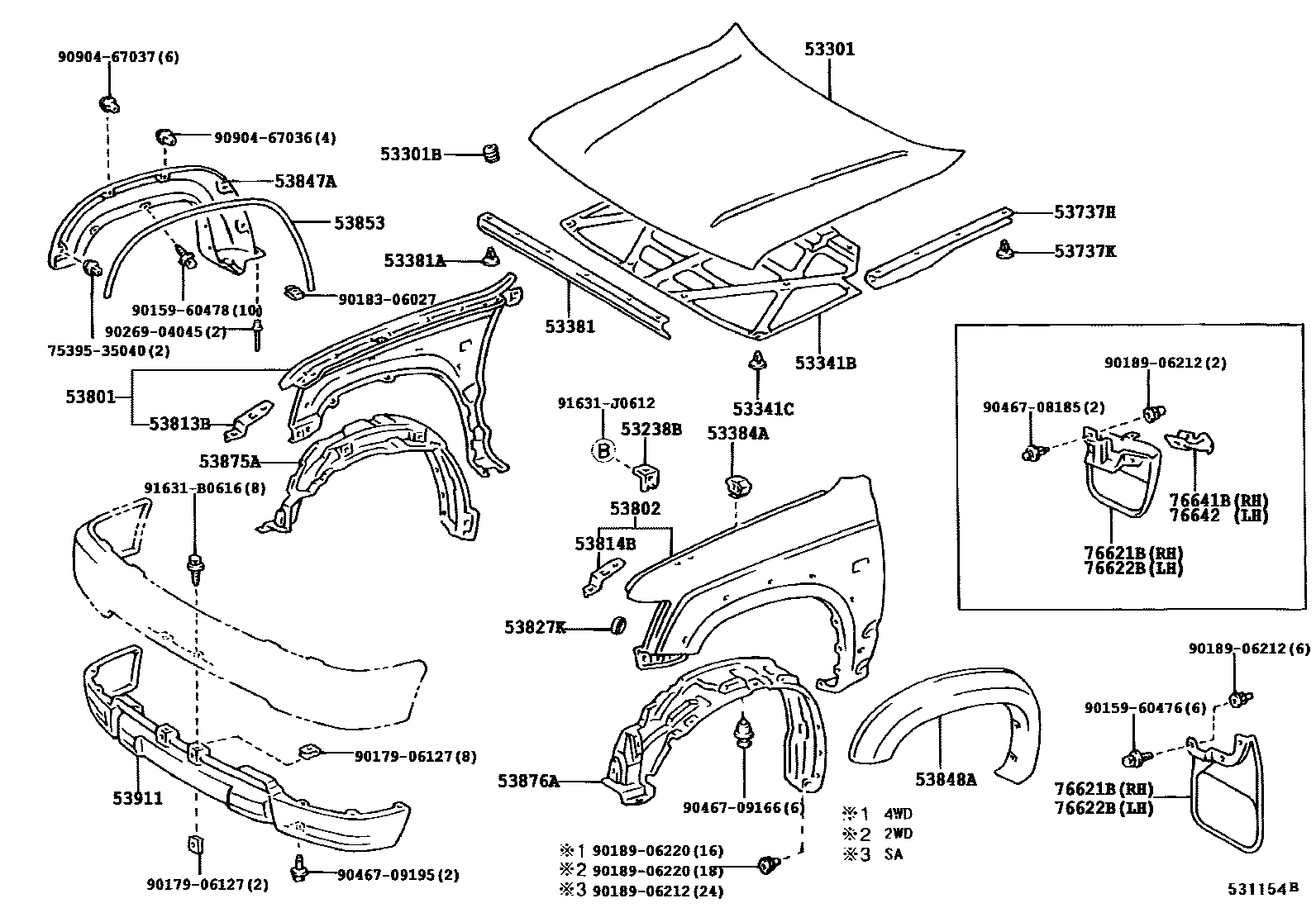

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52512B | Front bumper right curved filler | 52512-04010 · 52512-35070 |
| 52513B | Front bumper left curved filler | 52513-04010 · 52513-35070 |
| 53238B | Engine cover bumper mounting bracket | 53238-35010 |
| 53301 | Engine cover sub-assembly | 53301-35060 · 53301-35070 · 53301-35100 · 53301-35110 |
| 53301B | engine cover cushion | 90541-15004 · 90541-15010 |
| 53341B | engine cover gasket | 53341-04040 · 53341-35040 · 53341-35090 · 53341-35100 · 53341-35121 · 53341-YE030 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-09118 |
| 53381 | Engine cover to radiator bracket seal | 53381-35030 · 53381-35040 · 53381-35041 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53384A | fender to engine cover buffer block | 53384-35010 |
| 53736F | Right front fender fender seal | 53736-35020 |
| 53737H | Left front fender fender seal | 53737-04010 · 53737-35040 |
| 53737K | Clip (for front fender fender seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53801-35080 · 53801-35081 · 53801-35090 · 53801-35091 · 53801-35100 · 53801-35101 · 53801-35110 · 53801-35111 · 53801-35120 · 53801-35121 · 53801-35130 · 53801-35131 · 53801-35150 · 53801-35151 · 53801-35160 · 53801-35170 · 53801-35171 · 53801-35180 · 53801-35181 · 53801-35300 · 53801-35310 · 53801-35311 · 53801-35331 · 53801-35360 · 53801-35370 · 53801-35380 · 53801-35420 · 53801-35430 · 53801-35440 · 53801-35450 · 53801-35460 · 53801-35470 · 53801-35480 |
| 53802 | Left front fender sub-assembly | 53802-35180 · 53802-35181 · 53802-35190 · 53802-35191 · 53802-35200 · 53802-35201 · 53802-35230 · 53802-35231 · 53802-35240 · 53802-35241 · 53802-35260 · 53802-35270 · 53802-35271 · 53802-35280 · 53802-35281 · 53802-35290 · 53802-35291 · 53802-35320 · 53802-35321 · 53802-35440 · 53802-35441 · 53802-35470 · 53802-35480 · 53802-35490 · 53802-35510 · 53802-35520 · 53802-35530 · 53802-35540 · 53802-35550 · 53802-35570 · 53802-35580 |
| 53813B | Right front fender extension | 53813-35010 · 53813-35040 |
| 53814B | Left front fender extension | 53814-35010 · 53814-35040 |
| 53827K | Right front fender side panel protector | 53827-35010 · 53827-35011 |
| 53847A | Right front fender or wheel arch guard strip extension | 53087-35901 |
| 53848A | Left front fender or wheel arch guard strip extension | 53088-35901 |
| 53849A | front wheel cover | 53849-35010 |
| 53875A | Right front fender lining | 53875-04140 · 53875-35030 · 53875-35040 · 53875-35060 · 53875-35070 · 53875-35080 |
| 53876A | Left front fender lining | 53876-04140 · 53876-35020 · 53876-35030 · 53876-35050 · 53876-35060 · 53876-35070 |
| 53911 | front fender | 53911-04140 · 53911-04160 · 53911-35190 · 53911-35220 · 53911-35360 · 53911-35390 |
| 53931C | front board | 53931-04010 · 53931-35010 |
| 53935B | Front panel protector | 53935-35010 · 53936-35010 |
| 76621B | Right front body fender | 76603-35020 · 76621-04070 · 76621-35050 · 76621-35090 |
| 76622B | Left front body fender | 76604-35020 · 76622-04070 · 76622-35050 · 76622-35090 |
| 76641B | Right front fender fender bracket | 76641-35020 |
| 76642 | Left front fender fender bracket | 76642-35020 |
