Toyota HILUX radiator grille — Figure 5351

Toyota HILUX EPC diagram 5351, radiator grille, with 4 images and 4 PNC and OE references.

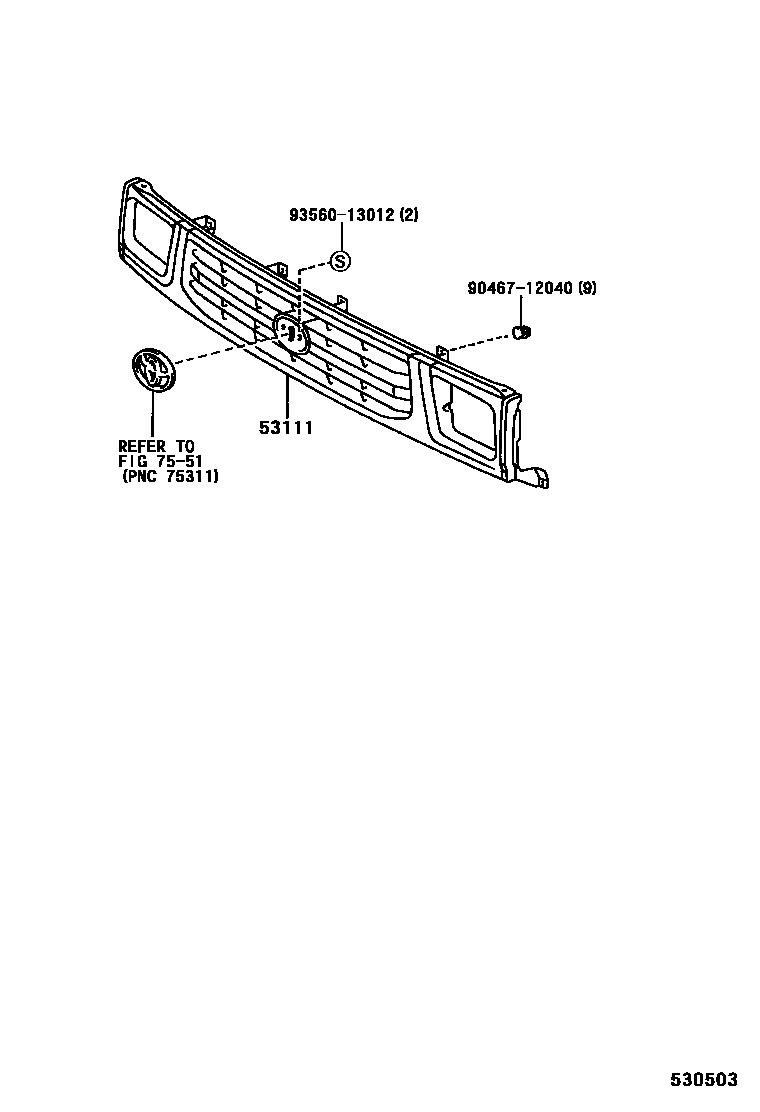

Toyota HILUX radiator grille EPC diagram — 530503
radiator grille — 530503 (199708 – 200203)

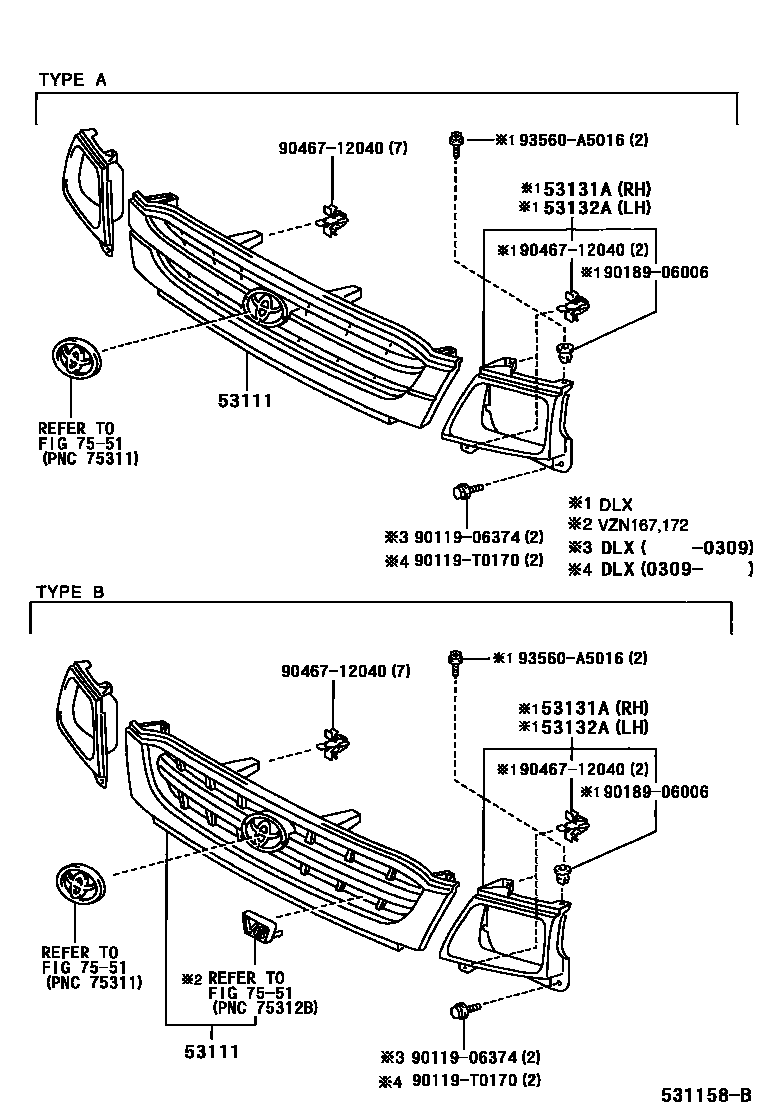

Toyota HILUX radiator grille EPC diagram — 531158B
radiator grille — 531158B (200108 – 999999)

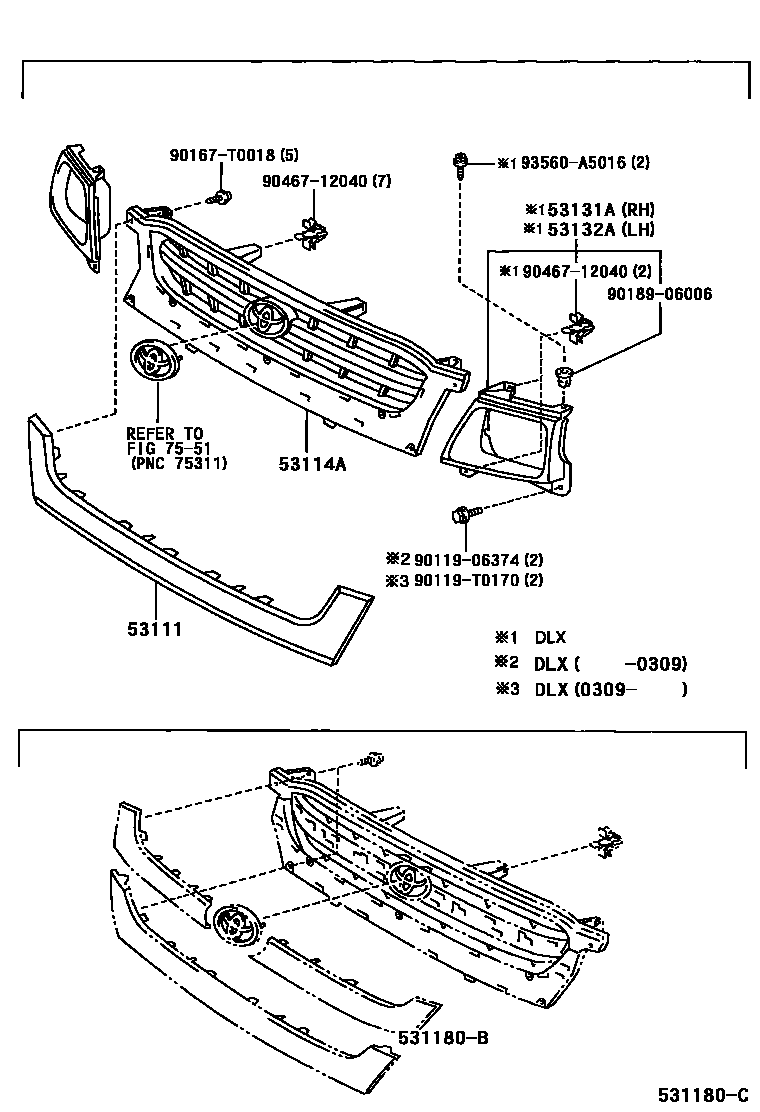

Toyota HILUX radiator grille EPC diagram — 531180C
radiator grille — 531180C (200109 – 999999)

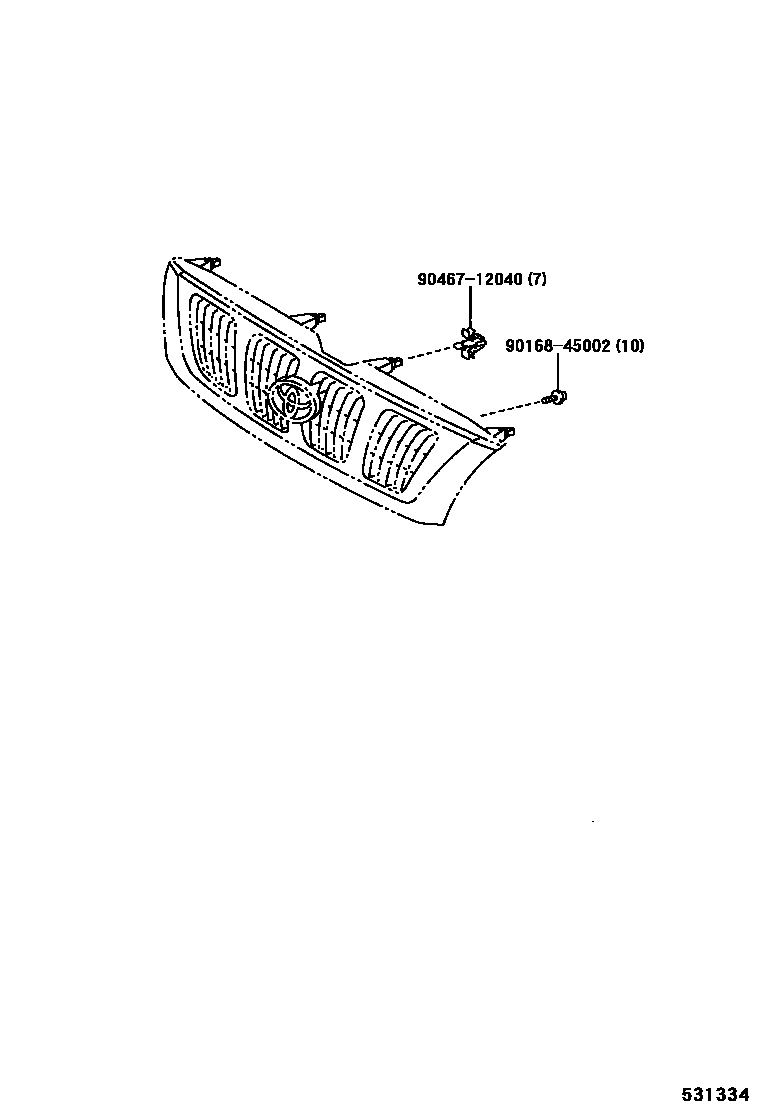

Toyota HILUX radiator grille EPC diagram — 531334
radiator grille — 531334 (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53101-35040 · 53101-35050 · 53111-04160 · 53111-04170 · 53111-04260 · 53111-04280 · 53111-35370 · 53111-35380 · 53111-35410 · 53111-35420 · 53111-35510 · 53111-35520 · 53111-35530 · 53111-35540 · 53111-35610
53114Ainner radiator grille53114-04060
53131ARight headlight lampshade53131-35150
53132ALeft headlight lampshade53132-35150
