Toyota HILUX 后保险杠及附件 — Figure 5253

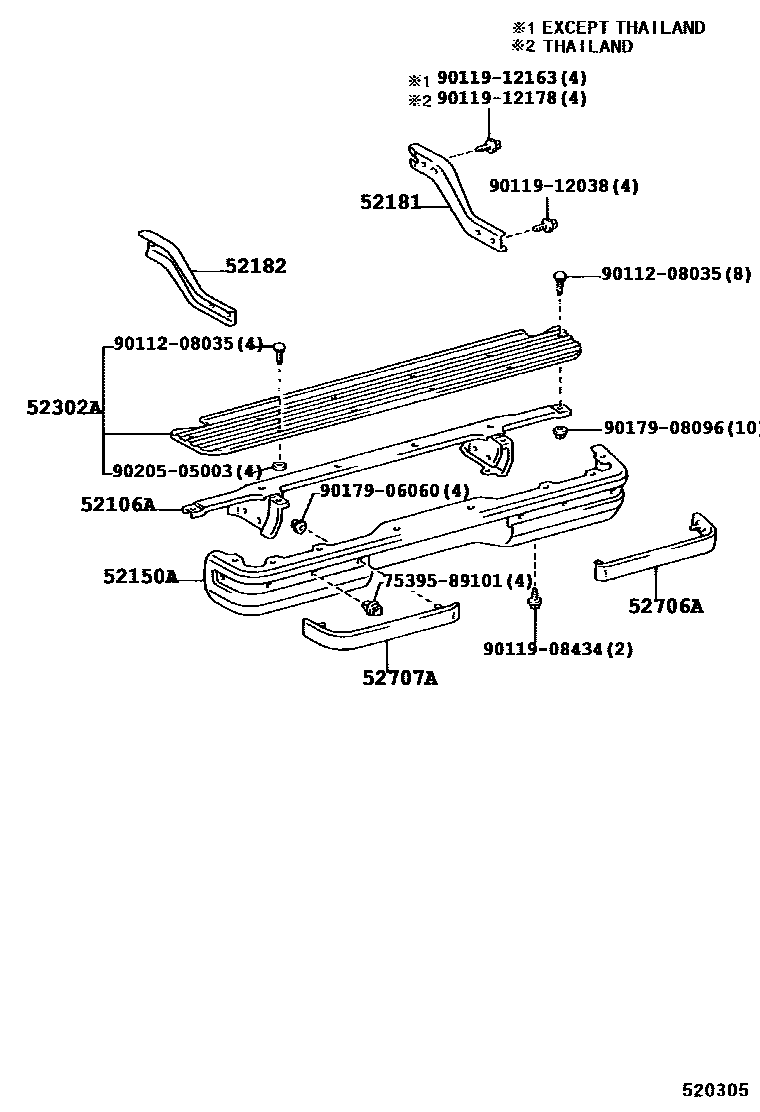

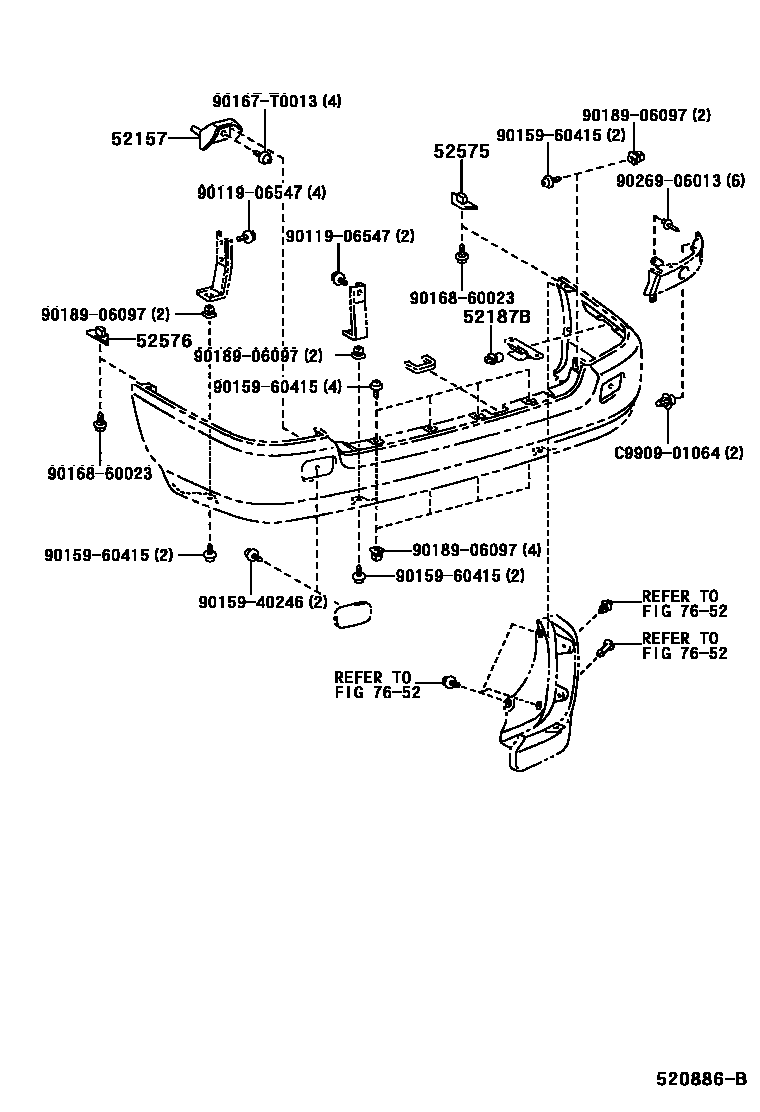

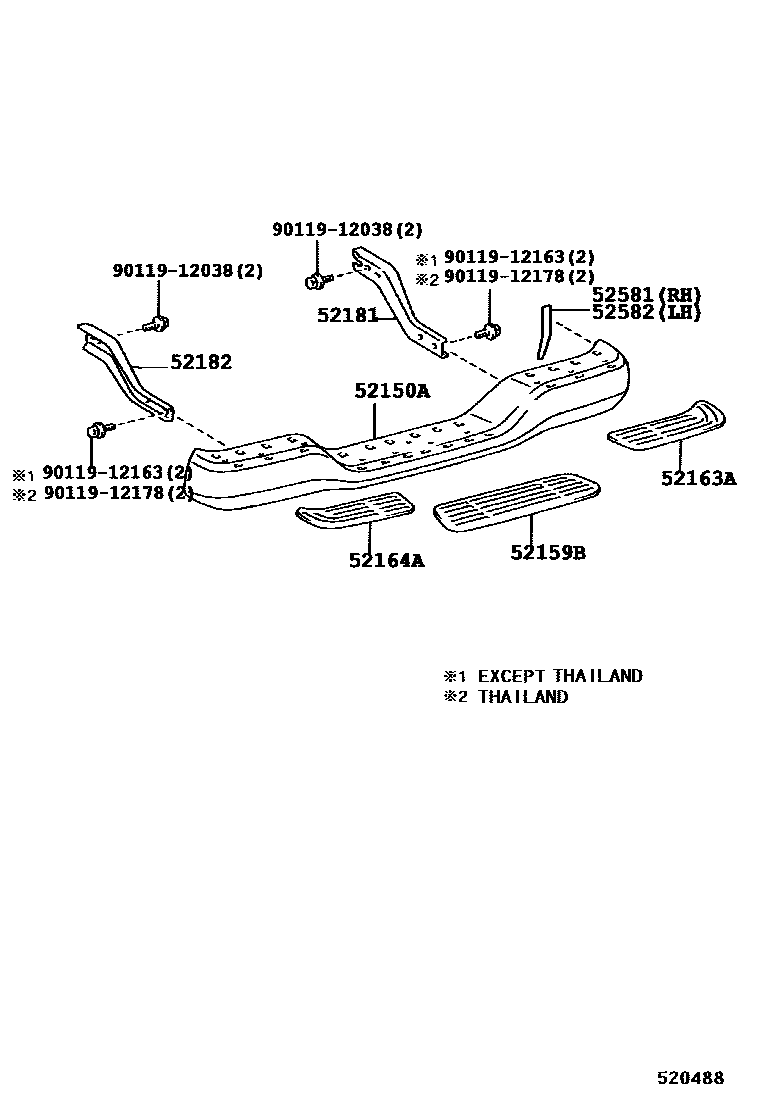

Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52106A | Rear bumper reinforcement sub-assembly | 52023-35010 |
| 52150A | Rear bumper assembly | 52105-04040 · 52105-04050 · 52105-04060 · 52105-35180 · 52105-35190 · 52105-35210 · 52105-35320 · 52105-89111 |
| 52157 | Rear bumper No. 2 side bracket | 52157-16110 |
| 52159B | rear bumper bezel | 52159-04010 · 52159-35030 |
| 52163A | Rear bumper right side fender | 52163-04010 · 52163-35030 |
| 52164A | Rear bumper left fender | 52164-04010 · 52164-35030 |
| 52181 | Rear bumper right arm | 52181-04010 · 52181-04020 · 52181-35040 · 52181-35050 · 52181-35060 |
| 52182 | Rear bumper left arm | 52182-04010 · 52182-04020 · 52182-35040 · 52182-35050 · 52182-35060 |
| 52187B | Rear bumper positioning guide rod | 52187-16070 |
| 52302A | Rear bumper running board sub-assembly | 52302-89101 |
| 52575 | Rear bumper right side fixing bracket | 52575-44010 |
| 52576 | Rear bumper left side fixing bracket | 52575-44010 |
| 52581 | Rear bumper right side protector | 52581-35010 |
| 52582 | Rear bumper left protector | 52582-35010 |
| 52706A | Rear bumper right side protective strip sub-assembly | 52706-89101 |
| 52707A | Rear bumper left protection strip sub-assembly | 52707-89101 |
