Toyota HILUX 前保险杠及附件 — Figure 5252

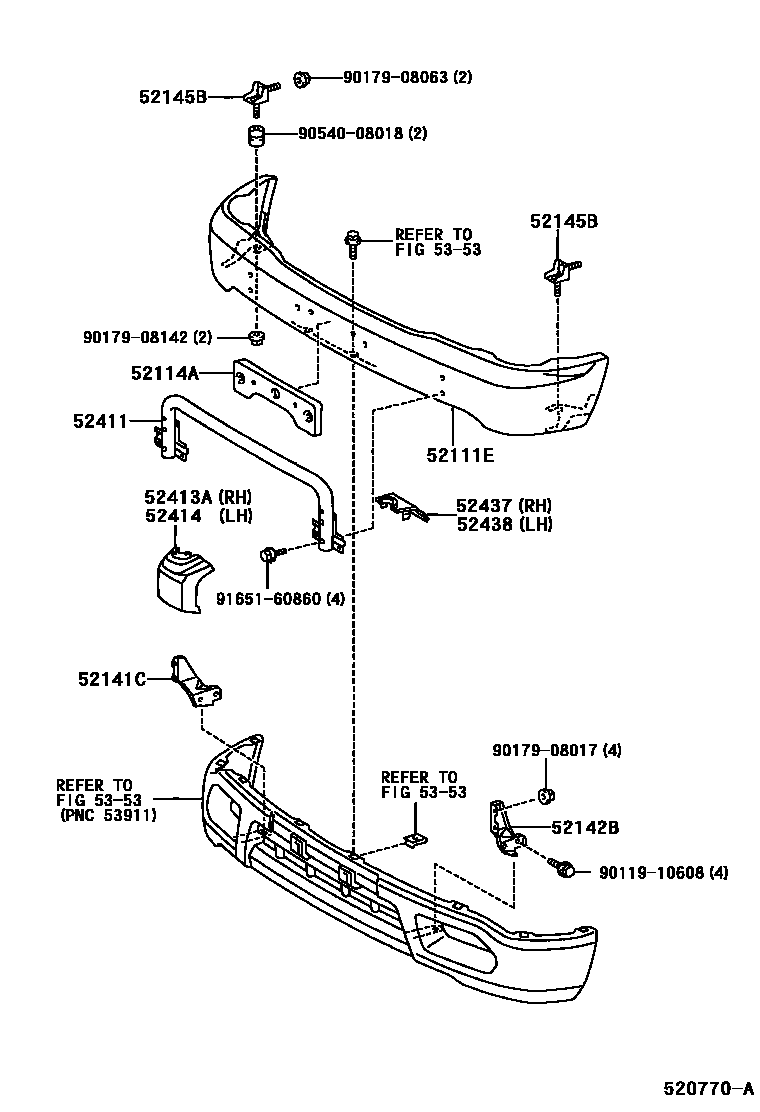

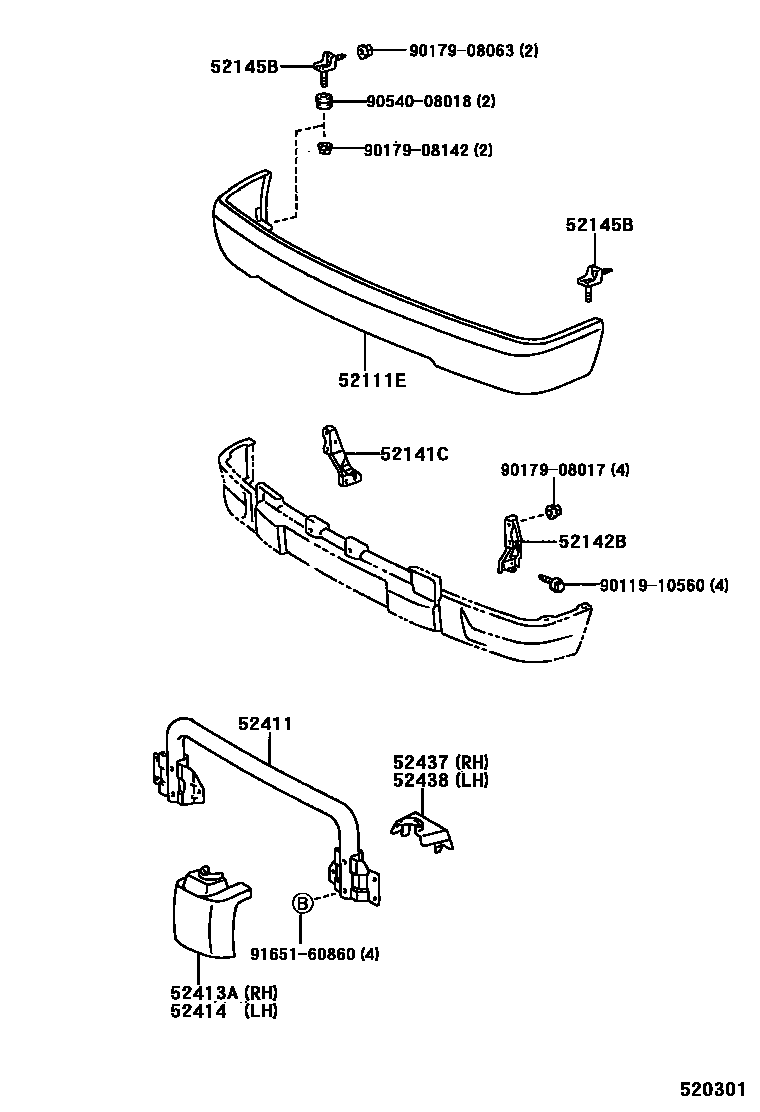

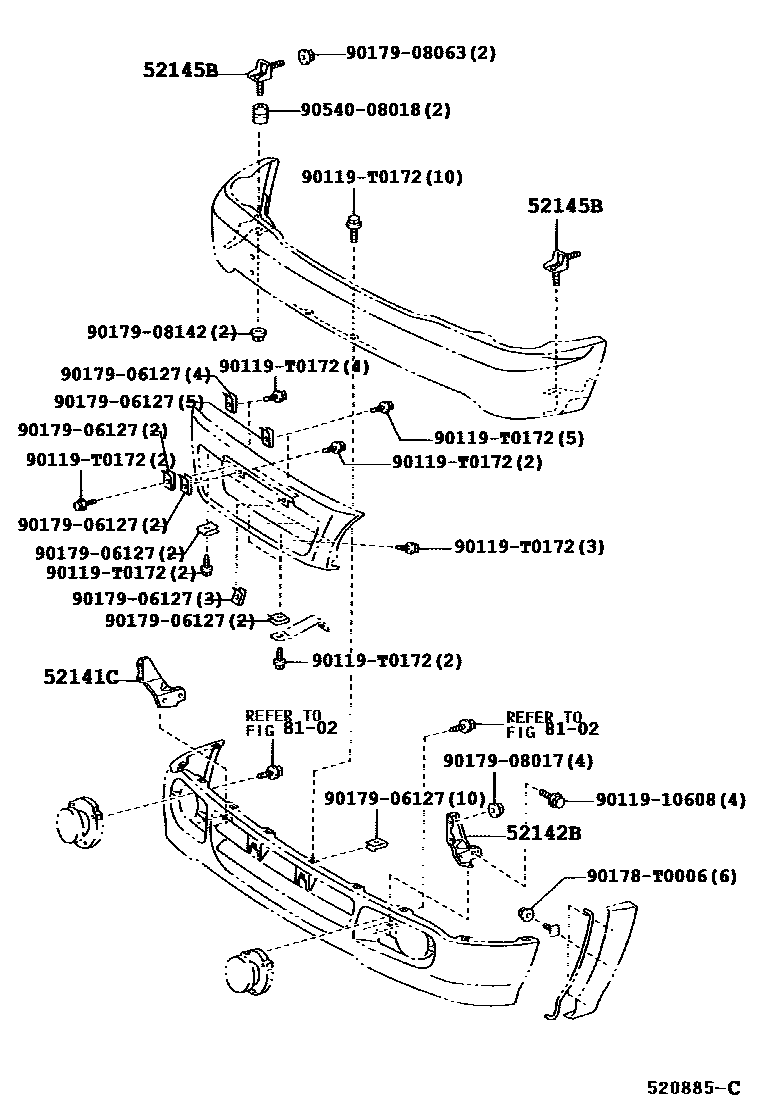

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111E | front bumper stay | 52101-04120 · 52101-04130 · 52101-35360 · 52101-35370 · 52101-35400 · 52101-35410 · 52101-35430 · 52101-35600 · 52101-35610 · 52101-35640 |
| 52114A | Front bumper extension mounting bracket | 52114-35020 |
| 52141C | Front bumper right arm | 52141-35060 · 52141-35080 |
| 52142B | Front bumper left arm | 52142-35060 · 52142-35080 |
| 52145B | Front bumper side mounting bracket | 52145-89102 |
| 52411 | Front bumper anti-collision bar | 52401-35030 · 52401-35040 |
| 52413A | Front bumper right bumper pad | 52413-35020 · 52413-35030 |
| 52414 | Front bumper left bumper pad | 52414-35010 · 52414-35020 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-35040 · 52437-35080 |
| 52438 | Front bumper left anti-collision bar cover | 52438-35020 · 52438-35030 |
